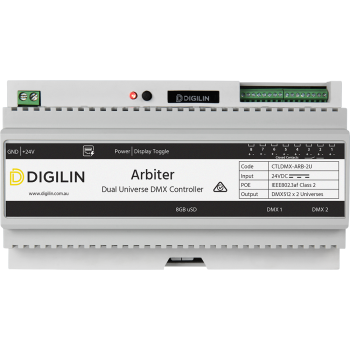

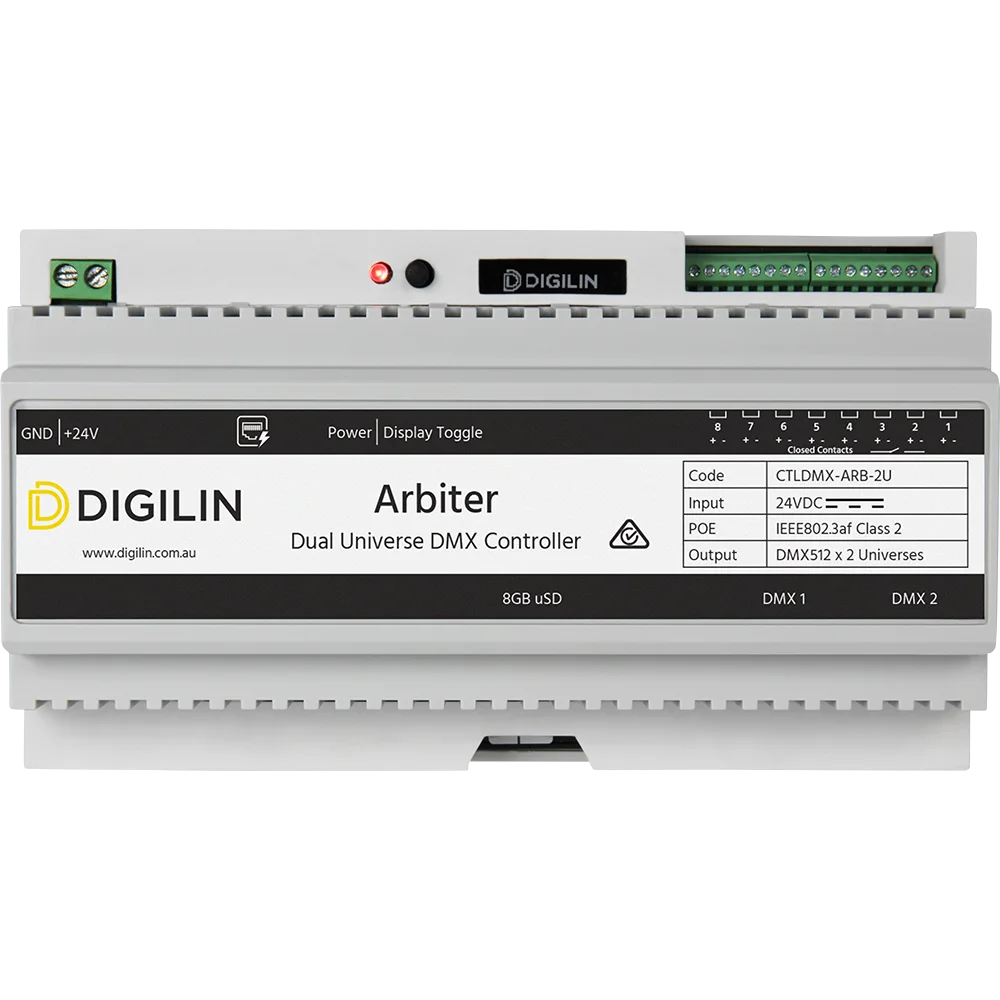

Arbiter + Studio 512

Sophisticated Ethernet-based DMX controller and show creation software

Overview

Combining unparalleled performance, sophistication and versatility into an intuitive, easy-to-use platform, Arbiter represents the pinnacle of DMX control technology for small to medium size installations. Arbiter features two DMX universe outputs and stores approximately 255 shows created with Studio 512, Digilin’s show creation and device configuration software. Commands to play these shows are delivered by the manual interface, closed contact triggers, time scheduling and BMS system inputs (UDP broadcasts).

The device is configured via the administrator interface, in which users can group fixtures, schedule shows, program closed contact trigger commands, change device settings and monitor statuses, amongst other functions. The administrator interface is also accessible on Studio 512 on the ‘Device Config’ page. The user interface provides in-the-moment manual control, enabling users to play pre-programmed shows, turn fixture groups on/off or dim and set colour outputs. Each interface is independently password protected. Arbiter features eight closed contact triggers, empowering users to synchronize lighting effects with external events effortlessly; for example, by employing PIR sensors to trigger dynamic colour-change fades.

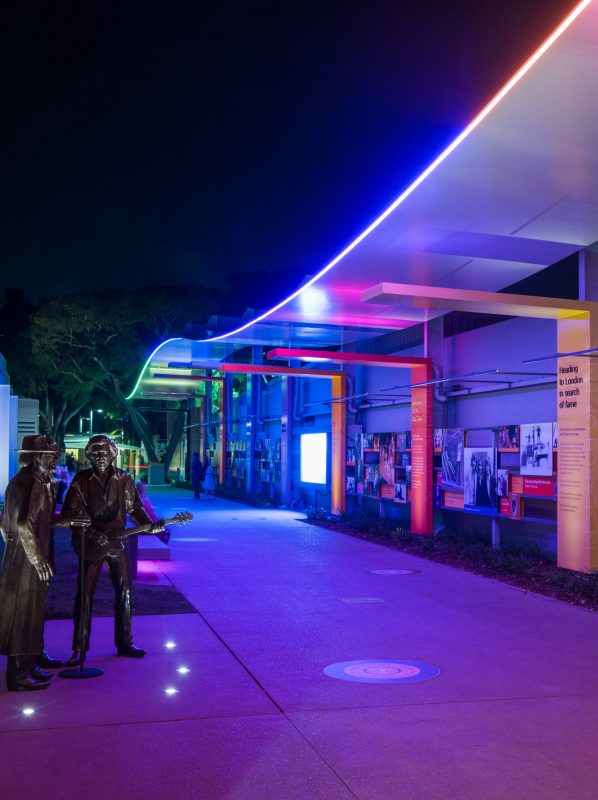

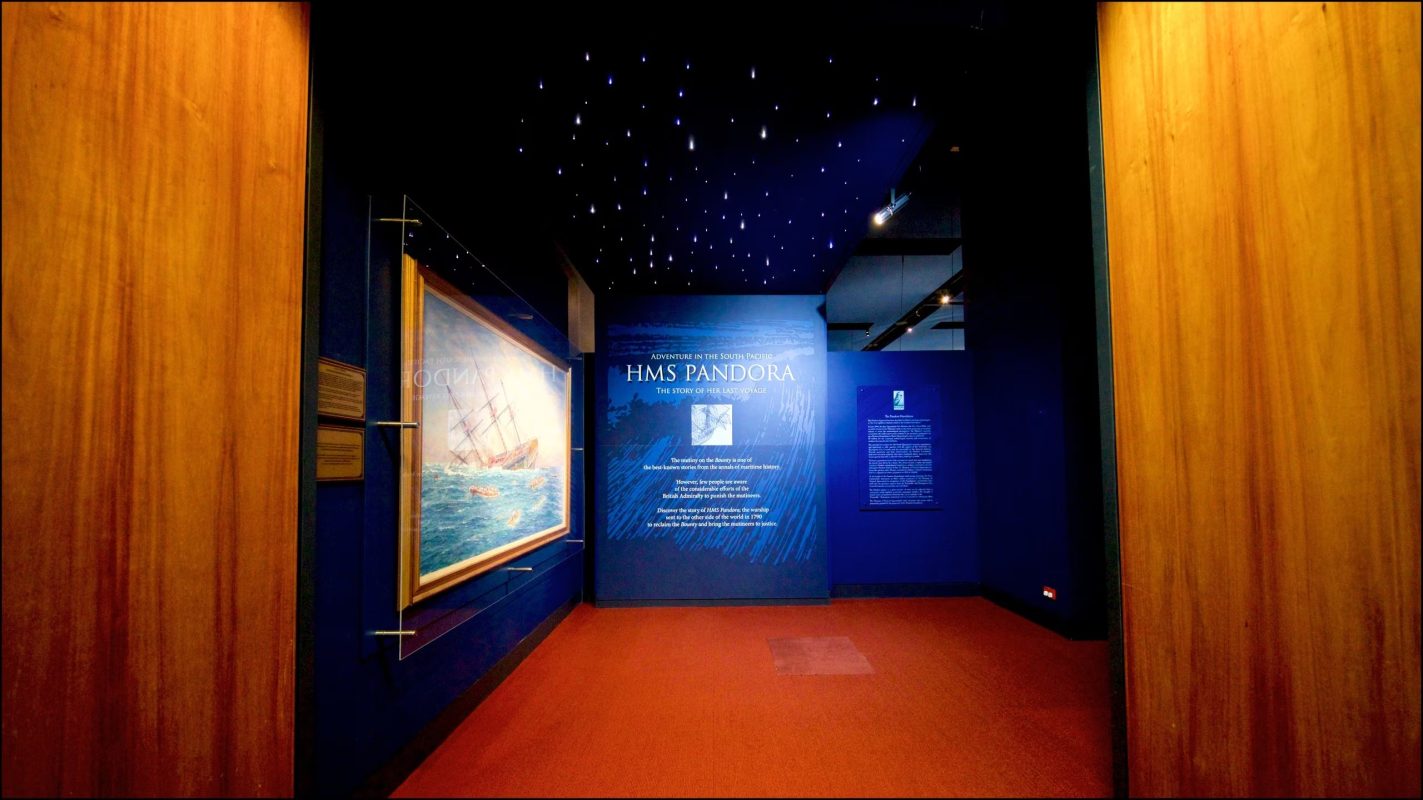

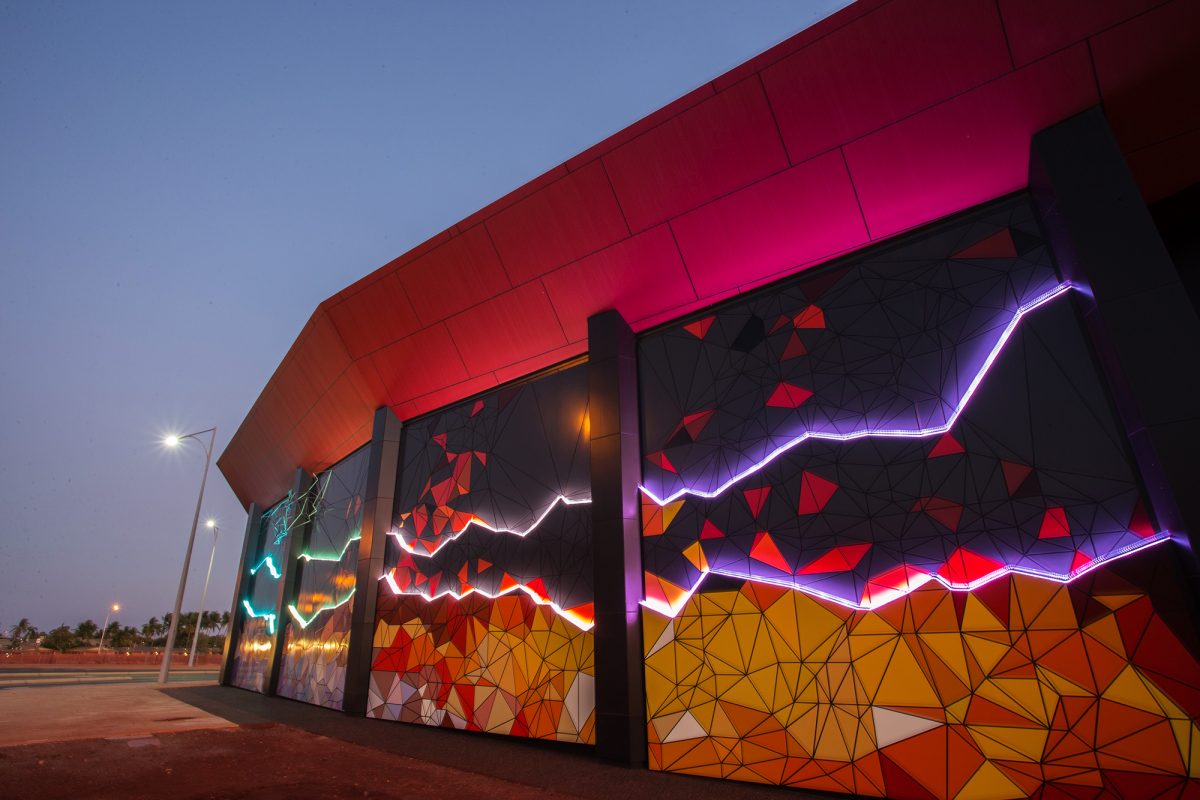

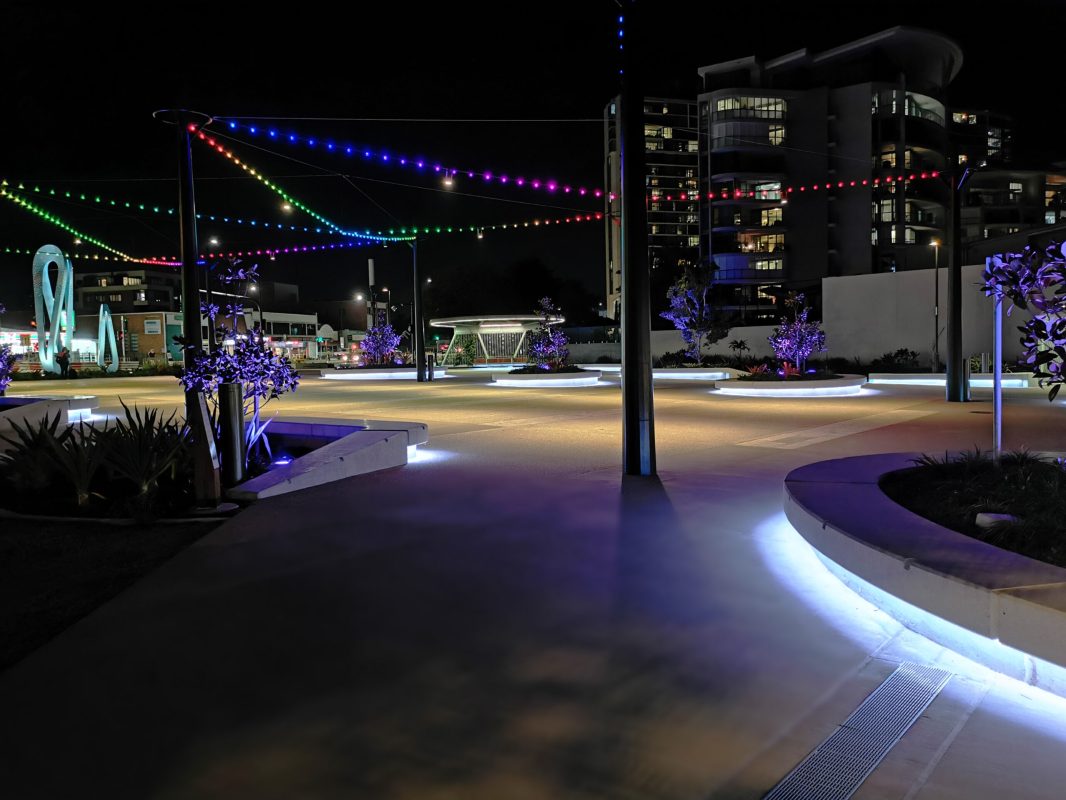

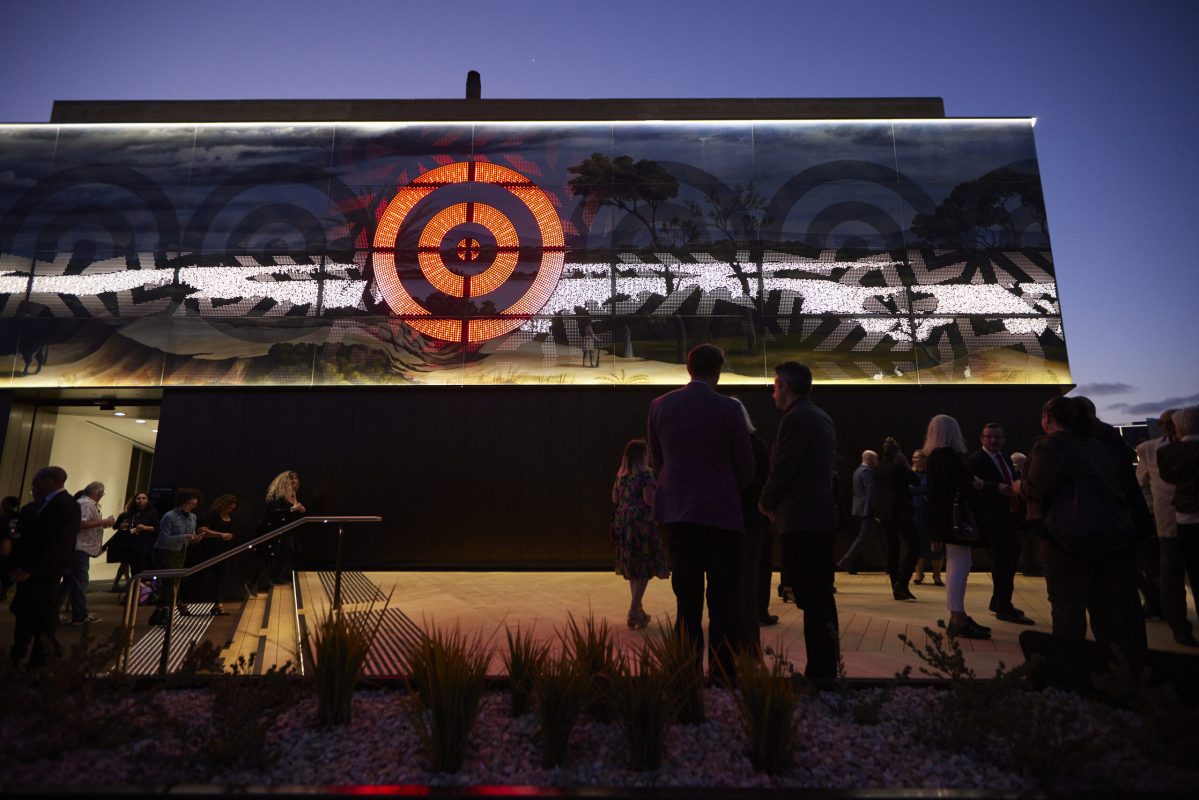

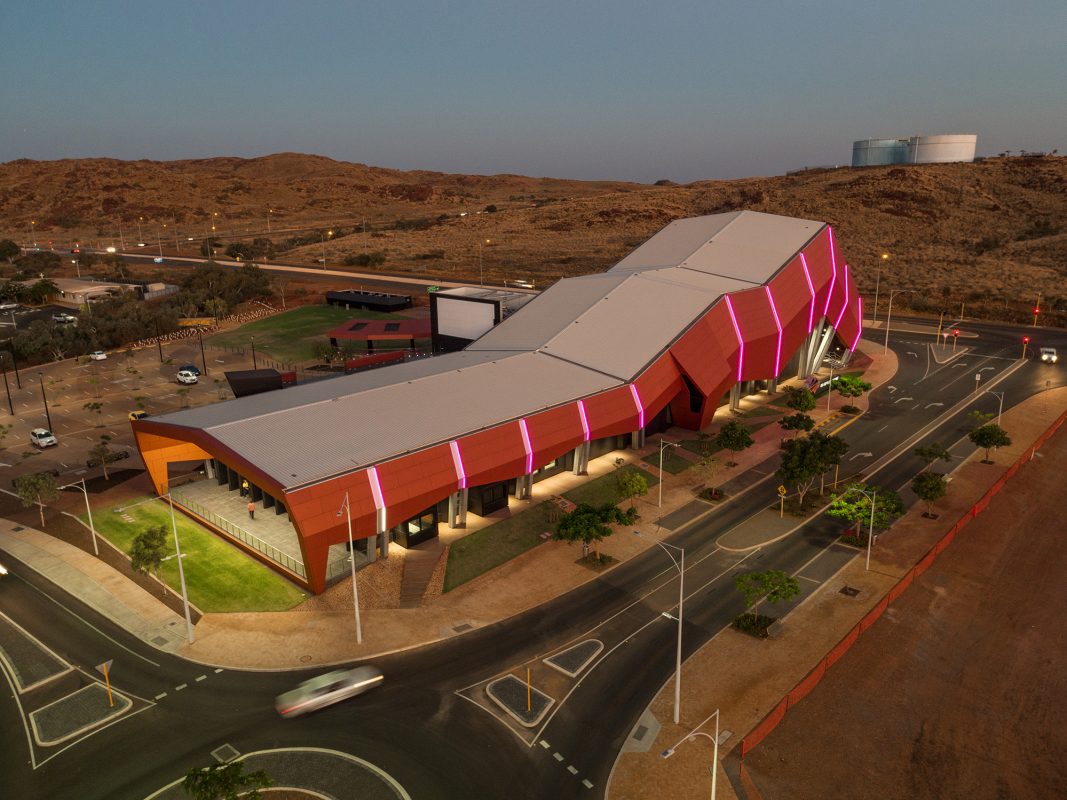

Arbiter operates on Power over Ethernet (PoE) technology, streamlining setup and reducing clutter in your installation. The device’s intuitive display screen provides at-a-glance monitoring of device status and settings, even in low-light environments. Whether you’re designing dynamic colour-change shows for your building facade, managing public art installations, a community and events centre, or an interactive museum exhibit, Arbiter and Studio 512 offer unparalleled flexibility and accommodate even the most complex lighting configurations with ease.

Elevate your lighting experience to new heights with Arbiter & Studio 512 - where performance, sophistication and versatility are combined to make managing your DMX lighting installation simple and easy.

Arbiter is proudly designed and manufactured by Digilin in Australia.

Download the Arbiter + Studio 512 Product Guide to learn more about the device's capabilities and the power of our Studio 512 software.

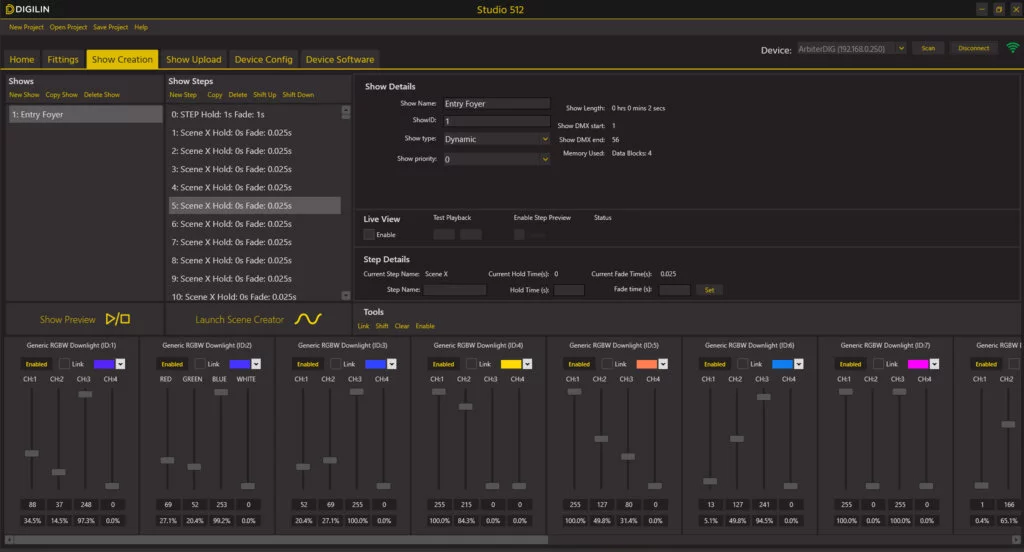

Studio 512

Digilin’s DMX show creator and device configurator software enabling the simple creation of mesmerising DMX shows up to 1024 channels in size

Integrates into BMS Systems

Arbiter can be configured to receive commands by UDP broadcasts from BMS systems

Closed Contact Triggers

2 different commands to start and stop any of the devices 255 shows can be sent by each of the 8 isolated closed contact triggers, which could include PIR sensors and bell switches.

Time Tracking and Scheduling

Arbiter tracks time through SNTP with second-yearly control enabling users to schedule shows

Sunset/Sunrise Calculations

Arbiter automatically determines sunrise and sunset times by longitude and latitude coordinates

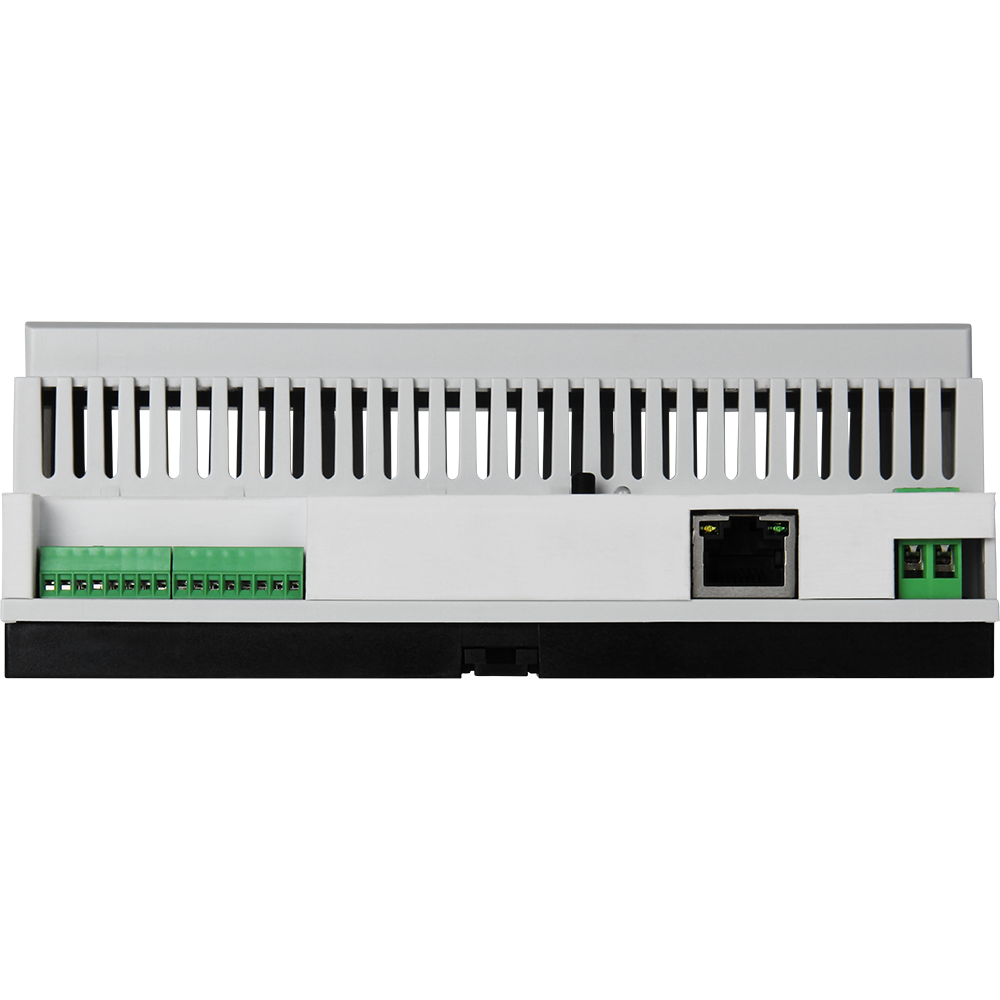

POE or 24V DC

Arbiter can be powered by POE IEEE802.3af Class 1, or via 24V DC screw terminal inputs, providing versatility in how you decide to set up your installation.

Dual DMX Outputs

Arbiter can control two DMX universes, enabling shows spanning 1024 channels. It can run 4 x 1024 channel shows or 20 x 256 channel shows at the same time.

Configurator

Categories: Controllers

Product: Arbiter + Studio 512

Variant Code: CTLDMX-ARB-2U

Specifications

Outputs
Control Protocol	DMX (RDM)
Channels	2 DMX Universes (1024 Channels)
No. Shows Running Simulatenously	10 x 256 Channel Shows, 4 x 1024 Channel Shows
DMX Show Storage on Device	255 (approx)
DMX Load	0.125 Standard Devices
DMX Connectivity	RJ45 (CAT5)
Inputs
Power	PoE IEEE802.3af Class 1 (3.84W), or 24V DC
Input Current (24V DC)	200mA
Command Delivery	User Interface (web application)
	Closed Contact Triggers
	Time Scheduling
	Secondary BMS System Outputs
Flash Storage	uSD HC 8GB
Fuse (resettable)	500mA
Physicals
Build Material	Polymer
Mounting	35mm DIN rail
IP Rating	IP20
Weight	220g
Dimensions	157mm (H), 90mm (W), 58mm (D)
Functions
Refer to Product Guide and User Manuals for further information on the extensive capabilities and functions of Arbiter + Studio 512 (available in the downloads section).
