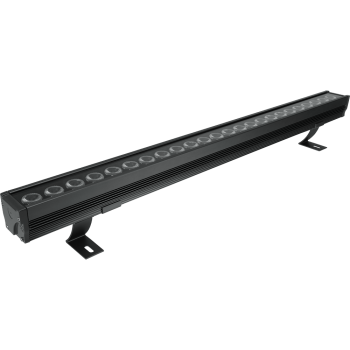

Calibre_Iso_Web

Calibre

High output exterior linear system for facade illumination

Overview

Dimensions

Configurator

Downloads

Overview

Calibre is a high output exterior linear system designed for the illumination of facades. Outputting approx. 7000lm in fixed white and 5000lm in RGBW, Calibre can illuminate the highest of facades with uniformity. The versatile system has an adjustable mounting bracket enabling a 180° range of motion and can be configured with a wide assortment of beam options, ranging from spot to wide beams and multiple elliptical outputs.

The ability to house drivers internally allows Calibre to operate as a single neat package, reducing on-site installation complications. The system's broad range of optical options allows it to create a variety of exterior lighting effects, giving specifiers a greater ability to achieve their design goals rather than compromising on outcomes.

Calibre is manufactured by Digilin in Australia.

Variety of Beam Options

Calibre offers an array of beam options ranging from ultra narrow to wide and multiple ellipticals

Massive Lumen Deliveries

Calibre can deliver more than 6000lm in fixed white and 5000lm in RGBW (1 metre version)

Integral Drivers

Containing the driver within the system’s body allowes the fixture to be sent from our production facility as a single neat package

Protected and Durable - IP66

With an IP66 rating, Calibre is a reliable solution in exposed exterior applications

Dimensions

Configurator

Categories: Flood, Grazers and Wall Washers, Linear Systems
Product: Calibre
Variant Code: CLB
Generate Datasheet
Clear
  • Specifications
Version 500mm 1000mm
LED Colour White RGBW White RGBW
CCT/Wavelength 2700K, 3000K, 4000K – 2700K, 3000K, 4000K –
LED Lumens 3475lm 2540lm 6950lm 5085lm
Delivered Lumens 2470lm 1780lm 4940lm 3560lm
Connected Load (inc. driver) 32.5W 29W 65W 58W
Typical CRI 90+ 90+
Performance L90(24k) > 145,000hrs (white) L90(24k) > 145,000hrs (white)
Length 508mm 995mm
Width 75mm 75mm
Weight 2.1kg 4.1kg
Height 63mm (profile not inc. brackets)
Beam OptionSpot, Narrow, Medium, Medium Oval, Wide, Wide Oval
Driver PlacementIntegral
ControlDALI, DMX, Non-Dim
Finish ColourSilver-Grey
MountingSurface Mount with Adjustable Brackets
Build MaterialExtruded Aluminium
IP RatingIP66

Downloads

Install Guide
Install Guide
Install Guide
Install Guide
Photometrics
Photometrics
Photometrics
Photometrics
