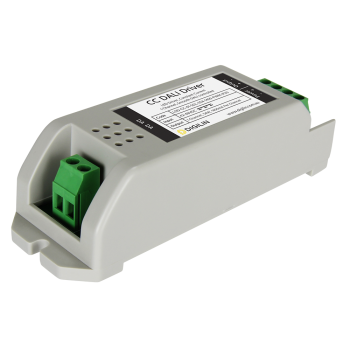

LDD-CC-01-SDL-054-1400-PWM-IP20_Right_1000px

CC Smooth DALI Driver

Precision control of CC luminaires with a super smooth dimming curve

Overview

Dimensions

Configurator

Series

Gallery

Overview

Developed specifically for performing arts theatres, convention centres and other auditorium spaces in response to demand from discerning facility managers, Digilin's Smooth DALI technology allows for ultra-precise dimming control at minute light levels.

With over 65,000 dimming steps from 100% down to an extraordinary minimum of 0.009% (more than 100x lower than most), light-level transitions become almost imperceivable even at extremely low levels. This allows for smooth, atmospheric fade-to-black transitions at the start of performances and exceptionally comfortable "lights on" transitions at the end. These constant current drivers operate at currents ranging from 350mA to 1400mA and are commonly paired with Digilin's high-output interior luminaires from downlight families such as the Freedom, Liberty and Envoy.

The most precise DALI dimming technology in the world, Digilin's CC DALI Drivers are designed and manufactured in Australia and are extremely reliable.

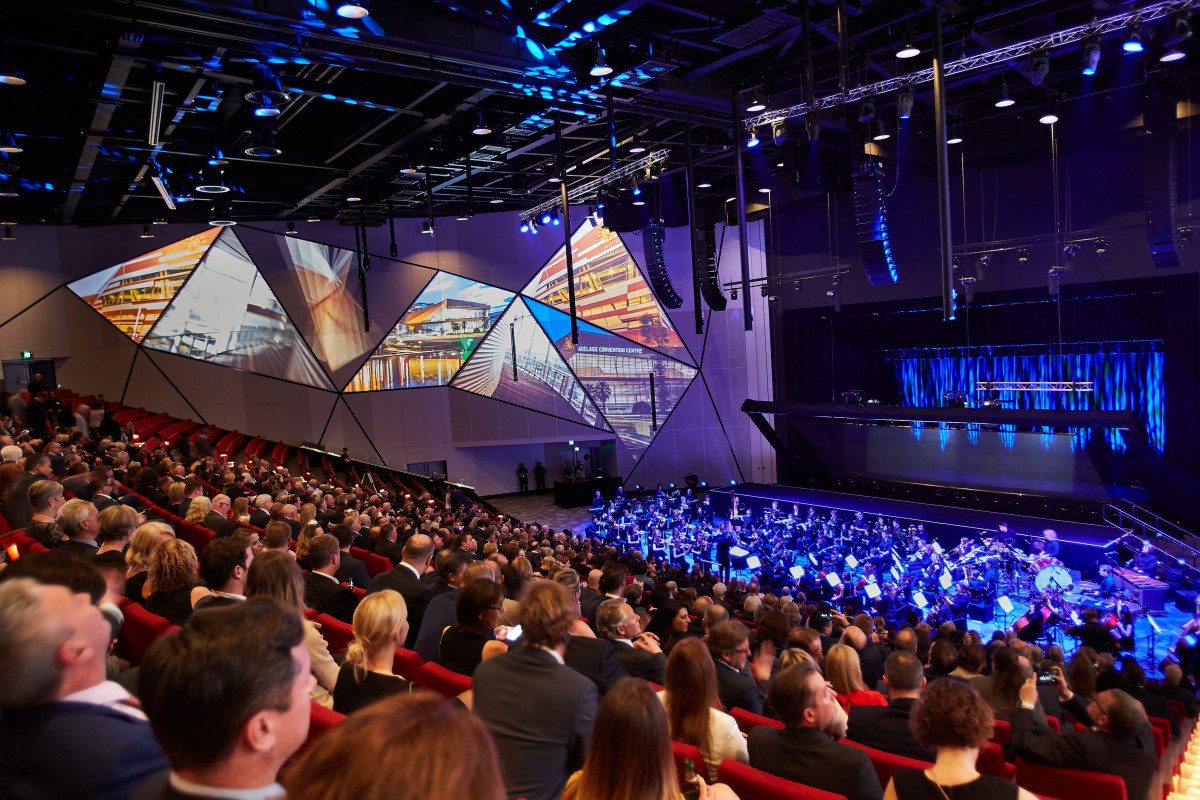

Culture and Community

Smooth DALI

Smooth DALI technology allows for over 65,000 dimming steps down to 0.009%

Manufactured in Australia

CC Smooth DALI drivers and designed and manufactured by Digilin in Australia

PWM dimming

CC Smooth DALI drivers use pulse width modulation to effect dimming

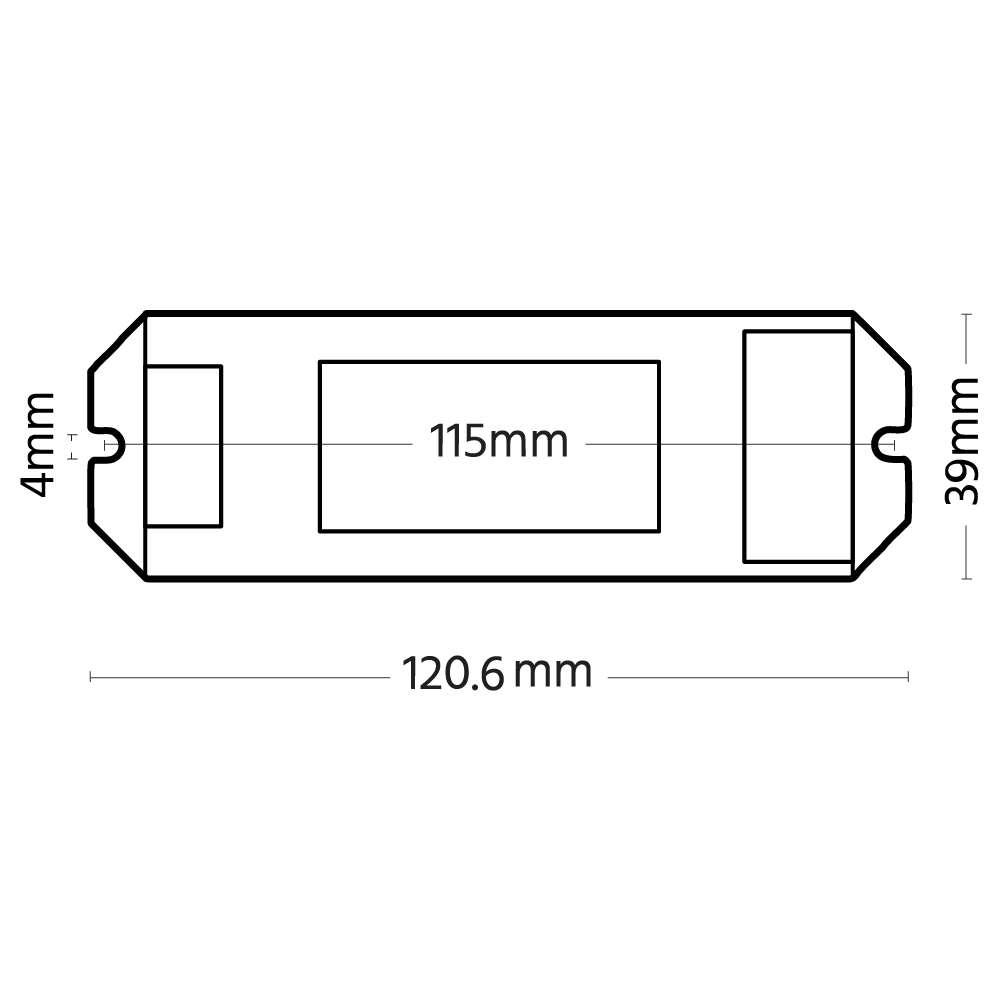

Dimensions

Configurator

Categories: Constant Current Drivers
Product: CC Smooth DALI Driver
Variant Code: LDD-CC-XX-SDL
Generate Datasheet
Clear
  • Specifications
Drive Type Constant Current
Control Protocol Smooth DALI (precision dimming at low light levels)
Channels 1
Max. Power per Channel 10W 13W 15W 19W 27W 40W 54W
Current per Channel 270mA 350mA 700mA 500mA 700mA 1050mA 1400mA
Output Voltage Range 24-39VDC 24-39VDC 16-22VDC 24-39VDC 24-39VDC 24-39VDC 24-39VDC
Input Voltage 42-48VDC 42-48VDC 24VDC 42-48VDC 42-48VDC 42-48VDC 42-48VDC
Output Type Common Anode PWM
PWM Frequency 122Hz
Dimming Range 0.009-100%
Operating Temperature -20 to +40 degrees Celsius
Mounting Direct Fix via screws or Din Mount
Build Material High Temp ABS
IP Rating IP20
Dimensions 120.6mm (L), 39mm (W), 32mm (H)
Weight 65g
Class I/II/III III

Series

PosiTouch

Full DALI control features from a simple wall panel
Controllers
DALI

PosiTouch

Control Protocol: DALI
Command Delivery: Touch Interface
Channels: 64
Suitability: White, Tuneable, Backstage

CV Smooth DALI Driver

Precise control of CV systems with a super smooth dimming curve
Constant Voltage Drivers
DALI

CV Smooth DALI Driver

Drive Type: Constant Voltage
Control Protocol:
Smooth DALI
Channels: 1, 3
Suitability: White, RGB

CV DALI Driver

Reliable, high capacity DALI driver for constant voltage systems
Constant Voltage Drivers
DALI

CV DALI Driver

Drive Type: Constant Voltage
Control Protocol:
 DALI
Channels: 1, 2 or 3
Suitability: White, Tuneable White, RGB

Gallery

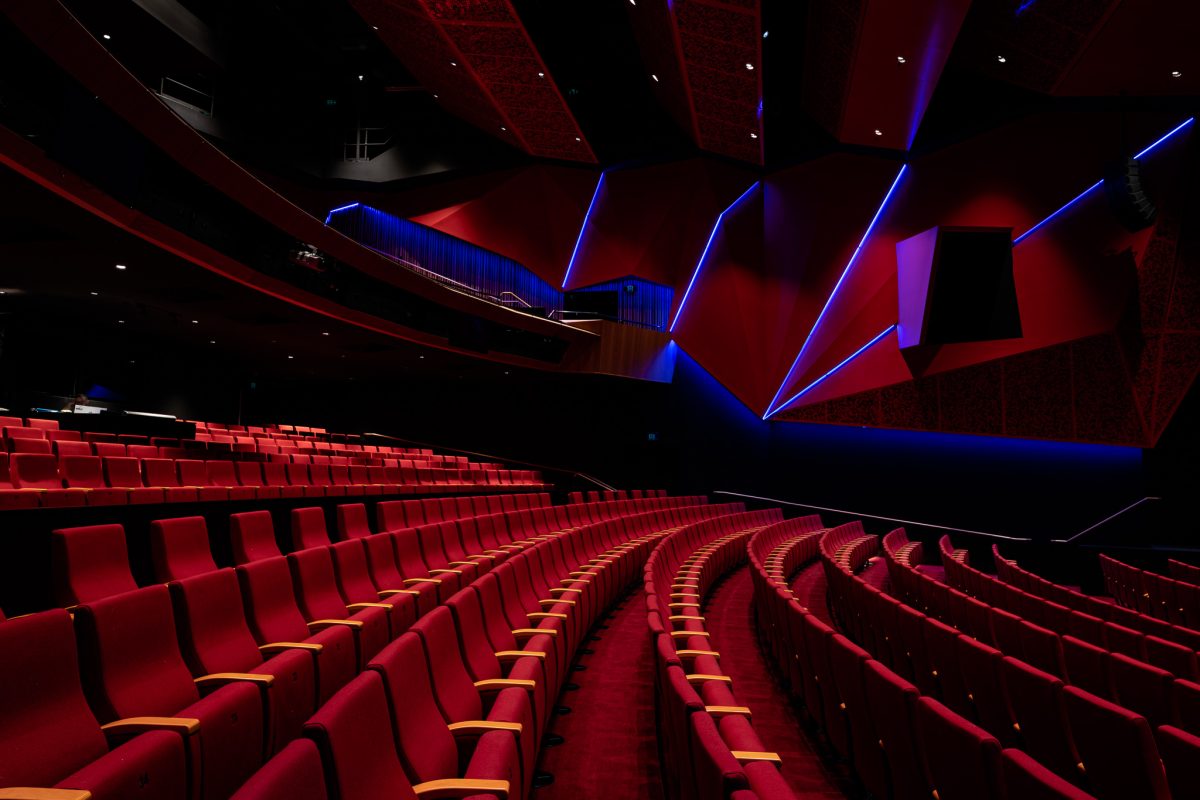

Gippsland PAC A 2000px
Culture and Community

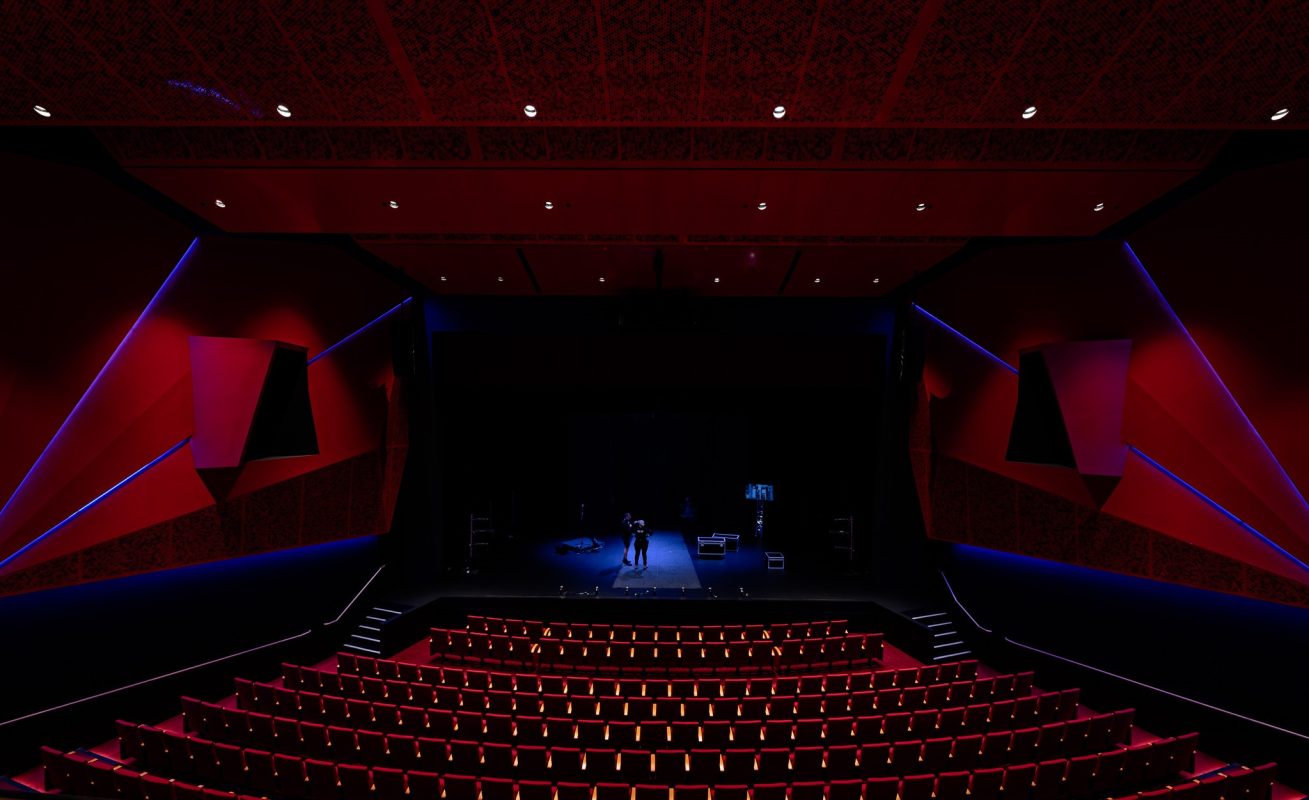

Gippsland PAC B 2000px

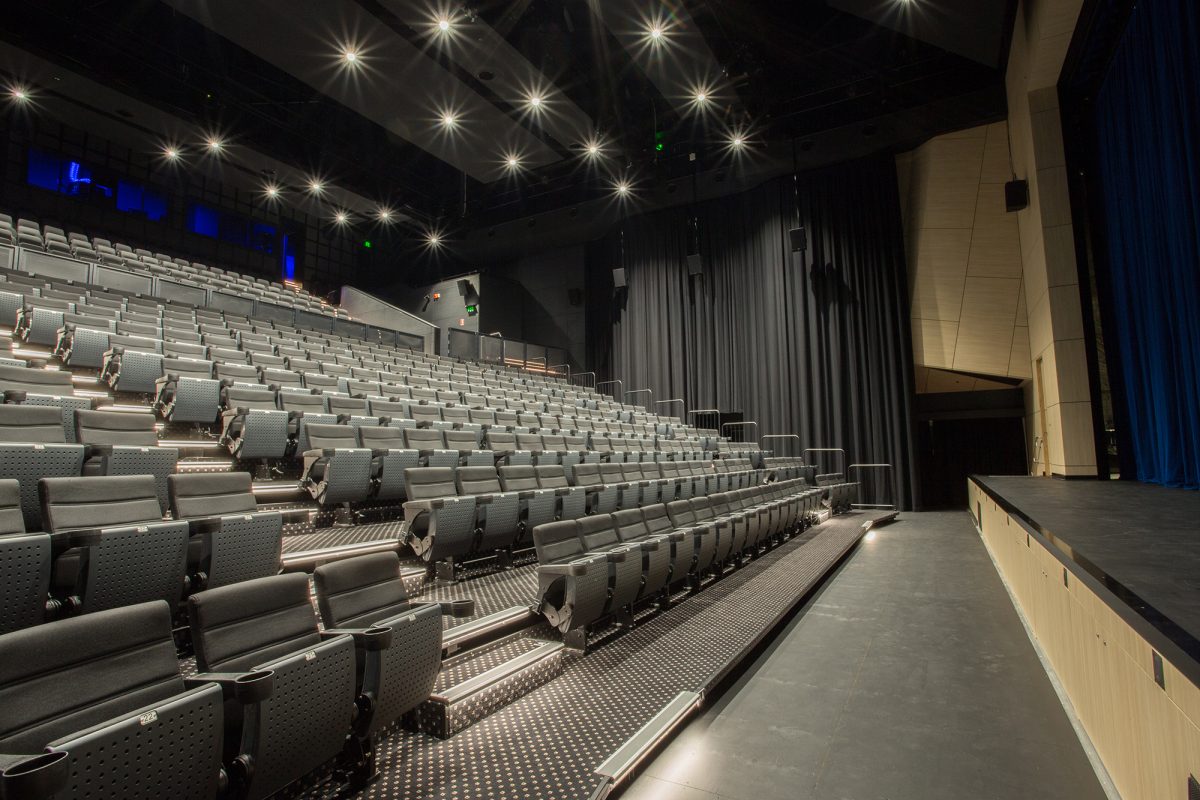

REAP_stairs 1_2000px

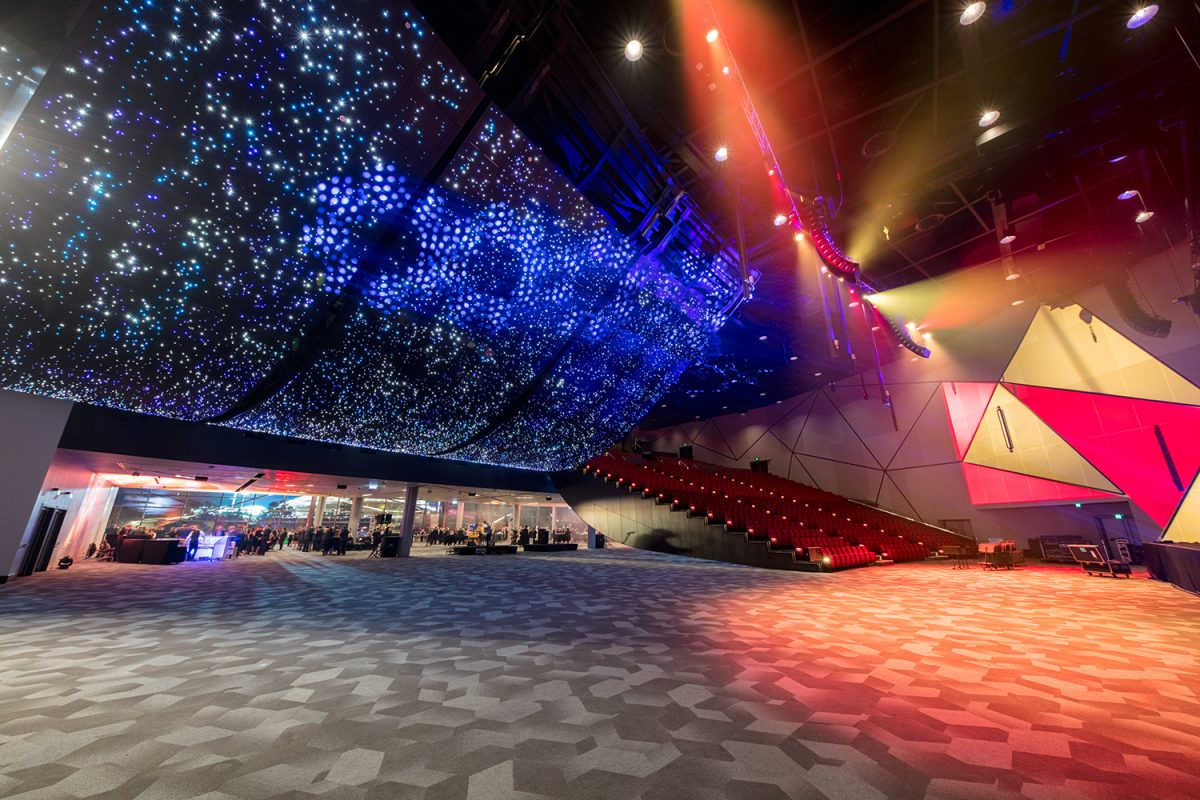

ACC - 1500px
