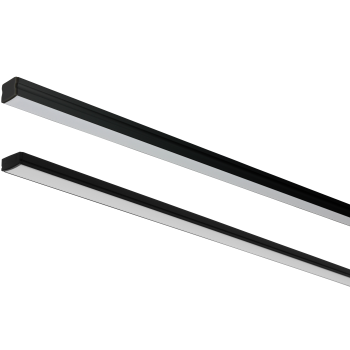

Compact

Versatile compact linear systems for general lighting applications

Overview

Versions

Configurator

Downloads

Gallery

Overview

Compact Linear systems are based on a series of extremely compact profiles, which when combined with Digilin's broad range of LED options, creates an ultra-versatile linear lighting system for tight spaces.

Shallow versions are adhesive fix only and have a depth of less than 9mm, the shallowest dot-free linear system available on the market. These are only available with fixed white, whereas standard depth versions accommodate dot-free tuneable white, RGB and RGBW options as well. Standard body depth versions are available as adhesive fixed or recessed with spring clips, which is best for installation into plasterboard.

All Digilin linear systems are manufactured in Australia to custom project lengths and supplied with factory-fitted connectors using Digilin's chemical anchoring process for super durability and ease of installation. The system can undergo Digilin's shield exterior coating service to upgrade its protection to an IP65 rating for outdoor applications.

Shallow & Standard Versions

Shallow versions are best in tight spaces and are only available with fixed white, whereas the standard depth version accommodates dot-free tuneable white, RGB and RGBW options as well.

Adhesive or Spring Clip Recessed Versions

Spring clip recessed version is able to be installed into plasterboard ceilings and walls.

Efficient, high CRI LED

High efficacy LED strip with LED lumens ~100lm/W at 90+CRI.

Versions

Shallow Body, Surface Mount
Shallow Body, Recessed
Standard Body, Surface Mount
Standard Body, Recessed
Standard Body, Recessed with Spring Clips
Shallow Body, Surface Mount
Shallow Body, Recessed
Standard Body, Surface Mount
Standard Body, Recessed
Standard Body, Recessed with Spring Clips

Configurator

Categories: Linear Systems
Product: Compact
Variant Code: CMP-017
Generate Datasheet
Clear
  • Specifications
ColourWhiteTuneable WhiteRGBRGBW
CCT/Wavelength2700K, 3000K, 4000K2700K-5700K625nm (Red)
530nm (Green)
470nm (Blue)
625nm (Red)
530nm (Green)
4670nm (Blue)
3000K (White)
LED Lumens900-1500lm/m1210-1310lm/m600lm/m1300lm/m
Power7-11W/m20.4W/m21.6W/m17.7W/m
Input Current275-450mA/m850mA/m900mA/m740mA/m
Typical CRI9090–90
PerformanceL80 (10k) >60,000hrsL70 (10k) >60,000hrsL90 (6k) >36,000hrsL80 (10k) >60,000hrs
Input Voltage24VDC
MountingRecessed, Recessed with Spring Clips, Surface Mount
Body TypeShallow Body, Standard Body
Beam OptionOpal Diffuser, Frost Diffuser, Clear Cover
Finish ColourNatural Anodised Aluminium, White, Black, Custom
ControlMains/Phase, DALI, Smooth DALI, DMX, Bluetooth, Non-Dim
Driver PlacementRemote
Build MaterialExtruded Aluminium
IP RatingIP20 (IP44 & IP65 available)
Dimensions - Shallow Body17.1mm (width), 23.1mm (recessed flange width), 8.8mm (height)
Dimensions - Standard Body17.1mm (width), 23.1mm (recessed flange width), 15.4mm (height)
Dimensions - Standard Body, Recessed with Spring Clips17.1mm (width), 25mm (recessed flange width), 19.5mm (height)

Downloads

Install Guide
Install Guide
Install Guide
Install Guide
Photometrics
Photometrics
Photometrics
Photometrics

Gallery

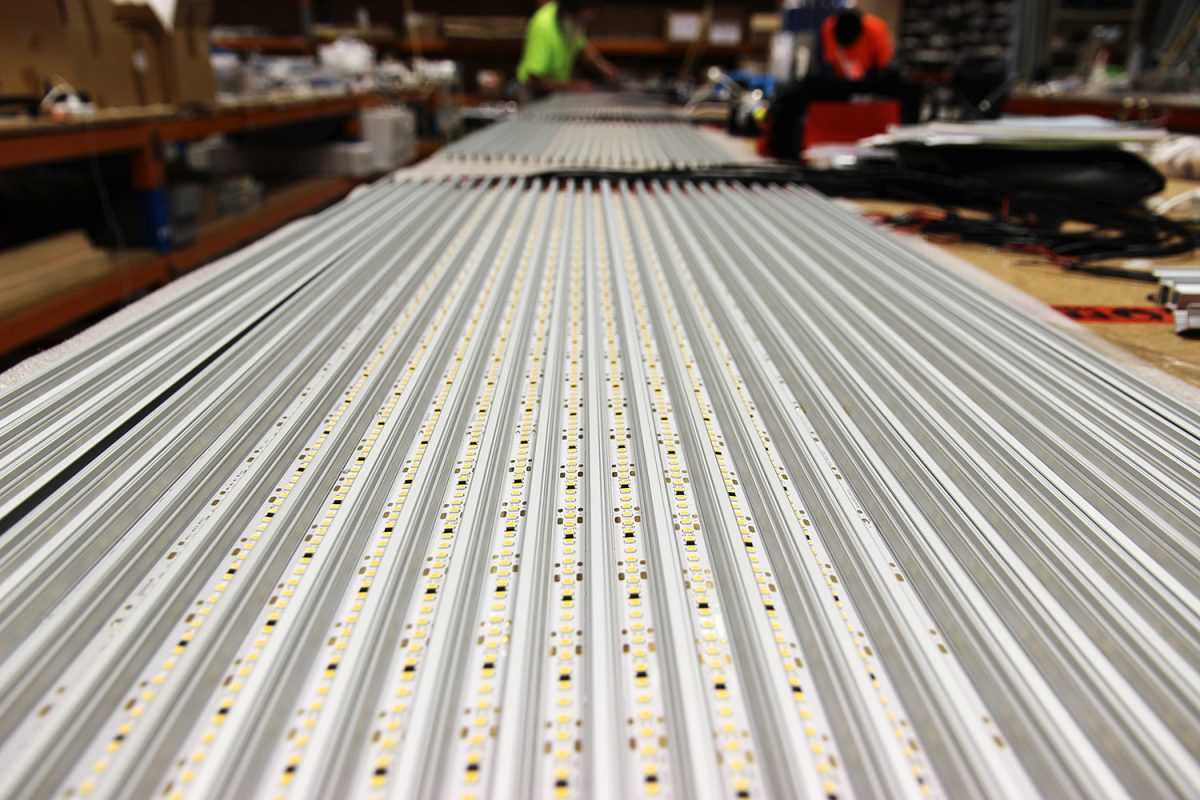

Recess 24 1500px

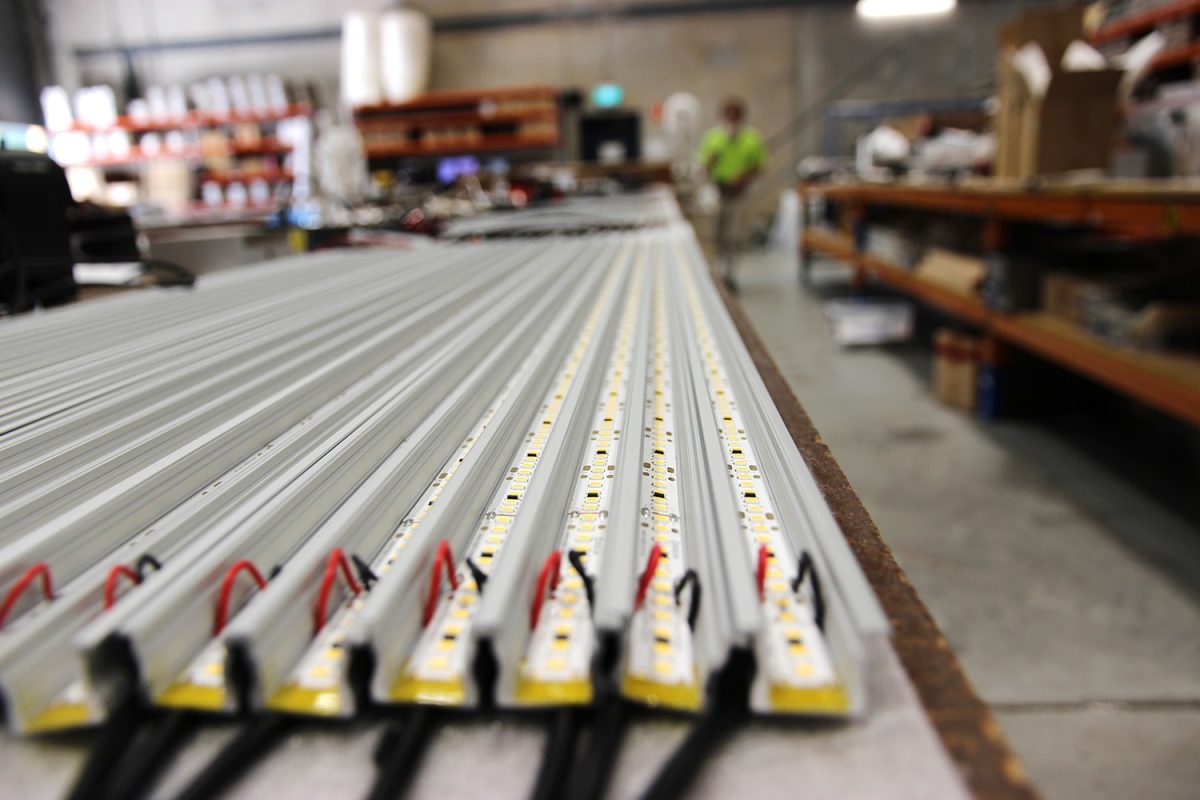

Recess 24_B1500px

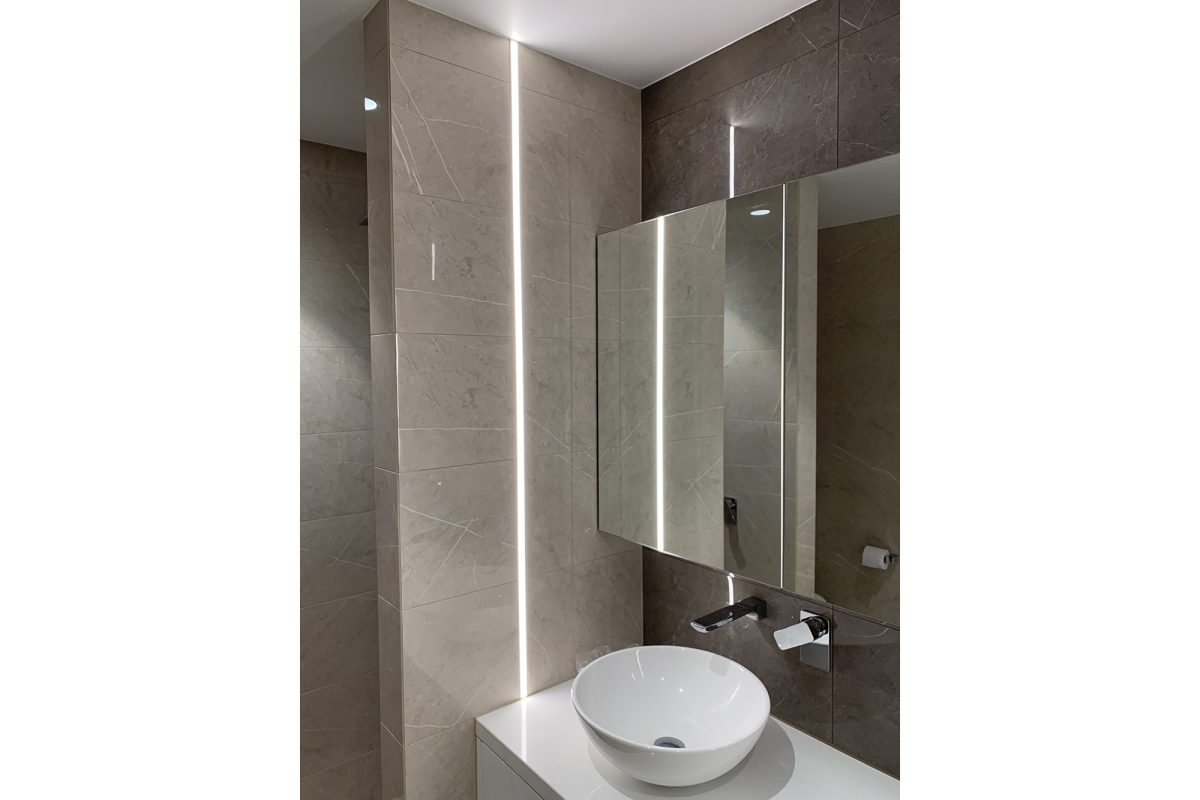

CMP-017-REC-SHA 1

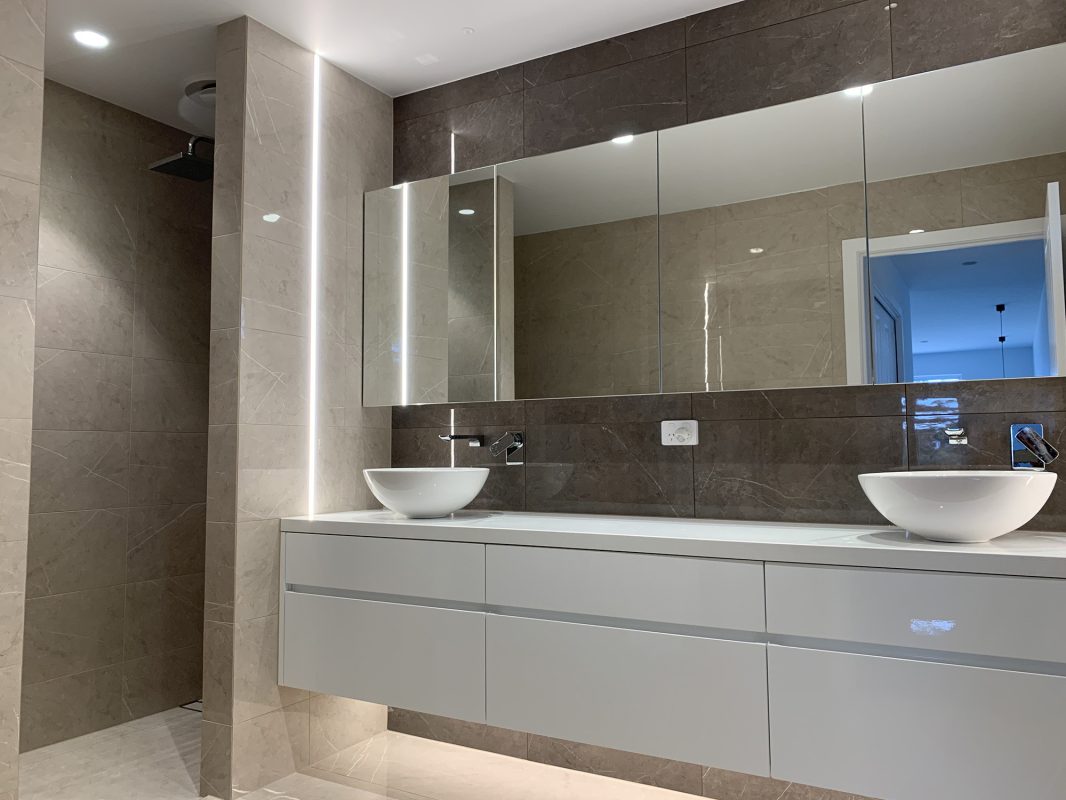

CMP-017-REC-SHA 2

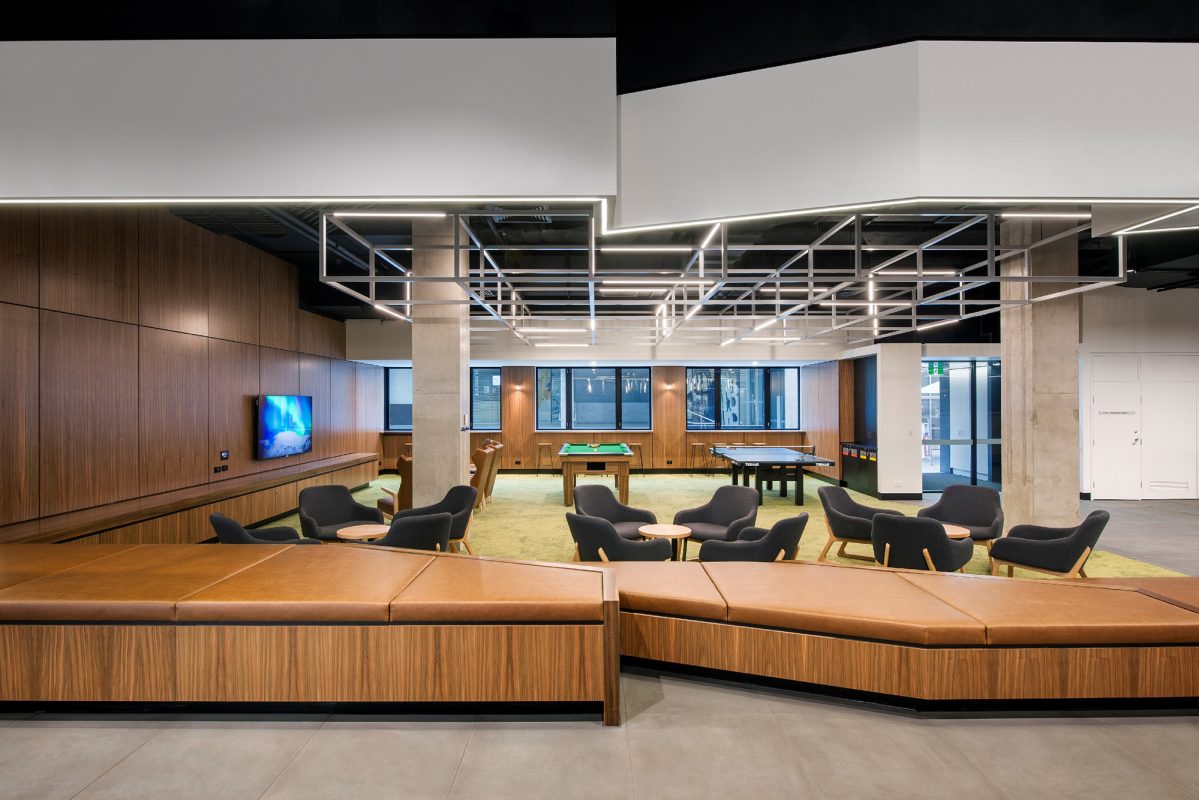

UNi SA Lounge 2 2000px

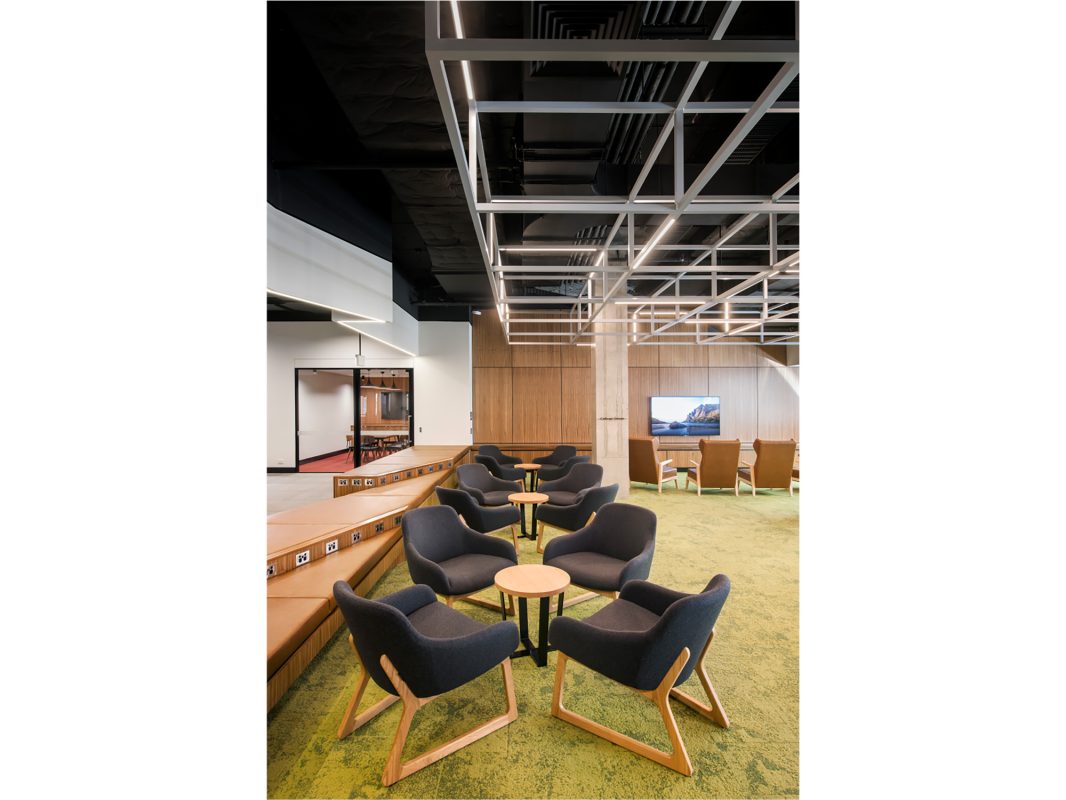

UNi SA Lounge 1 2000px

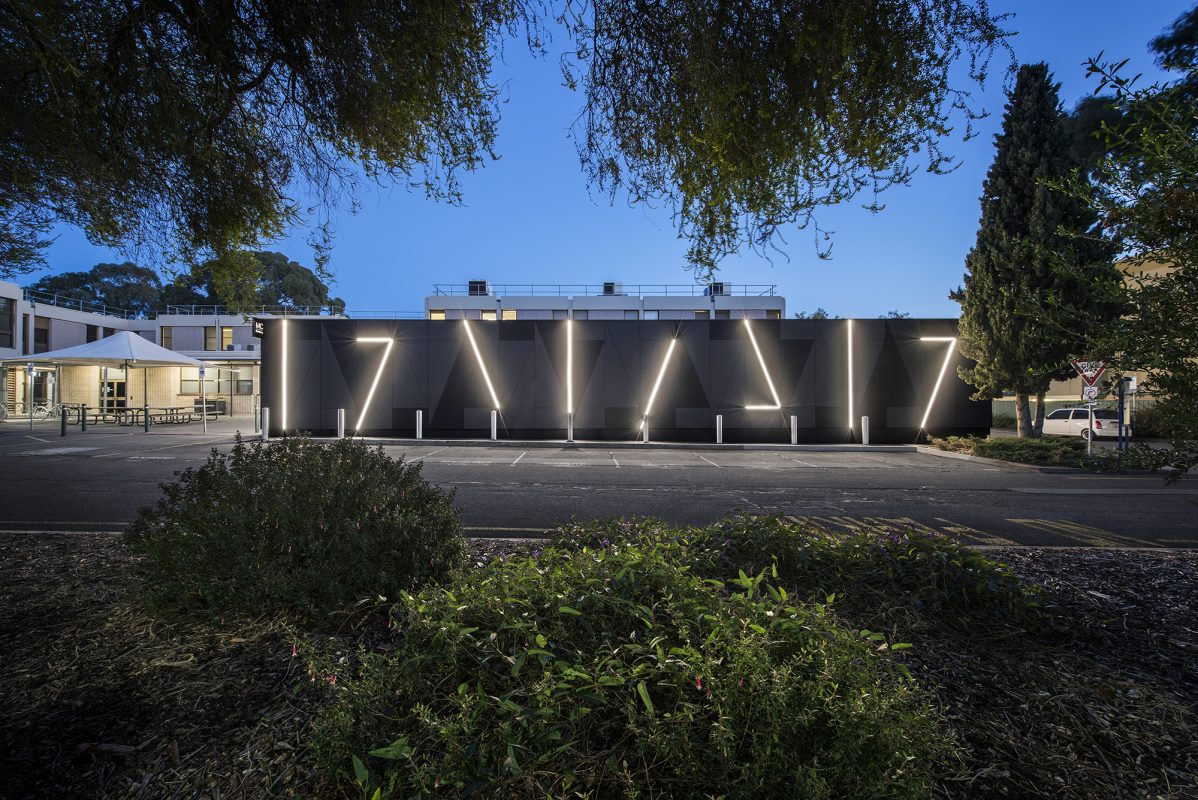

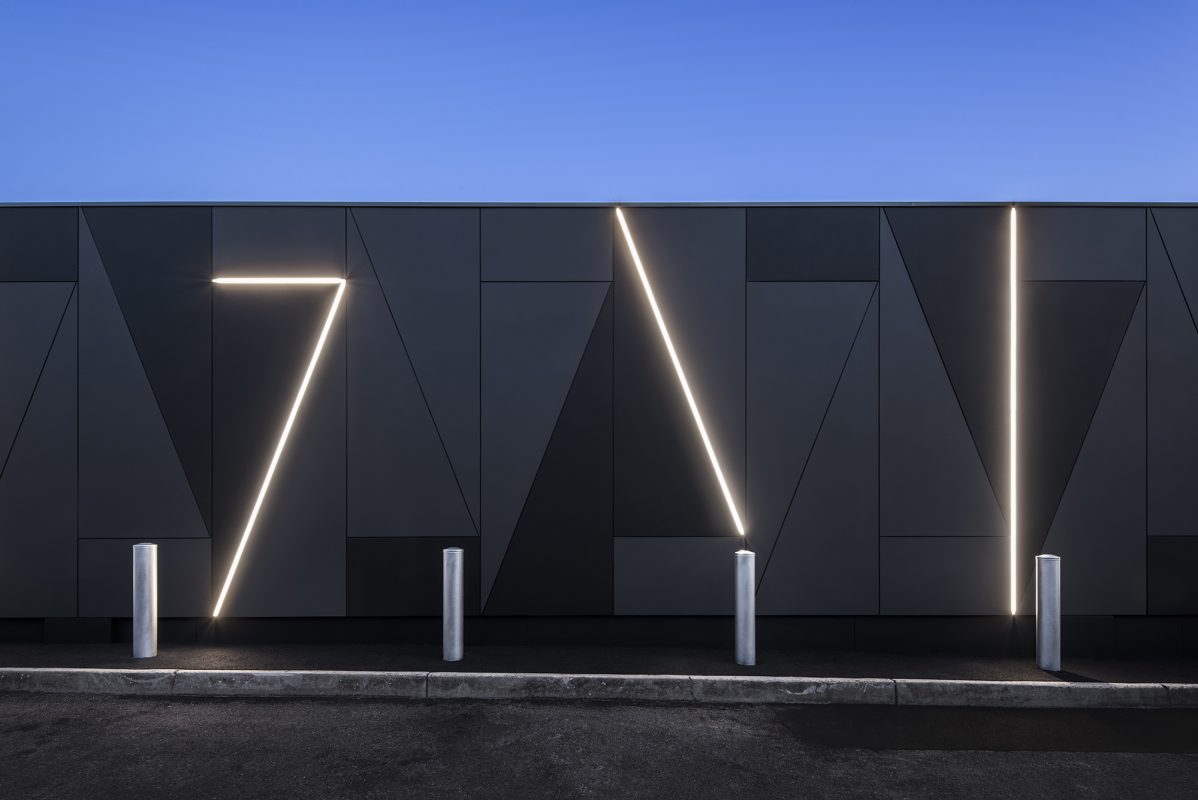

UniSA_SleepResearch_4_2000px
UniSA_SleepResearch_3_2000px

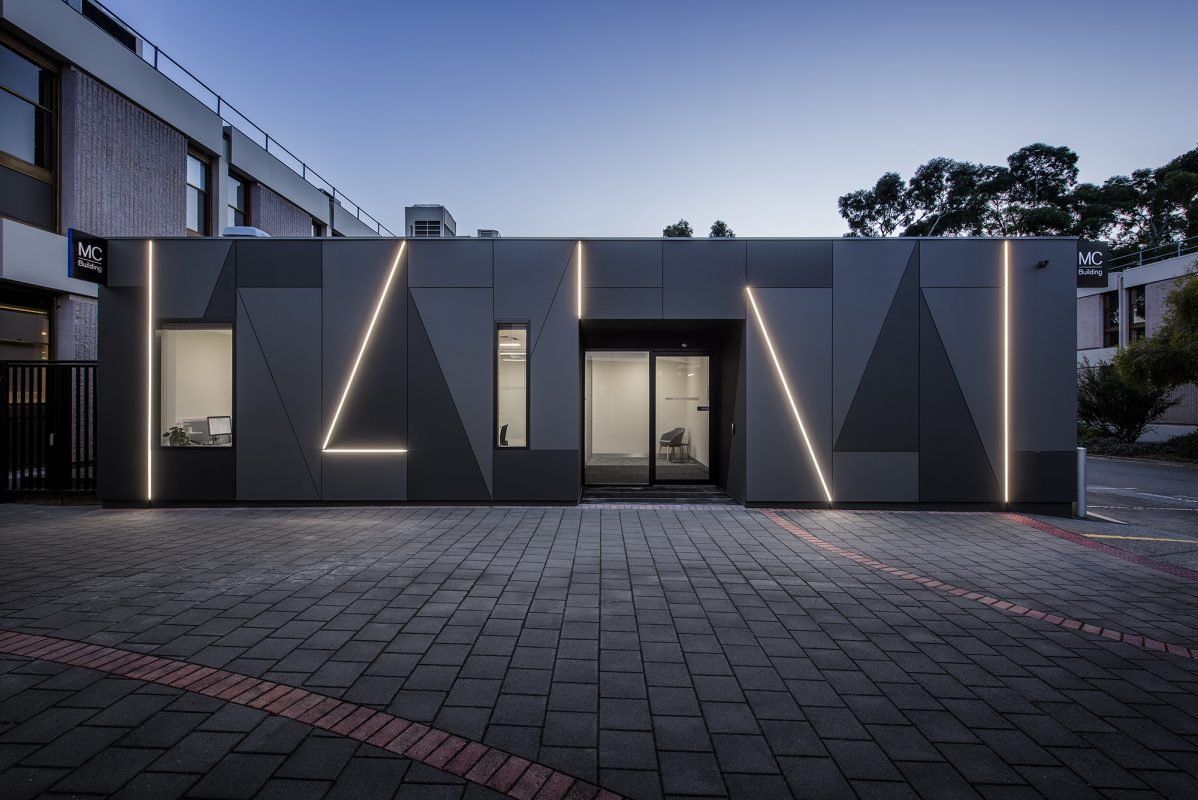

UniSA_SleepResearch_2_200px
UniSA_SleepResearch_1_2000px
