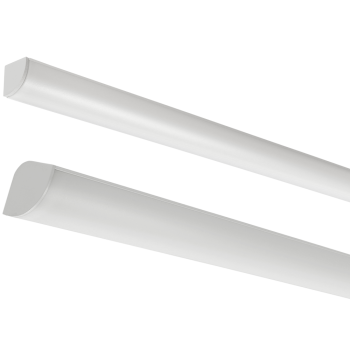

Corner Product Image WHT 1000px

Corner

Corner systems for coves, cabinetry & backlighting

Overview

Versions

Configurator

Downloads

Gallery

Overview

These linear systems are designed to sit neatly into corners and are ideal for cove, cabinetry and backlighting applications. Opal diffusers create a dot-free finish and are recommended for direct-view applications, while clear and frosted covers enable higher efficiency light delivery for situations where the fixtures will not be directly seen.

Corner linear systems are available in two sizes - the 16mm version is very compact and best in tight installation locations, such as under counters and in cabinetry, whereas the larger 30mm version is available for when higher lumen outputs are required.

Offering fixed white outputs ranging from 800-4400 lumens, as well as tuneable white, RGB and RGBW options, Corner linear systems are very customisable.

All Digilin linear systems are manufactured in Australia to custom project lengths and supplied with factory-fitted connectors using Digilin's chemical anchoring process for super durability and ease of installation. The system can undergo Digilin's shield exterior coating service to upgrade its protection to an IP65 rating for outdoor applications.

Education and Research

90 Degree Output Range

Corner linear systems emit light in 90 degree range, ideal for cove, cabinetry and backlighting installations.

Multiple LED Options

Offering fixed white outputs ranging from 800-4400 lumens, as well as tuneable white, RGB and RGBW options, Corner linear systems are very customisable.

2 Sizes

Corner linear systems are available in 16mm and 30mm versions.

Versions

16mm - Curved Diffuser

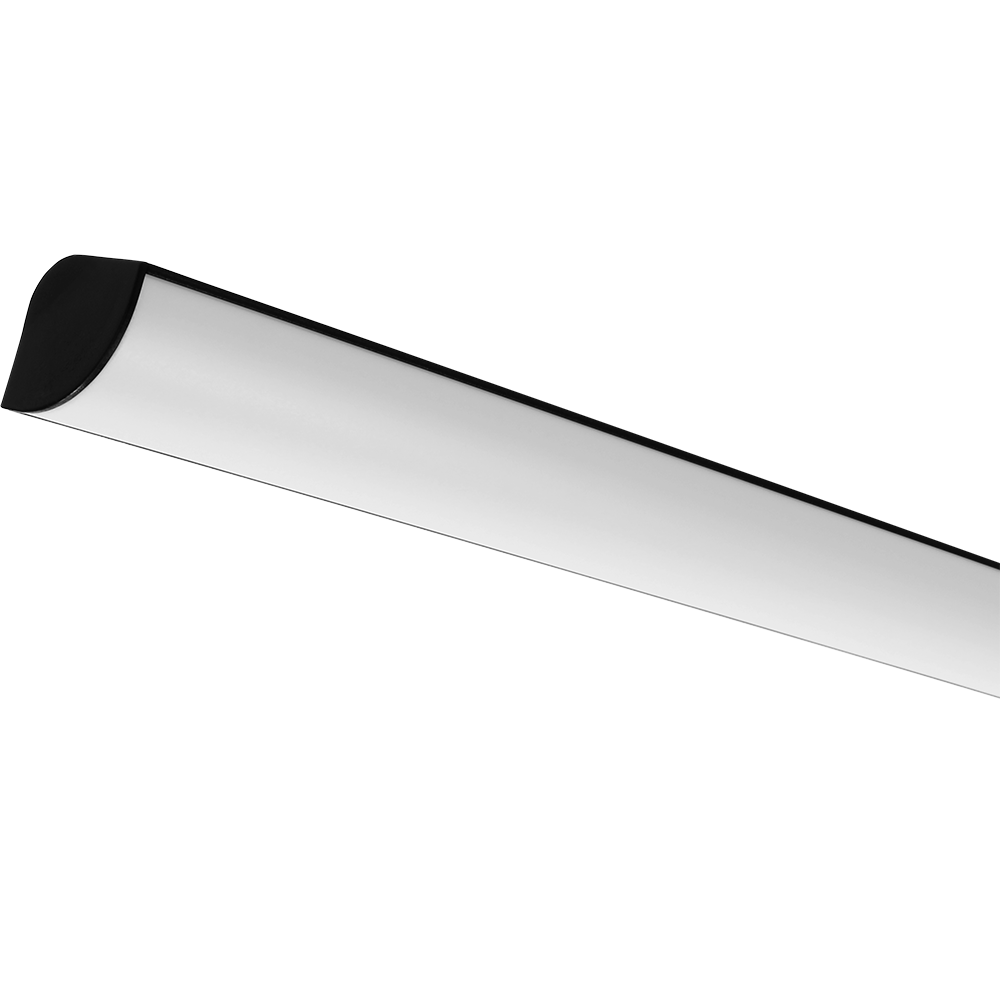

30mm - Curved Diffuser
16mm - Curved Diffuser
30mm - Curved Diffuser

Configurator

Categories: Linear Systems
Product: Corner
Variant Code: CNR
Generate Datasheet
Clear
  • Specifications
ColourWhiteTuneable WhiteRGBRGBW
CCT/Wavelength2700K, 3000K, 4000K2700K-5700K625nm (Red)
530nm (Green)
470nm (Blue)
625nm (Red)
530nm (Green)
470nm (Blue)
3000K (White)
LED Lumens900-3300lm/m1210-1310lm/m600lm/m1300m/m
Power7-26W/m20.4W/m21.6W/m17.7W/m
Input Current275-1055mA/m850mA/m900mA/m740mA/m
Typical CRI9090–90
PerformanceL80(10k)>60,000hrsL70 (10k) >60,000hrsL90 (6k) >36,000hrsL80 (10k) >60,000hrs
Input Voltage24VDC
Body Width16mm, 30mm
MountingSurface Mount
Beam OptionOpal Diffuser, Frost Diffuser, Clear Cover
Finish ColourNatural Anodised Aluminium, White, Black, Custom
ControlMains/Phase, DALI, Smooth DALI, DMX, Non-Dim
Driver PlacementRemote
Build MaterialExtruded Aluminium
IP RatingIP20 (IP44 & IP65 available)
Dimensions16mm version: 16mm (width), 16mm (height) / 30mm version: 30mm (width), 30mm (height)

Downloads

Install Guide
Install Guide
Install Guide
Install Guide
Photometrics
Photometrics
Photometrics
Photometrics

Gallery

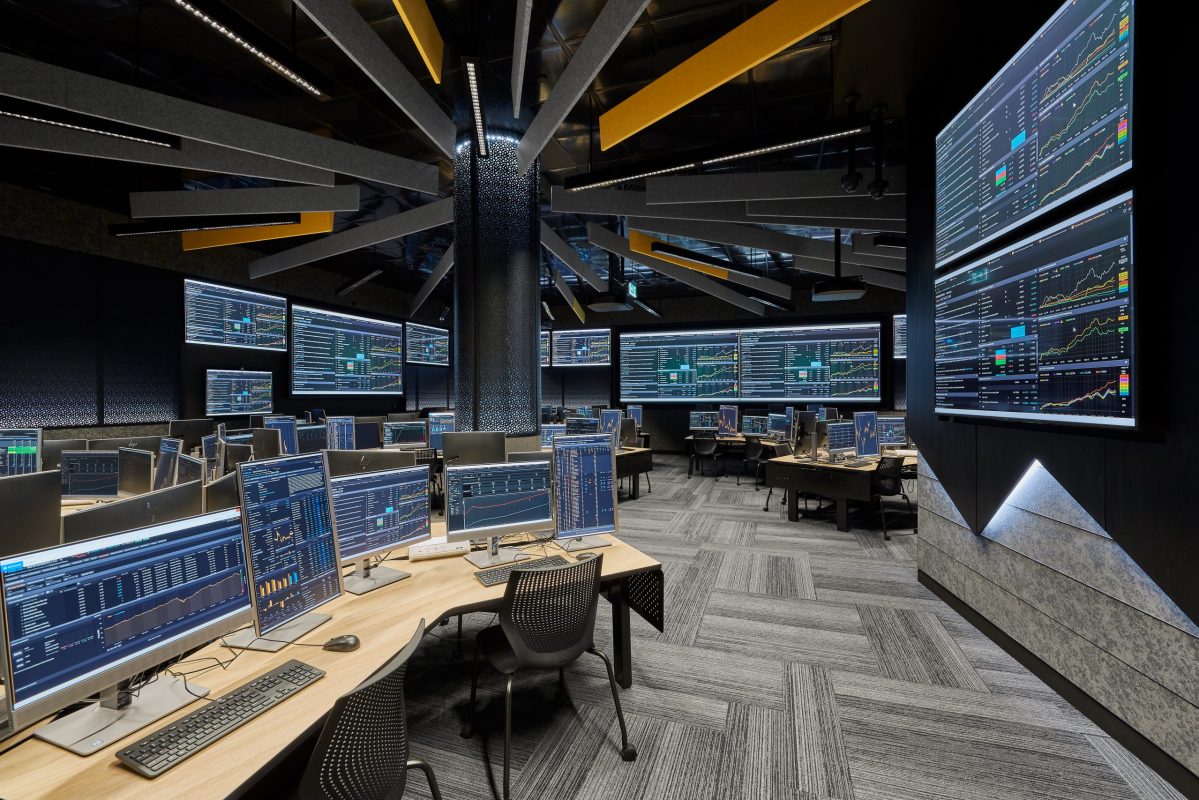

Education and Research
Curtin Trading Room Refurb_4_2000px

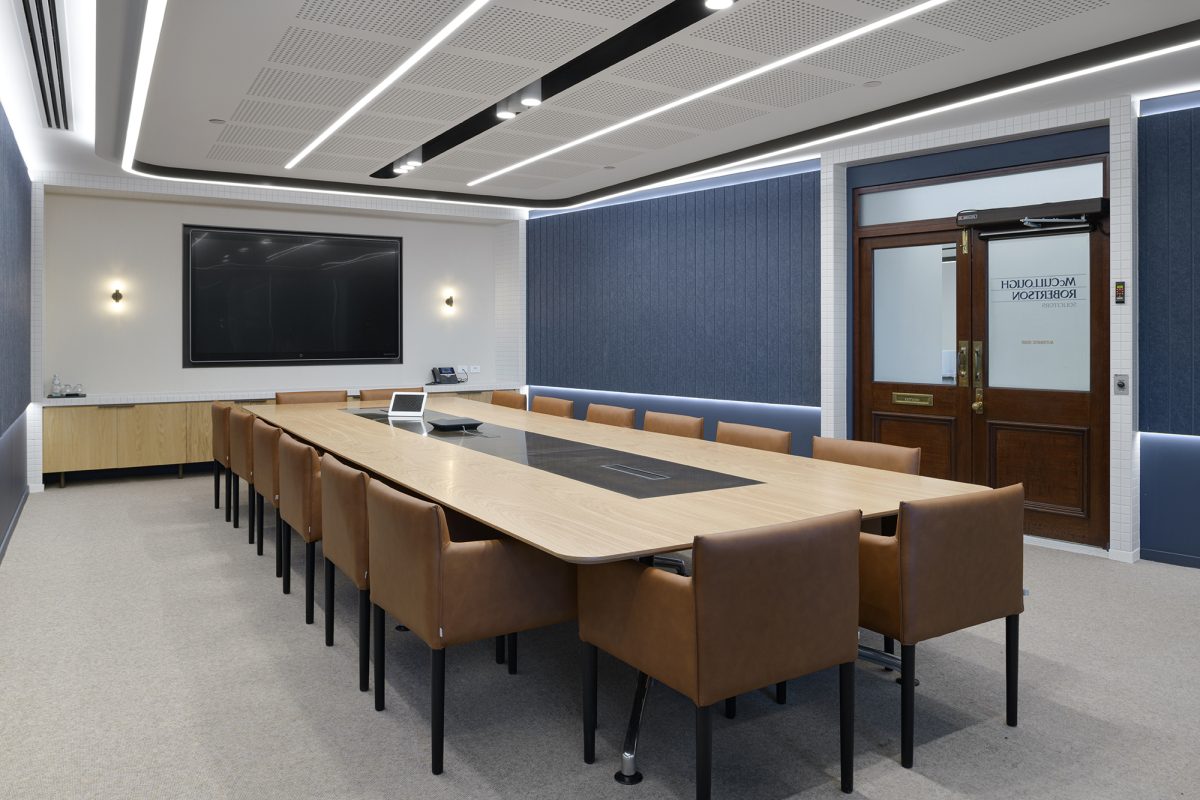

McCullough Robertson 2 2000px

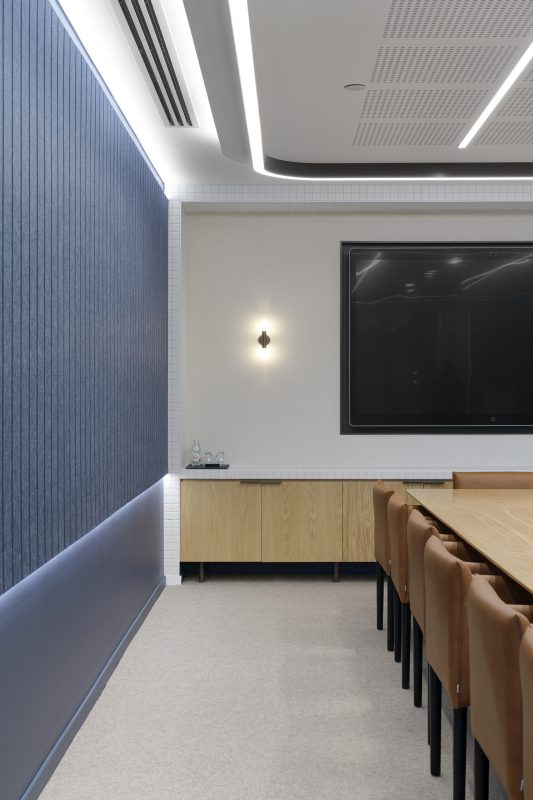

McCullough Robertson 3 2000px

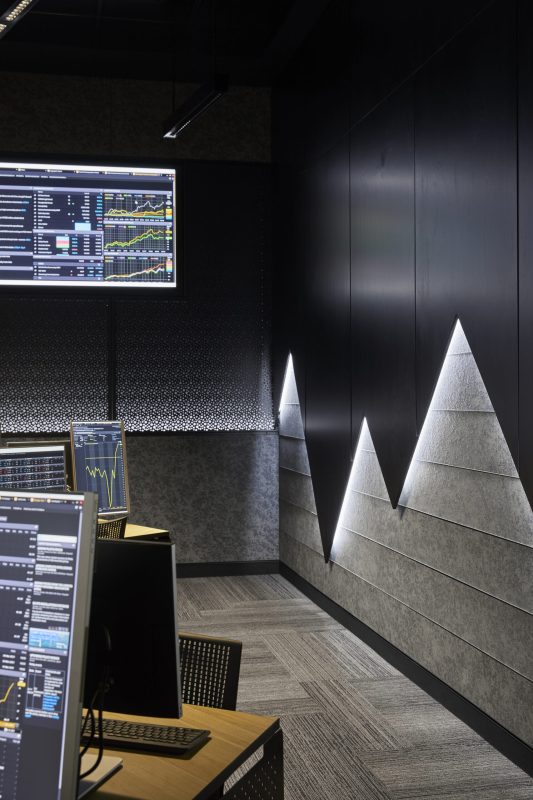

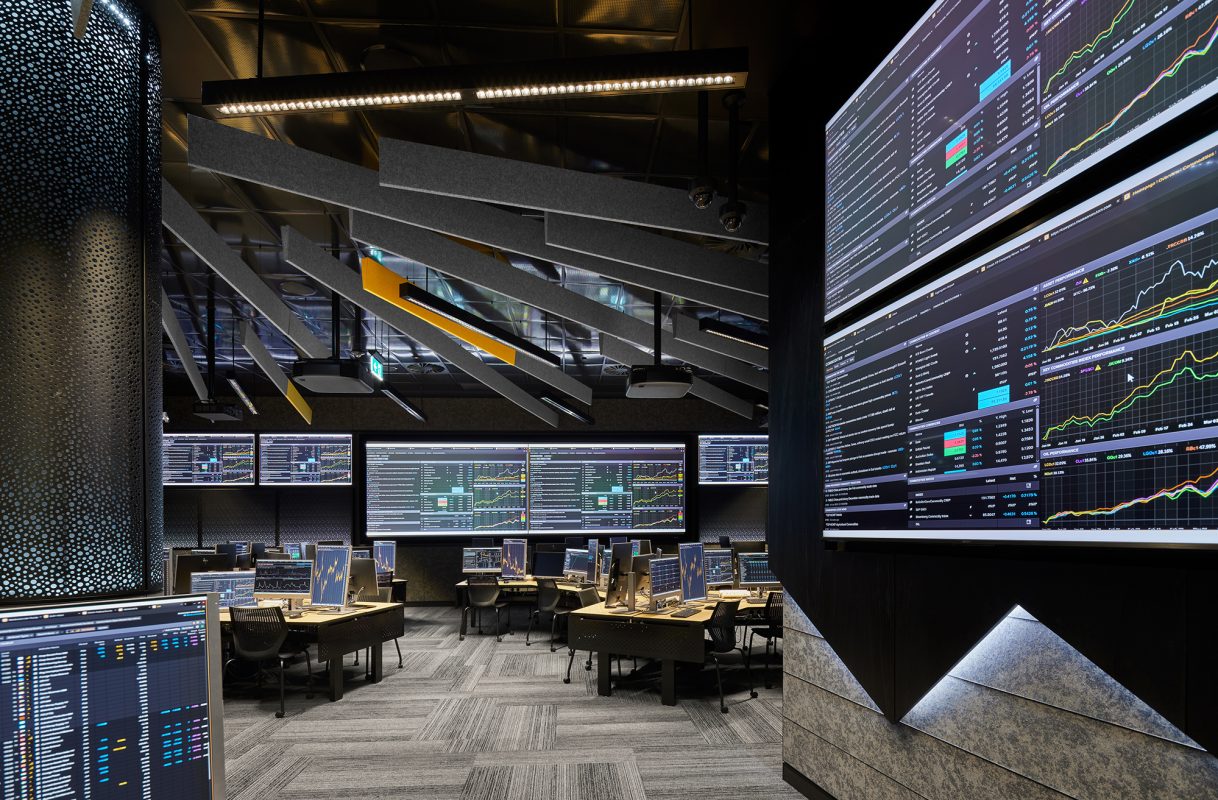

Curtin Trading Room Refurb_3_2000px

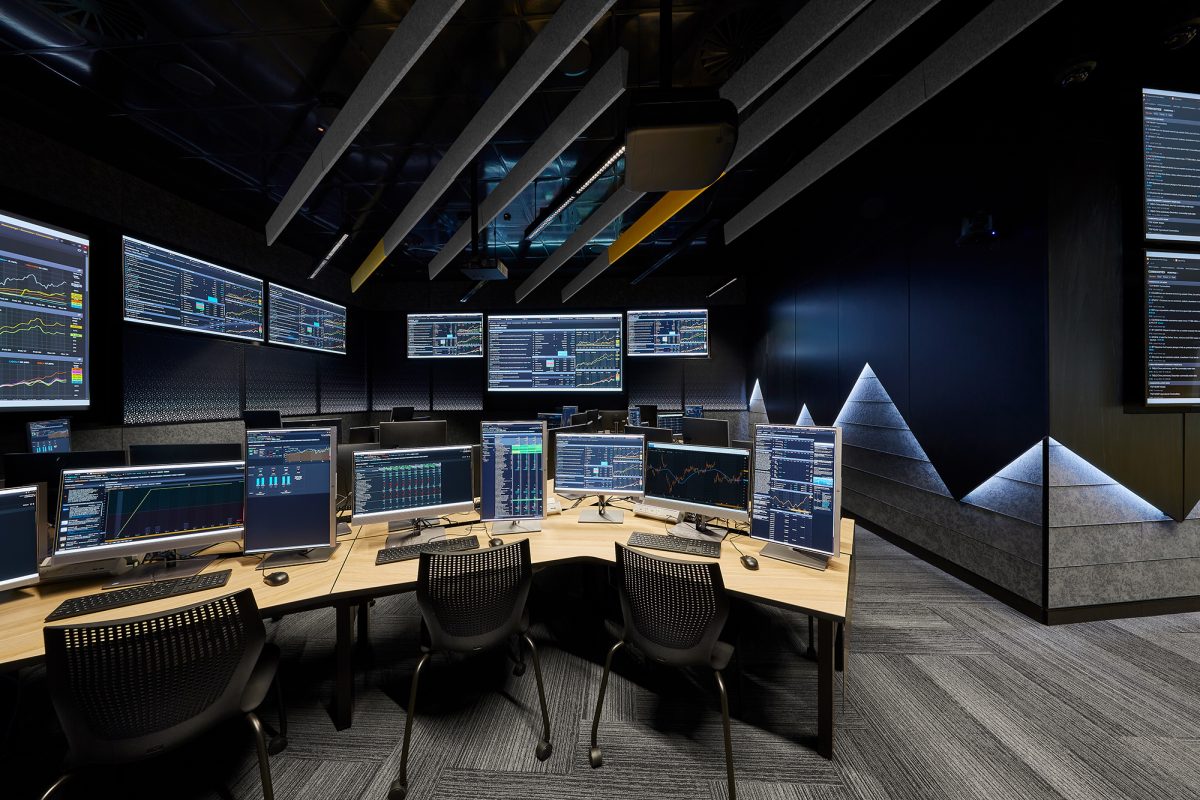

Curtin Trading Room Refurb_2_2000px
