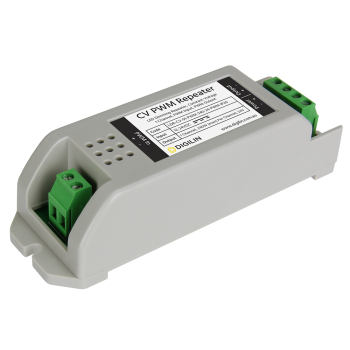

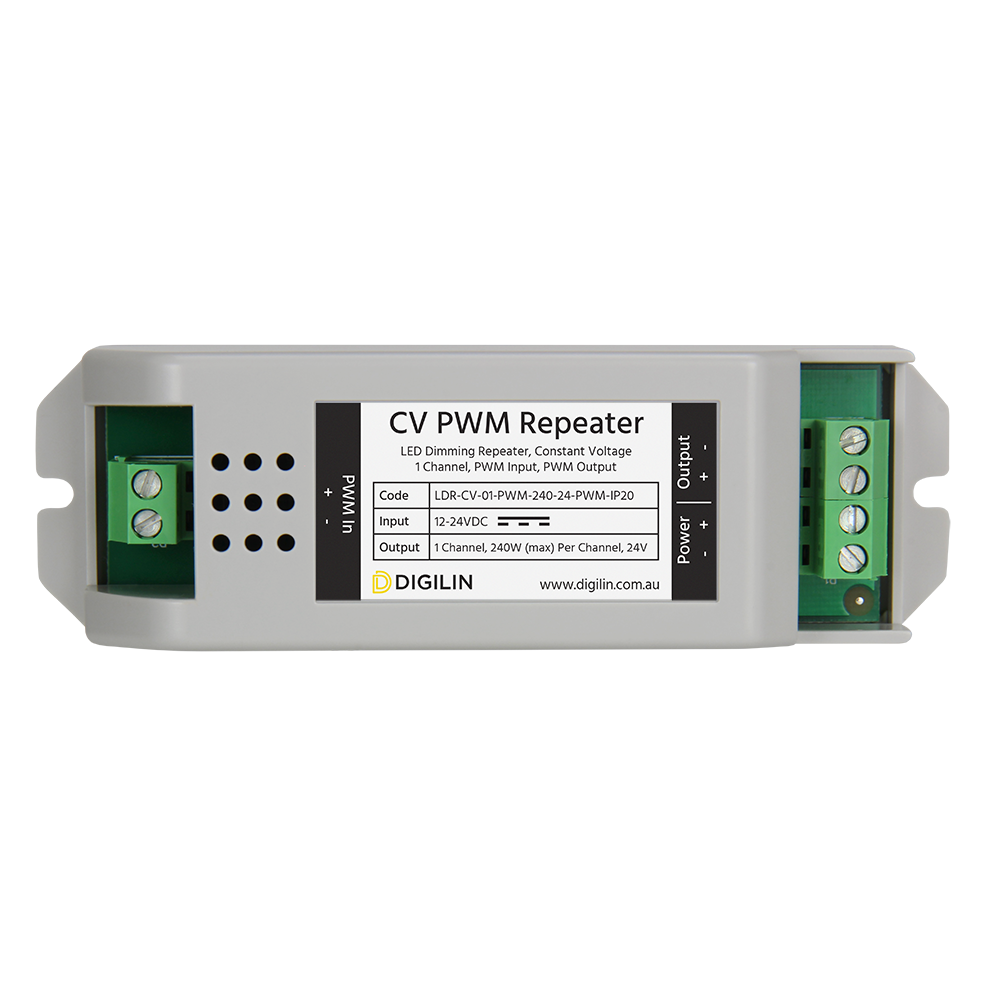

LDR-CV-01-PWM-240-24-PWM-IP20_Right_1000px

CV PWM Repeater

Cost effective expansion of PWM LED dimming systems

Overview

Configurator

Series

Gallery

Overview

PWM repeaters are a cost-effective method for the almost limitless expansion of LED lighting systems without the need for additional dimming protocols or signal interpretation. The result is precisely consistent dimming levels across extensive lighting systems from a single control source.

The repeaters use the existing PWM signal provided by a DMX, DALI or analogue driver and repeat it through high-capacity outputs. This approach ensures perfect dimming across the entire system, while dramatically reducing the number of drivers and controllers required, and therefore the budgetary impact of the greater system. This is often the make-or-break for the financial viability of a complex, extensive lighting system.

These repeaters are commonly paired with Digilin's CV DALI, CV Smooth DALI and CV DMX Drivers.

For an exemplary application of this technology, we would recommend checking out Regent Theatre in which the control capacity over extensive RGBW linear systems was expanded by pairing our DMX drivers with CV PWM Repeaters.

CV PWM Repeaters are designed and manufactured by Digilin in Australia.

Cost Effective Control Expansion

Reduces the number of drivers and controllers required without compromising on control outcomes

High Frequency PWM

These devices are capable of repeating high frequency PWM up to 1800Hz

Manufactured in Australia

CV PWM Repeaters are designed and manufactured by Digilin in Australia

Configurator

Categories: Constant Voltage Drivers
Product: CV PWM Repeater
Variant Code: LDR-CV
Generate Datasheet
Clear
  • Specifications
Drive TypeConstant Voltage
Control ProtocolPWM (repeats only)
Channels134
Max. Power Per Channel240W120W120W
Max. Current Per Channel10A5A5A
Dimensions121mm (L), 39mm (W), 32mm (H)121mm (L), 39mm (W), 32mm (H)151mm (L) x 69mm (W) x 32mm (H)
Build MaterialHigh Temp ABSHigh Temp ABSHigh Temp ABS
Input Voltage12-24VDC
Output Voltage12-24VDC
Input CommunicationsLow Side Switched PWM
Output TypeLow Side Switched PWM
PWM FrequencyRepeats Input PWM Frequency up to 1800Hz
PWM Input Current Draw (max.)20mA
Operating Temperature-20 to +40 degrees Celsius
MountingDirect Fix via screws or Din Mount
Class I/II/IIIIII

Series

CV DMX Driver

Sophisticated CV DMX Driver with multiple selectable personalities
Constant Voltage Drivers
DMX

CV DMX Driver

Drive Type: Constant Voltage
Control Protocol:
DMX
Channels: 2, 3, 4
Suitability: Tuneable, RGB, RGBW

CV DALI Driver

Reliable, high capacity DALI driver for constant voltage systems
Constant Voltage Drivers
DALI

CV DALI Driver

Drive Type: Constant Voltage
Control Protocol:
 DALI
Channels: 1, 2 or 3
Suitability: White, Tuneable White, RGB

Gallery

Curtin Trading Room Refurb_3_2000px
Curtin Trading Room Refurb_2_2000px

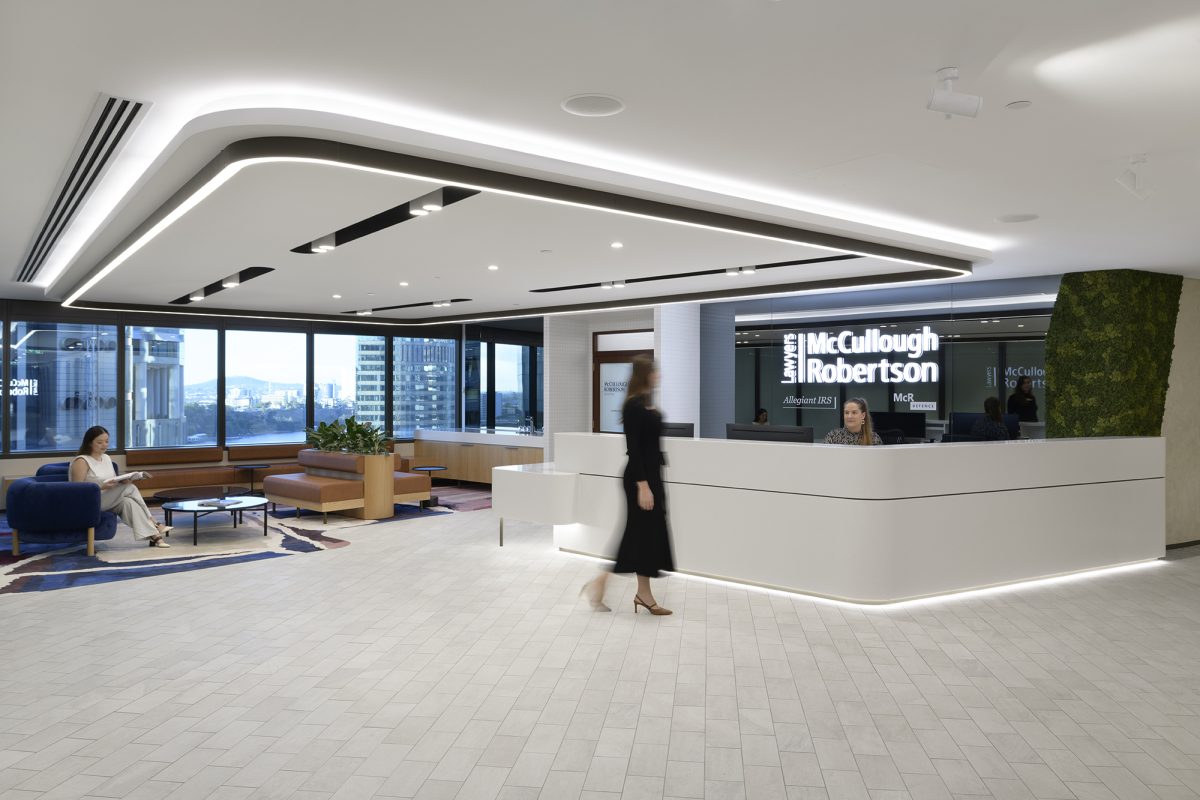

McCullough Robertson 1 2000px
McCullough Robertson 3 2000px

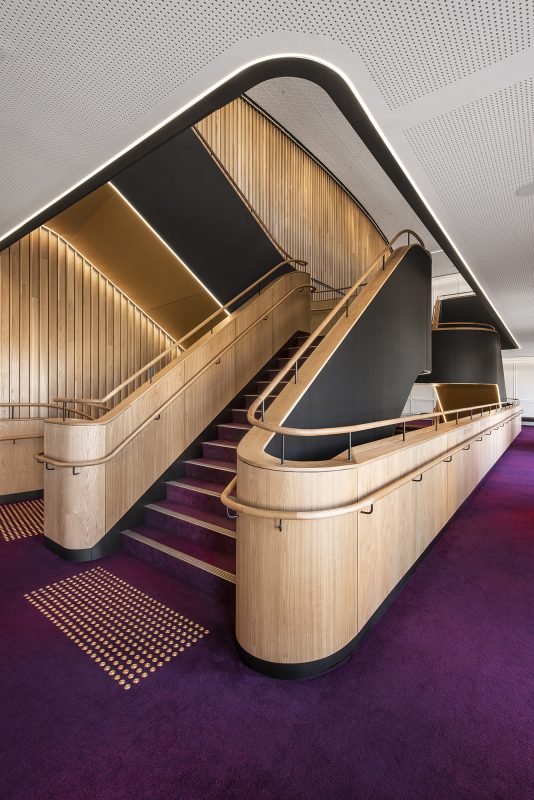

Feature staircase with winding HaloFlex
Feature staircase with winding HaloFlex
322AGW~1
Gippsland PAC A 2000px

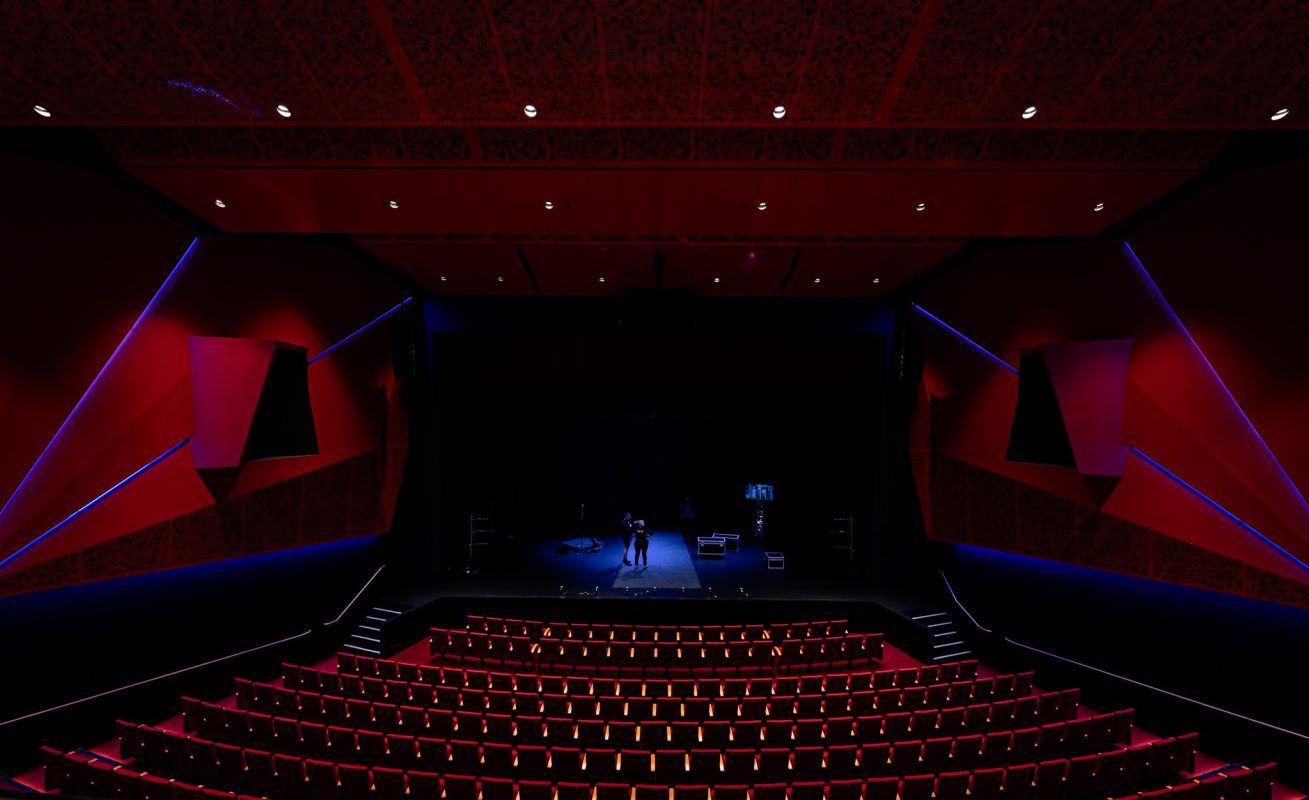

Gippsland PAC B 2000px
