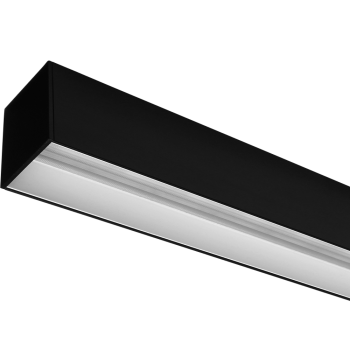

FTR-SFC deepset lens short B

Feature

Mid sized linear system with an array of beam shaping and light effect options

Overview

Light Effect

Configurator

Downloads

Overview

Diffusion, reflection, refraction... if there’s a way to shape a light beam, the Feature linear system is capable of it. This highly configurable system is based on a 55mm wide aluminium extrusion body (75mm including a recessed flange) available with LED options including multiple white CCTs (800-4400lm), RGB (600-1200lm), RGBW (900-1800lm), tuneable white (1400-2800lm) and Sunlike 4000K growlights (2400lm). Please note that the beam option will determine LED compatibility.

The Feature series can be fit with 7 different diffusers, reflectors and lenses, enabling it to achieve many different lighting effects, including beam focusing, various degrees of glare reduction and wall washing. Many of the beam options are set back (deepset) from the bottom face of the profile for improved glare control.

The Feature series is an incredibly capable lighting tool that will give designers the power to precisely shape an installation’s lighting like never before. It is particularly suitable for applications requiring strict glare control, such as in education and office environments.

All Digilin linear systems are manufactured in Australia to custom project lengths and supplied with factory-fitted connectors using Digilin's chemical anchoring process for super durability and ease of installation. The system can undergo Digilin's shield exterior coating service to upgrade its protection to an IP65 rating for outdoor applications.

Unique Light Effects

Feature can achieve many different lighting effects, including beam focusing, various degrees of glare reduction and wall washing

All Digilin LED options

Available in fixed white, tuneable white, RGB, RGBW, Backstage (blue/white) and Sunlike growlights – options dependent on beam compatibility

Multiple Mounting Options

Feature linear systems are available in surface mount, recessed or suspended formats

Light Effect

Deepset Opal
Deepset MicroPrism
Deepset 60 Degree
Deepset 40 Degree
Reflector Wall Wash
Deepset Opal
Deepset MicroPrism
Deepset 60 Degree
Deepset 40 Degree
Reflector Wall Wash

Configurator

Categories: Linear Systems
Product: Feature
Variant Code: FTR-050
Generate Datasheet
Clear
  • Specifications
LED ColourWhiteTuneable WhiteRGBRGBW
CCT/Wavelength2700K, 3000K, 4000K2700K-5700K625nm (Red)
530nm (Green)
470nm (Blue)
625nm (Red)
530nm (Green)
470nm (Blue)
3000K (White)
LED Lumens900-2300lm/m1210-2620lm/m600lm/m1300lm/m
Power7-17W/m20.4-40.8W/m21.6W/m17.7W/m
Input Current275-700mA/m850-1700mA/m900mA/m740mA/m
Typical CRI9090–90
PerformanceL80 (10k) >60,000hrs,L70 (10k) >60,000hrsL90 (6k) >36,000hrsL80 (6k) >60,000hrs
Input Voltage24VDC
MountingRecessed, Surface Mount, Suspended (Wire)
Beam OptionDeepset Opal Diffuser, Deepset MicroPrism Lens, Deepset 40 Degree Lens, Deepset 60 Degree Lens, Deepset Wall Wash Lens, Louvre, Reflector Wall Wash
Finish ColourNatural Anodised Aluminium, White, Black, Custom
ControlMains/Phase, DALI, Smooth DALI, DMX, Bluetooth, Non-Dim
Driver PlacementRemote, Integral
Build MaterialExtruded Aluminium
IP RatingIP20

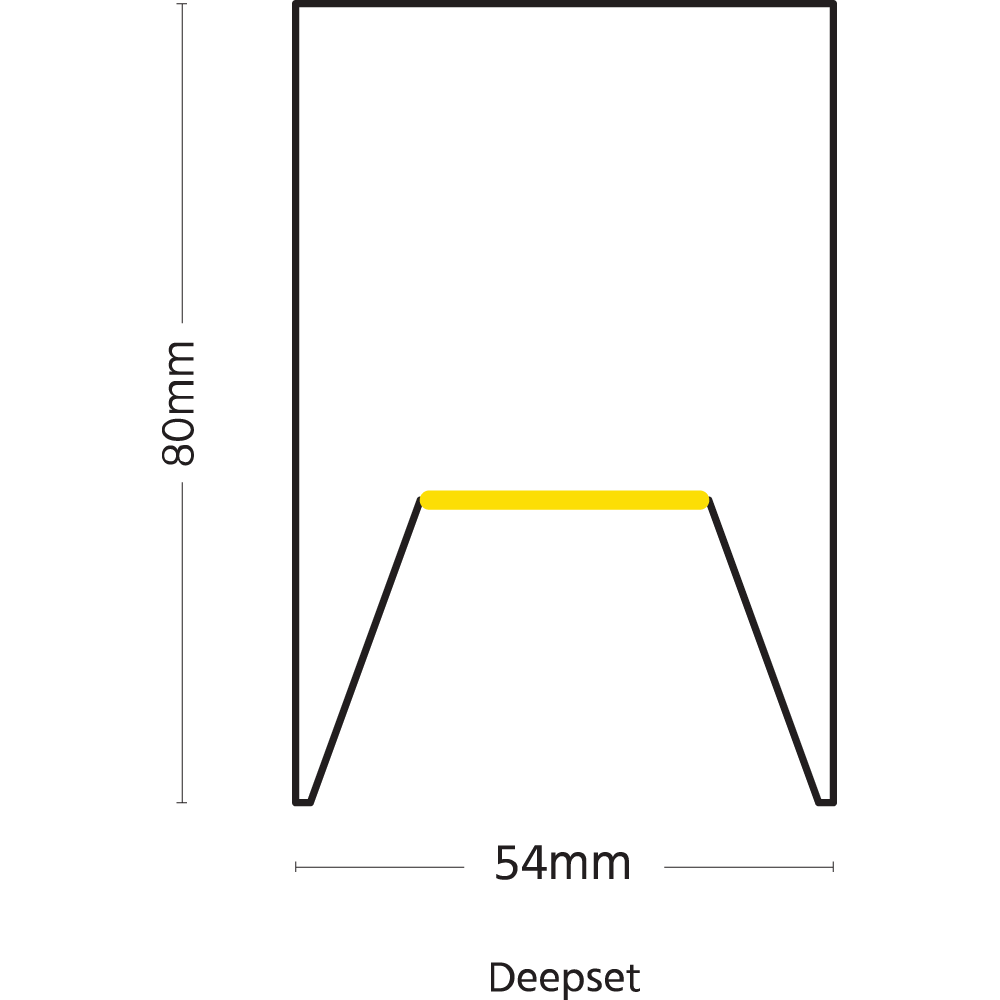

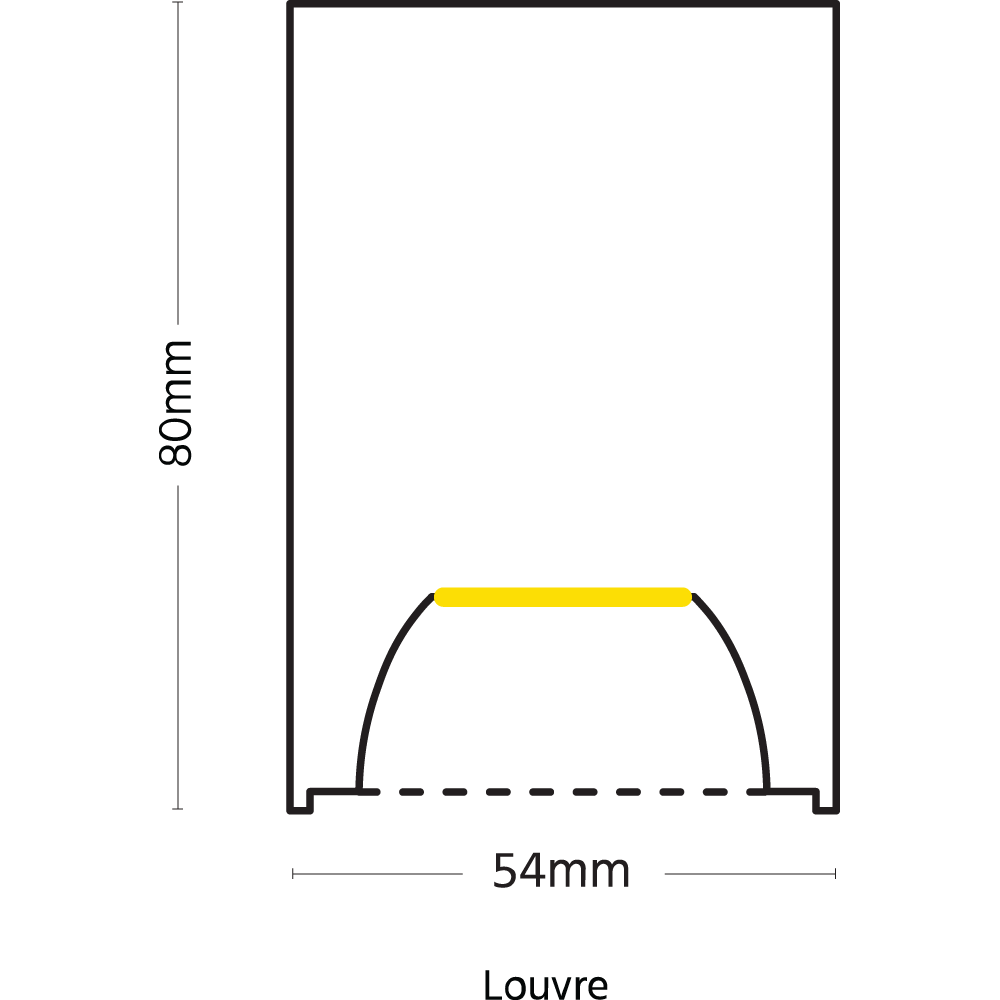

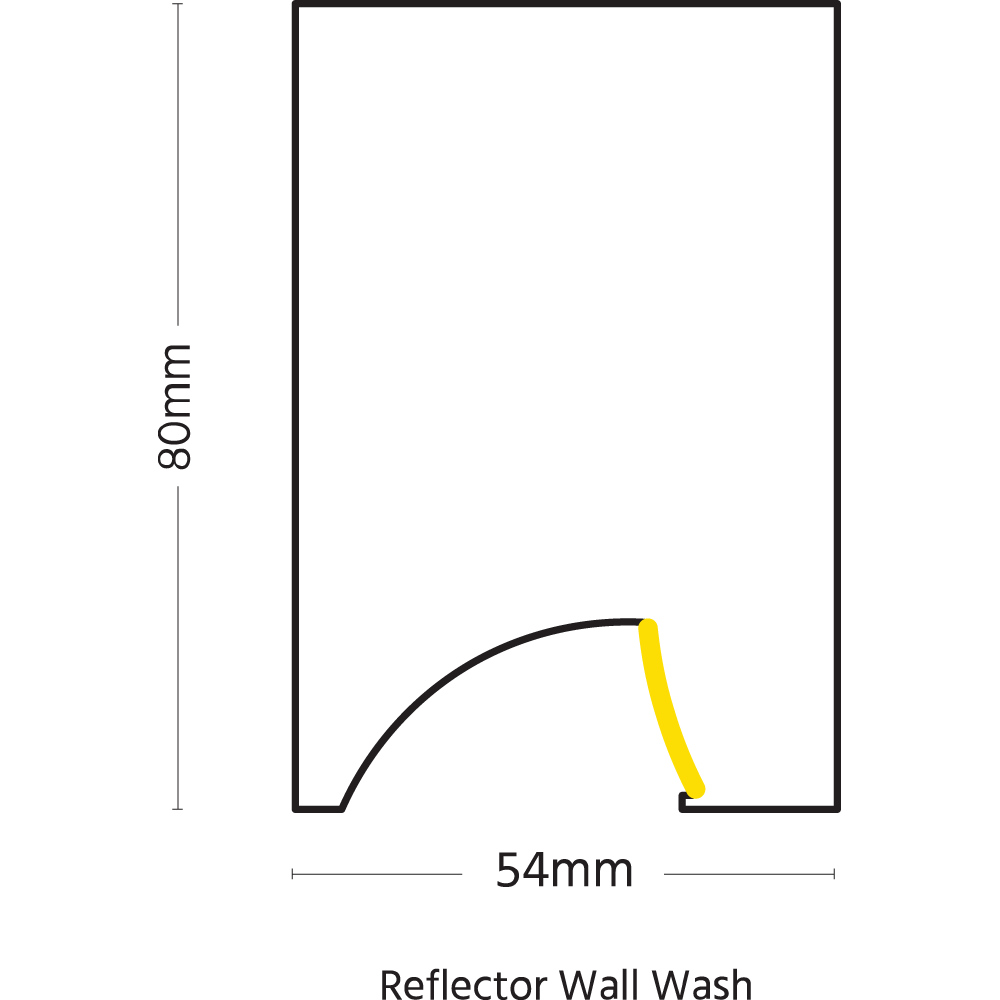

Dimensions54mm (width), 71.8mm (recessed flange width), 80mm (height)

Downloads

Photometrics
Photometrics
Photometrics
Photometrics
Install Guide
Install Guide
Install Guide
Install Guide
