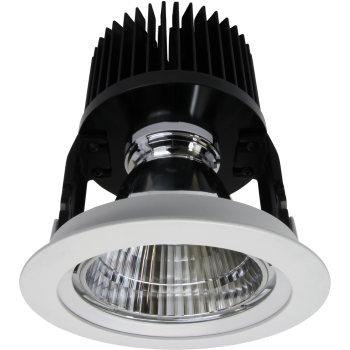

Freedom ISO - Product Image 1000px-real

Freedom

Efficient high-output, low glare downlight for spaces with high ceilings

Overview

Dimensions

Light Effect

Configurator

Downloads

Series

Gallery

Overview

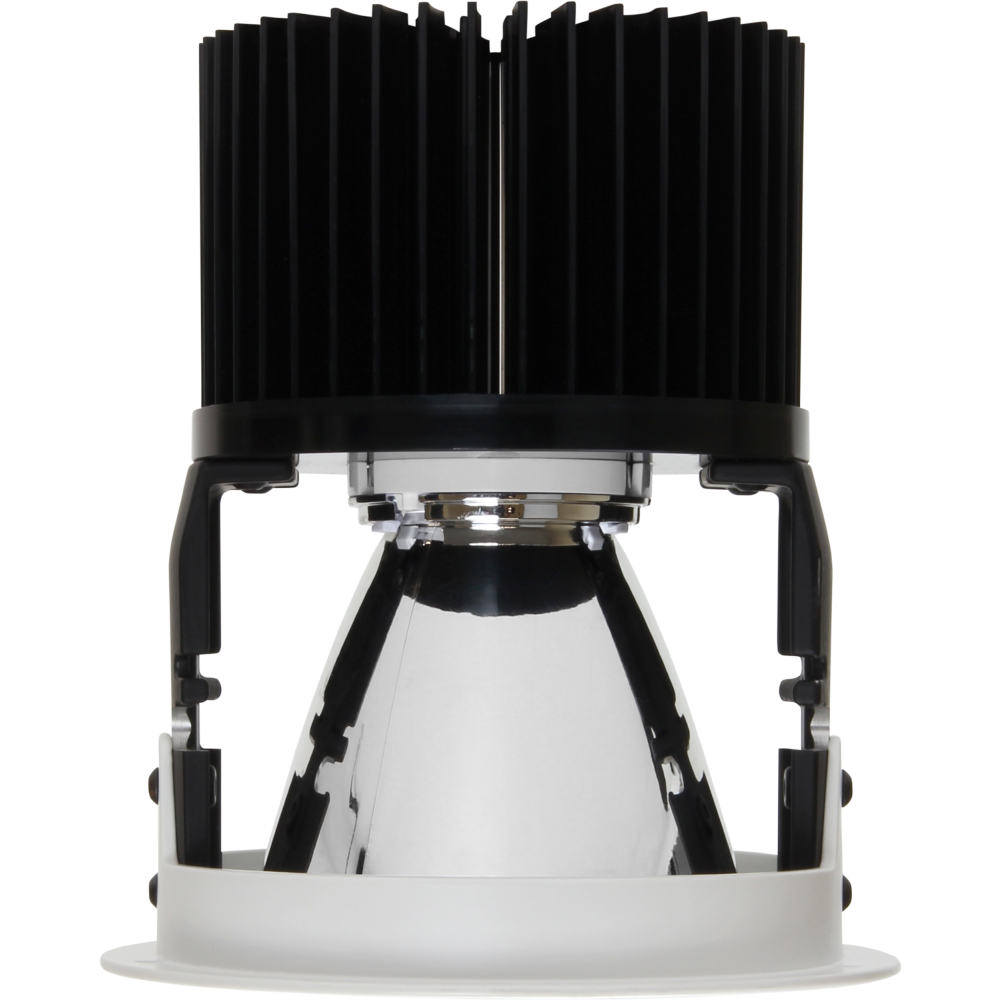

Delivering up to 5500 lumens at 100-115lm per watt, Freedom is an extremely efficient high-output downlight. Designed for spaces with high ceilings, Freedom uses premium COB LEDs and quality metallic reflectors and is a reliable solution for projects requiring high light levels and low-glare, such as performing arts theatres, convention centres, commercial lobbies, casinos and places of worship.

The fixture uses efficient reflectors to achieve multiple beam effects, including a narrow (~20°) and a wall washer. A tuneable white version (2700K-5700K) delivering approximately 2500lm has also been developed for commercial lobbies, workplaces and education environments. Available in recessed, surface mount or suspended formats with multiple beam options, Freedom can be easily configured to arrive at an optimal solution for all ceiling heights.

Freedom can also be employed as an efficient architectural growlight using Sunlike 4000K LEDs, delivering up to 5000lm (88PPF) at 95 CRI. Combined with its wall wash reflector, this configuration is ideal for green walls.

Frequently paired with Smooth DALI Drivers, designed and manufactured by Digilin, this downlight is relied upon by performing arts and convention centres throughout Australia.

Freedom is proudly designed and manufactured by Digilin in Australia.

Suitable for High Ceiling Rooms

Significant lumen deliveries coupled with wide to narrow reflectors make this fixture ideal for applications with high ceilings

Wall Wash Reflector

A brilliant solution for delivering vertical illuminance to further increase the feeling of space in large rooms

Tuneable White Version

Ideal for commercial lobbies, workplaces and learning environments

Extremely Efficient

Delivers up to 5500 lumens at 100-115lm per watt (90 CRI)

Sunlike Growlight Version

Freedom can also be employed as an efficient architectural growlight using Sunlike 4000K LEDs, delivering up to 5000lm (88PPF) at 95 CRI

Dimensions

Light Effect

Wide (~50°)
Medium (~27°)
Narrow (~20°)
Wall Wash
Wide (~50°)
Medium (~27°)
Narrow (~20°)
Wall Wash

Configurator

Categories: Recessed Luminaires
Product: Freedom
Variant Code: FRD-REC
Generate Datasheet
Clear
  • Specifications
LED Colour Fixed White Tuneable White Sunlike Growlight
Colour Temperature 2700K, 3000K, 4000K, 5700K 2700K-5000K 4000K
Delivered Lumens 2245-5550lm 3040lm 4880lm (88PPF)
Luminaire Power 16.6-50.4W 35.8W 49W
Connected Load 18.4-56W 40.7W 54.4W
Drive Current 500-1400mA 1050mA 1400mA
Forward Voltage 33.1-36V 28V 35V
Typical CRI 90 90 95
Performance L90(9K) >50,000hrs – –
Colour Consistency 2 SDCM 3 SDCM 3 SDCM
MountingRecessed
Beam OptionNarrow, Medium, Wide, Wall Wash
Finish ColourWhite, Black, Custom
Driver PlacementRemote
ControlMains/Phase, DALI, Smooth DALI, DMX, Bluetooth
Build MaterialCast Aluminium
IP RatingIP20 (IP54 & IP65 available)
Dimensions152mm (trim diameter), 116mm (body diameter), 172mm (height)
Hole Cut Out140mm
Weight985g

Downloads

IES Files
IES Files
IES Files
IES Files
Install Guide
Install Guide
Install Guide
Install Guide

Series

Freedom Colour

High output colourmixing downlight for entertainment applications
Suspended Luminaires
Backstage, RGB, RGBW

Freedom Colour

Mounting: Suspended
Delivered Lumens: 2200lm (RGBW)
LED Colours: RGBW, Backstage, Blue
Beam Options: Narrow (15°), Medium (40°), Wide (50°)

Freedom

Efficient high-output, low glare downlight for spaces with high ceilings
Suspended Luminaires
Fixed White, Tuneable White

Freedom

Mounting: Suspended
Delivered Lumens: 1940-5400lm
LED Colours: White, Tuneable, Sunlike
Beam Options: Narrow, Medium, Wide, Wall Wash

Freedom Adjustable

Efficient high-output, low glare downlight with dual gimbal capability
Recessed Luminaires
Fixed White

Freedom Adjustable

Mounting: Recessed (Adjustable)
Delivered Lumens: 2000-4000lm
LED Colours: Fixed White, Sunlike
Beam Options: Narrow, Medium, Wide

Freedom

Efficient high-output, low glare downlight for spaces with high ceilings
Surface Mount Luminaires
Fixed White, Tuneable White

Freedom

Mounting: Surface Mount
Delivered Lumens: 2000-5550lm
LED Colours: White, Tuneable, Sunlike
Beam Options: Narrow, Medium, Wide, Wall Wash

Freedom Colour

High output colourmixing downlight for entertainment applications
Surface Mount Luminaires
Backstage, RGB, RGBW

Freedom Colour

Mounting: Surface Mount
Delivered Lumens: 2200lm (RGBW)
LED Colours: RGBW, Backstage, Blue
Beam Options: Narrow (15°), Medium (40°), Wide (50°)

Freedom Colour

High output colourmixing downlight for entertainment applications
Recessed Luminaires
Backstage, RGB, RGBW

Freedom Colour

Mounting: Recessed
Delivered Lumens: 2200lm (RGBW)
LED Colours: RGBW, Backstage, Blue
Beam Options: Narrow (15°), Medium (40°), Wide (50°)
