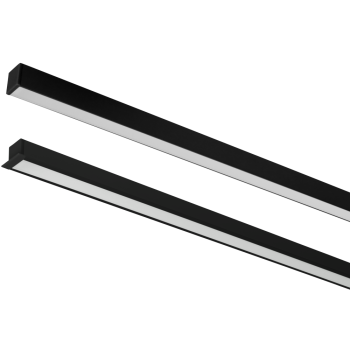

Micro 13 - Product Image BLK

Micro

Micro sized linear systems for tight spaces, perfect for cabinetry and shelving

Overview

Versions

Configurator

Downloads

Overview

With an extremely compact form factor (13mm width) and a flat diffuser, Micro Linear Systems are well suited to cove and cabinetry lighting. These systems can be packaged with Digilin drivers for precision control and ultimate reliability.

All Digilin linear systems are manufactured in Australia to custom project lengths and supplied with factory-fitted connectors using Digilin's chemical anchoring process for super durability and ease of installation. The system can undergo Digilin's shield exterior coating service to upgrade its protection to an IP65 rating for outdoor applications.

Micro sized

The smallest linear systems available – for when space really matters.

Digilin Linear Systems

We assist with the design of linear lighting systems and manufacture according to project requirements to ensure effective project outcomes.

Efficient, high CRI LED

High efficacy LED strip with LED lumens ~100lm/W at 90+CRI.

Versions

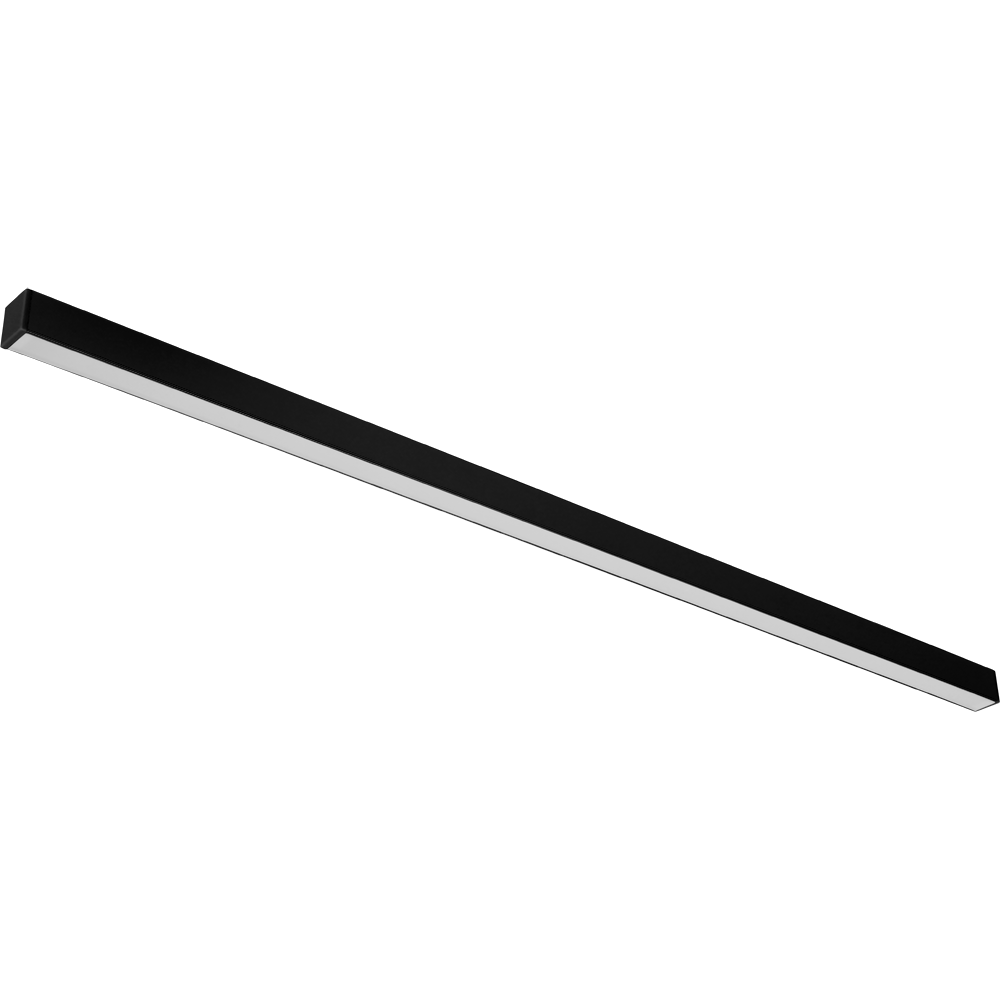

Surface Mount

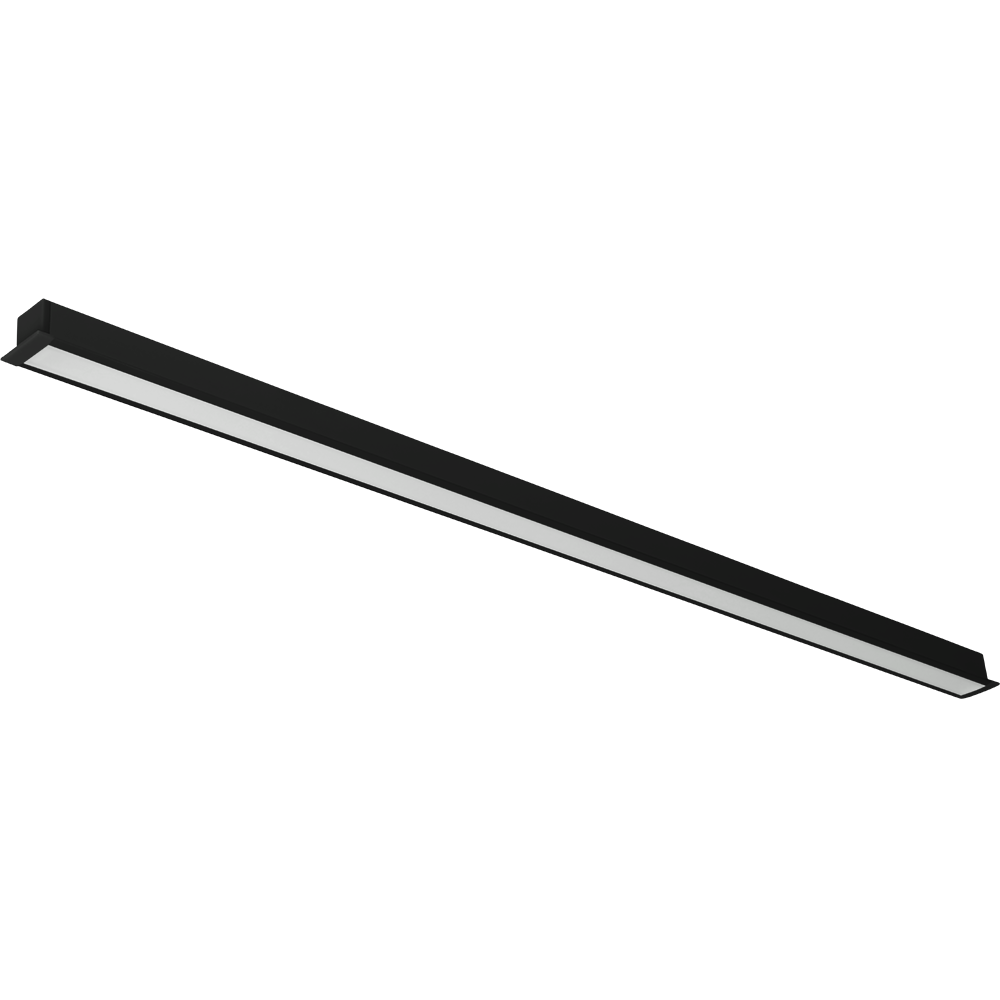

Recessed
Surface Mount
Recessed

Configurator

Categories: Linear Systems
Product: Micro
Variant Code: MCR-013
Generate Datasheet
Clear
  • Specifications
LED ColourWhite
CCT2700K, 3000K, 4000K
LED Lumens900-1500lm/m
Power7-11W/m
Input Current275-450mA/m
Input Voltage24VDC
Typical CRI90+
PerformanceL80 (10k) >60,000hrs
MountingRecessed, Surface Mount
Beam OptionOpal Diffuser
ControlMains/Phase, DALI, Smooth DALI, DMX, Bluetooth
Driver PlacementRemote
Light Emitting Area10.5mm
DimensionsSurface: 13mm (W), 14mm (H) / Recessed: 19mm (W), 14mm (H)
IP RatingIP20 (IP44 & IP65 available)
Build MaterialExtruded Aluminium

Downloads

Photometrics
Photometrics
Photometrics
Photometrics
Install Guide
Install Guide
Install Guide
Install Guide
