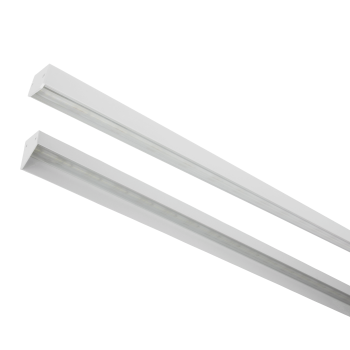

Shaper main img_wht

Shaper

Efficient beam shaping optics for wall washing and other light effects

Overview

Versions

Light Effect

Configurator

Downloads

Overview

Utilising a variety of high quality linear optics, Shaper achieves outstanding wall washing and other beam shaping light effects, delivering uniform illumination with precision and efficiency. Whether you're aiming to enhance architectural features or create dynamic lighting scenes, this linear lighting solution offers unparalleled versatility and optical control.

All Digilin linear systems are manufactured in Australia to custom project lengths and supplied with factory-fitted connectors using Digilin's chemical anchoring process for super durability and ease of installation. The system can undergo Digilin's shield exterior coating service to upgrade its protection to an IP65 rating for outdoor applications.

Versions

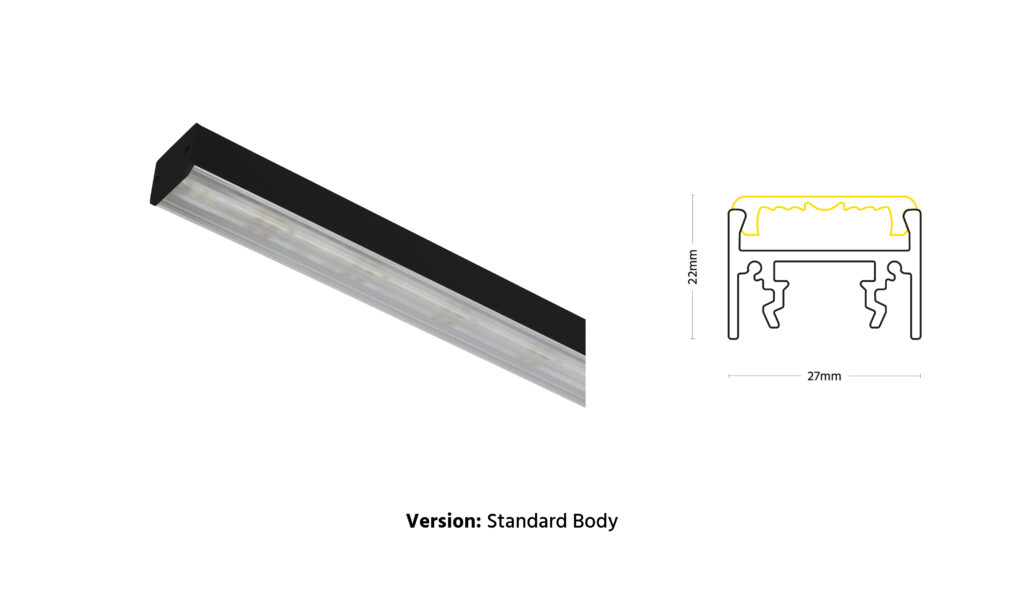

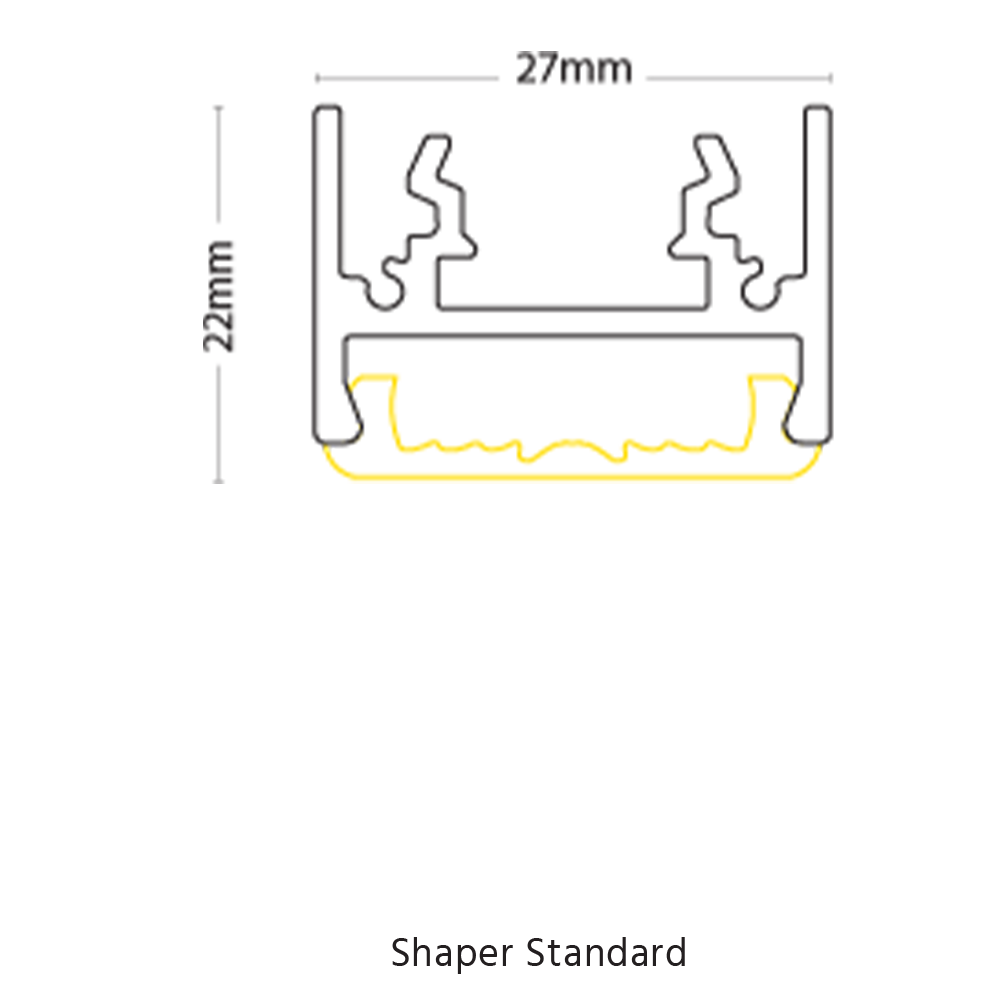

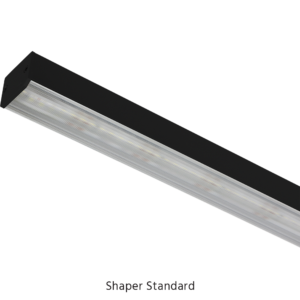

Standard

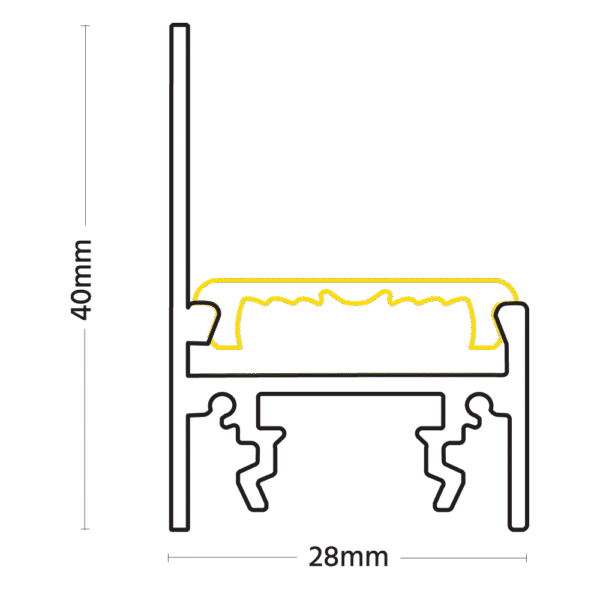

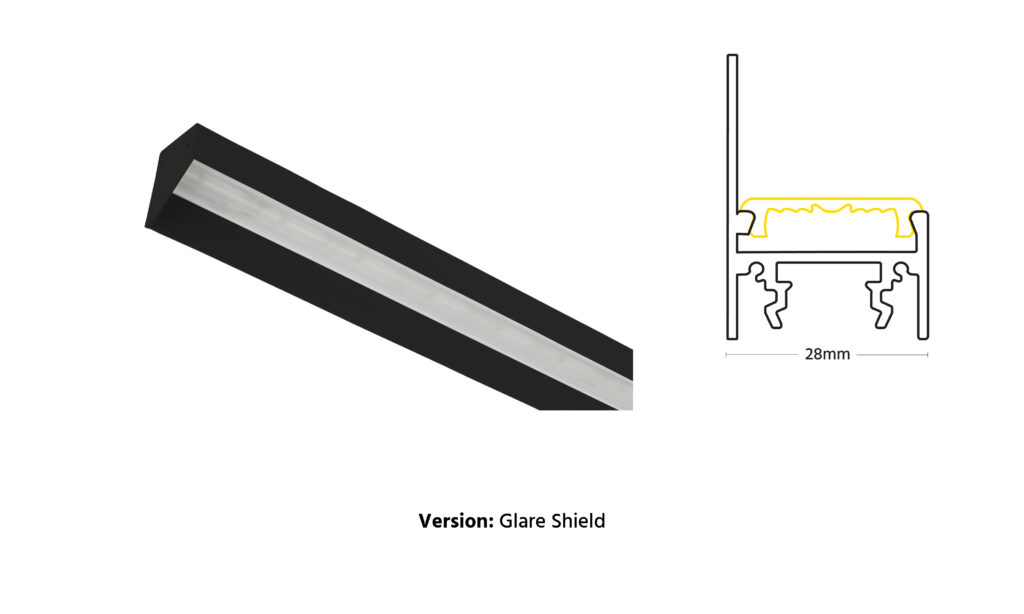

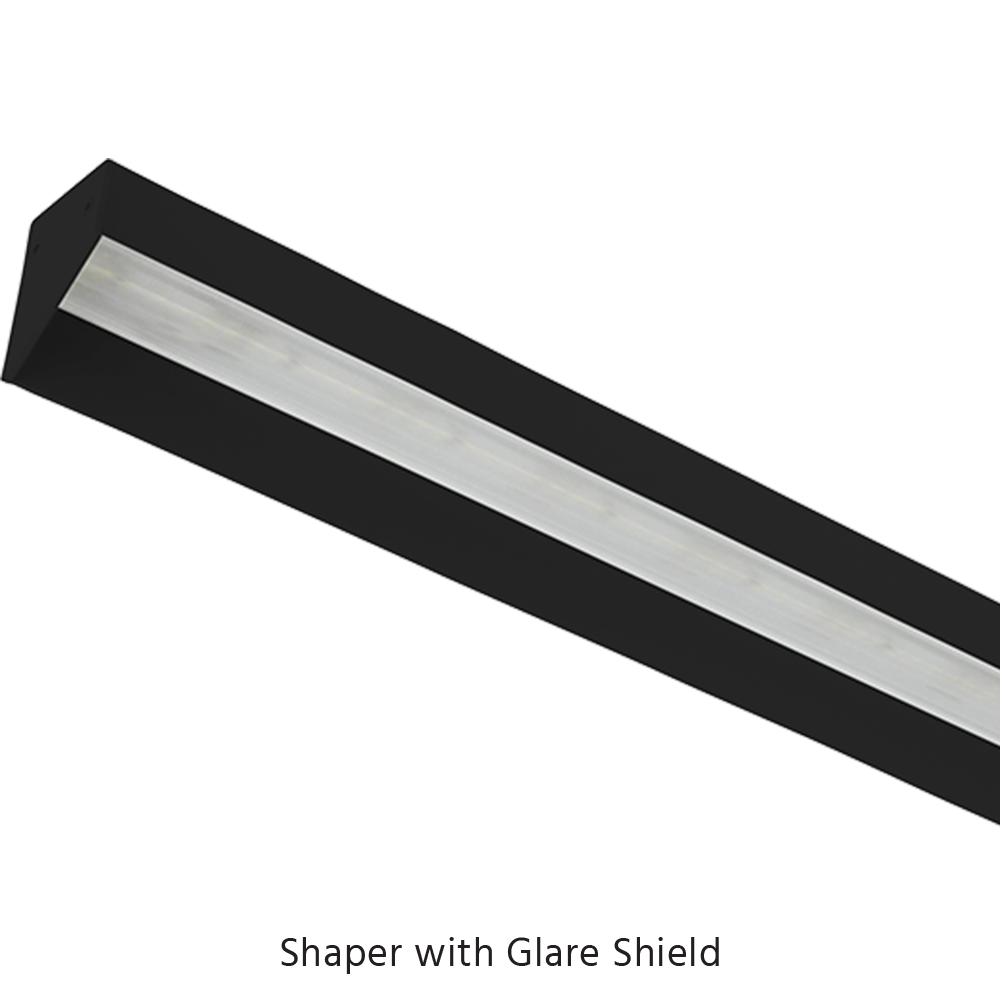

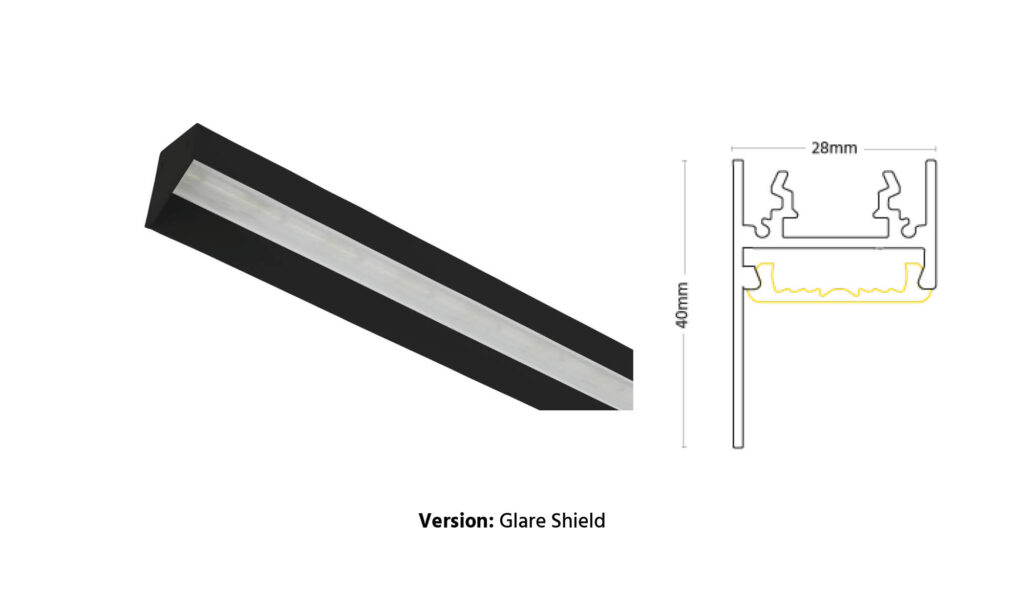

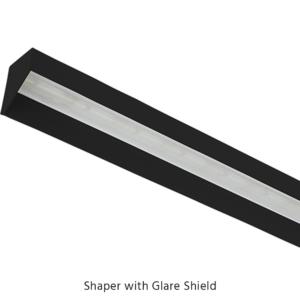

Glare Shield

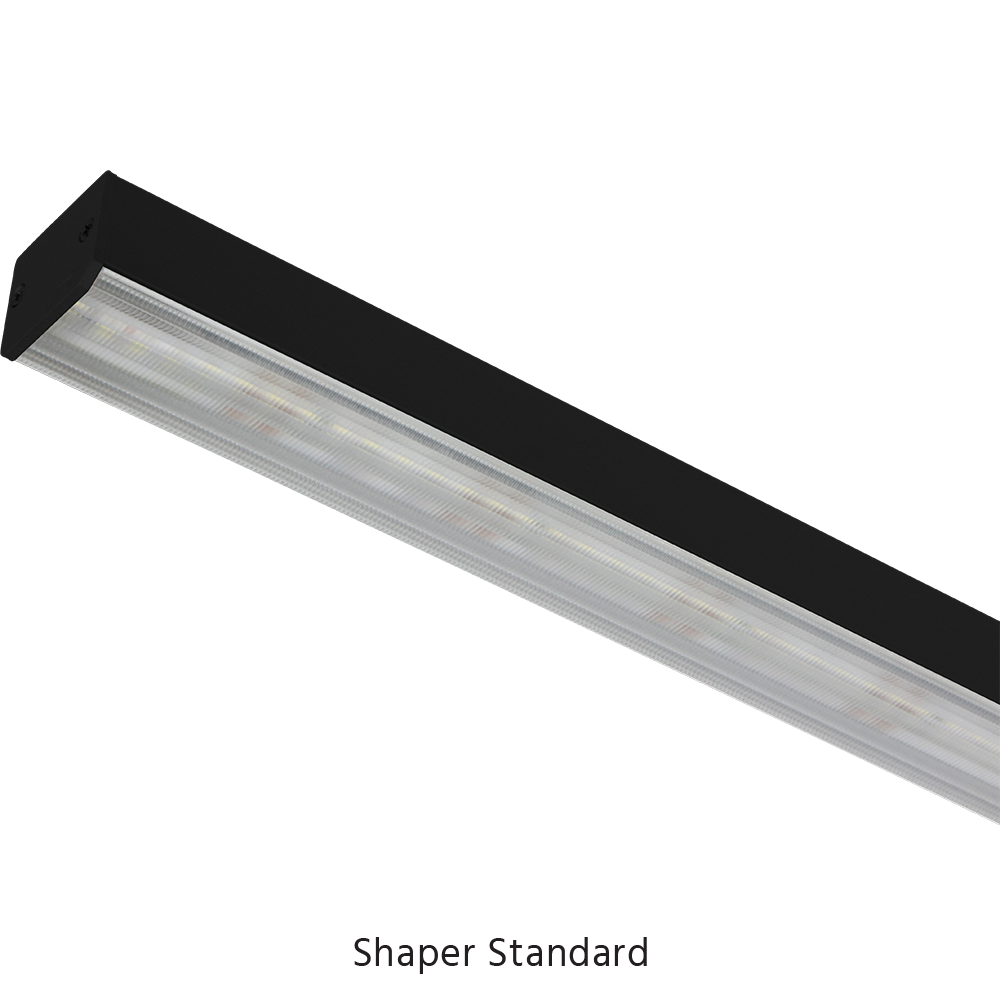

Standard

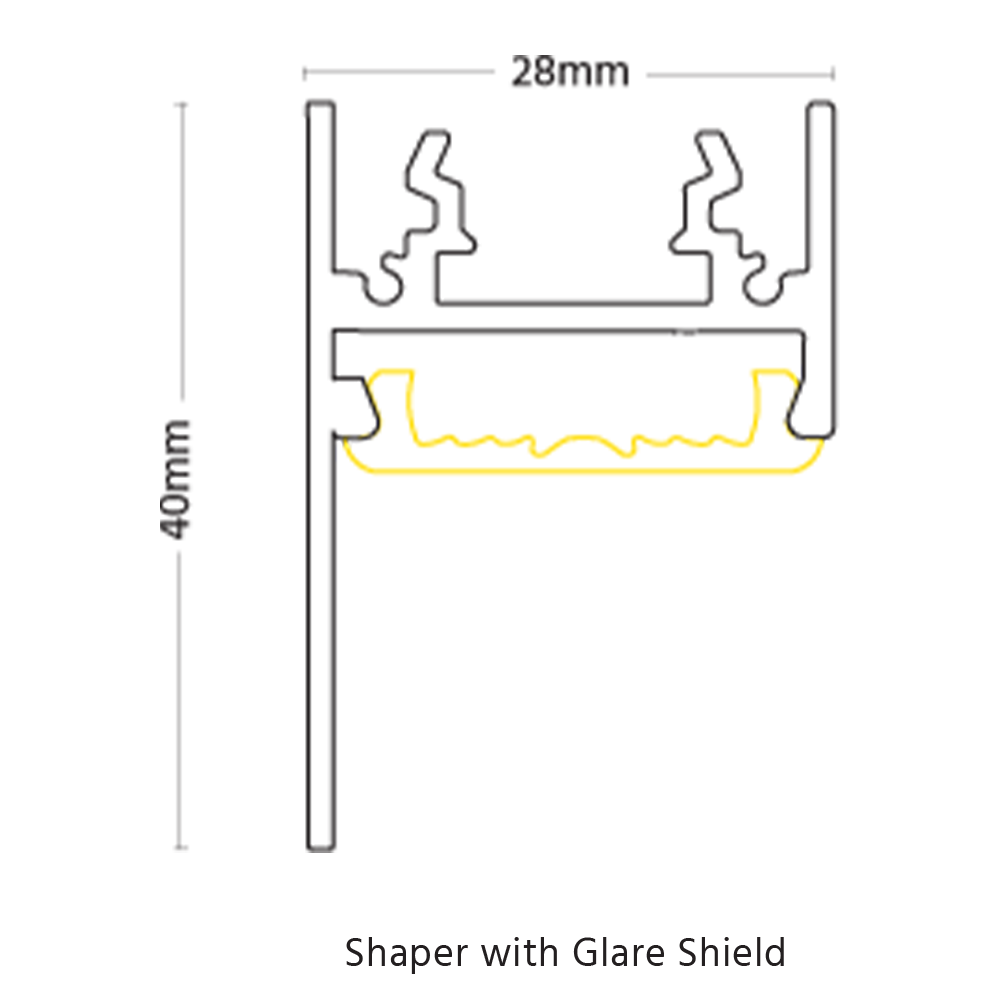

Glare Shield

Light Effect

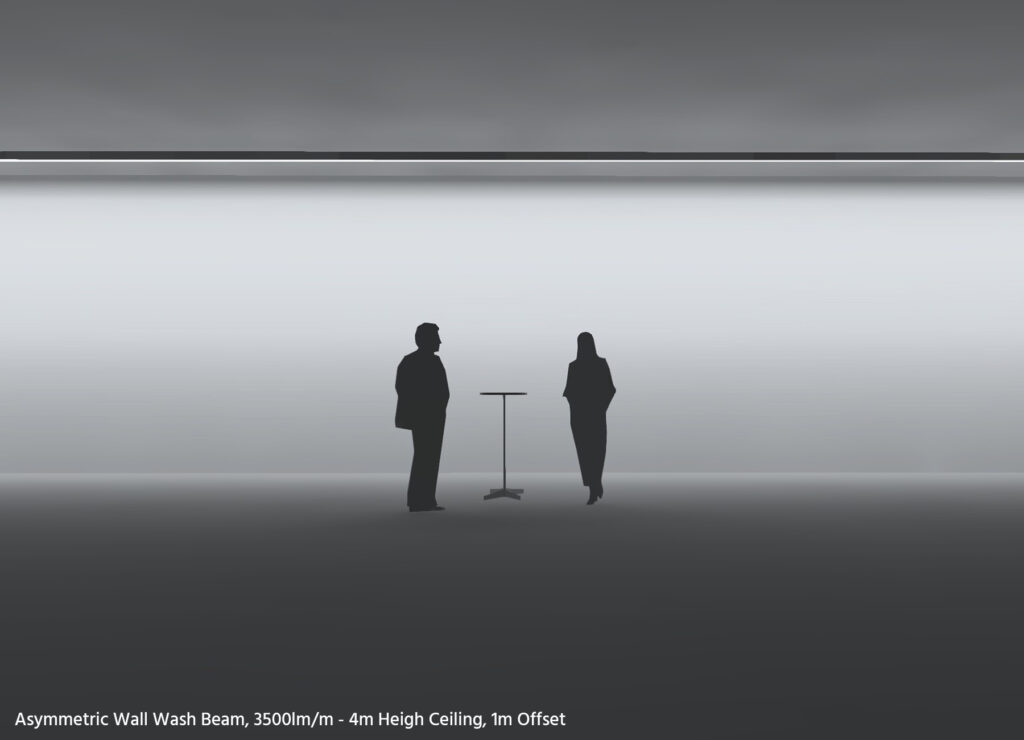

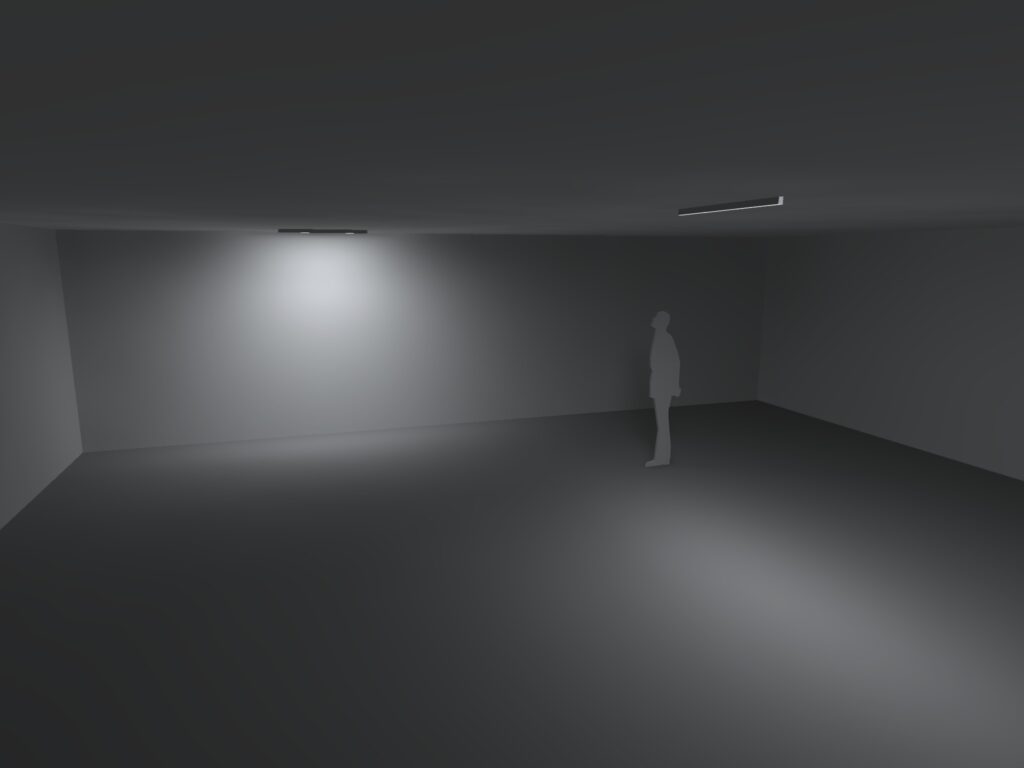

Asymmetric Wall Wash

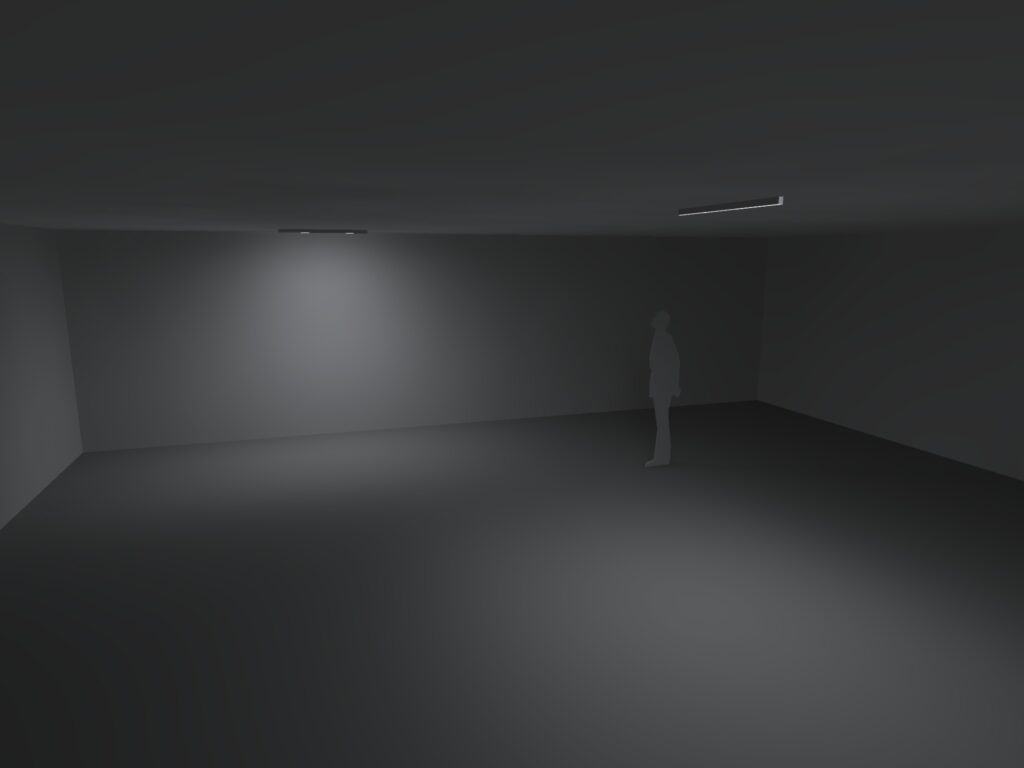

Medium Oval (40°x90°)
Wide Oval (70°x100°)

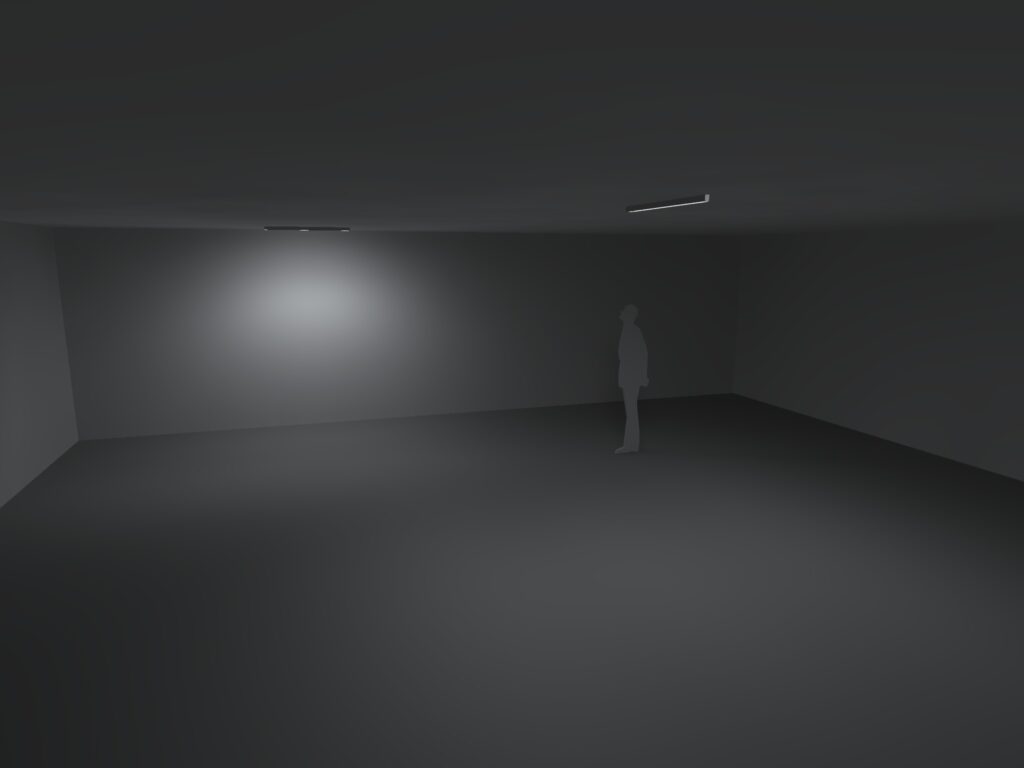

Flood (100°x115°)
Asymmetric Wall Wash
Medium Oval (40°x90°)
Wide Oval (70°x100°)
Flood (100°x115°)

Configurator

Categories: Linear Systems
Product: Shaper
Variant Code: SHP-SFC
Generate Datasheet
Clear
  • Specifications
ColourWhiteTuneable WhiteRGBWRGB
CCT/Wavelength2700K, 3000K, 4000K2700K-5700K625nm (Red)
530nm (Green)
470nm (Blue)
3000K (White)
625nm (Red)
530nm (Green)
470nm (Blue)
LED Lumens900-3500lm/m1210-1310lm/m1300lm/m600lm/m
Power7-25W/m20.4W/m17.7W/m21.6W/m
Input Current275-1050mA/m850mA/m740mA/m900mA/m
Typical CRI909090–
PerformanceL80 (10k) >60,000hrsL70 (10k) >60,000hrsL80 (10k) >60,000hrsL90 (6k) >36,000hrs
Input Voltage24VDC
VersionStandard, Glare Shield
MountingSurface Mount
Beam OptionMedium Oval (40°x90°), Wide Oval (70°x100°), Flood (100°x115°), Asymmetric Wall Wash
Finish ColourNatural Anodised Aluminium, White, Black, Custom
ControlMains/Phase, DALI, Smooth DALI, DMX, Bluetooth, Non-Dim
Driver PlacementRemote
Build MaterialExtruded Aluminium, PMMA Lens
IP RatingIP20 (IP44 & IP65 available)

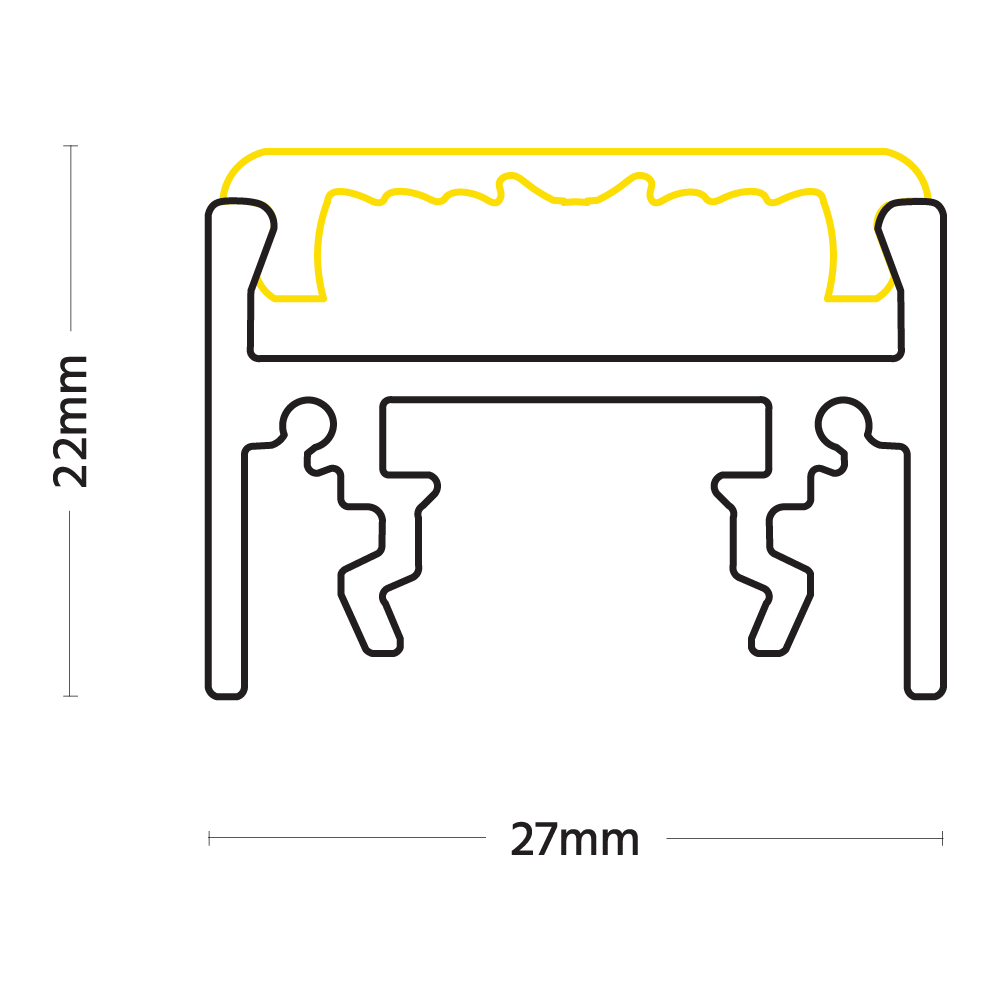

Dimensions27mm (width), 22mm (height)

Downloads

Product Guide
Product Guide
Product Guide
Product Guide
Photometrics
Photometrics
Photometrics
Photometrics
Install Guide
Install Guide
Install Guide
Install Guide
