Space

Immense versatility – the go-to linear system for ambient lighting applications

Overview

Versions

Configurator

Downloads

Gallery

Overview

The most versatile linear offering from Digilin, Space linear systems are the go-to option for general ambient lighting and other specialist applications that require high-lumen outputs for entire rooms and other larger spaces.

Space linear systems are comprised of profiles with core body widths of 35mm, 50mm, 75mm or 100mm, all available either as surface mount, recessed or suspended, combined with any of Digilin's constant voltage LED options, including fixed white (800-8800lm per metre), tuneable white, RGB, RGBW, backstage (blue/white) and Sunlike growlights.

Ideal for glare-critical applications such as education and workplace environments, Microprism lenses are available in 50mm and 75mm versions.

All Digilin linear systems are manufactured in Australia to custom project lengths and supplied with factory-fitted connectors using Digilin's chemical anchoring process for super durability and ease of installation. The system can undergo Digilin's shield exterior coating service to upgrade its protection to an IP65 rating for outdoor applications.

A variety of sizes and mounting options

Available in 35mm/50mm/75mm/100mm core body widths as surface mount, recessed or suspended

All Digilin LED options

Available in fixed white, tuneable white, RGB, RGBW, Backstage (blue/white) and Sunlike growlights

Microprism lenses

Ideal for glare-critical applications such as education and workplace environments (50mm/75mm versions only)

Integral Driver Options

Space systems are available with integral DALI or Mains/Phase drivers (50mm+)

Versions

35mm - Surface/Suspended
35mm - Recessed
50mm - Surface/Suspended
50mm - Recessed
75mm - Surface/Suspended
75mm - Recessed
100mm - Surface/Suspended
100mm - Recessed
35mm - Surface/Suspended
35mm - Recessed
50mm - Surface/Suspended
50mm - Recessed
75mm - Surface/Suspended
75mm - Recessed
100mm - Surface/Suspended
100mm - Recessed

Configurator

Categories: Linear Systems
Product: Space
Variant Code: SPC
Generate Datasheet
Clear
  • Specifications
ColourFixed WhiteTuneable WhiteRGBRGBW
CCT/Wavelength2700K, 3000K, 4000K2700K-5700K625nm (Red)
530nm (Green)
470nm (Blue)
625nm (Red)
530nm (Green)
470nm (Blue)
3000K (White)
LED Lumens900-6600lm/m1210-9600lm/m600-1200lm/m1300-2600lm/m
Power7-51W/m–22-44W/m18-36W/m
Input Current275-1055mA/m–900-1800mA/m740-1480mA/m
Typical CRI9090–90
PerformanceL80 (10k) >60,000hrsL70 (10k) >60,000hrsL90 (6k) >36,000hrsL80 (10k) >60,000hrs
Input Voltage24VDC
Body Width35mm, 50mm, 75mm, 100mm
MountingRecessed, Surface Mount, Suspended (Wire)
Beam OptionOpal Diffuser, MicroPrism Lens
Finish ColourNatural Anodised Aluminium, White, Black, Custom
ControlMains/Phase, DALI, Smooth DALI, DMX, Bluetooth, Non-Dim
Driver PlacementRemote, Integral
Build MaterialExtruded Aluminium
IP RatingIP20 (IP44 available)
Dimensions - 35mm version35mm (width), 50mm (recessed flange width), 35mm (height)
Dimensions - 50mm version50mm (width), 68mm (recessed flange width), 75mm (height)
Dimensions - 75mm version75mm (width), 95mm (recessed flange width), 75mm (height)
Dimensions - 100mm version100mm (width), 122mm (recessed flange width), 75mm (height)

Downloads

Photometrics
Photometrics
Photometrics
Photometrics
Install Guide - Surface Mount
Install Guide - Surface Mount
Install Guide - Surface Mount
Install Guide - Surface Mount
Install Guide - Recessed
Install Guide - Recessed
Install Guide - Recessed
Install Guide - Recessed
Install Guide - Suspended
Install Guide - Suspended
Install Guide - Suspended
Install Guide - Suspended
Install Guide - Wall Mount
Install Guide - Wall Mount
Install Guide - Wall Mount
Install Guide - Wall Mount

Gallery

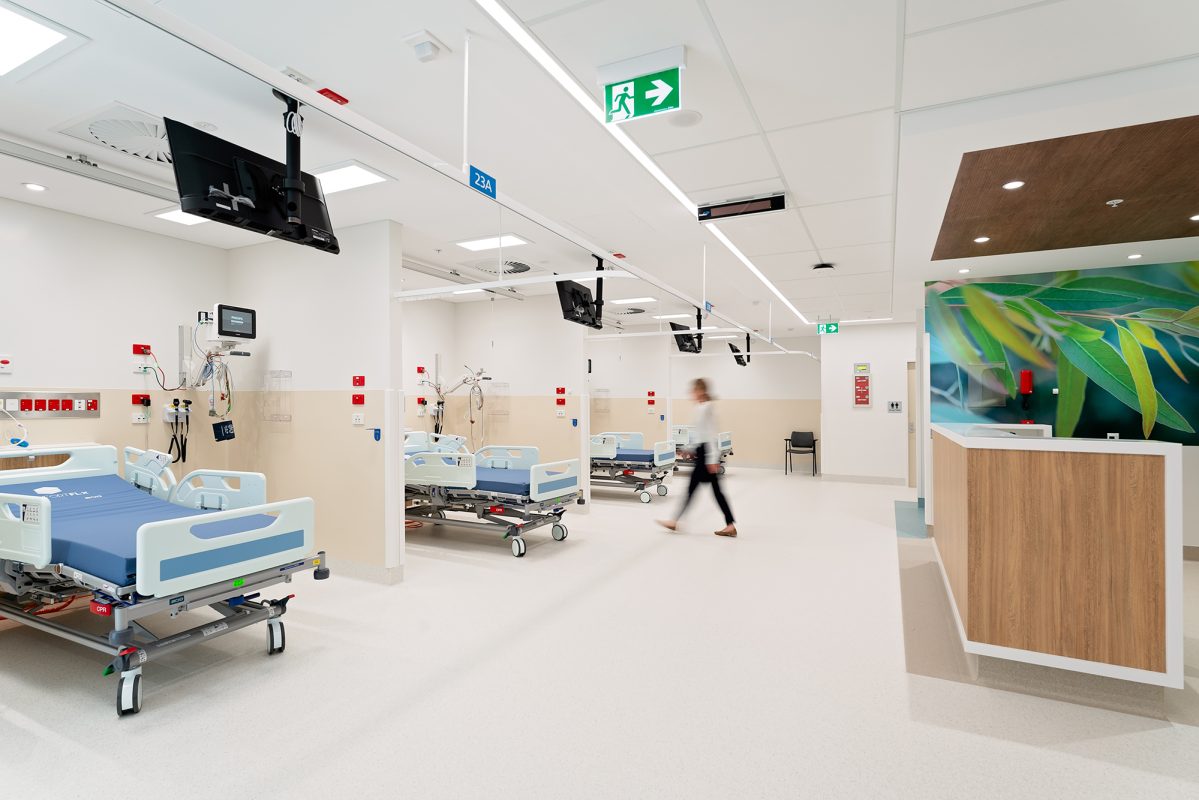

Modbury Hospital Redevelopment_1_2000pxjpg

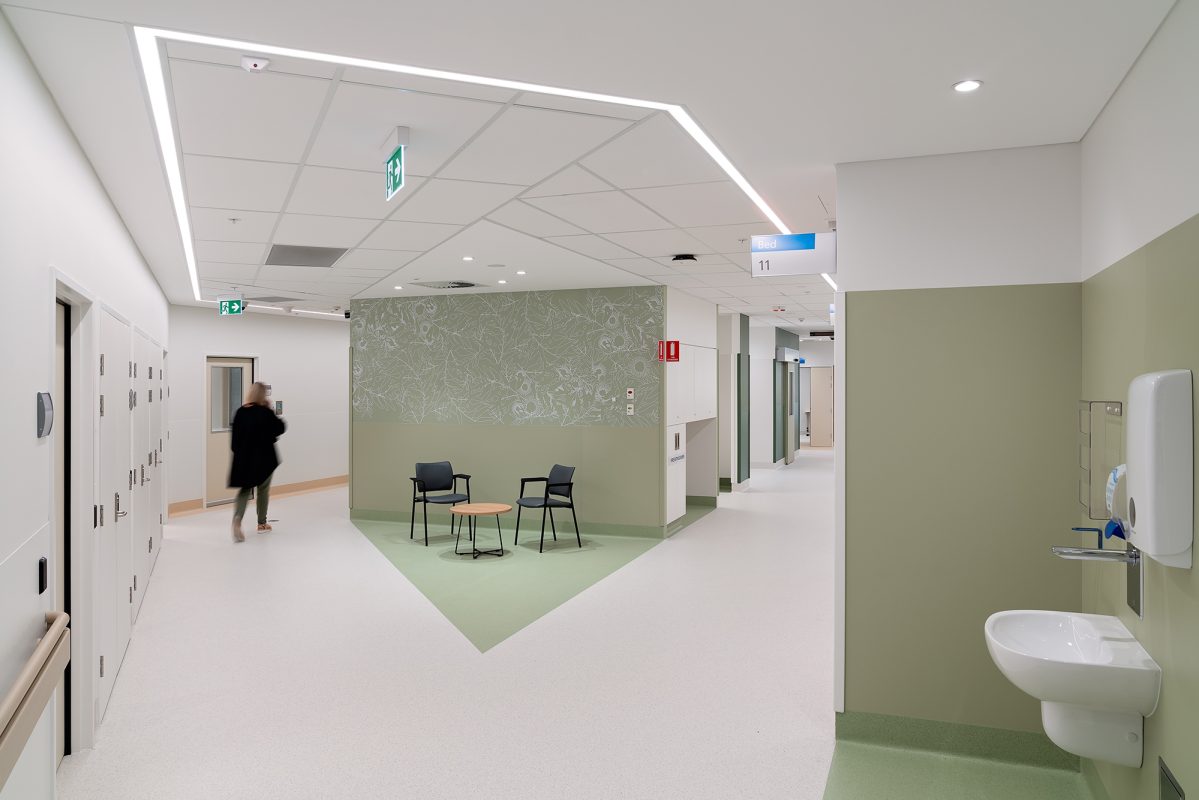

Modbury Hospital Redevelopment_4_2000pxjpg

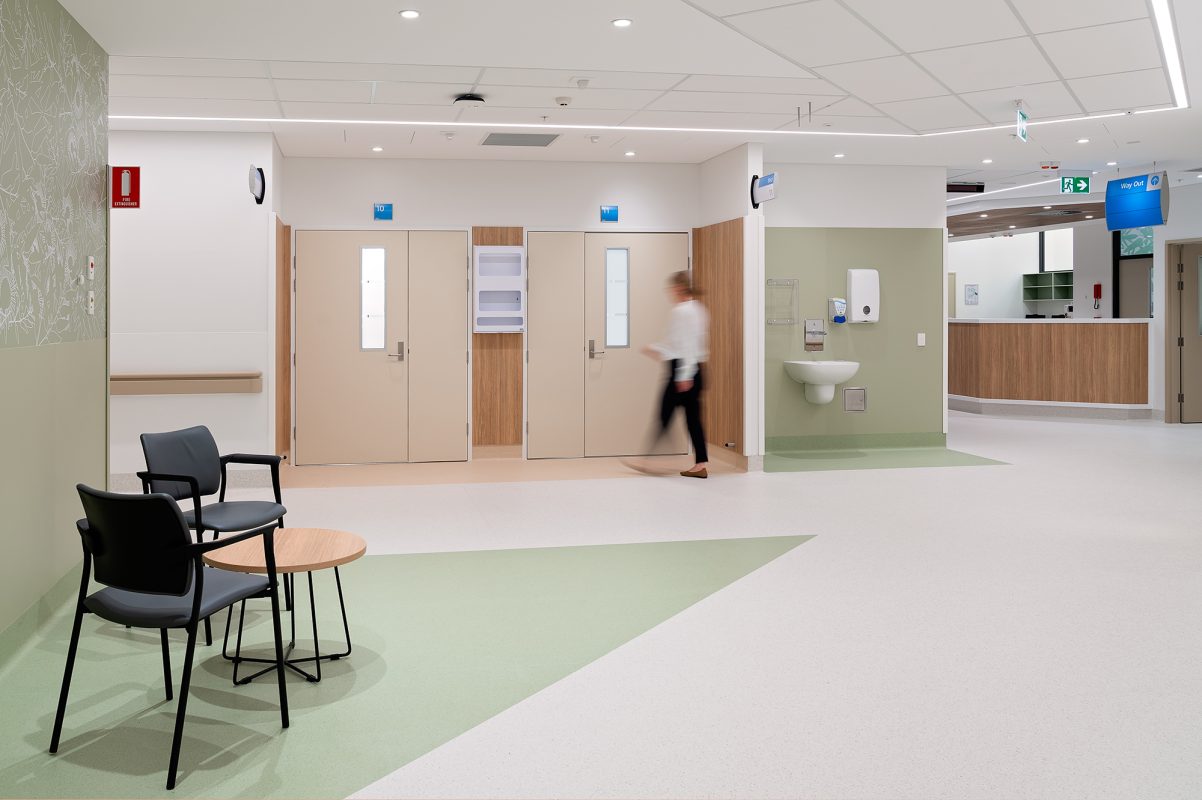

Modbury Hospital Redevelopment_2_2000px

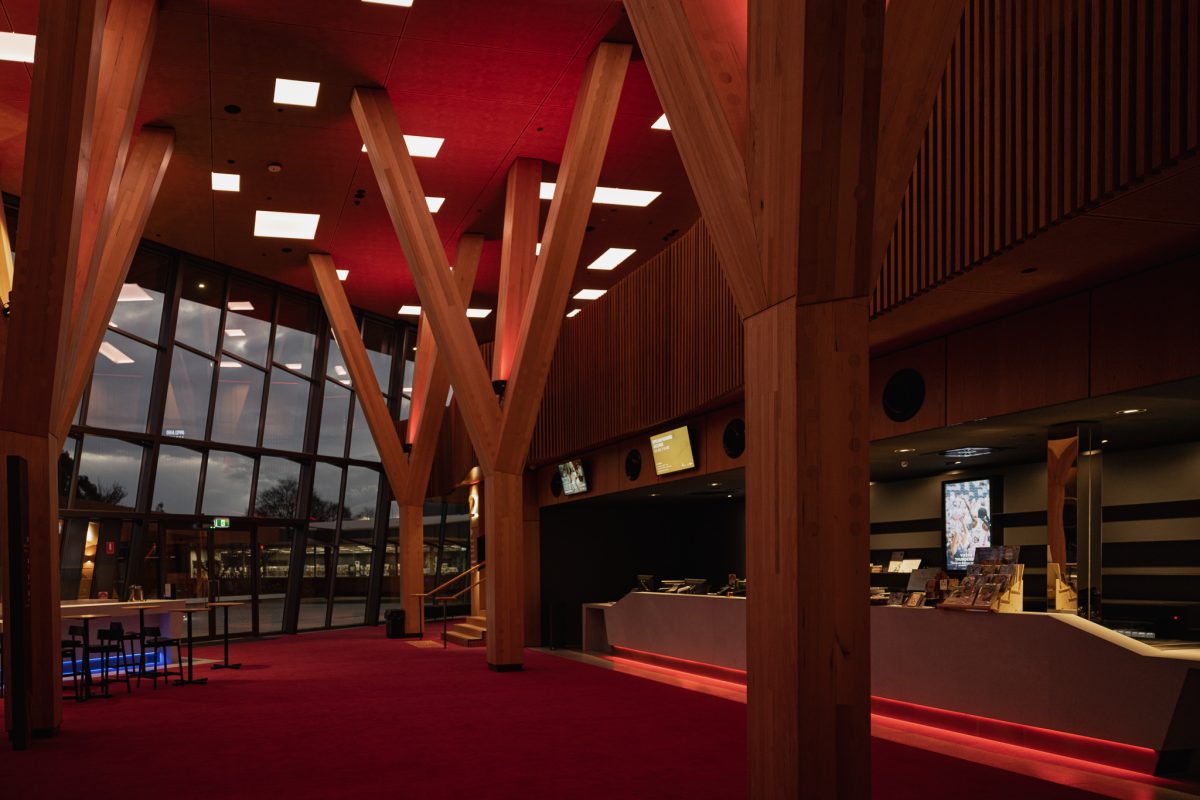

Gippsland PAC D 2000px

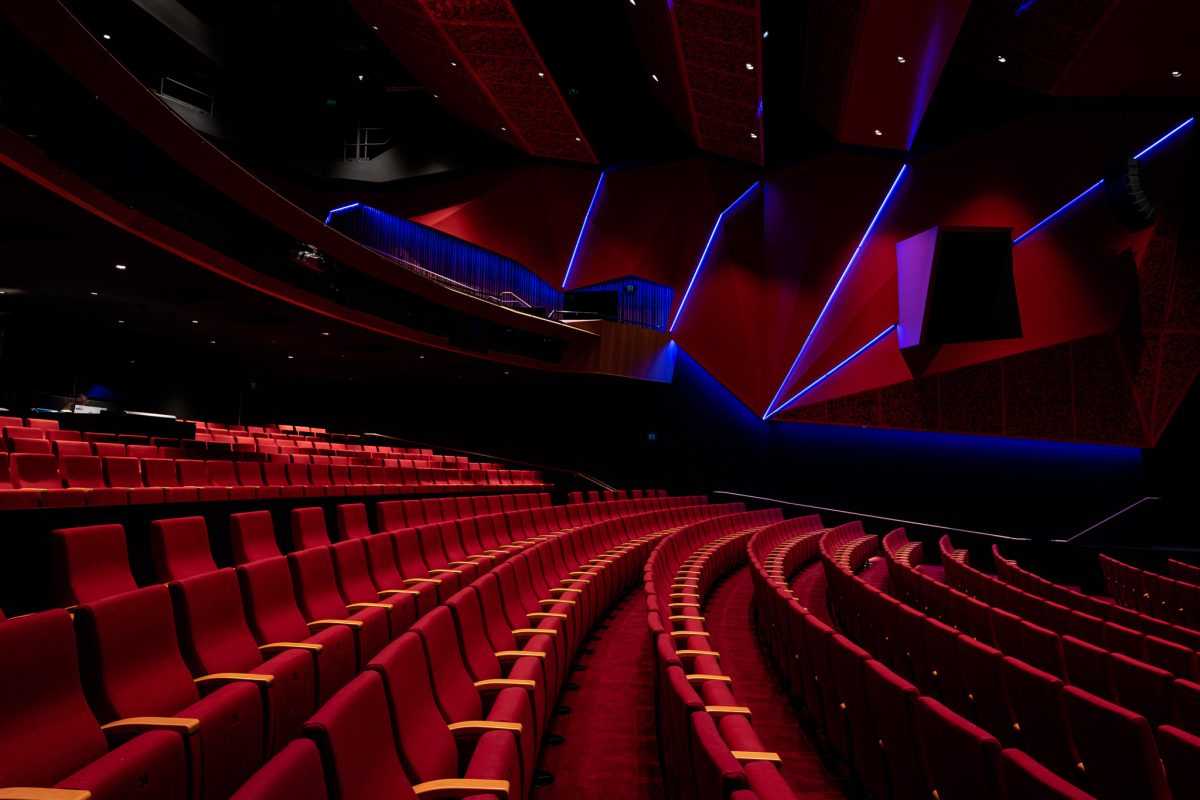

Gippsland PAC A 2000px

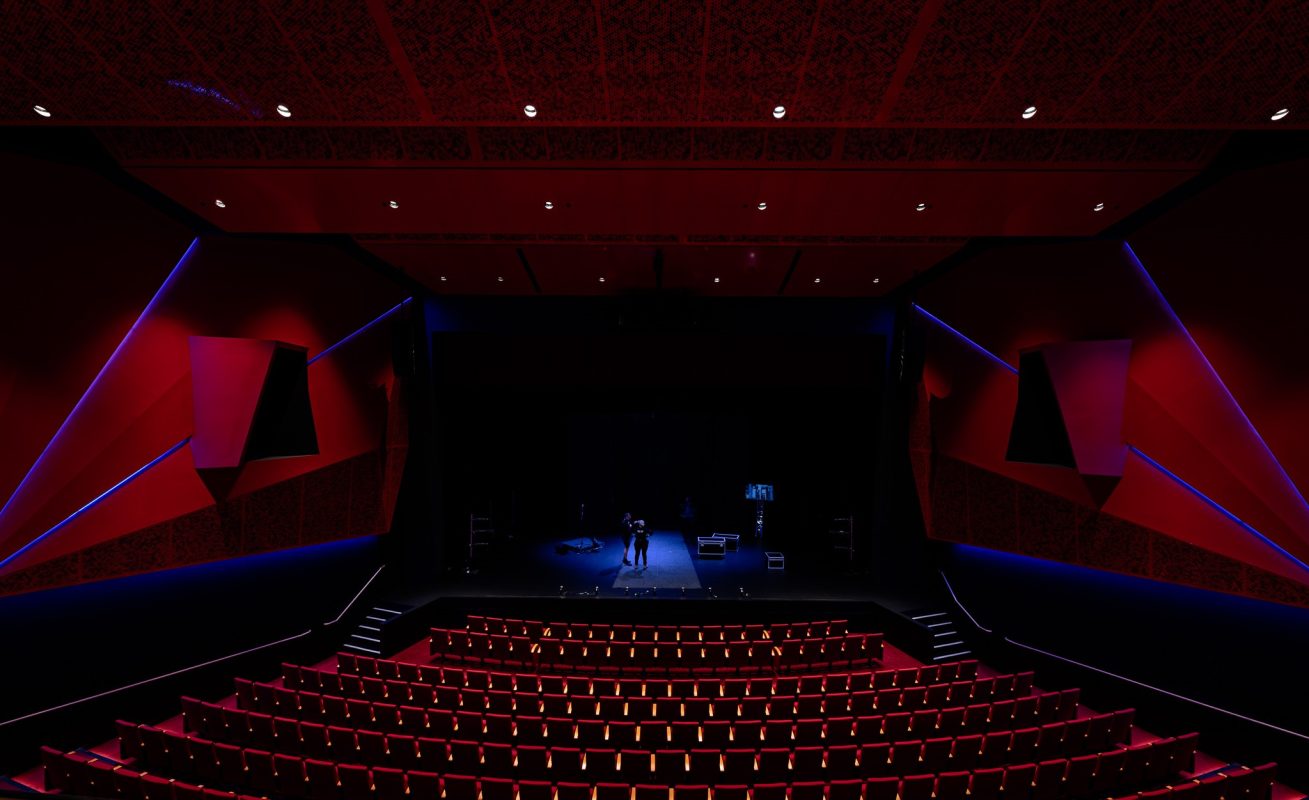

Gippsland PAC B 2000px

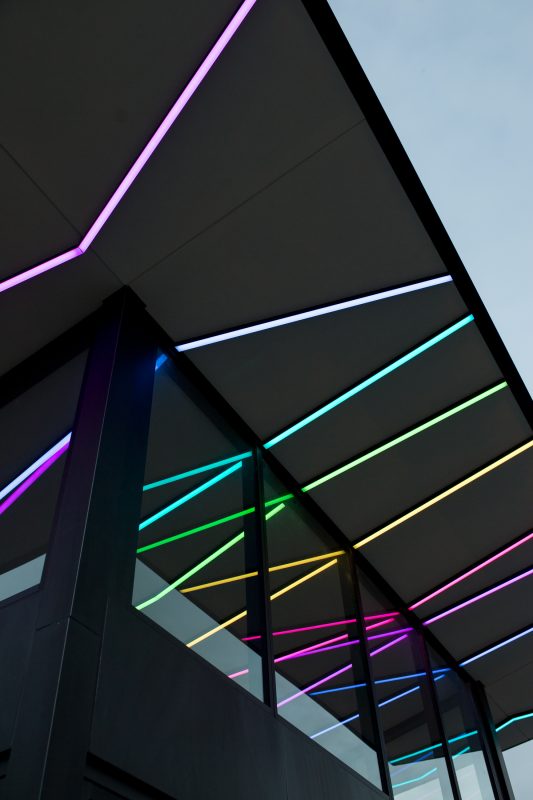

digilin-control
This is where the caption will go
This is where the caption will go

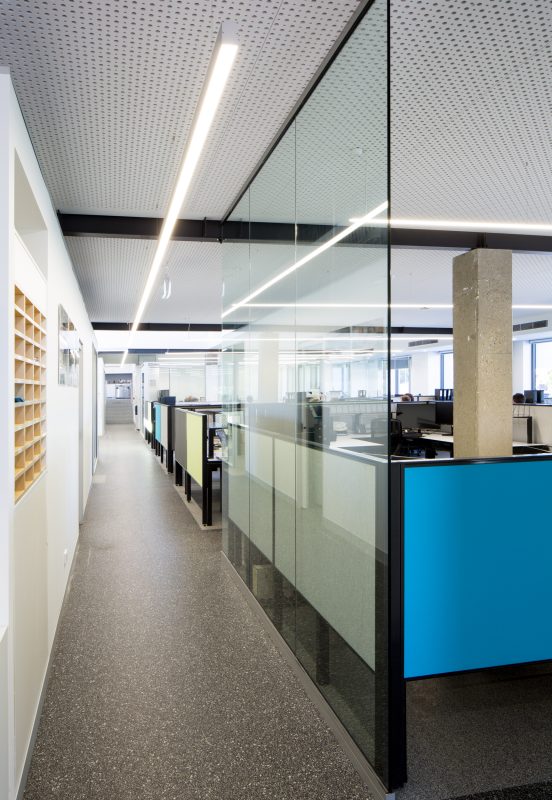

_AMP9453

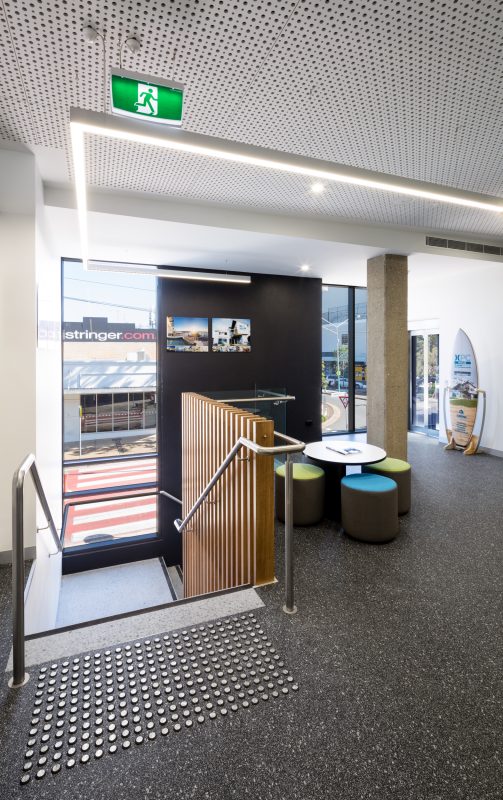

_AMP9436

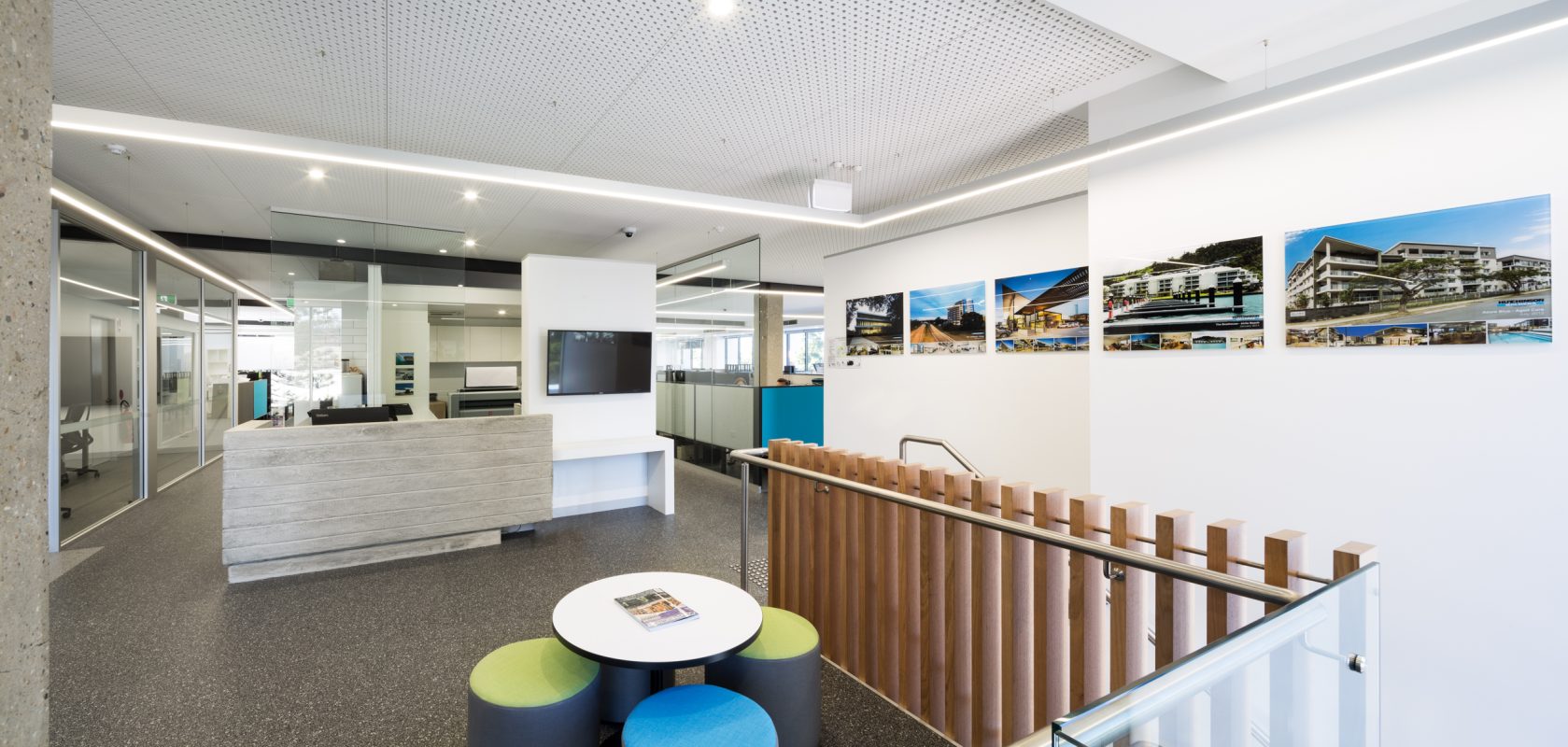

_AMP9449

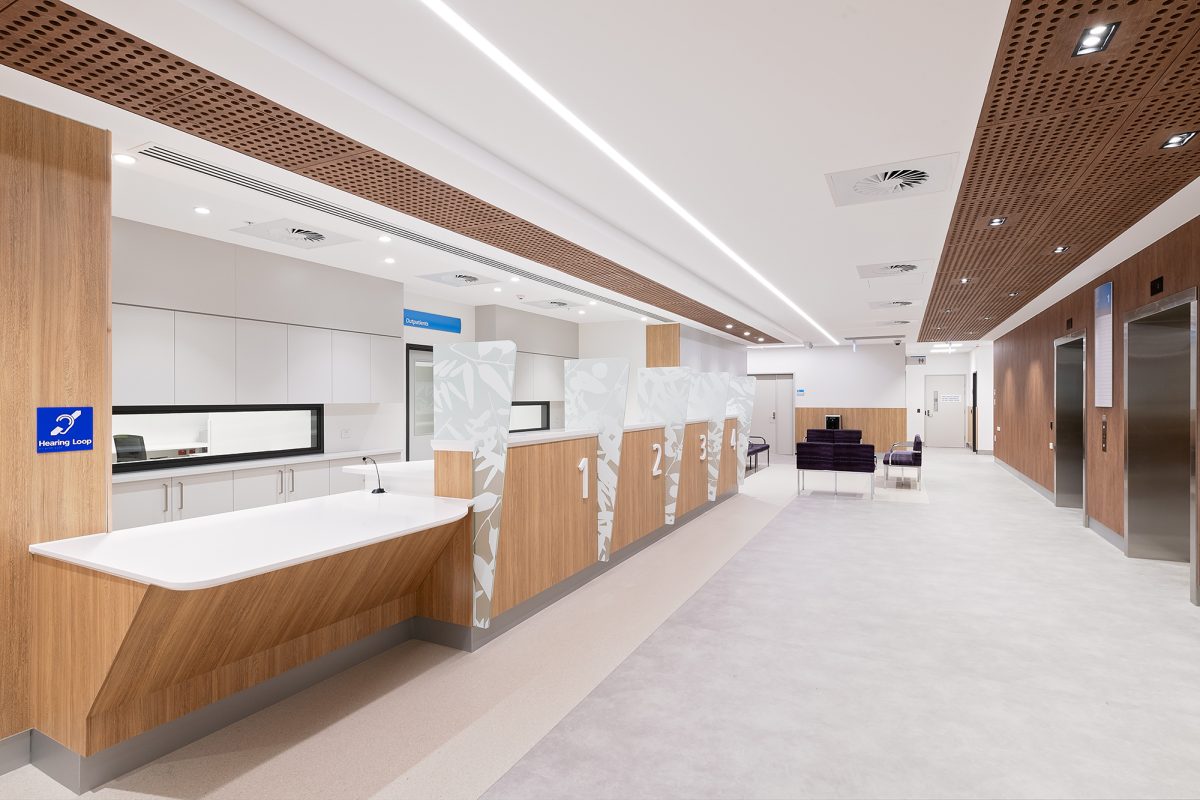

Modbury Hospital Redevelopment_3_2000px
