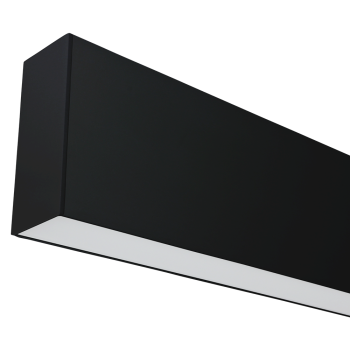

UPD050 edit

UpDown

Pendant or wall mounted systems offering independent direct and indirect outputs

Overview

Versions

Light Effect

Configurator

Gallery

Overview

Highly configurable linear systems with independent indirect (up) and direct (down) outputs, UpDown systems are well regarded for their capacity to illuminate large spaces comfortably and with uniformity. Due to these unique characteristics, UpDown systems are ideal solutions for workplaces and education environments.

Available in 25mm, 50mm, 75mm and 100mm core body widths, UpDown linear systems are highly configurable. They can be either suspended or wall mounted and combined with any of Digilin's constant voltage LED options, including fixed white (800-8800lm per metre), tuneable white, RGB, RGBW, backstage (blue/white) and Sunlike growlights. Completely independent from one another, each output can be configured with different LED colours and diffusers and be separately controlled, creating an extraordinary breadth of options.

It's common to configure the direct, downwards-facing output in fixed white, and the indirect output in RGB or RGBW to wash up onto the ceiling, controlling each separately via DMX. Well suited for glare-critical applications such as education and workplace environments, Microprism lenses are available in 50mm and 75mm versions.

All Digilin linear systems are manufactured in Australia to custom project lengths and supplied with factory-fitted connectors using Digilin's chemical anchoring process for super durability and ease of installation.

Independent Up/Down Outputs

Completely independent from one another, each output can be configured with different LED colours and diffusers, and be separately controlled

All Digilin LED options

Available in fixed white, tuneable white, RGB, RGBW, Backstage (blue/white) and Sunlike growlights

Microprism lenses

Ideal for glare-critical applications such as education and workplace environments (50mm/75mm versions only)

Integral Driver Options

UpDown systems are available with integral DALI or Mains/Phase drivers

Versions

25mm Width
50mm Width
75mm Width
100mm Width
25mm Width
50mm Width
75mm Width
100mm Width

Light Effect

Suspended
Wall Mounted
Suspended
Wall Mounted

Configurator

Categories: Linear Systems
Product: UpDown
Variant Code: UPD
Generate Datasheet
Clear
  • Specifications
ColourFixed WhiteTuneable WhiteRGBRGBW
CCT/Wavelength2700K, 3000K, 4000K2700K-5700K625nm (Red)
530nm (Green)
470nm (Blue)
625nm (Red)
530nm (Green)
470nm (Blue)
3000K (White)
LED Lumens900-6600lm/m1210-9600lm/m600-1200lm/m1300-2600lm/m
Power7-51W/m–22-44W/m18-36W/m
Input Current275-1055mA/m–900-1800mA/m740-1480A/m
Typical CRI9090–90
PerformanceL80 (10k) >60,000hrsL70 (10k) >60,000hrsL90 (6k) >36,000hrsL80 (10k) >60,000hrs
Input Voltage24VDC
ConfigurationDirect/Indirect Outputs (electrical specifications above are for each individual output)
Body Width25mm, 50mm, 75mm, 100mm
MountingSuspended (Wire), Wall Mount
Beam OptionOpal Diffuser, MicroPrism Lens
Finish ColourNatural Anodised Aluminium, White, Black, Custom
ControlMains/Phase, DALI, Smooth DALI, DMX, Bluetooth, None
Driver PlacementRemote, Integral
Build MaterialExtruded Aluminium
IP RatingIP20
Dimensions - 25mm version25mm (width), 35mm (height)
Dimensions - 50mm version50mm (width), 120mm (height)

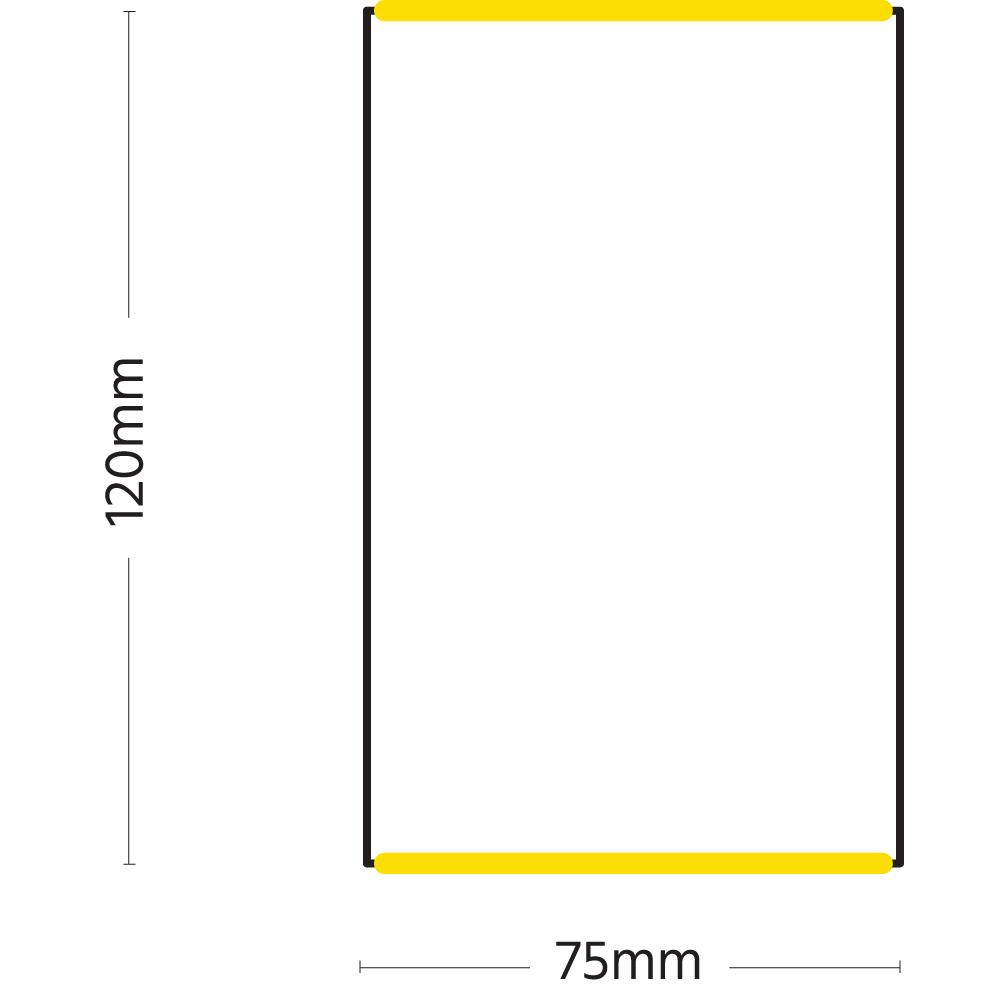

Dimensions - 75mm version75mm (width), 120mm (height)

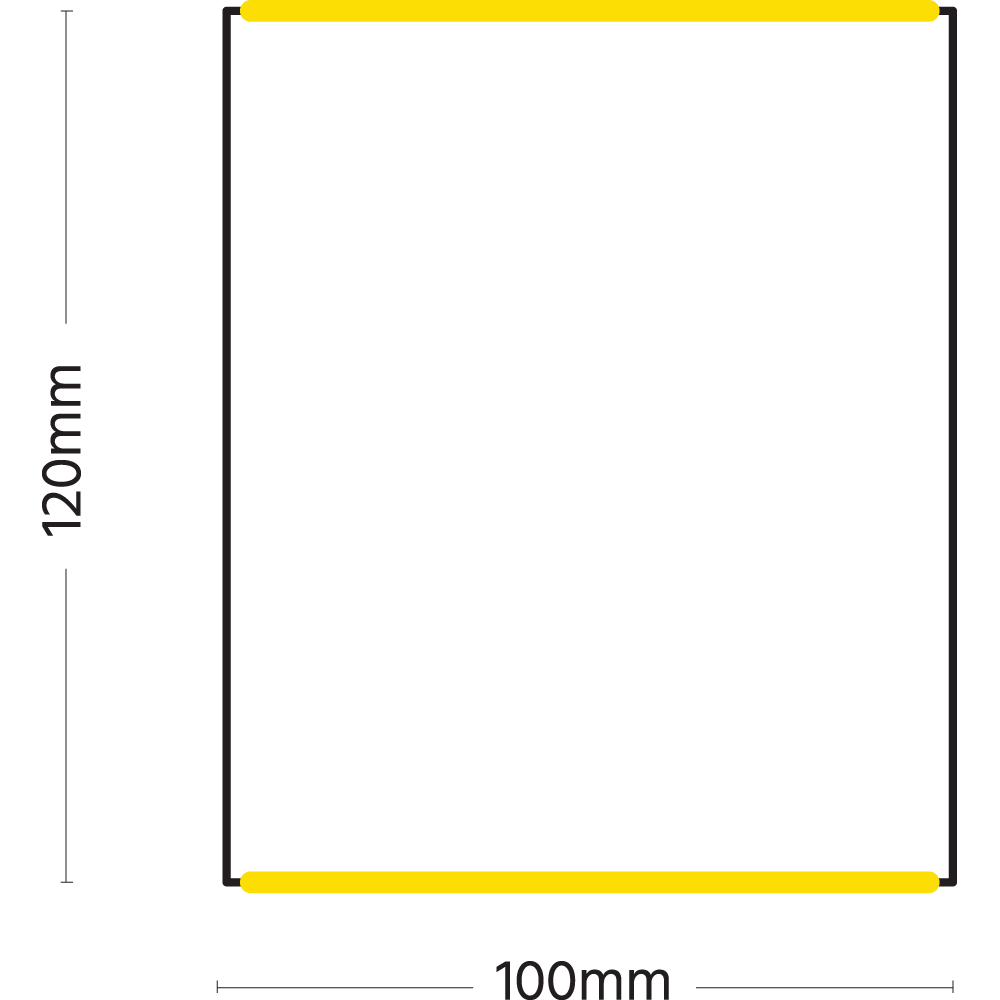

Dimensions - 100mm version100mm (width), 120mm (height)

Gallery

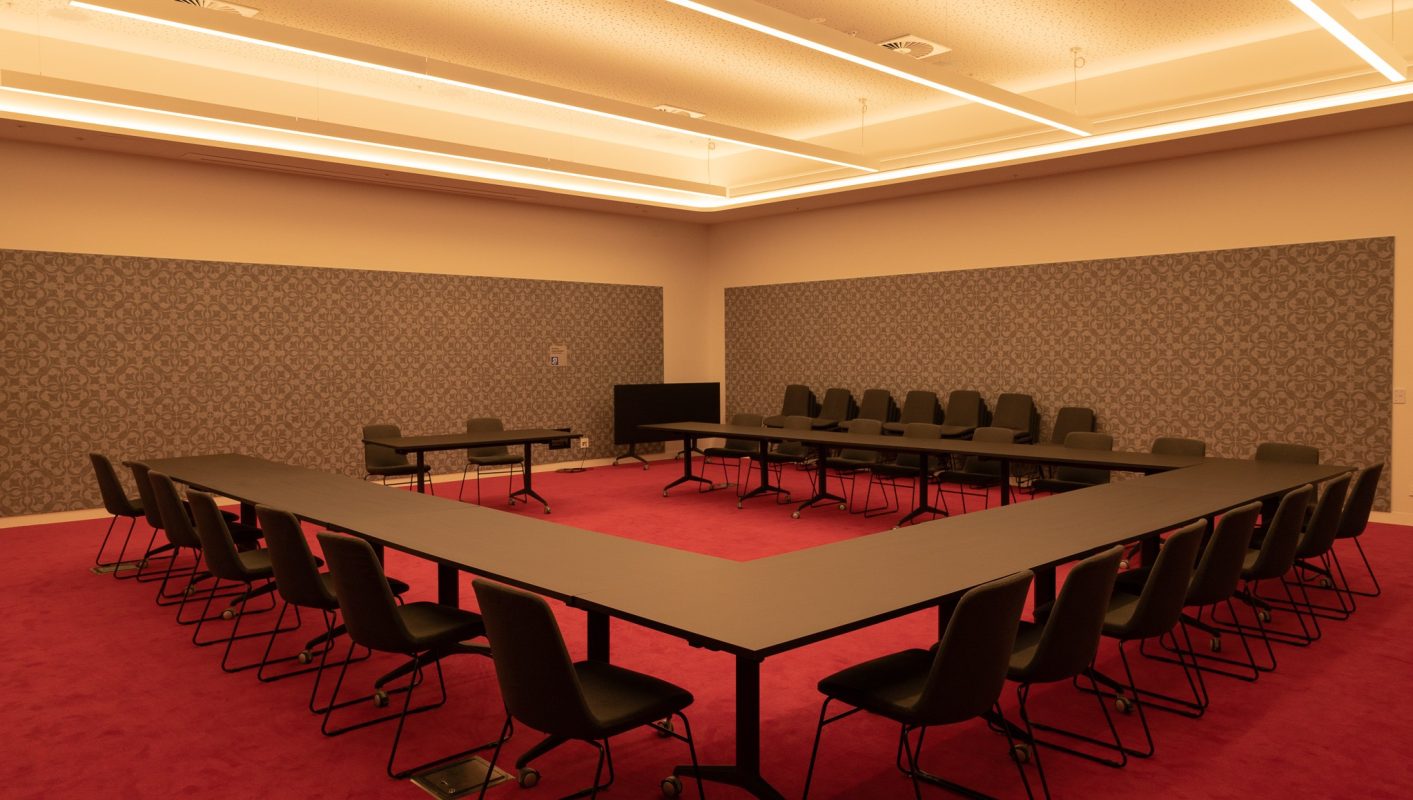

Gippsland PAC F 2000px

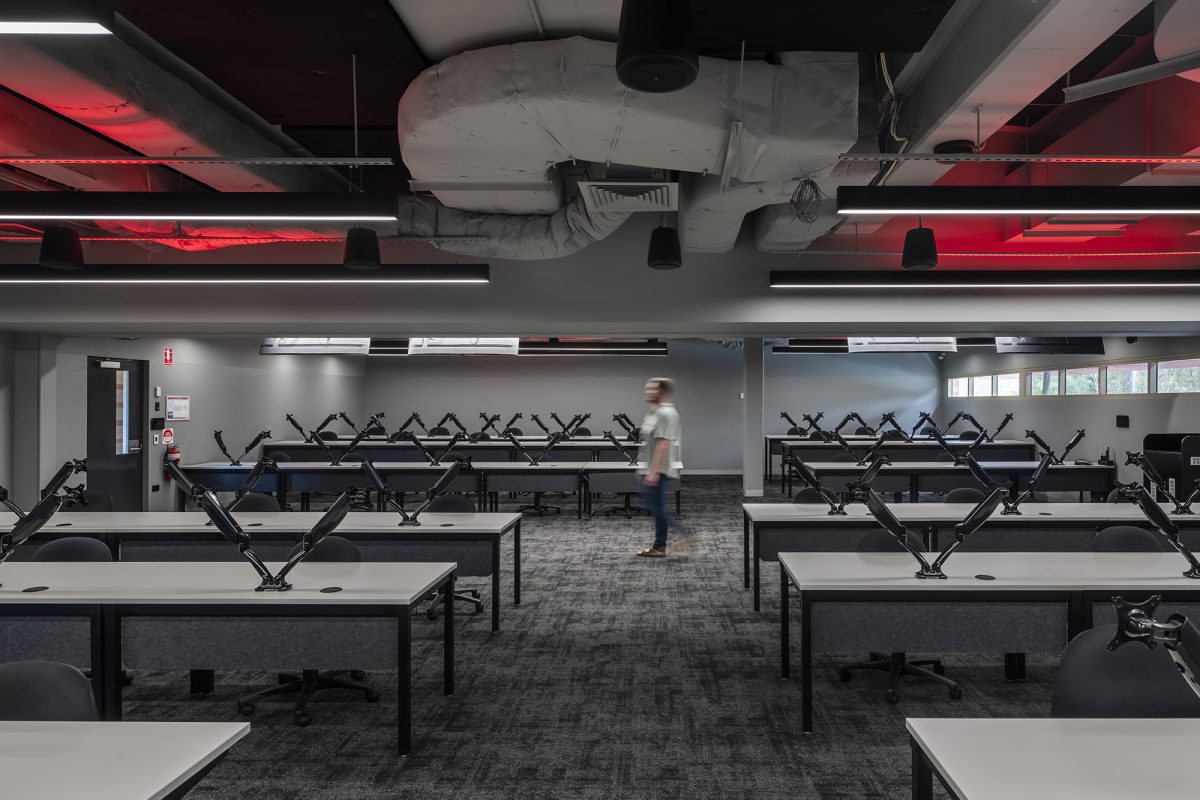

Mooloolaba TAFE 1 edit 2000px copy

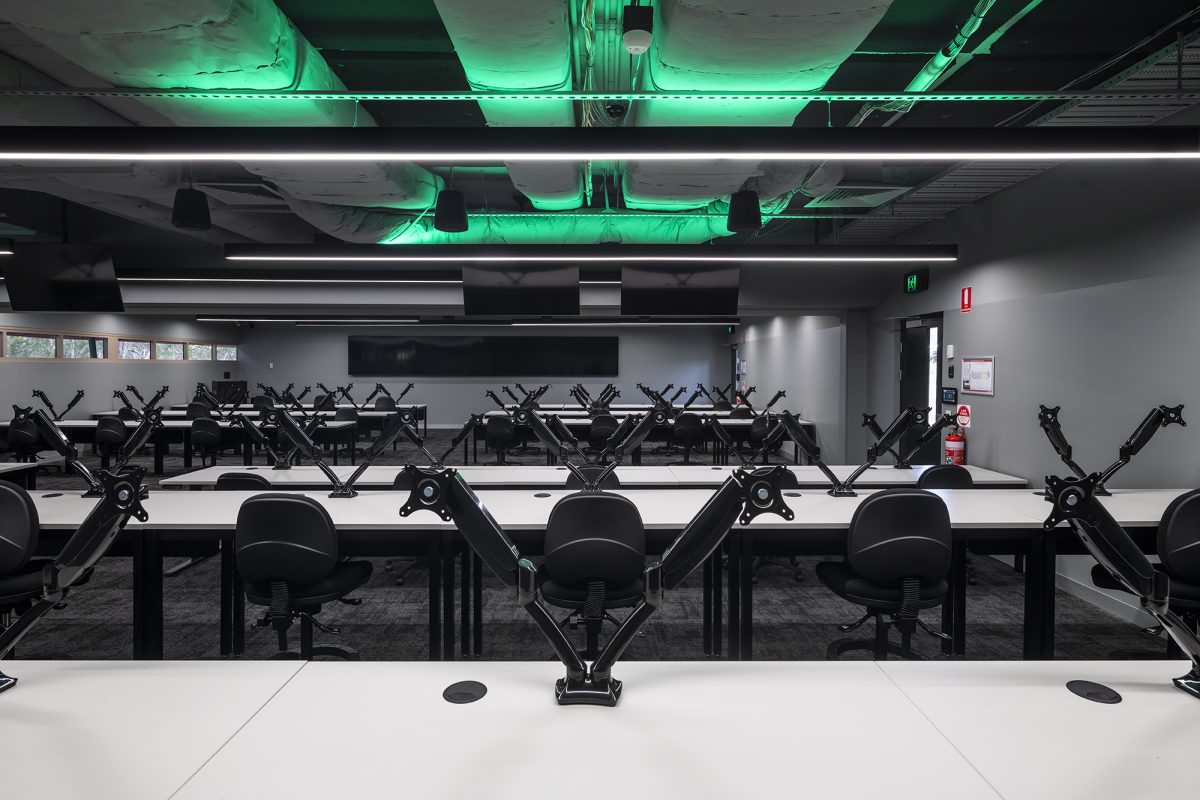

Mooloolaba TAFE 3 edit 2000px copy

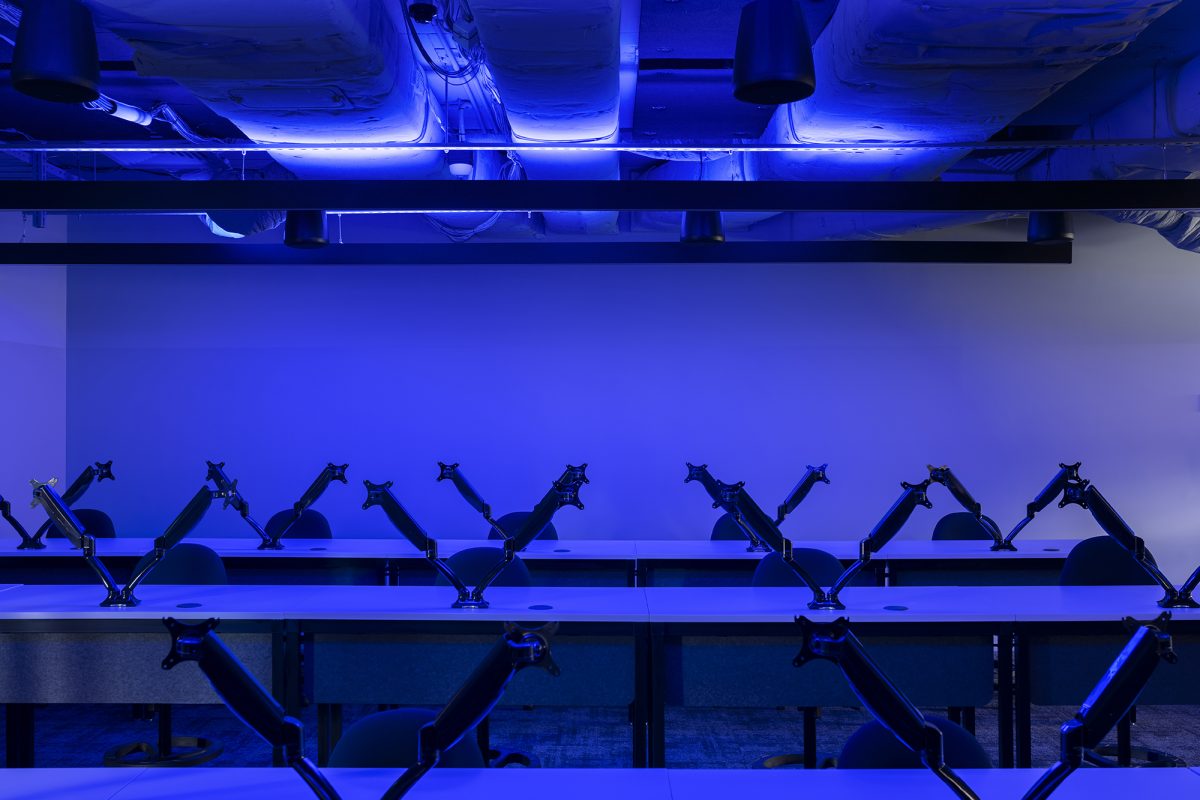

Mooloolaba TAFE 2 edit 2000px

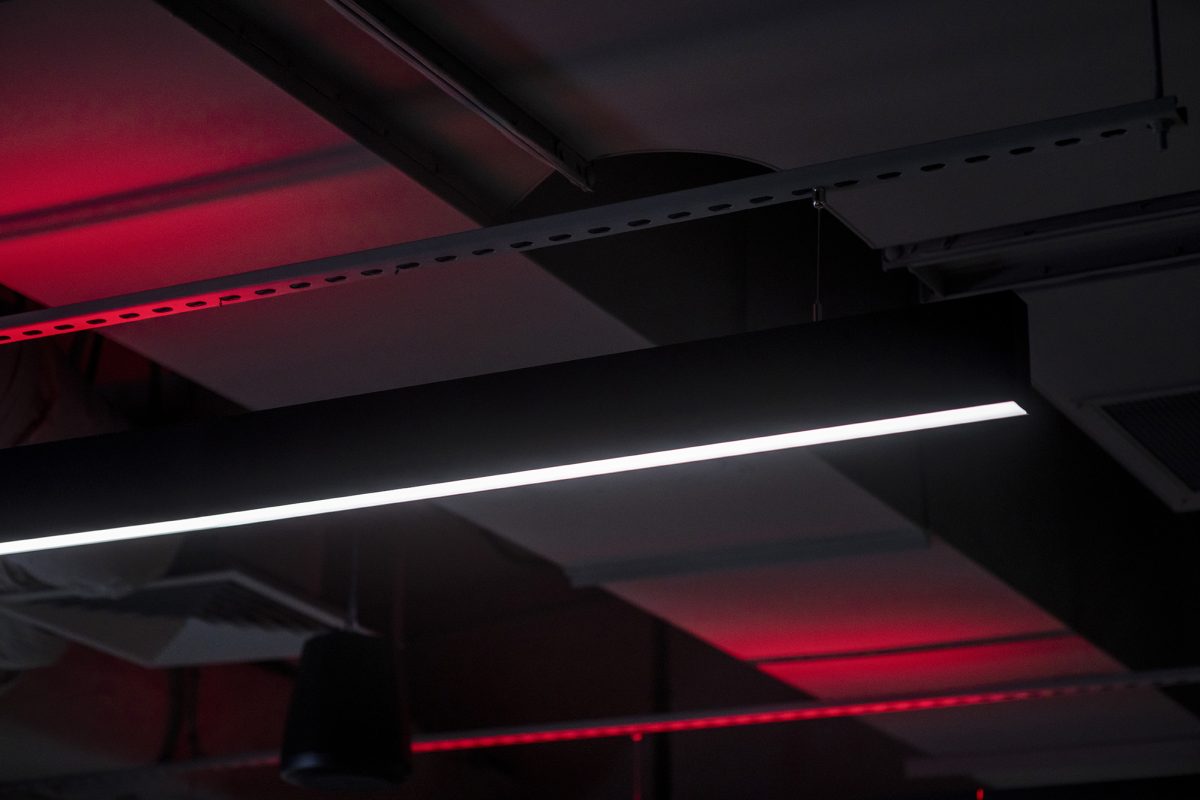

Mooloolaba TAFE 4 UPD050 edit 2000px
