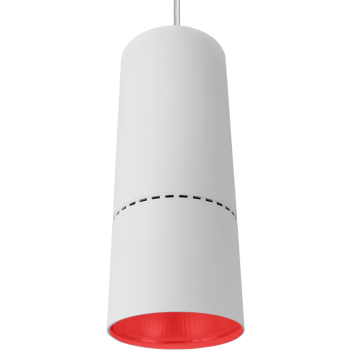

ALT-SUW colour

Altitude Colour

Powerful colourmixing downlight in a minimalistic cylindrical form

Overview

Dimensions

Configurator

Series

Overview

Designed for the low-glare illumination of large spaces, Altitude is powerful colourmixing downlight for surface mounted and suspended applications. Performers and stage operators will enjoy the luminaire's high-powered, vibrant colour mixes; while venue owners and facility managers will appreciate its energy efficiency, low maintenance requirements and long performance life. A blue/white Backstage model has also been developed to cater to the specialised lighting needs of stage operators as they work during shows.

Altitude Colour is often used in combination with our Liberty Colour and Freedom Colour luminaire families, which use the same LEDs and CC DMX FusionDriver ranges for a comprehensive compatible lighting solution. Altitude Colour's LED arrays are manufactured by Digilin in our electronics workshop using premium LEDs for ultimate reliability. With the RGBW model delivering an incredible 46 lumens per watt, this luminaire is an unbelievably efficient colourmixing downlight. The fixture’s exceptional mechanical design allows it to effectively dissipate heat without the requirement for large air vents, even with its internal drivers running at over 40W. Altitude also features a high transparency cover to prevent dust ingress, further improving its reliability and longevity.

DMX versions are supplied with Digilin's CC DMX FusionDrivers, designed and manufactured in-house, guaranteeing compatibility and providing the best in dimming performance.

Altitude Colour is proudly designed and manufactured by Digilin in Australia.

Outstanding Colour Mixing Effects

RGBW, and Backstage colour outputs with uniform colour mixes and smooth light effects

Suitable for High Ceiling Rooms

Significant lumen deliveries coupled with wide to narrow reflectors make this fixture ideal for applications with high ceilings

Backstage Version

Used by stage operators, the Backstage version switches between white for general operation, and high-output blue for when shows are underway

Packaged with CC DMX FusionDrivers

Designed and manufactured by Digilin in Australia, our CC DMX FusionDrivers provide the best in precision dimming, zero flicker control

Front Cover

High transmission front cover prevents dust ingress and protects the fixture’s LED Array

Manufactured in Australiaa

Altitude Colour is proudly designed and manufactured in Australia

Dimensions

Configurator

Categories: Suspended Luminaires
Product: Altitude Colour
Variant Code: ALT-SUW-XXX
Generate Datasheet
Clear
  • Specifications
LED ColourRGBWBackstage – Blue/WhiteBlue (fixed)
Delivered Lumens2215lm2720lm/800lm800lm
Luminaire Power43.6W30.5W/31W31W
Connected Load56.3W33.9W/38W38W
Drive Current1050mA1050mA1050mA
Forward Voltage41.55V29V/29.5V29.5V
Typical CRI>90 (white)>90 (white)–
PerformanceL90(10K) >60,500hrsL90(10K) >60,500hrsL90(10k) > 60,000hrs
Colour Consistency3 SDCM (white)3 SDCM (white)–
MountingSuspended (Wire)
Beam OptionNarrow (20°), Medium (43°), Wide (62°)
Finish ColourWhite, Black, Custom
Driver PlacementRemote, Integral
ControlMains/Phase, DALI, Smooth DALI, DMX, Bluetooth
Build MaterialExtruded Aluminium Body, Polycarbonate Reflector
IP RatingIP20
Dimensions305mm (height), 116mm (trim diameter)
Weight2.2kg (not inc. integral drivers)
