Altitude_Wht__Iso_Web

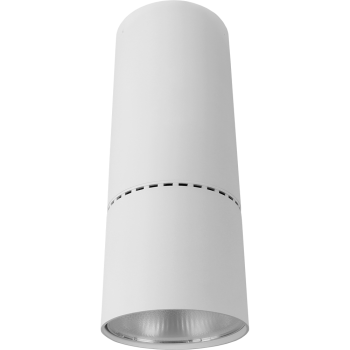

Altitude

High output, low glare downlight with sleek form and integral drivers

Overview

Dimensions

Configurator

Downloads

Series

Overview

Designed for the low-glare illumination of large spaces, Altitude is an extremely efficient, high output downlight for surface mounted and suspended applications. Combining the latest generation LED COB technology from Citizen with high quality, low-glare reflectors into a neat physical package, Altitude is very well suited to commercial, cultural and retail projects. Combined with Digilin’s Smooth DALI or DMX FusionDriver technology, Altitude is also an ideal lighting solution for performing arts theatres and convention centres. This versatile fixture is available in fixed white, tuneable white or with Sunlike 4000K growlight LEDs.

RGBW and backstage versions versions are also available in Altitude Colour. The fixture’s exceptional mechanical design allows it to effectively dissipate heat without the requirement for large air vents, even with its internal drivers running at over 40W. Altitude also features a high transparency cover to prevent dust ingress, further improving its reliability and longevity.

Altitude is proudly designed and manufactured by Digilin in Australia and supported by our 5 year Guardian Warranty policy.

Integral Drivers

Containing the driver within the fixture’s body means the entire luminaire works as a single, neat package

Suitable for High Ceiling Rooms

Significant lumen deliveries coupled with wide to narrow beam options make this fixture ideal for applications with high ceilings

Front cover

High transmission front cover prevents dust ingress and protects the fixture’s LED

Tuneable White Version

Ideal for commercial spaces, workplaces and learning environments

Extremely Efficient

Delivers up to 5500 lumens at 100-115lm per watt (90 CRI)

Sunlike Growlight Version

Altitude can also be employed as an efficient architectural growlight using Sunlike 4000K LEDs, delivering up to 4000lm (88PPF) at 95 CRI

Dimensions

Configurator

Categories: Surface Mount Luminaires
Product: Altitude
Variant Code: ALT-SFC
Generate Datasheet
Clear
  • Specifications
LED ColourFixed WhiteTuneable WhiteSunlike Growlight
Colour Temperature2700K, 3000K, 4000K, 5700K2700K-5700K4000K
Delivered Lumens2200-5450lm2979lm3700lm (88PPF)
Luminaire Power16.6-50.4W35.8W35.5W
Connected Load18.4-56W40.7W40.4W
Drive Current500-1400mA1050mA1050mA
Forward Voltage33.1-36V34.1V33.8V
Typical CRI90+9095
PerformanceL90(9K) >50,000hrs––
Colour Consistency2 SDCM3 SDCM–
MountingSurface Mount
Beam OptionNarrow, Medium, Wide
Finish ColourWhite, Black, Custom
Driver PlacementRemote, Integral
ControlMains/Phase, DALI, Smooth DALI, DMX, Bluetooth
Build MaterialExtruded Aluminium Body, Polycarbonate Reflector
IP RatingIP20
Dimensions305mm (height), 116mm (trim diameter)
Weight2.2kg (not inc. integral drivers)

Downloads

Photometrics
Photometrics
Photometrics
Photometrics

Series

NEW

Altitude Colour

Powerful colourmixing downlight in a minimalistic cylindrical form
Suspended Luminaires
Backstage, Blue, RGBW

Altitude Colour

Mounting: Suspended
Delivered Lumens: 2200lm (RGBW)
LED Colours: RGBW, Backstage, Blue
Beam Options: Narrow (20°), Medium (43°), Wide (62°)

NEW

Altitude Colour

Powerful colourmixing downlight in a minimalistic cylindrical form
Surface Mount Luminaires
Backstage, Blue, RGBW

Altitude Colour

Mounting: Surface Mount
Delivered Lumens: 2200lm (RGBW)
LED Colours: RGBW, Backstage, Blue
Beam Options: Narrow (20°), Medium (43°), Wide (62°)

NEW

Altitude

High output, low glare downlight with sleek form and integral drivers
Suspended Luminaires
Fixed White, Tuneable White

Altitude

Mounting: Suspended
Delivered Lumens: 2200-5500lm
LED Colours: White, Tuneable, Sunlike
Beam Options: Narrow (20°), Medium (43°), Wide (62°)
