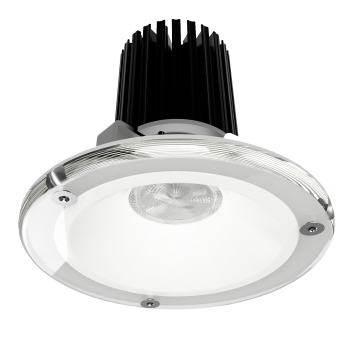

ENW render 1500px square

Envoy W Secure

Vandal-resistant, anti-ligature downlight featuring IP66 & IK10 ratings

Overview

Configurator

Downloads

Series

Overview

Introducing Envoy W Secure, a robust evolution of the premium Envoy W downlight, designed and manufactured by Digilin in Australia. Featuring the same cutting-edge LED COB and lens technology as the standard Envoy W, Envoy W Secure takes durability and safety to the next level with the addition of the Secure Kit attachment. With an exceptional Colour Rendering Index (CRI) of 90+ and 2 SDCM precision, this downlight ensures true-to-life colour representation while offering a broad selection of versatile optic lenses, including standard axially asymmetric beams, wall wash, double wall wash, oval, and square beam options.

Designed specifically for public spaces and institutional environments such as correctional facilities and mental health institutions, Envoy W Secure is built to withstand the most demanding applications where an extremely reliable lighting solution is required. With an IP66 and IK10 rating (from below), it provides superior protection against water ingress and mechanical impact, ensuring long-lasting performance in harsh environments.

Security and durability are at the forefront of Envoy W Secure's design. Featuring vandal-resistant construction with tamper-resistant screws and an anti-ligature design, it offers enhanced safety and robustness to meet the stringent requirements of high-risk environments.

Despite its reinforced features, Envoy W Secure maintains the compact form factor of its standard counterpart. Depending on the model and wattage, it incorporates one of three different sizes of heatsinks, with the 700 and 1000 lumen versions featuring a shallow heatsink for a total luminaire height to 73mm, making it ideal for ceilings with limited recess space.

Envoy W Secure offers extensive configurability with models delivering between 700-2500 lumens, CCTs available in 2700K, 3000K, and 4000K, and full compatibility with Digilin's control protocols including mains, DALI, Smooth DALI, DMX, and Bluetooth. Additionally, for hospital and medical applications, it is available with cyanosis-compliant 97 CRI 4000K LED (COI <1.8).

Proudly designed and manufactured in Australia, Envoy W Secure is the ideal lighting solution for environments requiring the highest levels of safety, durability, and performance.

Vandal Resistant

IP66 & IK10 ratings – high impact polycarbonate window, silicone gaskets and tamper-resistant screws

Anti-ligature design

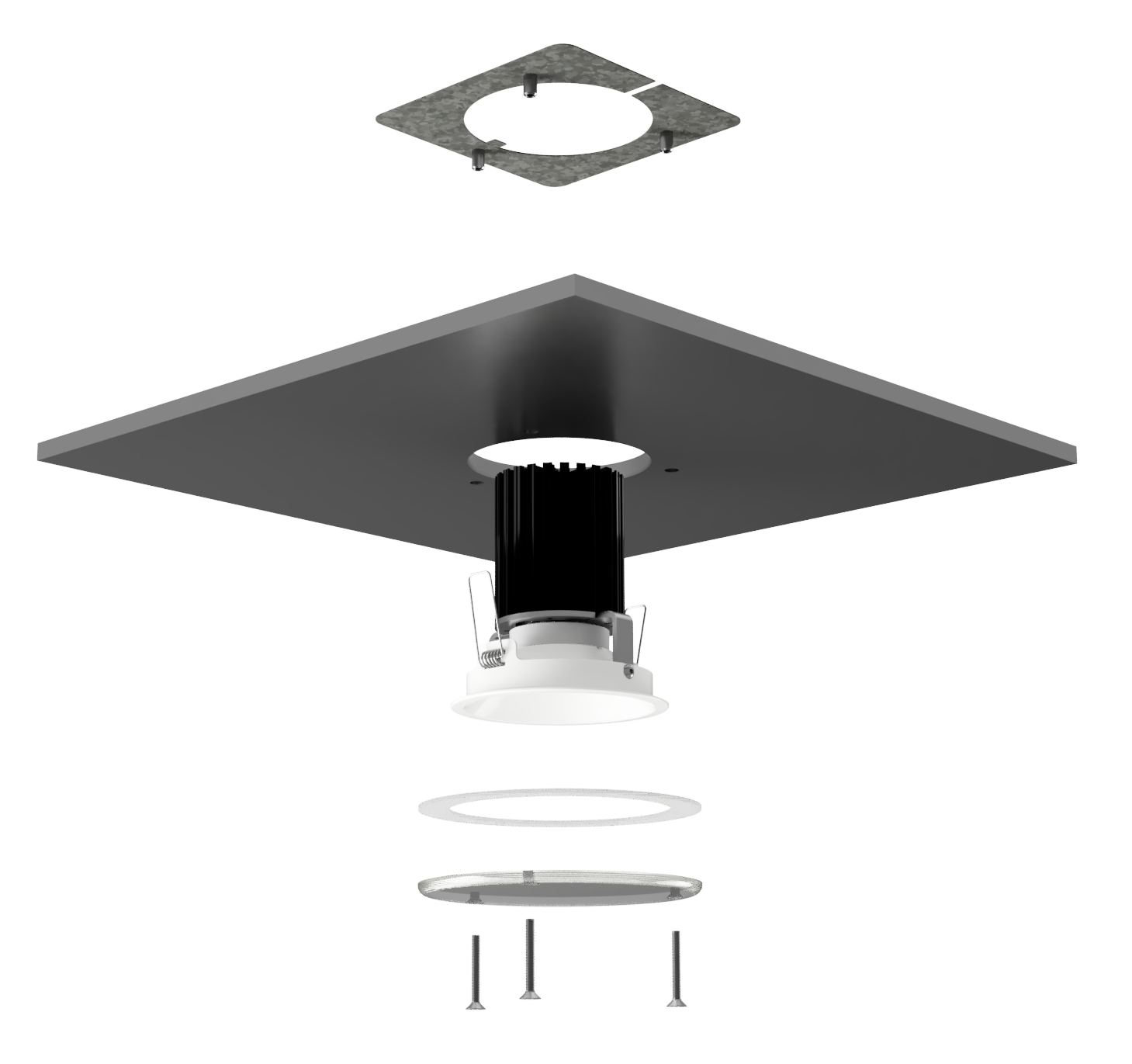

The Secure Kit features rounded edges, tamper-resistant screws and will secure Envoy W to the ceiling surface with no gaps between the ceiling trim, removing ligature points

Premium LED COB

Envoy W is powered by Citizen’s Gen 9 LED COB lightsources with >90CRI and 2 SDCM colour consistency

Compact heights for shallow ceilings

With a height of only 73mm, the 700lm and 1000lm output versions are great options for shallow ceiling recesses.

Extraordinary breadth of beam options

Envoy’s W broad fascia enables compatibility with 9 different lenses with unique light effects such as double wall wash and square

Manufactured in Australia

Envoy W Secure is proudly designed and manufactured by Digilin in Australia

Configurator

Categories: Recessed Luminaires
Product: Envoy W Secure
Variant Code: ENWS
Generate Datasheet
Clear
  • Specifications
LED ColourFixed WhiteTuneable White
CCT2700K, 3000K, 4000K2700K-6500K
Delivered Lumens (4000K)765-2595lm1180-2035lm
Luminaire Power5.9-25.2W13.4-29.6W
Connected Load6.6-28W12-26.6W
Drive Current180-700mA350-700mA
Forward Voltage32.7-35.9V34.2-38
CRI>90 (CRI 97 4000K available)>90
PerformanceL90(9K) >50,000hrs–
Colour Consistency2 SDCM3 SDCM
MountingRecessed
Beam OptionWide Oval (36°x55°), Narrow (33°), Medium (55°), Wide (64°), Flood (77°), Wall Wash, Double Wall Wash, Square 60°, Square 90°
Finish ColourWhite, Black, Custom
Driver PlacementRemote
ControlMains/Phase, DALI, Smooth DALI, DMX, Bluetooth
Build MaterialCast Aluminium Body, Polycarbonate Window, Silicone Gaskets
IP RatingIP66 (from below using Secure Kit attachment)
IK RatingIK10
Dimensions150mm (trim diameter), 105mm (hole cut out), 73mm/103mm/133mm (height varies with model, refer to install guide)

Downloads

Photometrics
Photometrics
Photometrics
Photometrics
Install Guide
Install Guide
Install Guide
Install Guide
