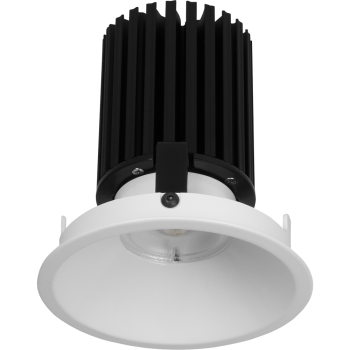

Envoy Wide_Iso_Web

Envoy W

Premium lens-based downlight offering a massive variety of unique light effects

Overview

Configurator

Downloads

Series

Overview

Introducing Envoy W, a premium downlight designed and manufactured by Digilin in Australia. Engineered with the latest generation cutting-edge LED COB and lens technology, Envoy W (wide) boasts a high Colour Rendering Index (CRI) of 90+, ensuring true-to-life colour representation with a precision of 2 SDCM. This downlight is not only highly efficient but also offers a broad selection of versatile optic lenses, allowing for a wide range of standard axially asymmetric beams and unique effects such as wall wash, double wall wash, oval and square beams.

Depending on the model and wattage, the Envoy W incorporates one of three different sizes of heatsinks, ensuring compactness while effectively dissipating heat for prolonged LED performance. With a total height of just 68mm, the 700 and 1000 lumen versions feature a shallow heatsink, making them perfect for ceilings with tight recesses. The modern curved aluminium fascia comes in standard powder-coated white or black, with custom colors available upon request.

This modern downlight is incredibly versatile and offers an extensive breadth of configurable attributes. The luminaire is available in models delivering between 700-2500 lumens, CCTs in 2700K, 3000K and 4000K while supporting all of Digilin's control protocols including mains, DALI, Smooth DALI, DMX and Bluetooth. For hospital and other medical projects, the fixture is also available with cyanosis-compliant 97 CRI 4000K LED (COI <1.8).

Envoy W is proudly designed and manufactured by Digilin in Australia.

Premium LED COB

Envoy W is powered by Citizen’s Gen 9 LED COB lightsources with >90CRI and 2 SDCM colour consistency

Compact heights for shallow ceilings

With a height of only 73mm, the 700lm and 1000lm output versions are great options for shallow ceiling recesses.

Extraordinary breadth of beam options

Envoy’s W broad fascia enables compatibility with 9 different lenses with unique light effects such as double wall wash and square

Manufactured in Australia

Envoy W is proudly designed and manufactured by Digilin in Australia

Configurator

Categories: Recessed Luminaires
Product: Envoy W
Variant Code: ENW
Generate Datasheet
Clear
  • Specifications
LED ColourFixed WhiteTuneable White
CCT2700K, 3000K, 4000K2700K-6500K
Delivered Lumens (4000K)765-2595lm1180-2035lm
Luminaire Power5.9-25.2W13.4-29.6W
Connected Load6.6-28W12-26.6W
Drive Current180-700mA350-700mA
Forward Voltage32.7-35.9V34.2-38
CRI>90 (CRI 97 4000K available)>90
PerformanceL90(9K) >50,000hrs–
Colour Consistency2 SDCM3 SDCM
MountingRecessed
Beam OptionWide Oval (36°x55°), Narrow (33°), Medium (55°), Wide (64°), Flood (77°), Wall Wash, Double Wall Wash, Square 60°, Square 90°
Finish ColourWhite, Black, Custom
Driver PlacementRemote
ControlMains/Phase, DALI, Smooth DALI, DMX, Bluetooth
Build MaterialCast Aluminium
IP RatingIP44 (IP66/IK10 available using Secure Kit accessory)

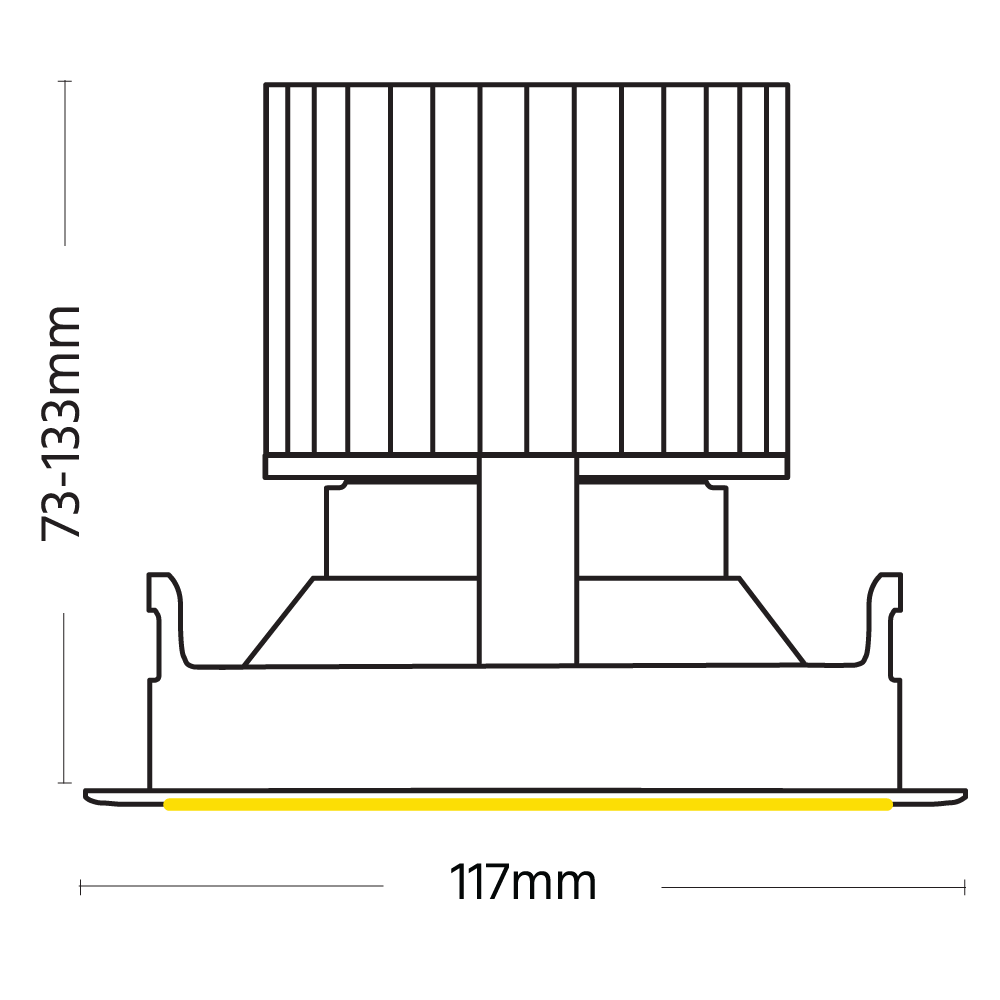

Dimensions117mm (trim diameter), 105mm (hole cut out), 73mm/103mm/133mm (height varies with model, refer to install guide)

Downloads

Photometrics
Photometrics
Photometrics
Photometrics
Install Guide
Install Guide
Install Guide
Install Guide

Series

NEW

Envoy W Secure

Vandal-resistant, anti-ligature downlight featuring IP66 & IK10 ratings
Recessed Luminaires
Fixed White, Tuneable White

Envoy W Secure

Mounting: Recessed with Secure Kit
Delivered Lumens: 700-2500lm
LED Colours: Fixed White, Tuneable White
Beam Options: Circular (33°-77°), Wall Wash, Double Wall Wash, Oval, Square (60° & 90°)

Envoy

Premium lens-based low-glare downlight designed for general lighting applications
Recessed Luminaires
Fixed White, Tuneable White

Envoy

Mounting: Recessed
Delivered Lumens: 700-2500lm
LED Colours: Fixed White, Tuneable White
Beam Options: Narrow, Medium, Wide, Oval
