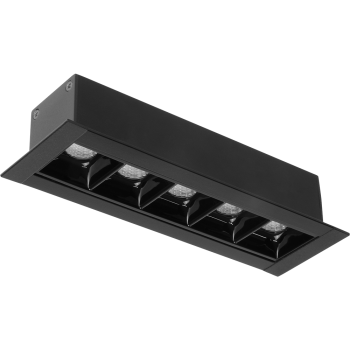

FCM-XXX-REC iso 1000px b

Focus Mini

Compact module-based dark light with extremely low glare output

Overview

Dimensions

Light Effect

Configurator

Downloads

Series

Overview

Focus Mini is a compact module-based Dark Light with ultra-low glare output. The LEDs in the fixture's constant current board are deeply recessed inside tiny reflectors, each separated by a black baffle to further cut-off light spill within the critical glare zone. Going beyond being simply low-glare, from the vast majority of common viewing positions the fixture's light sources are completely invisible. Light can freely illuminate the targeted area without the intensity of the artificial light source, which can significantly contribute to the visual comfort and atmosphere of an illuminated space.

Given these characteristics, Focus is a brilliant solution for glare-critical environments such as workplaces and learning environments, where glare can have adverse effects on the performance of a space's occupants by impacting their concentration and comfort. In these applications, Focus can be used both to deliver the primary low-glare ambient lighting, as well as highly targeted task lighting. A tuneable white version is available which would also be ideal in these applications.

Aside from glare-critical environments, Focus can be used in high-end hospitality and retail applications to induce feelings of comfort and intimacy, or luxury and exclusivity by delivering high light levels to targeted areas and objects, while leaving the rest of the space relatively darker. Instead of flooding a room with an equal level of brightness, this intentional contrast brings the attention of its occupants to where the designer desires it. For example, focusing illumination on a restaurant's tables while leaving the rest of the room somewhat gloomy can enhance its atmosphere and create intimacy between diners. In retail applications, highlighting products can increase the perception of luxury and quality, as this targeted illumination approach subliminally communicates their importance to shoppers.

Focus Mini is available in both single and dual module formats. The fixture is part of the larger Focus series, which includes higher output versions and customisable module-based linear systems, enabling a consistent design language across various installation locations and illumination objectives within a single project.

Focus Mini is proudly manufactured by Digilin in Australia.

Dark Light

Beyond simply glow-glare, the fixture’s light sources are completely invisible from common viewing positions

Module-based

Focus Mini is available as a single or dual module, enabling between 700-1400lm deliveries

Focus Series

The Focus series includes higher output versions and customisable linear systems, enabling a consistent design language within a single project

Tuneable White Version

Ideal for workplaces and learning environments

Dimensions

Light Effect

Single Module, Medium Beam (43°)
Single Module, Narrow Beam (34°)
Single Module, Spot Beam (20°)
Dual Module, Medium Beam (43°)
Dual Module, Narrow Beam (34°)
Dual Module, Spot Beam (20°)
Single Module, Medium Beam (43°)
Single Module, Narrow Beam (34°)
Single Module, Spot Beam (20°)
Dual Module, Medium Beam (43°)
Dual Module, Narrow Beam (34°)
Dual Module, Spot Beam (20°)

Configurator

Categories: Recessed Luminaires
Product: Focus Mini
Variant Code: FCM-REC
Generate Datasheet
Clear
  • Specifications
ModulesSingle ModuleDual Module
LED ColourFixed WhiteTuneable WhiteFixed WhiteTuneable White
Delivered Lumens (approx.)670-715lms630-620lms1335-1430lms1250-1240lm
Luminaire Power7.5W7.2W15W14.4W
Connected Load (est.)8.3W8W16.6W16W
Current500mA500mA
Forward Voltage15V14.4V30V28.8V
CRI90809080
PerformanceL90(10k) > 60,500hrs
ModulesSingle Module, Dual Module
Beam OptionSpot (20°), Narrow (34°), Medium (43°)
Finish ColourWhite, Black, Custom
Driver PlacementRemote
ControlMains/Phase, DALI
Build MaterialExtruded Aluminium, Polycarbonate Lens
IP RatingIP20
IC RatingIC-4
Dimensions33mm (width), 48mm (recessed flange width), 33mm (height)

Downloads

Photometrics
Photometrics
Photometrics
Photometrics

Series

Focus Mini Linear

Compact module-based dark light linear system with extremely low glare output
Linear Systems
Compact, Light Effects

Focus Mini Linear

Body Width: 35mm
Mounting: Surface, Recessed, Suspended
LED Colours: Fixed White, Tuneable White
Delivered Lumens: 700lm/Module

Focus

Mid-size module-based dark light with extremely low glare output
Surface Mount Luminaires
Fixed White, Tuneable White

Focus

Mounting: Surface Mount
Delivered Lumens: 1100lm/Module (1 or 2)
LED Colours: Fixed White, Tuneable White
Beam Options: Ultra Narrow, Narrow, Medium

Focus Mini

Compact module-based dark light with extremely low glare output
Surface Mount Luminaires
Fixed White, Tuneable White

Focus Mini

Mounting: Surface Mount
Delivered Lumens: 700lm/Module (1 or 2)
LED Colours: Fixed White, Tuneable White
Beam Options: Ultra Narrow, Narrow, Medium

Focus Linear

Mid-size module-based dark light linear system with extremely low glare output
Linear Systems
Light Effects, Mid-size

Focus Linear

Body Width: 50mm
Mounting: Surface, Recessed, Suspended
LED Colours: Fixed White, Tuneable White
Delivered Lumens: 1100lm/Module
