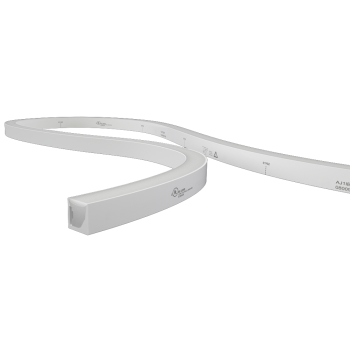

HaloFlex Sidelite Product Image 1000px

HaloFlex (Sauna)

Flexible IP67 systems for sauna and steam rooms

Overview

Versions

Configurator

Downloads

Series

Gallery

Overview

This version of HaloFlex features a unique material composition designed specifically for high temperature and high humidity environments, such as in saunas and steam rooms. With the ability to operate in environments with a maximum of 95°C ambient temperature in low humidity, and up to 50°C in 100% ambient humidity, HaloFlex is the ultimate lighting solution for saunas, spas and steam rooms. HaloFlex is available in front-lit (vertical bending) and side-lit (horizontal bending) formats. Extensive testing of mechanical performance, heat dissipation and material longevity ensure these systems are the most durable on the market.

When it comes to HaloFlex, any established preconceptions regarding the quality and longevity of flexible "neon" should be disregarded. This product is a true specification-grade, silicone encapsulated, high-quality linear LED system, available in a vast array of colour and wattage configurations supported by a quality collection of well-engineered accessories. Quality LED, 4Oz copper strip, silicone encapsulated dot-free output, injection-moulded end caps and connectors, there simply isn't a comparable offering available on the market. Regularly upgraded with the highest quality LEDs and material compositions available today, and then tested again, they deliver the highest performance and longevity possible with modern technology.

Of course, no lighting technology is without limitations - the challenges regarding designing extensive systems around LED increments, planning locations for injection-moulded end caps and cable feeds, mounting accessory suitability and minimum bend characteristics require thorough consideration. Digilin's in-depth technical expertise and extensive experience with these systems enable these challenges to be overcome. We collaborate with specifiers to guarantee successful project outcomes, not only by providing technical advice but also by supporting design and delivery with detailed shop drawings and installation instructions.

HaloFlex is manufactured by an international partner that Digilin has been cooperating with for over 13 years.

High humidity and temperature resistant

The sauna version of HaloFlex is capable of operation in up to 95°C ambient temperature in low humidity and 50°C in 100% ambient humidity

Encapsulated Silicone

UV, salt water, solvent and flame-resistant silicone creating a dot-free finish

Front vs Side Lit

Front-lit (vertical bending) and side-lit (horizontal bending) versions of HaloFlex are available

Manufactured by an International Partner

HaloFlex is manufactured by an international partner that Digilin has been cooperating with for over 13 years

Versions

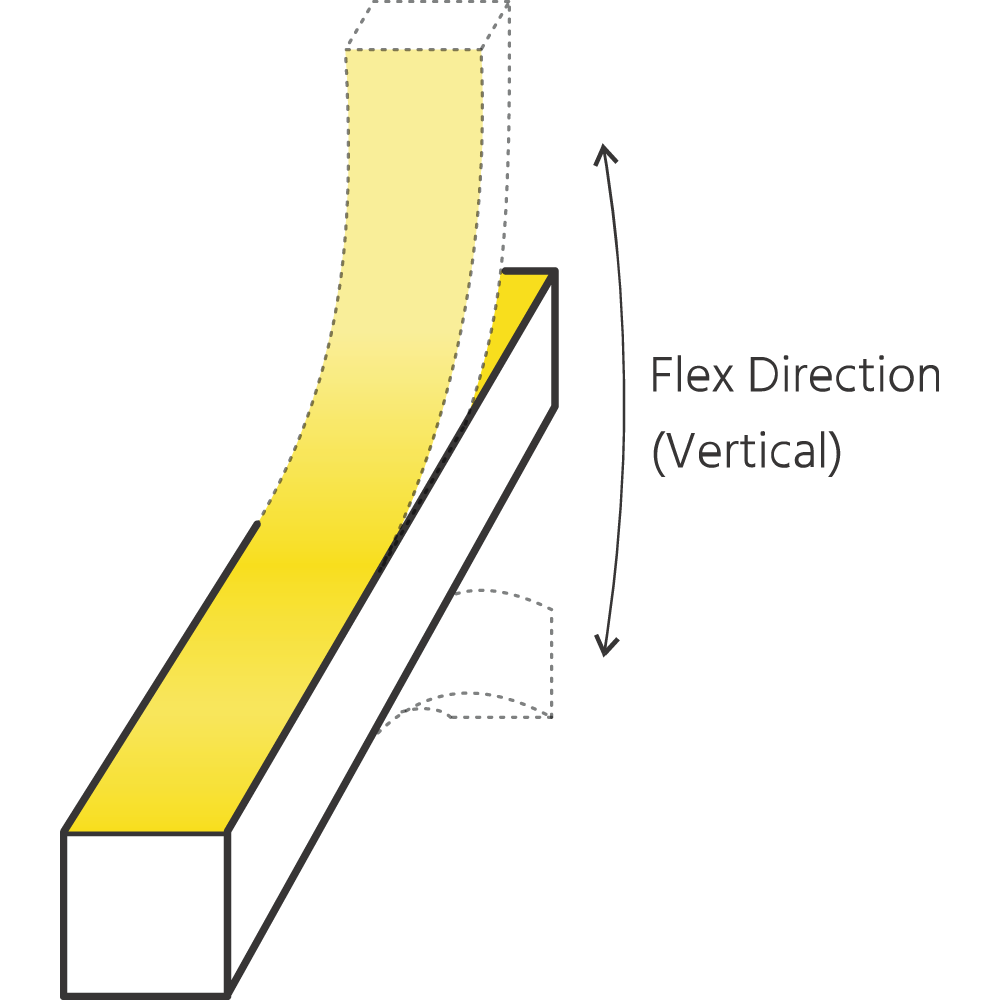

Front-Lit (vertical bending)

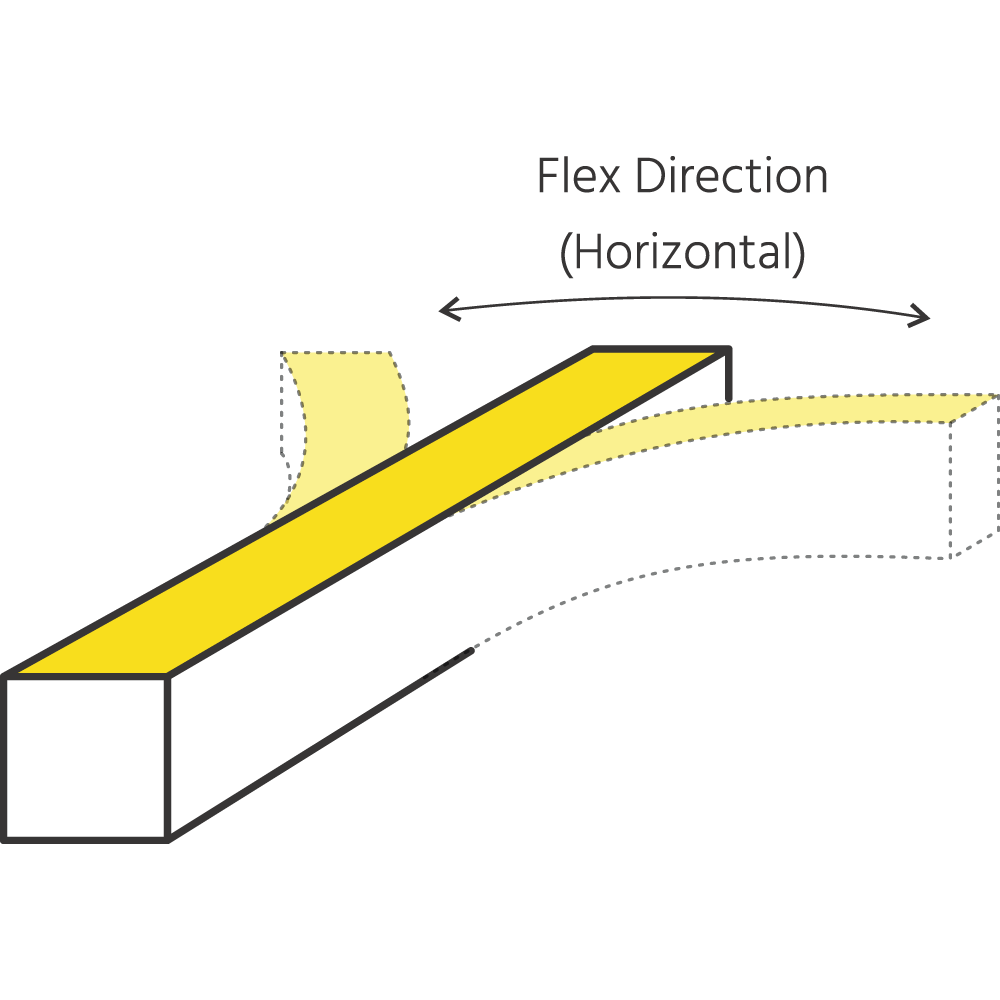

Side-Lit (horizontal bending)
Front-Lit (vertical bending)
Side-Lit (horizontal bending)

Configurator

Categories: Flexible Linear Systems
Product: HaloFlex (Sauna)
Variant Code: HFL-SNA
Generate Datasheet
Clear
  • Specifications
Illumination TypeFront-Lit (Vertical Bending) or Side-Lit (Horizontal Bending)
LED ColourFixed White/Single ColourRGBRGBWTuneable White
CCT/WavelengthWhite: 2700K, 3000K, 4000K
Red: 618-624nm
Green: 522-528nm
Blue: 468-474nm
Red: 618-624nm
Green: 522-528nm
Blue: 468-474nm
Red: 618-624nm
Green: 522-528nm
Blue: 468-474nm
White: 3000K
2200K-5700K
Delivered Lumens350lm/m138m/m240lm/m110-135lm/m
Power6W/m4.5W/m6W/m6W/m
Typical CRI80N/A8080
Colour Consistency (LED)3 SDCM–––
PerformanceL90 (6k) >60,000hrs–––
Module Length55.56mm/83.33mm83.33mm83.33mm83.33mm
Maximum Continuous Feed10m
Maximum Ambient Operating Temperature95°C in Low Ambient Relative Humidity, 50°C in 100%Rh Ambient Relative Humidity
Input Voltage24VDC
IP RatingIP67 (with Injection Moulded Connectors and End Caps)
IK RatingIK08
Beam AngleApprox. 115 degrees
Build MaterialSilicone
Minimum Bend Radius150mm
Dimensions16mm (width), 17mm (height)
WeightApprox. 0.5kg/m
DurabilityHeat, Humidity, UV, Saltwater, Solvent and Flame Resistant
Connector OptionsInjection Moulded Connectors and End Caps (fitted)
Mounting OptionsStandard, Serrated or Flexible Aluminium Profile, Stainless Steel Profile

Downloads

Install Guide
Install Guide
Install Guide
Install Guide
Mounting Profiles
Mounting Profiles
Mounting Profiles
Mounting Profiles

Series

MicroFlex

Micro-sized flexible linear for exterior and curved architectural applications
Flexible Linear Systems
White

MicroFlex

IP Rating: IP67
Versions: Front-Lit or Side-Lit
LED Colours: Fixed White, Colour
Delivered Lumens: 220-450lm/m

HaloFlex

Flexible IP68 systems for exterior and curved architectural applications
Flexible Linear Systems
RGB, RGBW, Tuneable, White

HaloFlex

IP Rating: IP68
Versions: Front-Lit or Side-Lit
LED Colours: White, Tuneable, RGB, RGBW
Delivered Lumens: 300-800lm/m

Gallery

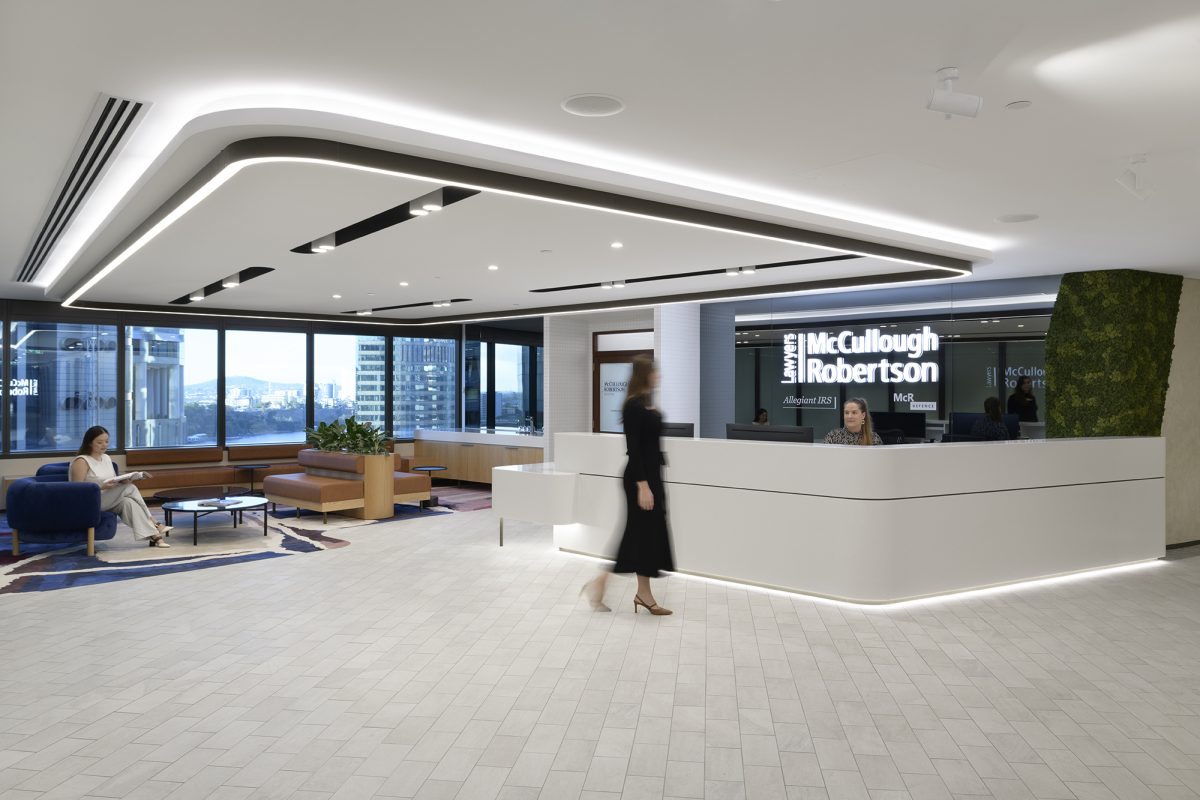

McCullough Robertson 1 2000px

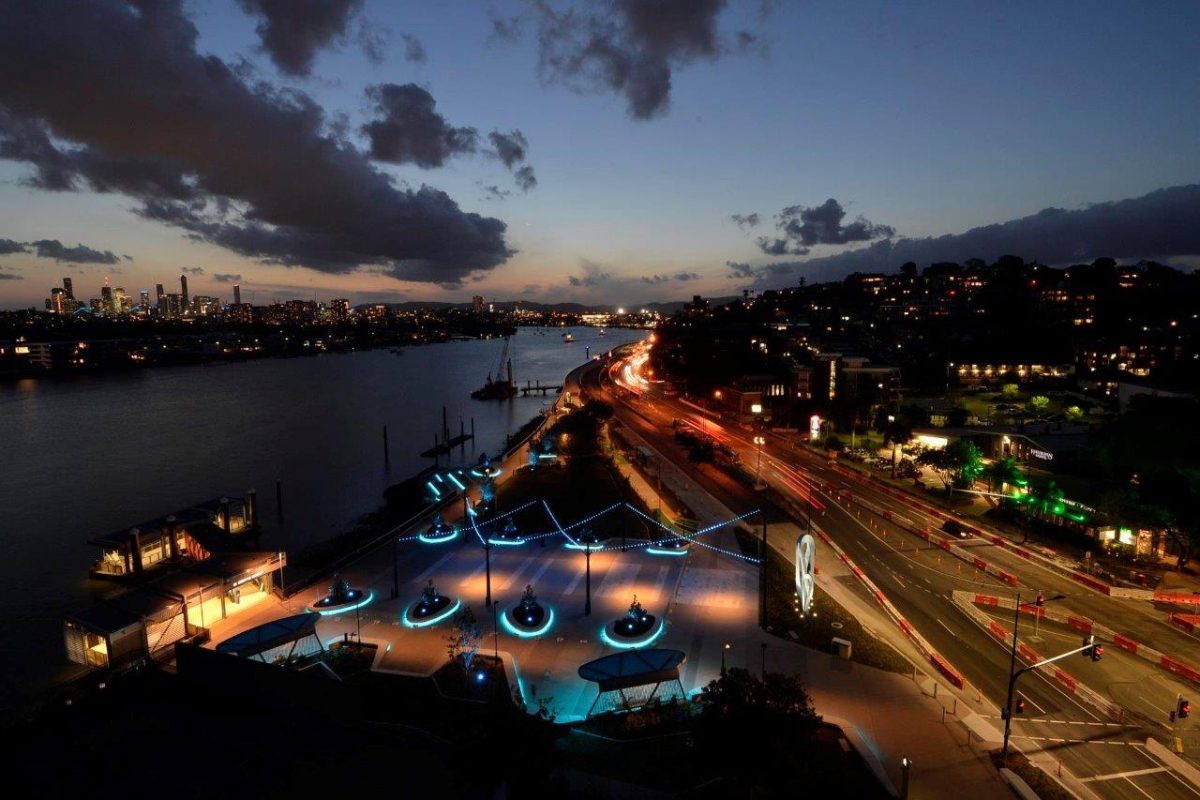

Bretts Wharf_at night_aerial

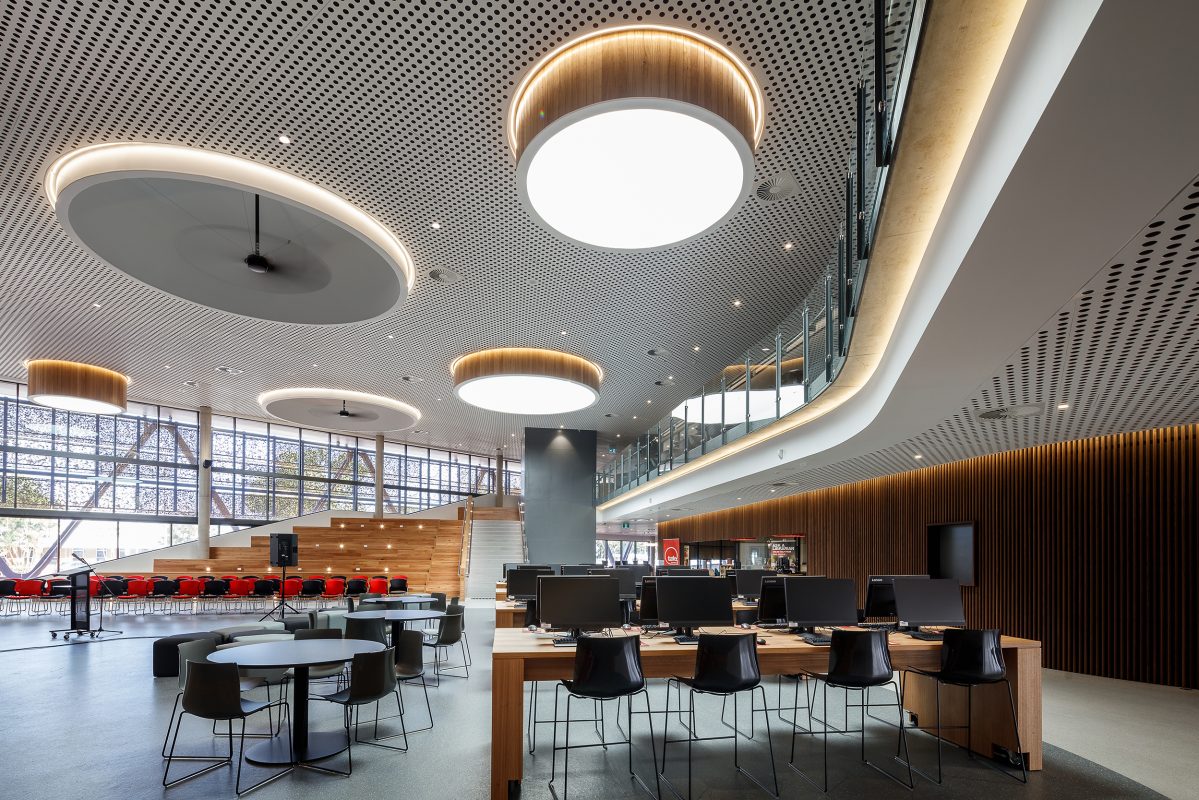

TAFE Pimlico 1 2500px

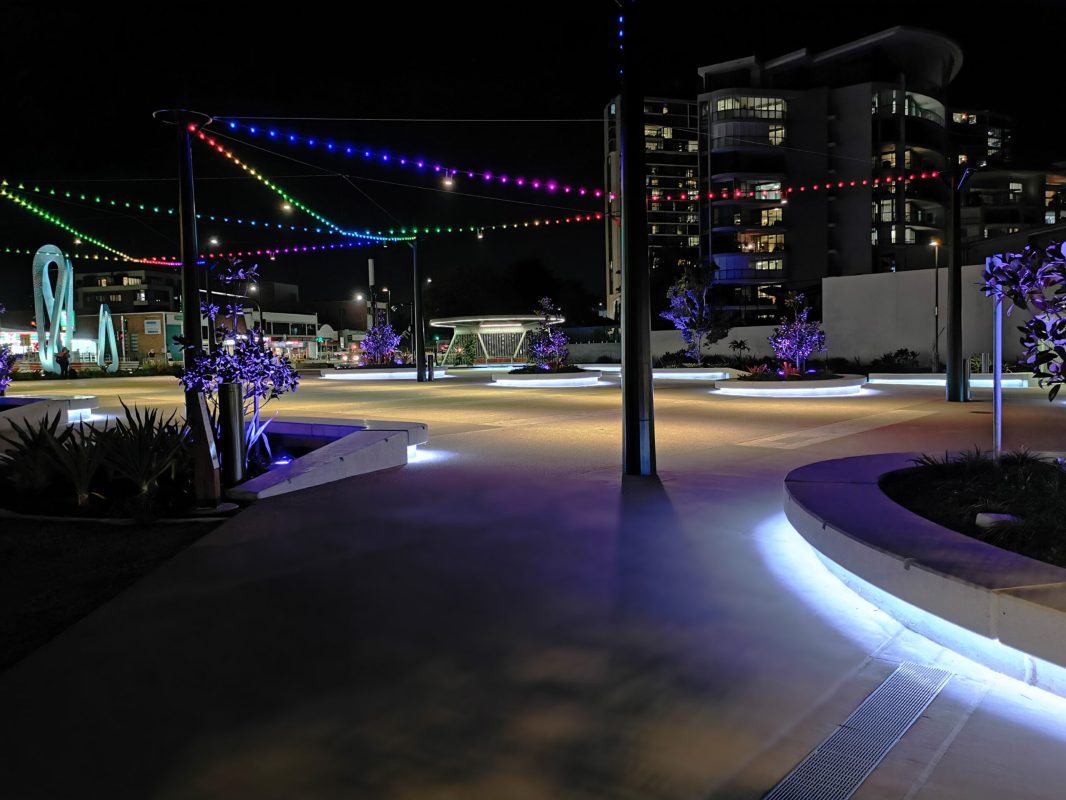

Bretts Wharf Plaza_Kingsford Smith Drive Upgrade

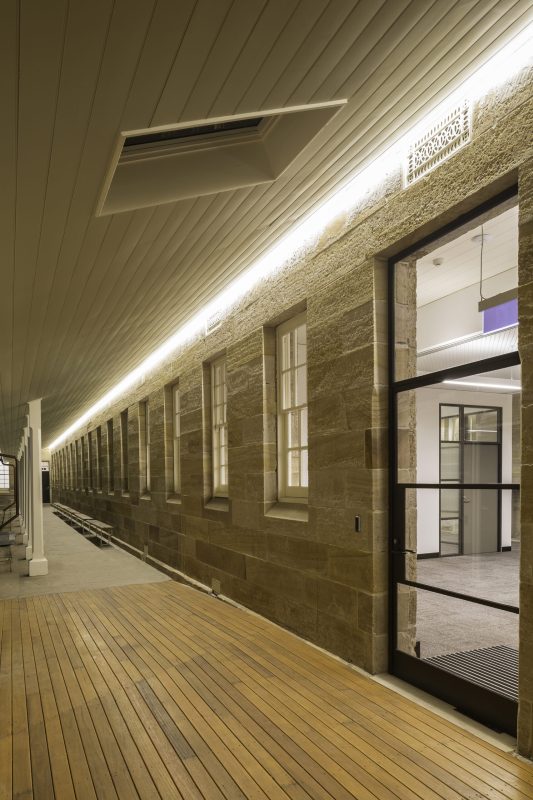

FDC WHSS 85_2500px w

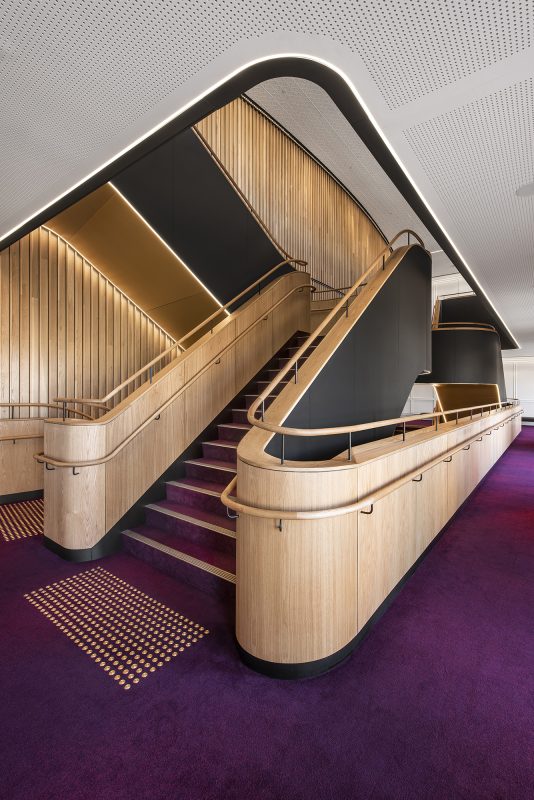

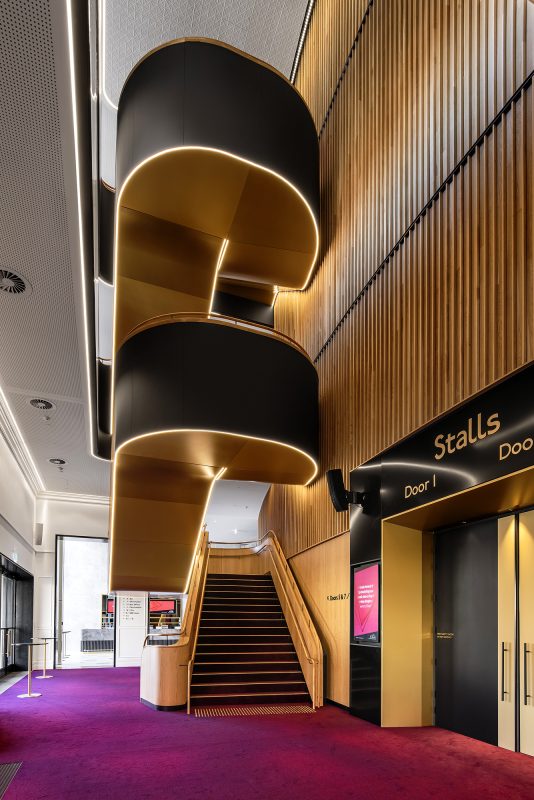

Feature staircase with winding HaloFlex
Feature staircase with winding HaloFlex
Feature staircase with winding HaloFlex
Feature staircase with winding HaloFlex

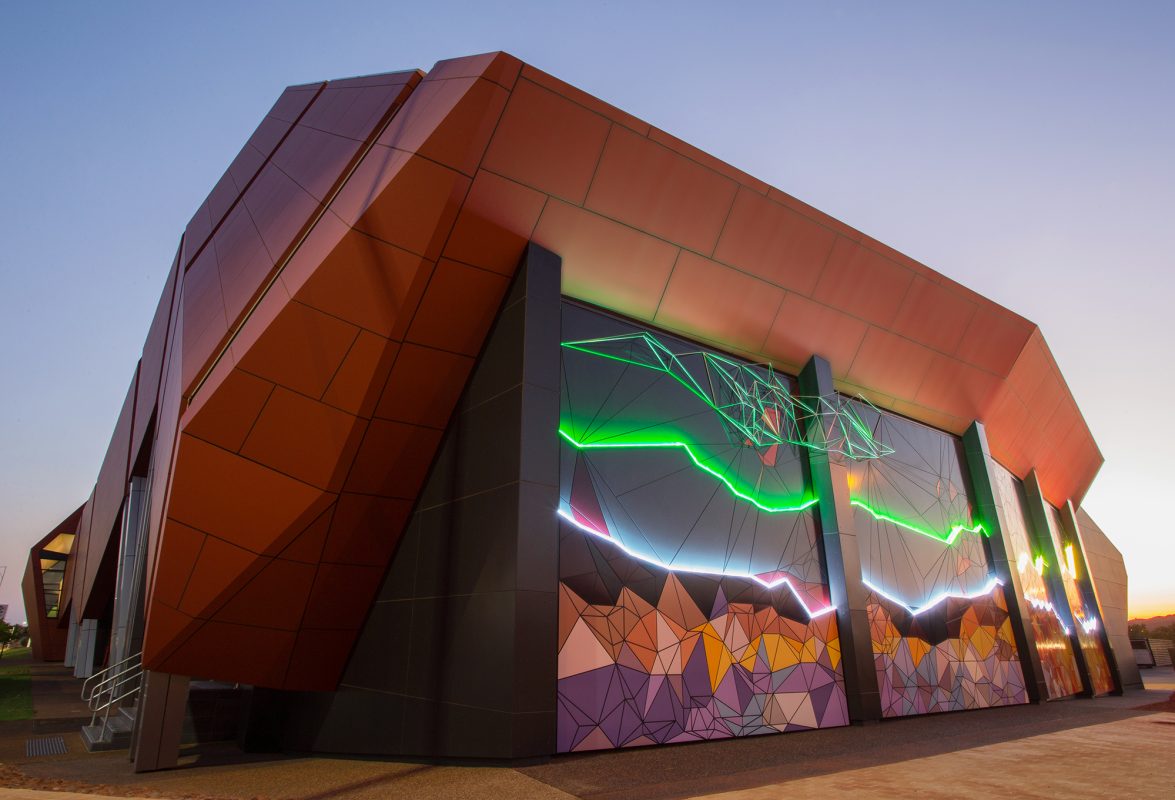

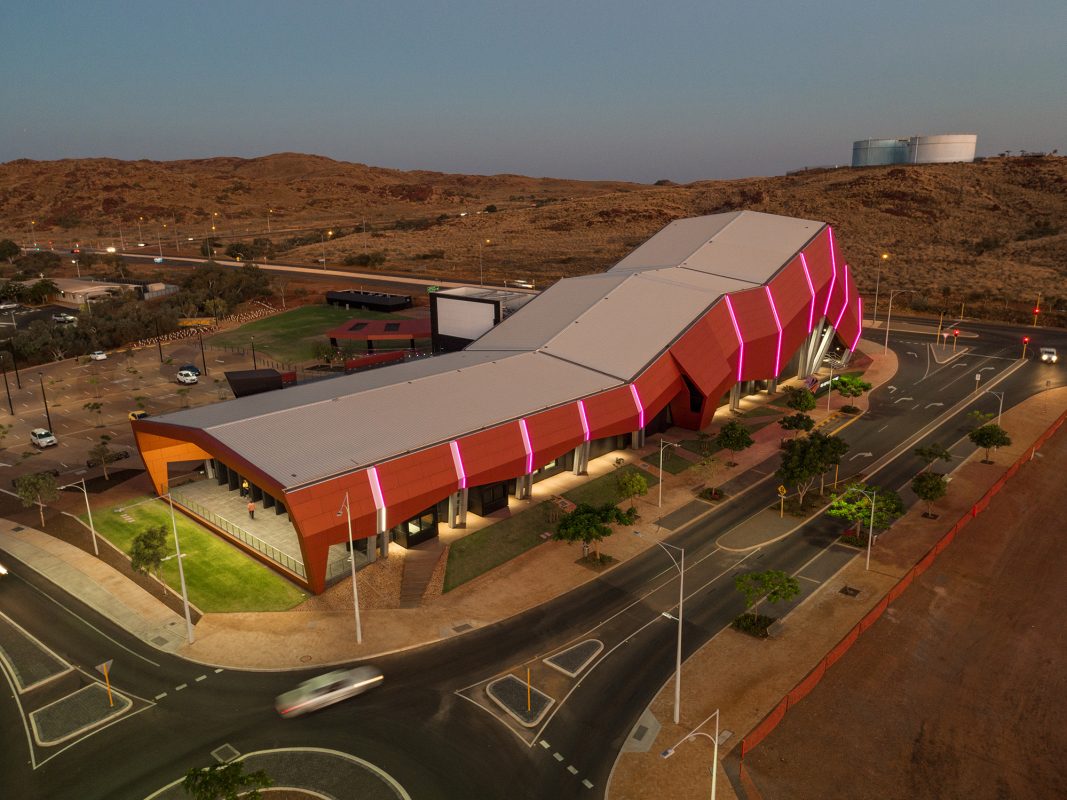

Project: Red Earth Arts Precint, Karratha
Project: Red Earth Arts Precint, Karratha
Project: Red Earth Arts Precint, Karratha
Project: Red Earth Arts Precint, Karratha
