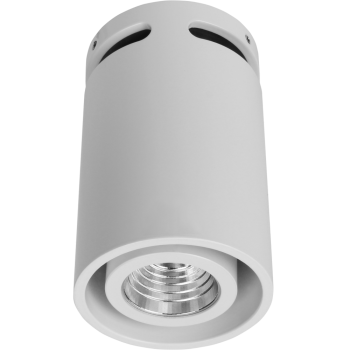

Icon

Compact and powerful with very low glare, an architectural favourite

Overview

Icon was designed for use in architectural projects where small fixtures are desirable. Commonly used in hospitality and resort projects the Icon is also perfectly suited to residential and corporate applications.

Two beam spreads allows you to customise the fitting to suit your space and ceiling height. Icon is an easy choice for projects where good lux levels and glare control are important.

Australian made, using premium LEDs and ultra efficient reflectors, Icon is an innovation in electronics, thermal management and beam control.

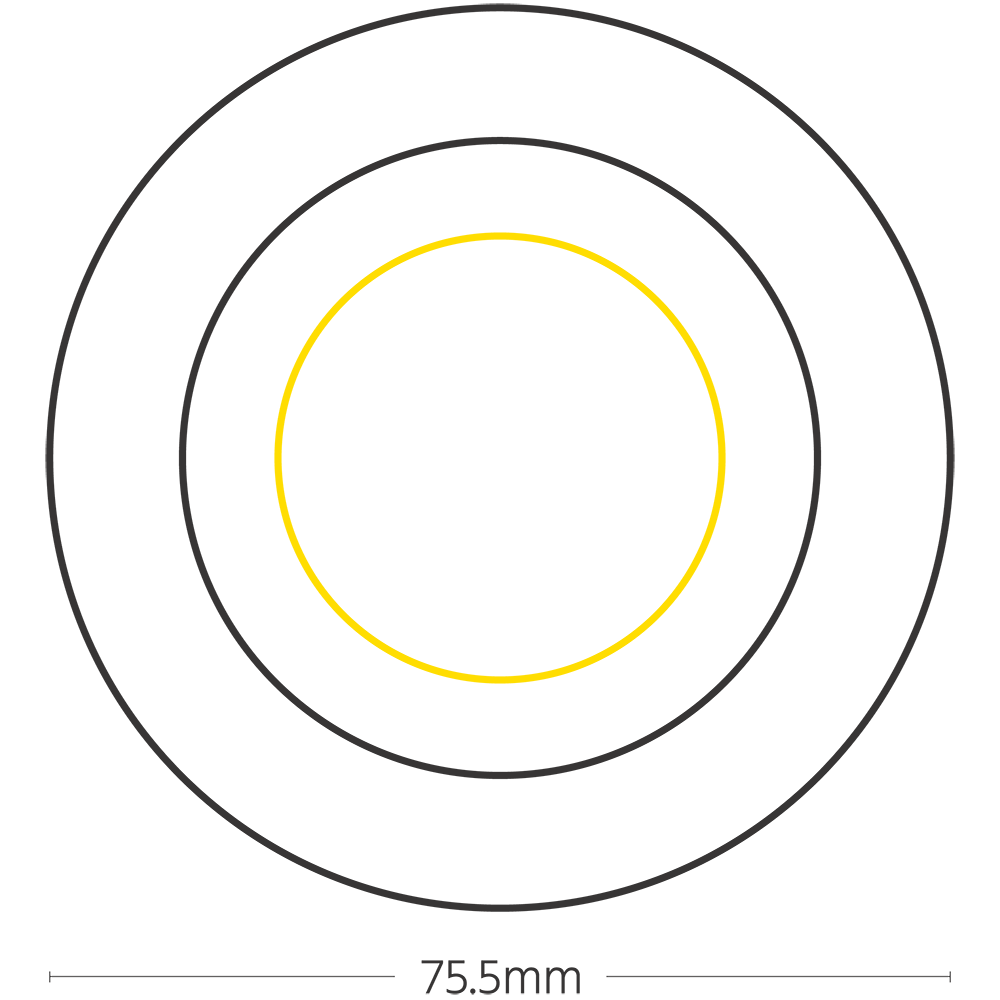

Dimensions

Light Effect

Wide Beam (∼60°)

Medium Beam (∼40°)

Wide Beam (∼60°)

Medium Beam (∼40°)

Configurator

Categories: Surface Mount Luminaires

Product: Icon

Variant Code: ICN-SFC

LED Colour

Lumen Group

Beam Option

Finish Colour

Control

Clear

Specifications

Model	800	1200	1500
Colour Temperature	2700K, 3000K, 4000K	2700K, 3000K, 4000K	2700K, 3000K, 4000K
Delivered Lumens	770-860lm	1040-1165lm	1370-1535lm
Luminaire Power	6W	9.2W	12.2W
Connected Load	7.5W	10.5W	14.4W
Drive Current	180mA	270mA	350mA
Forward Voltage	33.3VDC	34VDC	34.9VDC
Typical CRI	90+
LED Performance	L90 >55,000hrs
Mounting	Surface Mount
Beam Option	Medium, Wide
Finish Colour	White, Black, Custom
Driver Placement	Remote
Control	Mains/Phase, DALI, Smooth DALI, DMX, Bluetooth
Build Material	Machined Aluminium
IP Rating	IP20
Dimensions	75.5mm (trim diameter), 123mm (height)
