Link_Iso_web

Link

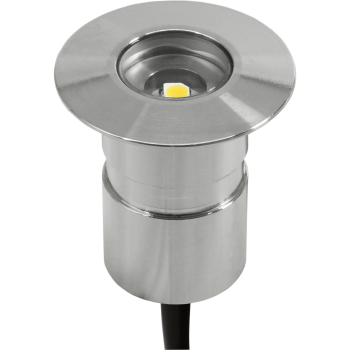

Hardy stainless steel marker light for way-finding applications

Overview

Dimensions

Configurator

Downloads

Overview

Link is a hardy, micro-sized marker light used for way-finding and the decorative delineation of spaces. Machined from 316 marine grade stainless steel and available with a frost or clear tempered glass window, the fixture is commonly used in urban and landscaping applications in pedestrian pathways, stairwells and decks. Link has IP67 and IK10 ratings, and is suitable for inground installation into concrete.

The fixture is available in fixed whites as well as fixed colours, ideal for decorative designs. With a highly-protected, efficient LED operating at less than a quarter of a watt, Link fixtures can be chained in extremely long runs and installed in high-exposure environments with confidence.

Link is proudly designed and manufactured by Digilin in Australia.

Protected & Durable - IP67 & IK10

With IP67/IK10 ratings, Lilnk is a reliable marker solution for high-exposure urban and landscaping applications

316 Stainless Steel - Marine Grade

Machined locally in Brisbane, Link’s body is composed of marine-grade 316 stainless steel

Coloured Outputs

Red, Green and Blue outputs are available for decorative designs

Selectable Cable Lengths

Link is shipped out with factory-fitted cable lengths as per project requirements

Manufactured in Australia

Link is proudly designed and manufactured by Digilin in Australia

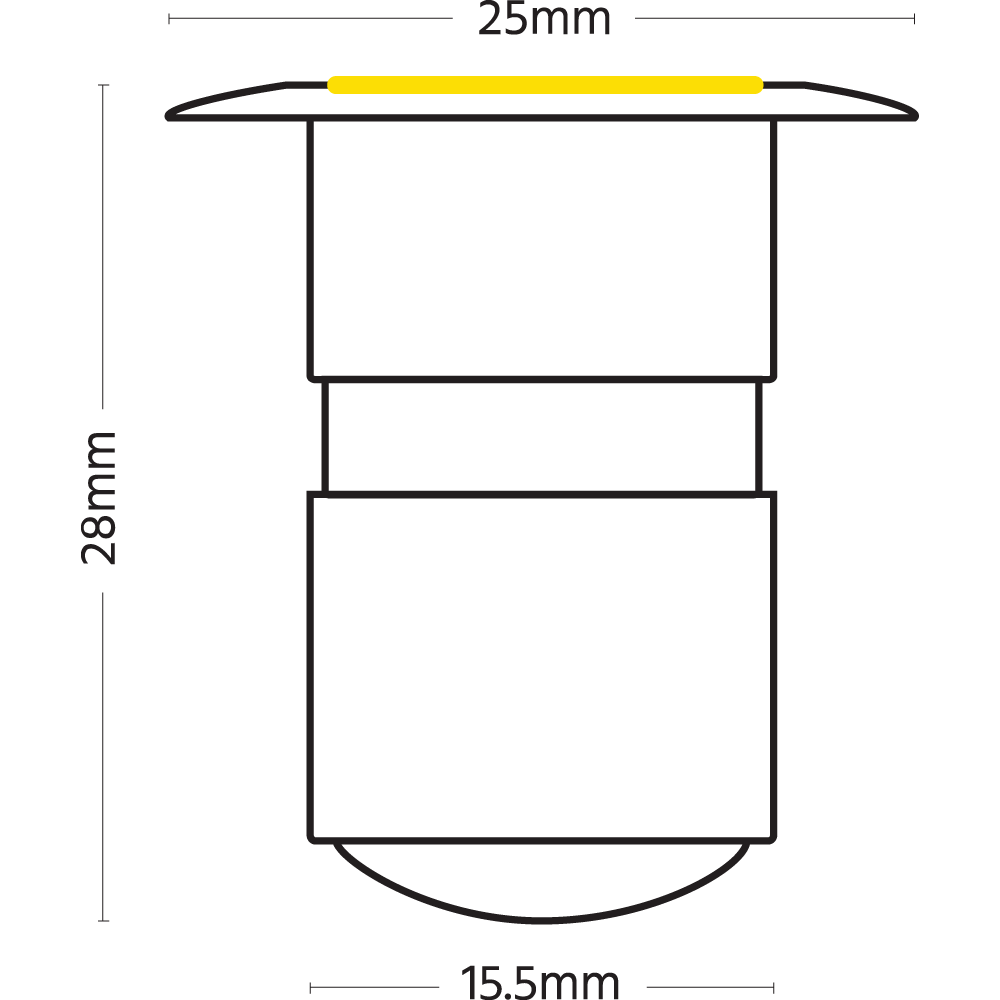

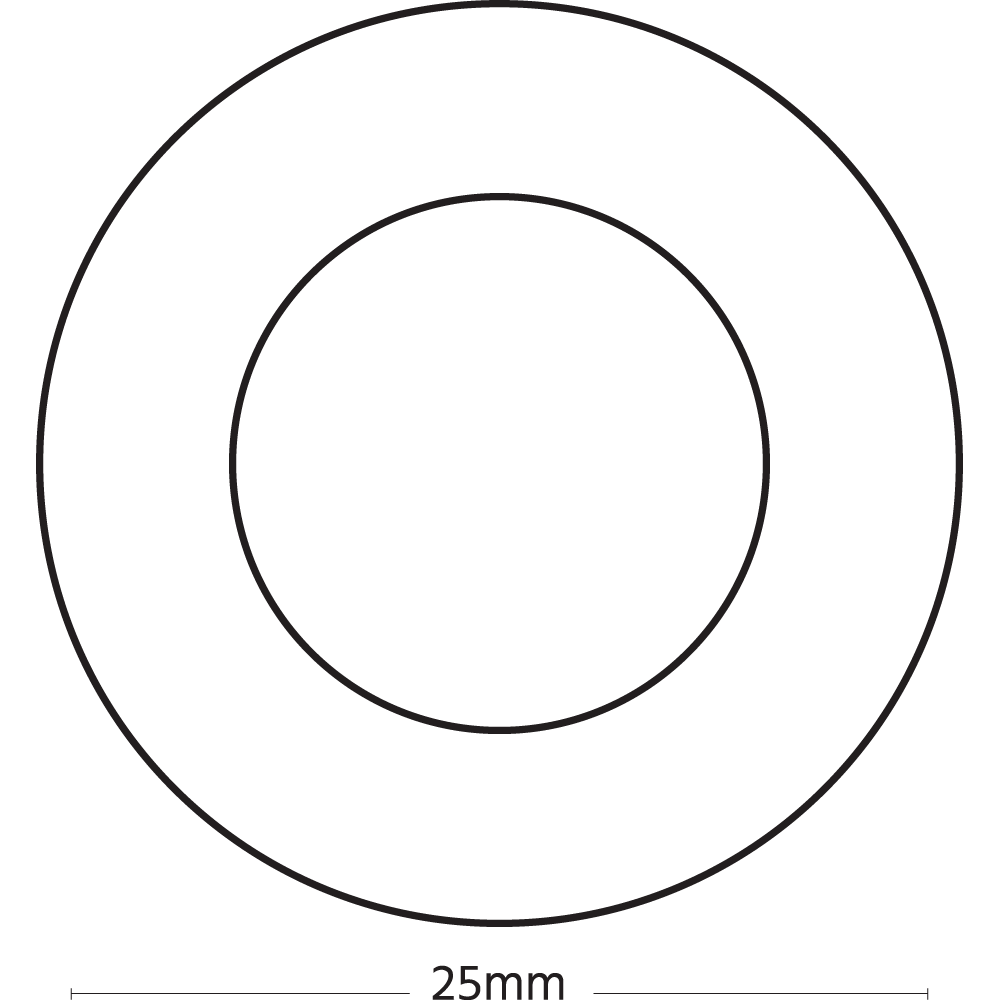

Dimensions

Configurator

Categories: Path and Marker Luminaires
Product: Link
Variant Code: LNK
Generate Datasheet
Clear
  • Specifications
Colour2700K3000K4000KRedGreenBlue
LED Lumens8.3lm8.6lm9.0lm3.6lm9.4lm3.2lm
Luminaire Power0.12-0.24W
Drive Current20mA
Forward Voltage6-12VDC
PerformanceL90(10K) >56,000hrs
MountingRecessed
Fixture HeadStandard Head
Beam OptionFrost, Clear
Cable Length1m, 5m, 10m, 15m, 20m
Build MaterialMarine Grade 316 Stainless Steel
IP RatingIP67
IK RatingIK10
Dimensions25mm (trim), 15.5mm (body width), 28mm (height)
Weight55g

Downloads

Install Guide
Install Guide
Install Guide
Install Guide
