Stylus Adjustable

Flexibility Without Compromise. Illuminate with Accuracy and Control.

Overview

Designed for versatility and performance, this adjustable yoke-mounted luminaire delivers precise illumination for a wide range of architectural, landscape and façade lighting applications. The robust yoke mounting system enables accurate aiming and effortless adjustment, allowing light to be directed exactly where it is needed.

Combining high-performance LED technology with superior optical control, the luminaire provides exceptional visual impact while maintaining energy efficiency and long-term reliability. Engineered for demanding environments and available with a range of beam distributions, outputs and colour temperatures, it offers a flexible solution for highlighting architectural features, creating focal points and enhancing outdoor spaces with confidence.

Stylus is proudly designed and manufactured by Digilin in Australia

Robust Construction

Engineered from high-quality materials and designed to withstand demanding outdoor environments, providing long-term reliability and performance.

Ingress Protection

IP67 for reliable performance in harsh outdoor environments, providing protection against dust and water ingress.

Versatile Application

Ideal for architectural façades, landscape features, monuments, signage and public spaces, offering a flexible lighting solution across a wide range of project types.

Superior Optical Control

Available with a range of beam distributions to deliver focused accent lighting or broader illumination, minimising spill light and maximising visual impact.

Manufactured in Australia

The Stylus series is proudly designed and manufactured by Digilin in Australia.

Versions

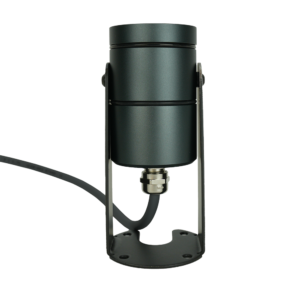

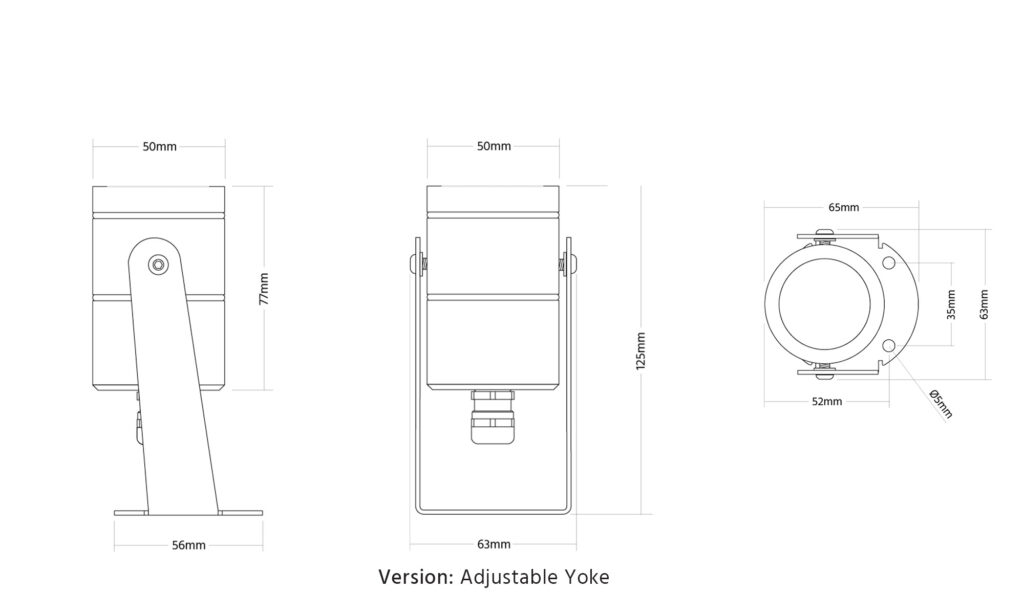

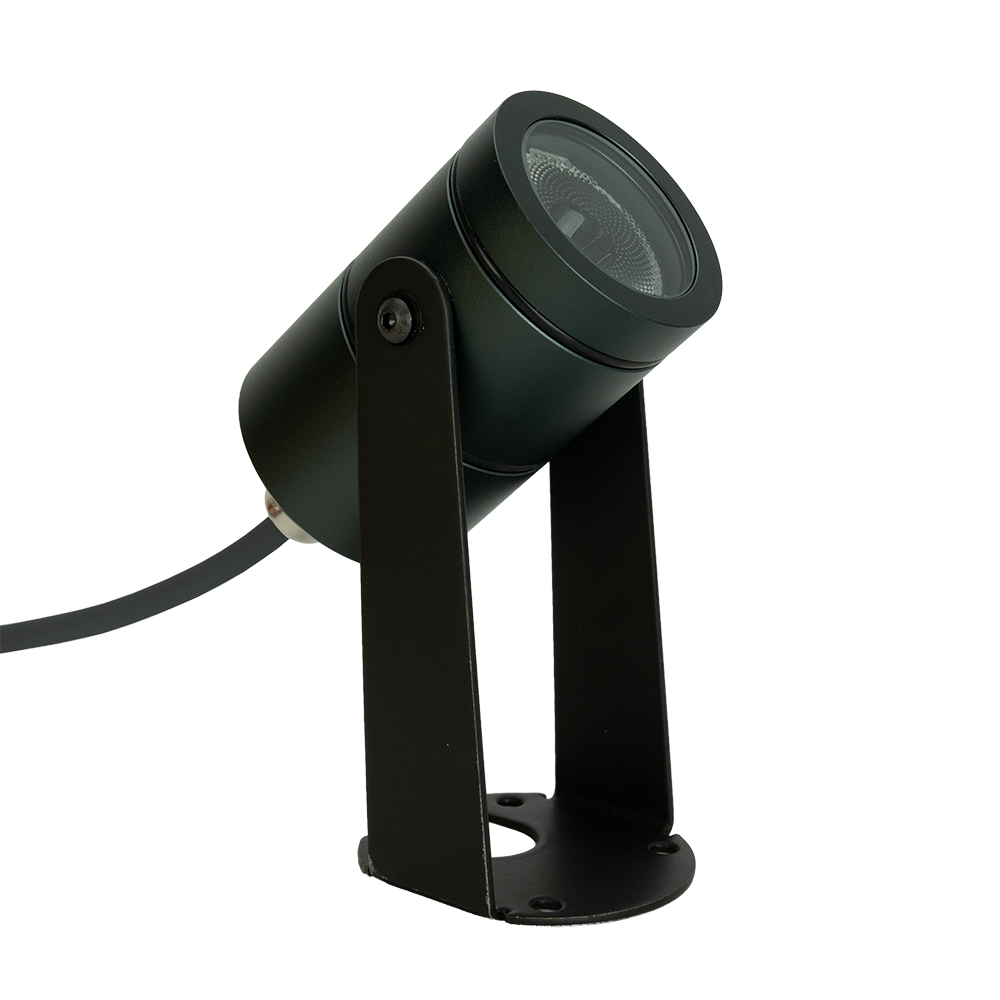

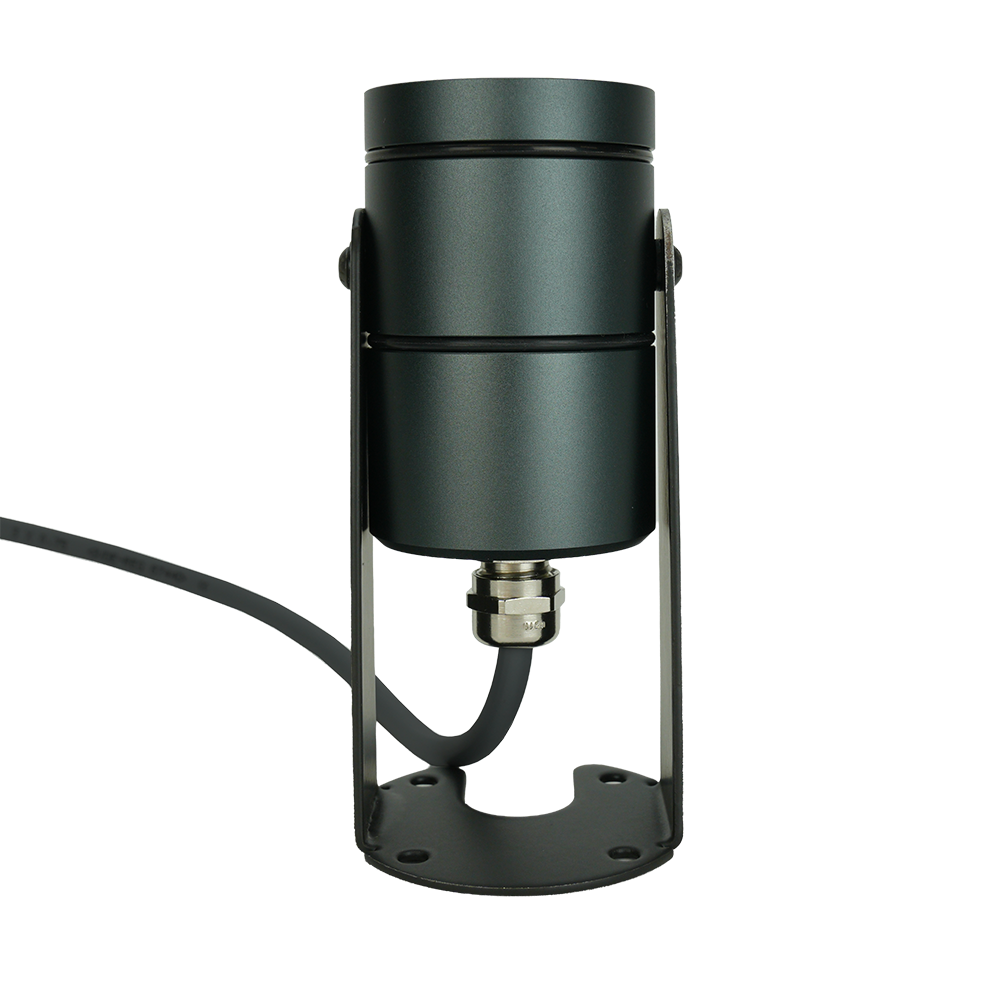

Adjustable without Snoot

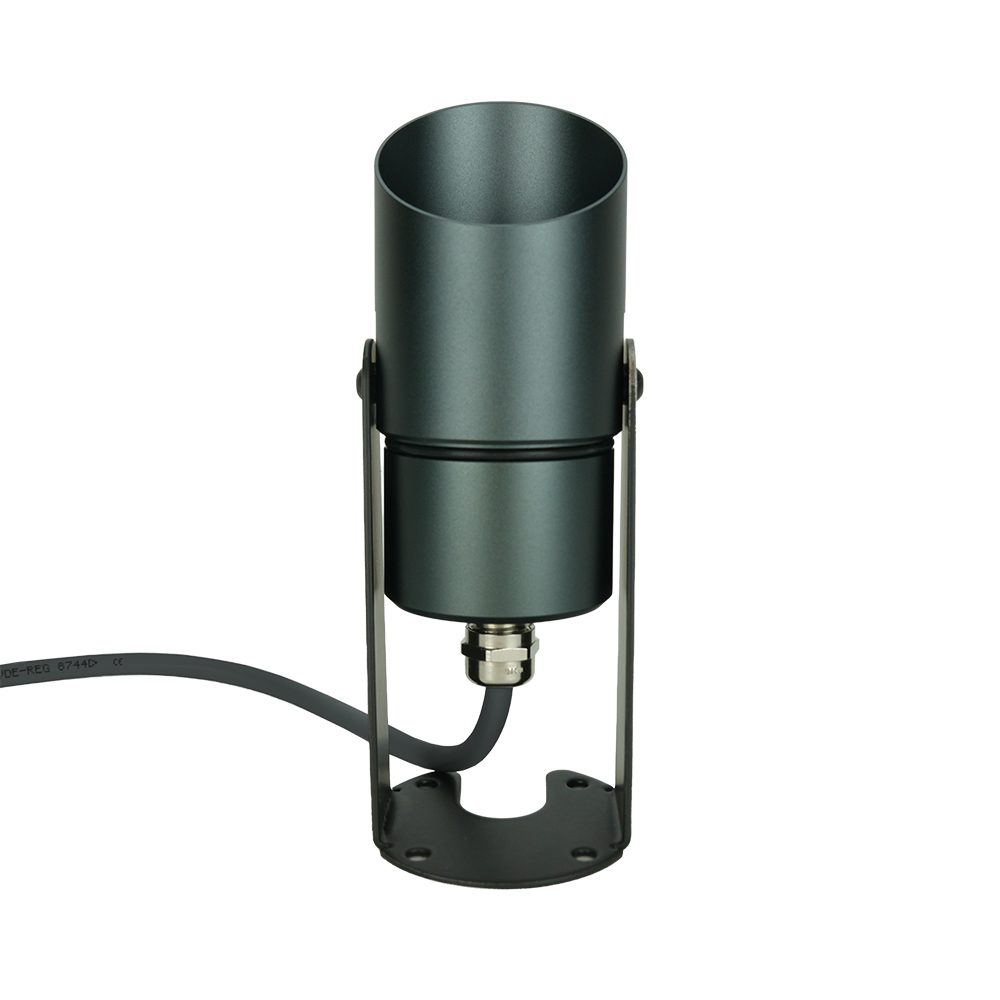

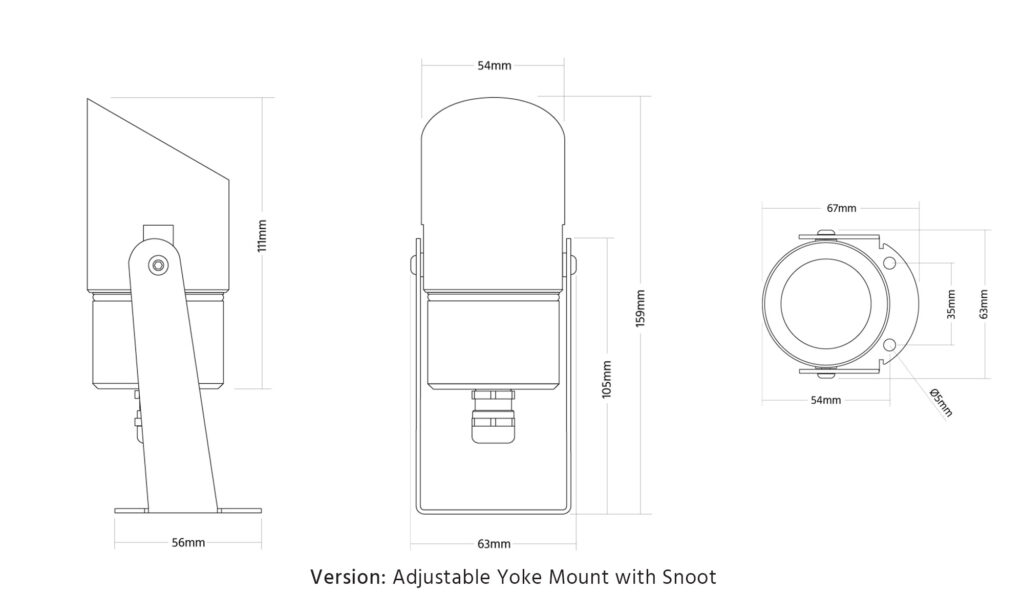

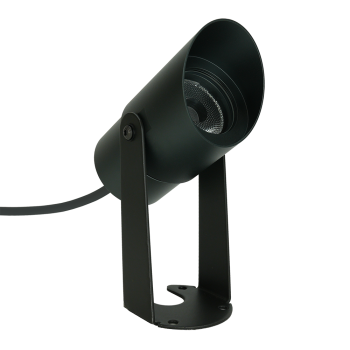

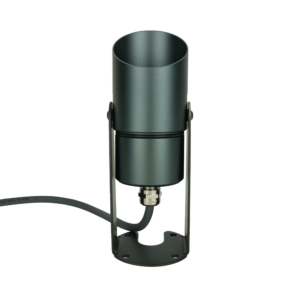

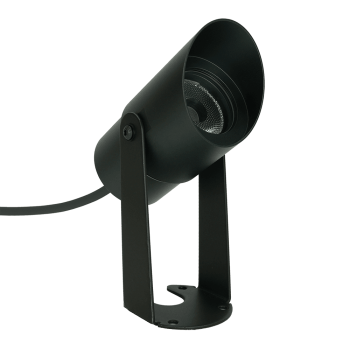

Adjustable with Snoot

Adjustable without Snoot

Adjustable with Snoot

Configurator

Categories: New Release, Spot and Accent Luminaires

Product: Stylus Adjustable

Variant Code: STY-YKE

Fixture Head

LED Colour

Beam Option

Cable Length

Clear

Specifications

LED Colour	Fixed White	Tuneable White	Fixed Colour	RGBW
CCT/Wavelength	2700K, 3000K, 4000K	2700K-5000K	Red (620-630nm) Green (520-535nm) Blue (475nm) Royal Blue (450nm) Amber (585-600nm)	Red (620-630nm) Green (520-535nm) Blue (475nm) White (3000K)
Delivered Lumens (approx.)	566-605lm	420lm	75-392lm	298lm (combined)
Luminaire Power	7.42W	7.39W	6.2-8.2W	8.57W
Connected Load	8.73W	8.69W	7.29-9.65W	10.08W
Drive Type	Constant Voltage
Input Voltage	24VDC
Performance	L80(17K) >102,000hrs	L90(10K) >60,500hrs	L90(10K) >60,500hrs	L80(10K) >60,000hrs (white)
Typical CRI	90+	90	–	90 (white)
Mounting	Recessed
Fixture Head	Snoot, Standard Head
Beam Option	Narrow Honeycomb, Spot Honeycomb, Spot (15°), Narrow (25º), Medium (35º), Medium Oval (15° x 40°), Frost
Finish Colour	Silver-Grey
Cable Entry	Single Cable Entry
Cable Length	.3m, 1m, 5m, 10m, 15m, 20m
Control	Mains/Phase, DALI, Smooth DALI, DMX, Bluetooth, Non-Dim
Build Material	Machined Aluminium, Marine Grade 316 Stainless Steel
IP Rating	IP67
Dimensions	50mm (trim diameter), 125mm (height excluding snoot). 54mm (trim diameter), 159mm (height including snoot).
