Recessed one cable 1000 2

Stylus

Precision lighting, built to endure.

Overview

Configurator

Downloads

Series

Overview

Engineered for high performance, this robust inground luminaire delivers precise, refined illumination for architectural and landscape applications. Its compact form integrates advanced optics and driver combinations to produce crisp, uniform light output with excellent visual control.

Constructed from anodised aluminium and finished with a 316 marine-grade stainless steel flange, it strikes an ideal balance between durability and design integrity. Rated to IP67, the luminaire is built for long-term performance in demanding environments, with optional security screws for secure installation.

Designed for longevity and unobtrusive integration, this fitting is part of the expanding Stylus range and is well suited to pathways, façades, and feature lighting applications.

Stylus is proudly designed and manufactured by Digilin in Australia

Robust Construction

Manufactured from anodised aluminium with a 316 marine-grade stainless steel flange for superior strength, corrosion resistance, and long-term durability.

Ingress Protection

IP67 for reliable performance in harsh outdoor environments, providing protection against dust and water ingress.

Secure Installation

Optional security screws allow the luminaire to be firmly fixed in place, offering added safety and peace of mind in public or high-traffic areas.

Versatile Application

Compact and discreet, ideal for pathways, façades, and feature lighting, integrating seamlessly into a wide range of architectural and landscape designs.

Manufactured in Australia

The Stylus series is proudly designed and manufactured by Digilin in Australia.

Configurator

Categories: New Release, Uplights and Inground Luminaires
Product: Stylus
Variant Code: STY-REC-FL
Generate Datasheet
Clear
  • Specifications
LED ColourFixed WhiteTuneable WhiteFixed ColourRGBW
CCT/Wavelength2700K, 3000K, 4000K2700K-5000KRed (620-630nm)
Green (520-535nm)
Blue (475nm)
Royal Blue (450nm)
Amber (585-600nm)
Red (620-630nm)
Green (520-535nm)
Blue (475nm)
White (3000K)
Delivered Lumens (approx.)566-605lm420lm75-392lm298lm (combined)
Luminaire Power7.42W7.39W6.2-8.2W8.57W
Connected Load8.73W8.69W7.29-9.65W10.08W
Drive TypeConstant Voltage
Input Voltage24VDC
PerformanceL80(17K) >102,000hrsL90(10K) >60,500hrsL90(10K) >60,500hrsL80(10K) >60,000hrs (white)
Typical CRI90+90–90 (white)
MountingRecessed
Fixture HeadSecurity Head, Standard Head
Beam OptionNarrow Honeycomb, Spot Honeycomb, Spot (15°), Narrow (25º), Medium (35º), Medium Oval (15° x 40°), Frost
Finish ColourSilver-Grey

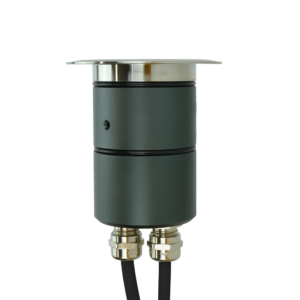

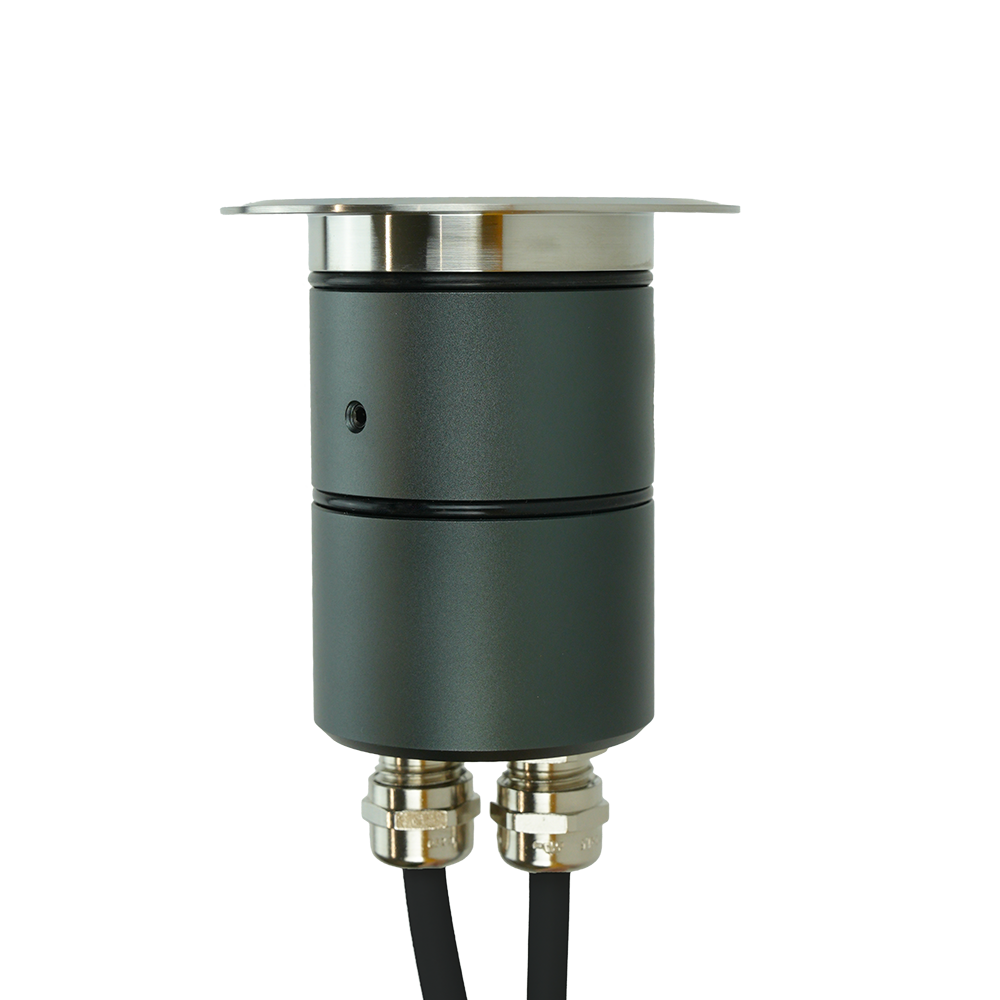

Cable EntrySingle Cable Entry, Dual Cable Entry
Cable Length.3m, 1m, 5m, 10m, 15m, 20m
ControlMains/Phase, DALI, Smooth DALI, DMX, Bluetooth, Non-Dim
Build MaterialMachined Aluminium, Marine Grade 316 Stainless Steel
IP RatingIP67
Dimensions75mm (trim diameter), 96mm (height excluding flange)
Mounting AccessoriesInstallation Mounting Canister – Standard or Secure. Order separately
Cable AccessoriesIP68 connectors available. Order separately.

Downloads

Photometrics
Photometrics
Photometrics
Photometrics
Product Guide
Product Guide
Product Guide
Product Guide

Series

NEW

Stylus Adjustable

Flexibility Without Compromise. Illuminate with Accuracy and Control.
New Release, Spot and Accent Luminaires
Fixed Colour, Fixed White, RGBW, Tuneable White

Stylus Adjustable

IP Rating: IP67 Exterior Luminaire
Mounting: Yoke Mount
LED Colours: Whites, Red, Green, Blue, Amber, RGBW
Beam Options: Spot, Narrow, Medium, Medium Oval, Frost

NEW

Stylus Eyelid

Precision lighting, built to endure.
New Release, Path and Marker Luminaires
Fixed Colour, Fixed White, RGBW, Tuneable White

Stylus Eyelid

IP Rating: IP67 Exterior Luminaire
Mounting: Recessed
LED Colours: Whites, Red, Green, Blue, Amber, RGBW
Beam Options: Spot, Narrow, Medium, Medium Oval, Frost
