Blade_Iso_1_Web_B

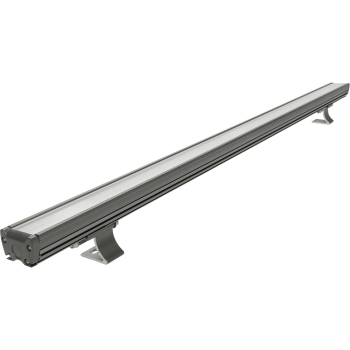

Blade

Versatile and compact exterior linear system for facade illumination

Overview

Dimensions

Configurator

Overview

Blade is a compact, medium-output exterior linear system designed for the illumination of facades. The extremely versatile system has an adjustable mounting bracket enabling a 180° range of motion and can be configured with an astounding assortment of beam options, ranging from clear, opal and frost diffusers to an array of linear and individual optics enabling ultra-narrow to wide beams and multiple elliptical outputs. Furthermore, Blade's compact 44mm wide body can fit any of Digilin's LED colour options, including fixed whites, tuneable white, RGB and RGBW and Sunlike growlights.

The system's incredibly broad range of configurable options allows it to create a variety of exterior lighting effects, giving specifiers a greater ability to achieve their design goals rather than compromising on outcomes.

Blade is manufactured by Digilin in Australia.

Variety of Beam Options

A range of diffusers, linear optics and individual optics enables an incredible array of beam outputs

Protected and Durable - IP66

With an IP66 rating, Blade is a reliable solution in exposed exterior applications

All Digilin LED Colour Options

Available in fixed white, tuneable white, RGB, RGBW and Sunlike growlights

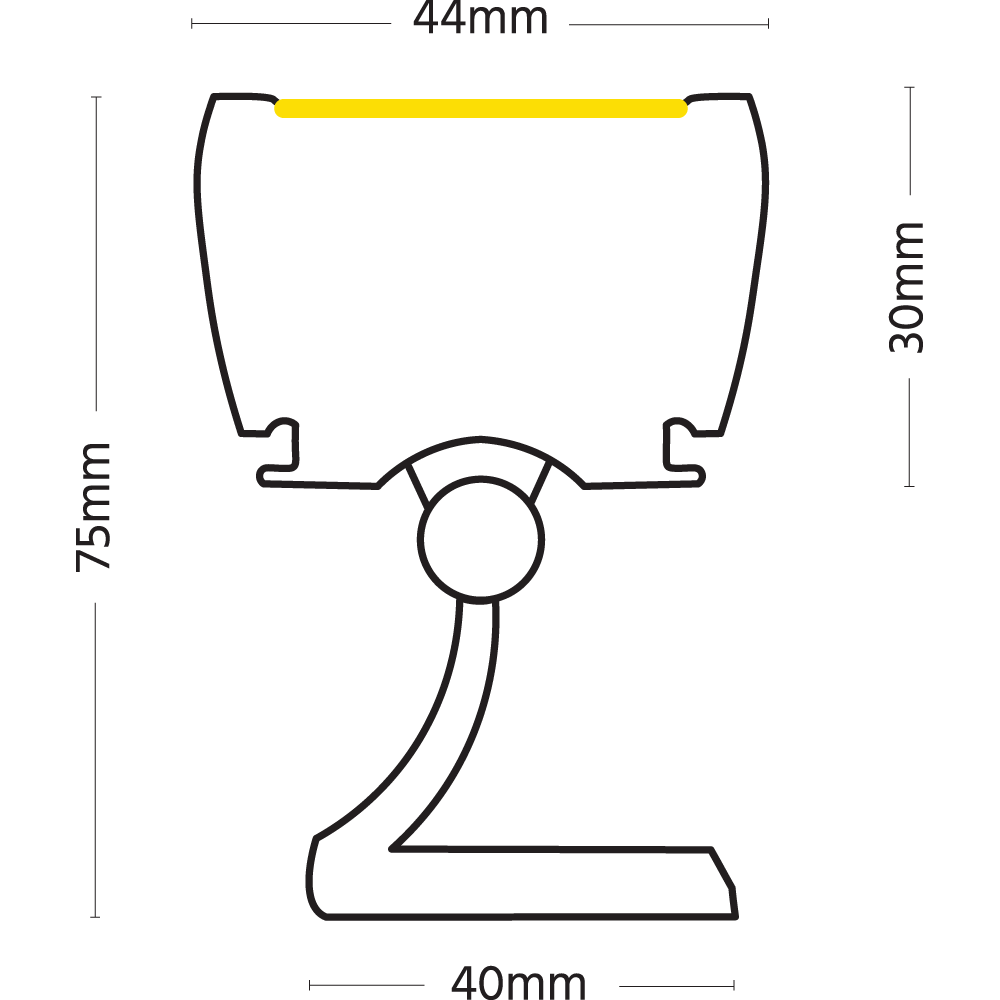

Dimensions

Configurator

Categories: Flood, Grazers and Wall Washers, Linear Systems
Product: Blade
Variant Code: BLD
Generate Datasheet
Clear
  • Specifications
ColourWhiteTuneable WhiteRGBWRGB
CCT/Wavelength2700K, 3000K, 4000K2700K-5700K625nm (Red)
530nm (Green)
470nm (Blue)
3000K (White)
625nm (Red)
530nm (Green)
470nm (Blue)
LED Lumens900-3500lm/m1210-1310lm/m1300lm/m600lm/m
Power7-25W/m20.4W/m17.7W/m21.6W/m
Input Current275-1050mA/m850mA/m740mA/m900mA/m
Typical CRI909090–
PerformanceL80 (10k) >60,000hrsL70 (10k) >60,000hrsL80 (10k) >60,000hrsL90 (6k) >36,000hrs
Input Voltage24VDC
Body Length500mm, 1000mm
Electrical SpecificationsNote that the electrical specifications above are displayed on a per metre basis (reduce by 50% for 500mm version)
Beam OptionMedium Oval (40°x90°), Wide Oval (70°x100°), Flood (100°x115°), Asymmetric Wall Wash, Opal Diffuser
Finish ColourSilver-Grey, Custom
Cable Length1m, 5m, 10m, 15m, 20m
MountingSurface Mount with Adjustable Brackets
Driver PlacementRemote
ControlMains/Phase, DALI, DMX, Bluetooth, Non-Dim
IP RatingIP66
Build MaterialExtruded Aluminium
