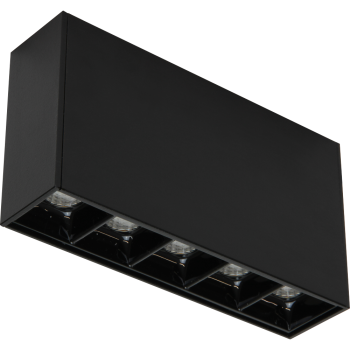

FCM-SGL-SFC iso 1000px

Focus Mini

Compact module-based dark light with extremely low glare output

Overview

Light Effect

Configurator

Downloads

Series

Overview

Focus Mini is a compact module-based Dark Light with ultra-low glare output. The LEDs in the fixture's constant current board are deeply recessed inside tiny reflectors, each separated by a black baffle to further cut-off light spill within the critical glare zone. Going beyond being simply low-glare, from the vast majority of common viewing positions the fixture's light sources are completely invisible. Light can freely illuminate the targeted area without the intensity of the artificial light source, which can significantly contribute to the visual comfort and atmosphere of an illuminated space.

Given these characteristics, Focus is a brilliant solution for glare-critical environments such as workplaces and learning environments, where glare can have adverse effects on the performance of a space's occupants by impacting their concentration and comfort. In these applications, Focus can be used both to deliver the primary low-glare ambient lighting, as well as highly targeted task lighting. A tuneable white version is available which would also be ideal in these applications.

Aside from glare-critical environments, Focus can be used in high-end hospitality and retail applications to induce feelings of comfort and intimacy, or luxury and exclusivity by delivering high light levels to targeted areas and objects, while leaving the rest of the space relatively darker. Instead of flooding a room with an equal level of brightness, this intentional contrast brings the attention of its occupants to where the designer desires it. For example, focusing illumination on a restaurant's tables while leaving the rest of the room somewhat gloomy can enhance its atmosphere and create intimacy between diners. In retail applications, highlighting products can increase the perception of luxury and quality, as this targeted illumination approach subliminally communicates their importance to shoppers.

Focus Mini is available in both single and dual module formats. The fixture is part of the larger Focus series, which includes higher output versions and customisable module-based linear systems, enabling a consistent design language across various installation locations and illumination objectives within a single project.

Focus Mini is proudly manufactured by Digilin in Australia.

Dark Light

Beyond simply glow-glare, the fixture’s light sources are completely invisible from common viewing positions

Module-based

Focus Mini is available as a single or dual module, enabling between 700-1400lm deliveries

Focus Series

The Focus series includes higher output versions and customisable linear systems, enabling a consistent design language within a single project

Tuneable White Version

Ideal for workplaces and learning environments

Light Effect

Single Module, Medium Beam (43°)
Single Module, Narrow Beam (34°)
Single Module, Spot Beam (20°)
Dual Module, Medium Beam (43°)
Dual Module, Narrow Beam (34°)
Dual Module, Spot Beam (20°)
Single Module, Medium Beam (43°)
Single Module, Narrow Beam (34°)
Single Module, Spot Beam (20°)
Dual Module, Medium Beam (43°)
Dual Module, Narrow Beam (34°)
Dual Module, Spot Beam (20°)

Configurator

Categories: Surface Mount Luminaires
Product: Focus Mini
Variant Code: FCM-SFC
Generate Datasheet
Clear
  • Specifications
Modules Single Module Dual Module
LED Colour Fixed White Tuneable White Fixed White Tuneable White
Delivered Lumens (approx.) 670-715lms 630-620lms 1335-1430lms 1250-1240lm
Luminaire Power 7.5W 7.2W 15W 14.4W
Connected Load (est.) 8.3W 8W 16.6W 16W
Current 500mA 500mA
Forward Voltage 15V 14.4V 30V 28.8V
CRI 90 80 90 80
Performance L90(10k) > 60,500hrs
ModulesSingle Module, Dual Module
Beam OptionSpot (20°), Narrow (34°), Medium (43°)
Finish ColourWhite, Black, Custom
Driver PlacementRemote
ControlMains/Phase, DALI
Build MaterialExtruded Aluminium, Polycarbonate Lens
IP RatingIP20
IC RatingIC-4
Dimensions33mm (W), 75mm (H)

Downloads

Photometrics
Photometrics
Photometrics
Photometrics

Series

Focus Mini Linear

Compact module-based dark light linear system with extremely low glare output
Linear Systems
Compact, Light Effects

Focus Mini Linear

Body Width: 35mm
Mounting: Surface, Recessed, Suspended
LED Colours: Fixed White, Tuneable White
Delivered Lumens: 700lm/Module

Focus

Mid-size module-based dark light with extremely low glare output
Surface Mount Luminaires
Fixed White, Tuneable White

Focus

Mounting: Surface Mount
Delivered Lumens: 1100lm/Module (1 or 2)
LED Colours: Fixed White, Tuneable White
Beam Options: Ultra Narrow, Narrow, Medium

Focus Mini

Compact module-based dark light with extremely low glare output
Recessed Luminaires
Fixed White, Tuneable White

Focus Mini

Mounting: Recessed
Delivered Lumens: 700lm/Module (1 or 2)
LED Colours: Fixed White, Tuneable White
Beam Options: Ultra Narrow, Narrow, Medium

Focus Linear

Mid-size module-based dark light linear system with extremely low glare output
Linear Systems
Light Effects, Mid-size

Focus Linear

Body Width: 50mm
Mounting: Surface, Recessed, Suspended
LED Colours: Fixed White, Tuneable White
Delivered Lumens: 1100lm/Module
