FCS-SGL-SFC

Focus

Mid-size module-based dark light with extremely low glare output

Overview

Dimensions

Configurator

Downloads

Series

Overview

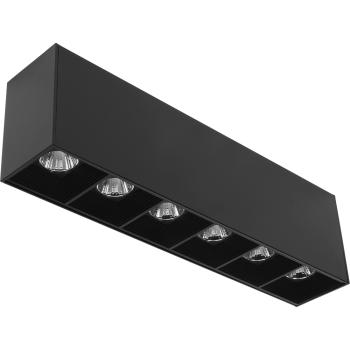

Focus is a mid-size module-based Dark Light with ultra-low glare output. The LEDs in the fixture's constant current board are deeply recessed inside small reflectors, each separated by a black baffle to further cut-off light spill within the critical glare zone. Going beyond being simply low-glare, from the vast majority of common viewing positions the fixture's light sources are completely invisible. Light can freely illuminate the targeted area without the intensity of the artificial light source, which can significantly contribute to the visual comfort and atmosphere of an illuminated space.

Given these characteristics, Focus is a brilliant solution for glare-critical environments such as workplaces and learning environments, where glare can have adverse effects on the performance of a space's occupants by impacting their concentration and comfort. In these applications, Focus can be used both to deliver the primary low-glare ambient lighting, as well as highly targeted task lighting. A tuneable white version is available which would also be ideal in these applications.

Aside from glare-critical environments, Focus can be used in high-end hospitality and retail applications to induce feelings of comfort and intimacy, or luxury and exclusivity by delivering high light levels to targeted areas and objects, while leaving the rest of the space relatively darker. Instead of flooding a room with an equal level of brightness, this intentional contrast brings the attention of its occupants to where the designer desires it. For example, focusing illumination on a restaurant's tables while leaving the rest of the room somewhat gloomy can enhance its atmosphere and create intimacy between diners. In retail applications, highlighting products can increase the perception of luxury and quality, as this targeted illumination approach subliminally communicates their importance to shoppers.

Focus is available in both single and dual module formats. The fixture is part of the larger Focus series, which includes lower output versions and customisable module-based linear systems, enabling a consistent design language across various installation locations and illumination objectives within a single project.

Focus is proudly manufactured by Digilin in Australia.

Dark Light

Beyond simply glow-glare, the fixture’s light sources are completely invisible from common viewing positions

Module-based

Focus is available as a single or dual module, enabling between 1100-2200lm deliveries

Focus Series

The Focus series includes higher output versions and customisable linear systems, enabling a consistent design language within a single project

Tuneable White Version

Ideal for workplaces and learning environments

Dimensions

Configurator

Categories: Surface Mount Luminaires
Product: Focus
Variant Code: FCS-XXX-SFC
Generate Datasheet

This product is currently out of stock and unavailable.

  • Specifications
ModulesSingle ModuleDual Module
LED ColourFixed WhiteTuneable WhiteFixed WhiteTuneable White
CCT/Wavelength2700K, 3000K, 4000K2700K-5700K2700K, 3000K, 4000K2700K-5700K
Delivered Lumens (approx.)1100lm2200lm
Luminaire Power12W24W
Connected Load (est.)14W28W
Current700mA700mA
Forward Voltage17V34V
CRI>90
PerformanceL90(10k) > 60,500hrs
Dimensions54mm (Width), 80mm (Height), 290mm (Length)54mm (Width), 80mm (Height), 576mm (Length)
Beam OptionNarrow (30°), Spot (15°), Medium (38°)
Finish ColourWhite, Black, Custom
Driver PlacementRemote
ControlMains/Phase, DALI, DMX, Bluetooth
Build MaterialExtruded Aluminium, Polycarbonate Lens
IP RatingIP20

Downloads

Photometrics
Photometrics
Photometrics
Photometrics

Series

Focus Mini Linear

Compact module-based dark light linear system with extremely low glare output
Linear Systems
Compact, Light Effects

Focus Mini Linear

Body Width: 35mm
Mounting: Surface, Recessed, Suspended
LED Colours: Fixed White, Tuneable White
Delivered Lumens: 700lm/Module

Focus Mini

Compact module-based dark light with extremely low glare output
Surface Mount Luminaires
Fixed White, Tuneable White

Focus Mini

Mounting: Surface Mount
Delivered Lumens: 700lm/Module (1 or 2)
LED Colours: Fixed White, Tuneable White
Beam Options: Ultra Narrow, Narrow, Medium

Focus Mini

Compact module-based dark light with extremely low glare output
Recessed Luminaires
Fixed White, Tuneable White

Focus Mini

Mounting: Recessed
Delivered Lumens: 700lm/Module (1 or 2)
LED Colours: Fixed White, Tuneable White
Beam Options: Ultra Narrow, Narrow, Medium

Focus Linear

Mid-size module-based dark light linear system with extremely low glare output
Linear Systems
Light Effects, Mid-size

Focus Linear

Body Width: 50mm
Mounting: Surface, Recessed, Suspended
LED Colours: Fixed White, Tuneable White
Delivered Lumens: 1100lm/Module
