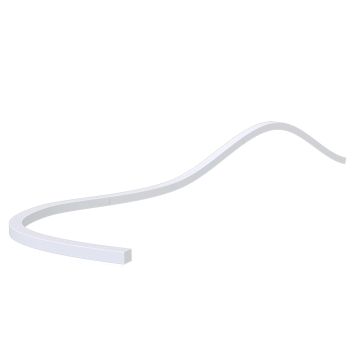

HaloFlex 3D_1000px

HaloFlex 3D

3D Bending IP68 systems for exterior and curved architectural applications

Overview

Configurator

Downloads

Series

Gallery

Overview

Designed for high-exposure exterior and curved architectural applications, HaloFlex 3D is a durable IP68 linear system that incredibly, is capable of bending in both vertical and horizontal planes. Although suitable for exterior use, increasingly we're seeing designers rely on the unique characteristics of HaloFlex to illuminate interior spaces as well, commonly installed in coves and contouring curved architectural elements.

When it comes to HaloFlex, any established preconceptions regarding the quality and longevity of flexible "neon" should be disregarded. This product is a true specification-grade, IP68 silicone encapsulated, high-quality linear LED system, available in a vast array of colour and wattage configurations supported by a quality collection of well-engineered accessories. Quality LED, silicone encapsulated dot-free output, injection-moulded end caps and connectors, there simply isn't a comparable offering available on the market.

Relied upon by Digilin for over 13 years, we've designed and supplied HaloFlex systems for an incredible variety of performance-critical applications. Not only have we seen brilliant results at the time of project completion, years and years later we've come back to these projects and seen this product continue to deliver exceptional levels of performance, illuminating high-exposure urban and landscaping projects, building exteriors, and public art projects throughout Australia. We've even seen systems that were specified into one of Brisbane's riverside public spaces as IP67 survive days submerged in unprecedented flooding and come out the other side fully functional.

Extensive testing of mechanical performance, heat dissipation and material durability ensure these systems are the most durable on the market. Regularly upgraded with the highest quality LEDs and material compositions available today, and then tested again, they deliver the highest performance and longevity possible with modern technology.

Of course, no lighting technology is without limitations - the challenges regarding designing extensive systems around LED increments, planning locations for injection-moulded end caps and cable feeds, mounting accessory suitability and minimum bend characteristics require thorough consideration. Digilin's in-depth technical expertise and extensive experience with these systems enable these challenges to be overcome. We collaborate with specifiers to guarantee successful project outcomes, not only by providing technical advice but also by supporting design and delivery with detailed shop drawings and installation instructions.

HaloFlex is manufactured by an international partner that Digilin has been cooperating with for over 13 years.

3D Bending

This incredible system is capable of bending in both vertical and horizontal planes

Protected and Durable

With IP68 and IK08 ratings, HaloFlex is a reliable solution for exposed exterior applications

Encapsulated Silicone

UV, salt water, solvent and flame-resistant silicone creating a dot-free finish

Manufactured by an International Partner

HaloFlex 3D is manufactured by an international partner that Digilin has been cooperating with for over 13 years

Configurator

Categories: Flexible Linear Systems
Product: HaloFlex 3D
Variant Code: HFL-3D
Generate Datasheet
Clear
  • Specifications
Illumination Type3D Bending (Vertical and Horizontal)
LED ColourFixed White
CCT/Wavelength2700K, 3000K, 4000K
Delivered Lumens600lm/m
Power8W/m
Typical CRI90+
Module Length45.4mm
Operating Temperature-40 to 55 degrees Celsius
Maximum Continuous Feed10m Single Feed
Input Voltage24VDC
IP RatingIP68
IK RatingIK08
Beam AngleApprox. 112 degrees
Build MaterialSilicone
Minimum Bend Radius150mm

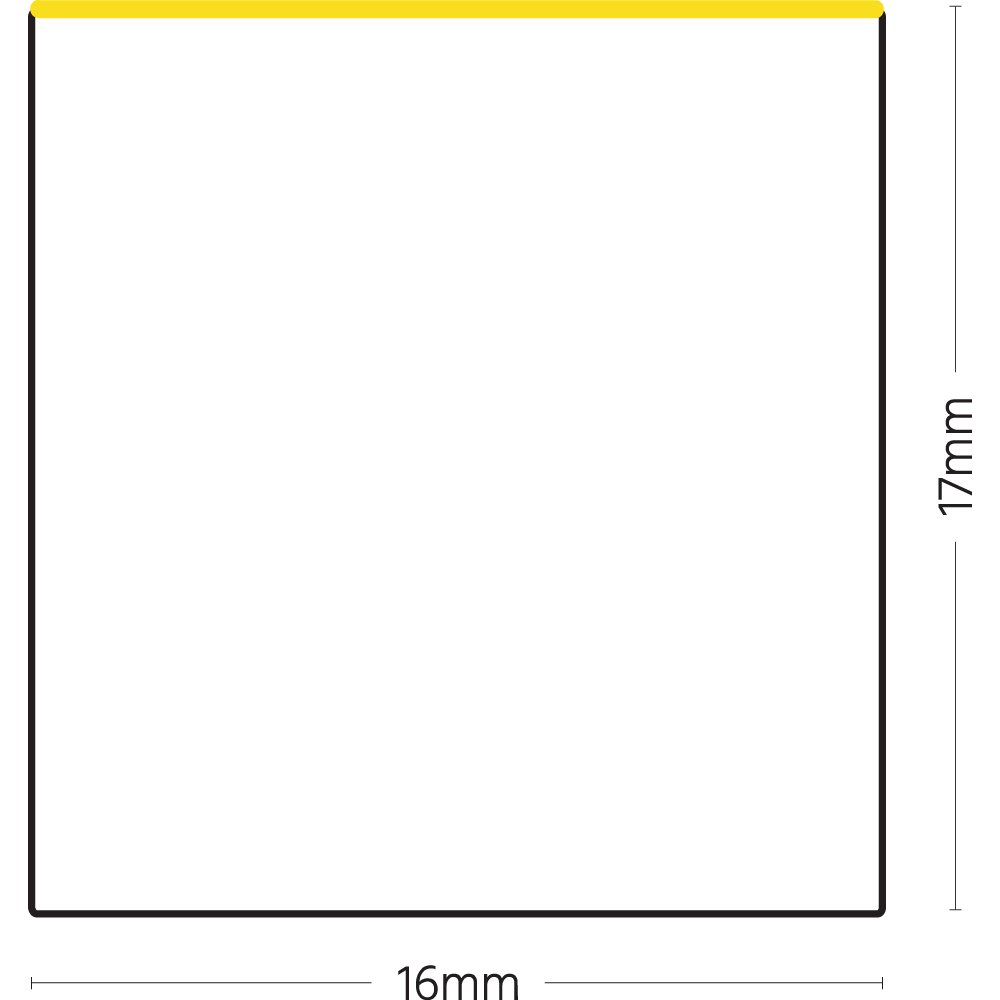

Dimensions16mm (width), 17mm (height)
Weight330g/m
DurabilityUV, Saltwater, Solvent and Flame Resistant
Connector OptionsInjection Moulded Connectors and End Caps (fitted)
Mounting Options3D Bending Silicone, Standard or Serrated Aluminium, or Transparent Plastic

Downloads

Mounting Profiles
Mounting Profiles
Mounting Profiles
Mounting Profiles
Photometrics
Photometrics
Photometrics
Photometrics

Series

NEW

TerraFlex

3D bending in-ground linear system with continuous homogenous output
Flexible Linear Systems
White

TerraFlex

Ratings: IP67 & IK10
Versions: 3D Bending (vertical and horizontal)
LED Colours: Fixed White
Delivered Lumens: 500lm/m

NEW

OptiFlex 3D

3D Bending flexible IP67 linear wall washer with a variety of precise optics
Flexible Linear Systems
RGB, RGBW, Tuneable, White

OptiFlex 3D

IP Rating: IP67
Versions: 3D Bending (vertical and horizontal)
LED Colours: White, Tuneable, RGB, RGBW
Delivered Lumens: ~2000lm/m

HaloFlex (Sauna)

Flexible IP67 systems for sauna and steam rooms
Flexible Linear Systems
RGB, White

HaloFlex (Sauna)

IP Rating: IP67
Versions: Front-Lit or Side-Lit
LED Colours: White, Tuneable, RGB, RGBW
Delivered Lumens: 350lm/m

MicroFlex

Micro-sized flexible linear for exterior and curved architectural applications
Flexible Linear Systems
White

MicroFlex

IP Rating: IP67
Versions: Front-Lit or Side-Lit
LED Colours: Fixed White, Colour
Delivered Lumens: 220-450lm/m

HaloFlex

Flexible IP68 systems for exterior and curved architectural applications
Flexible Linear Systems
RGB, RGBW, Tuneable, White

HaloFlex

IP Rating: IP68
Versions: Front-Lit or Side-Lit
LED Colours: White, Tuneable, RGB, RGBW
Delivered Lumens: 300-800lm/m

Gallery

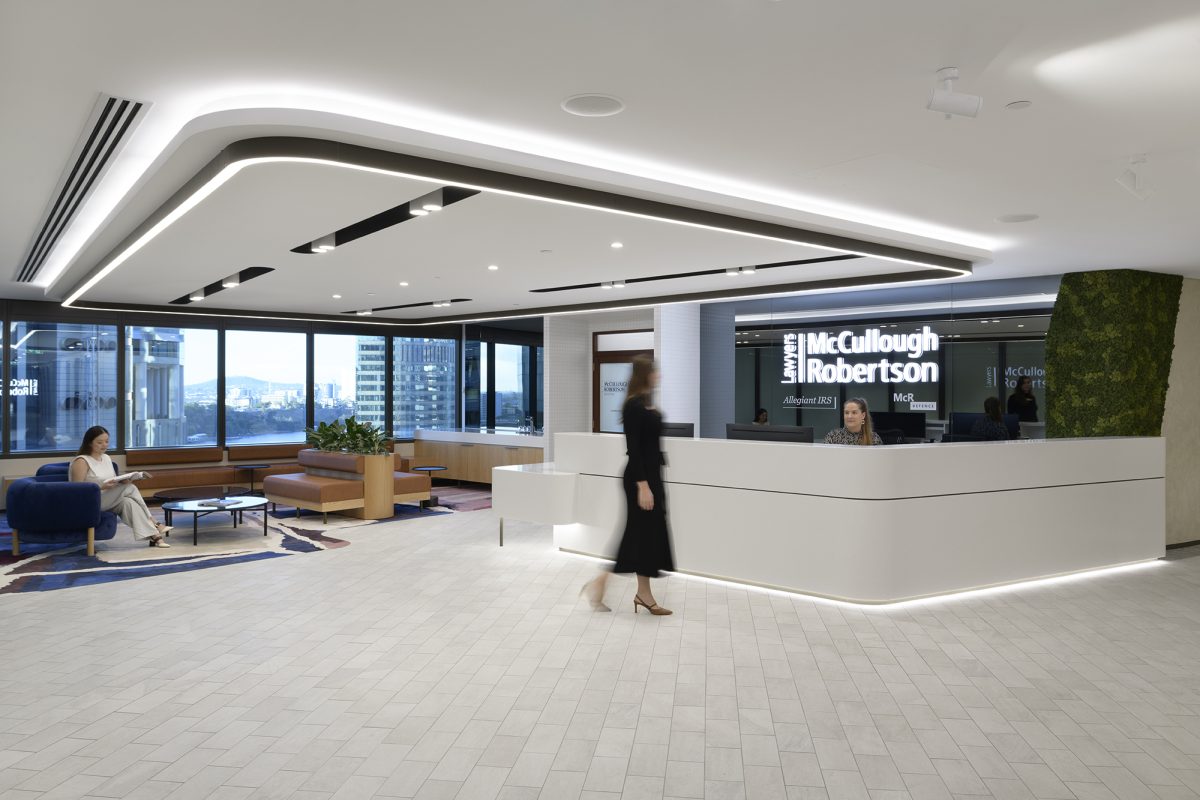

McCullough Robertson 1 2000px

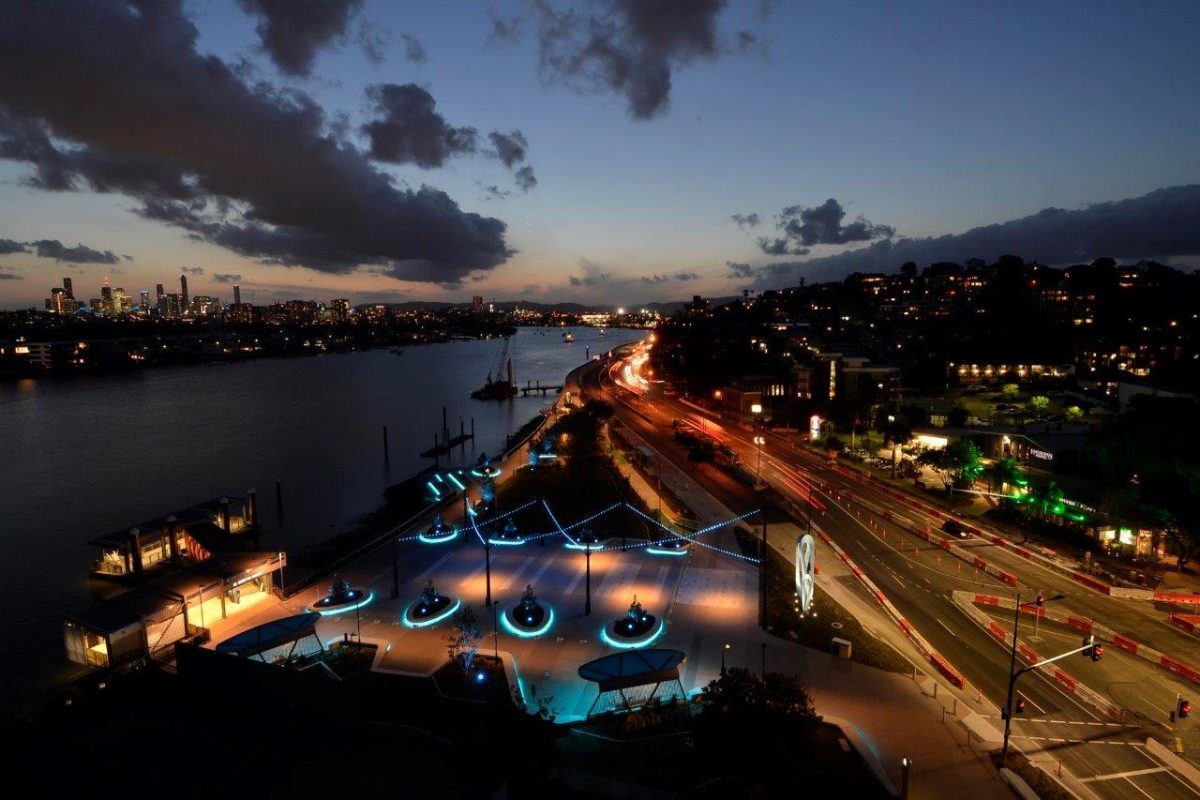

Bretts Wharf_at night_aerial

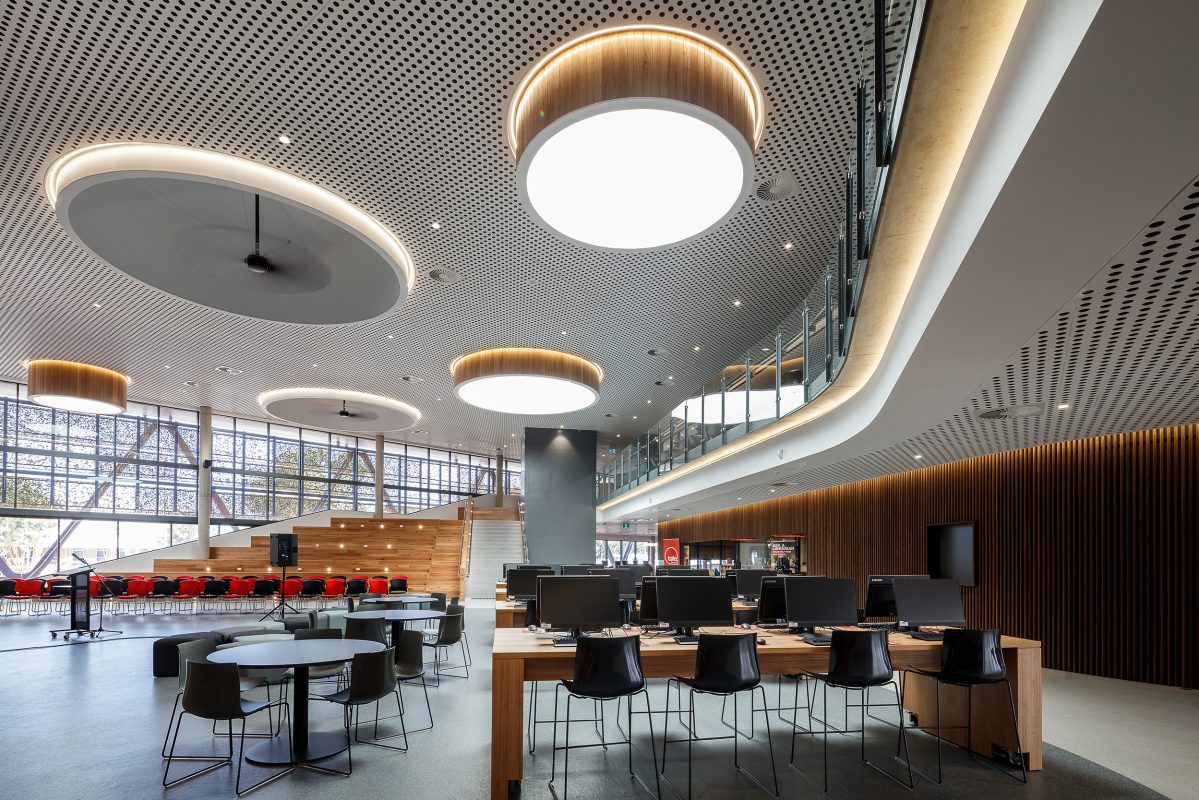

TAFE Pimlico 1 2500px

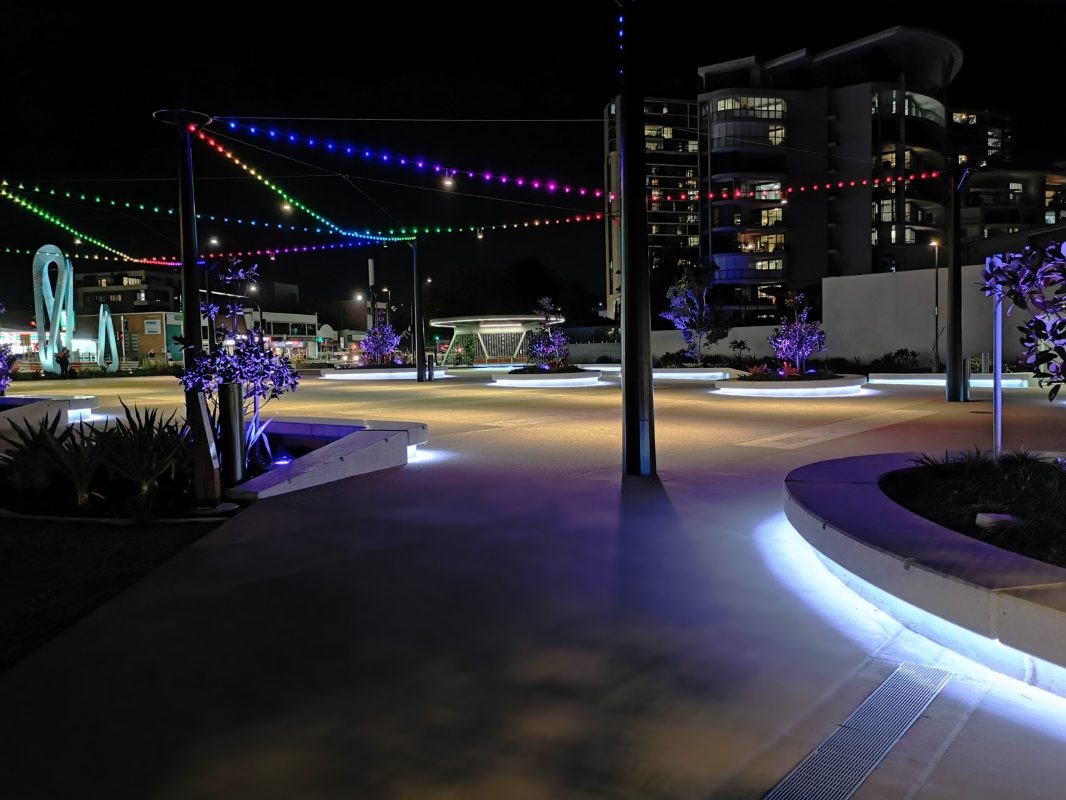

Bretts Wharf Plaza_Kingsford Smith Drive Upgrade

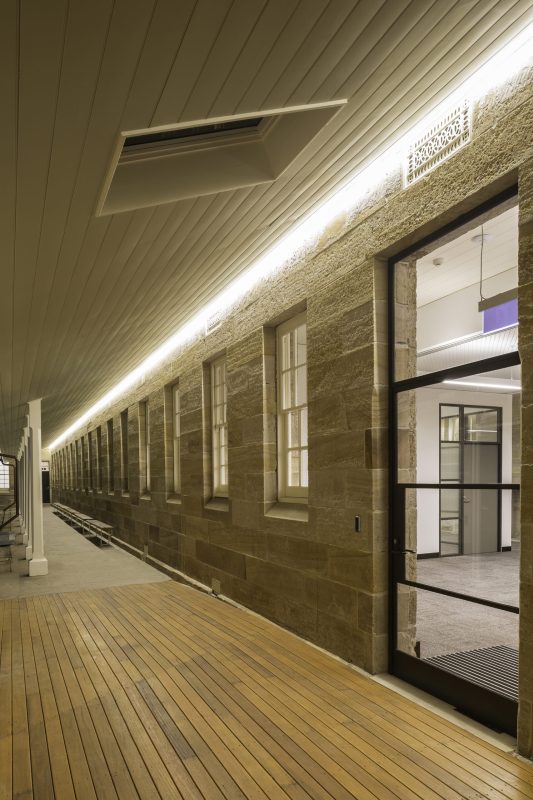

FDC WHSS 85_2500px w

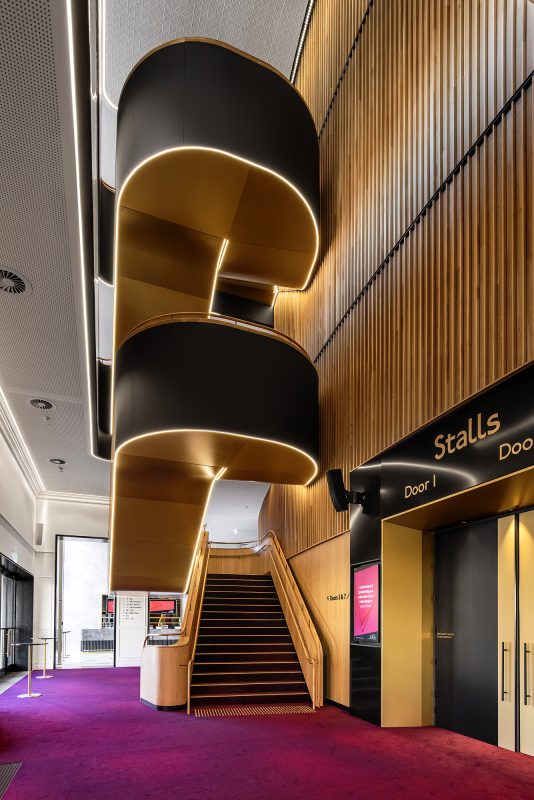

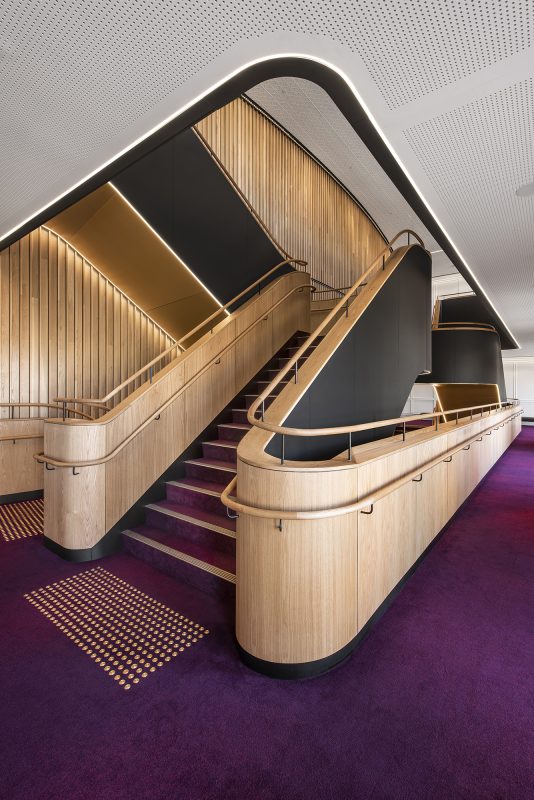

Feature staircase with winding HaloFlex
Feature staircase with winding HaloFlex
Feature staircase with winding HaloFlex
Feature staircase with winding HaloFlex

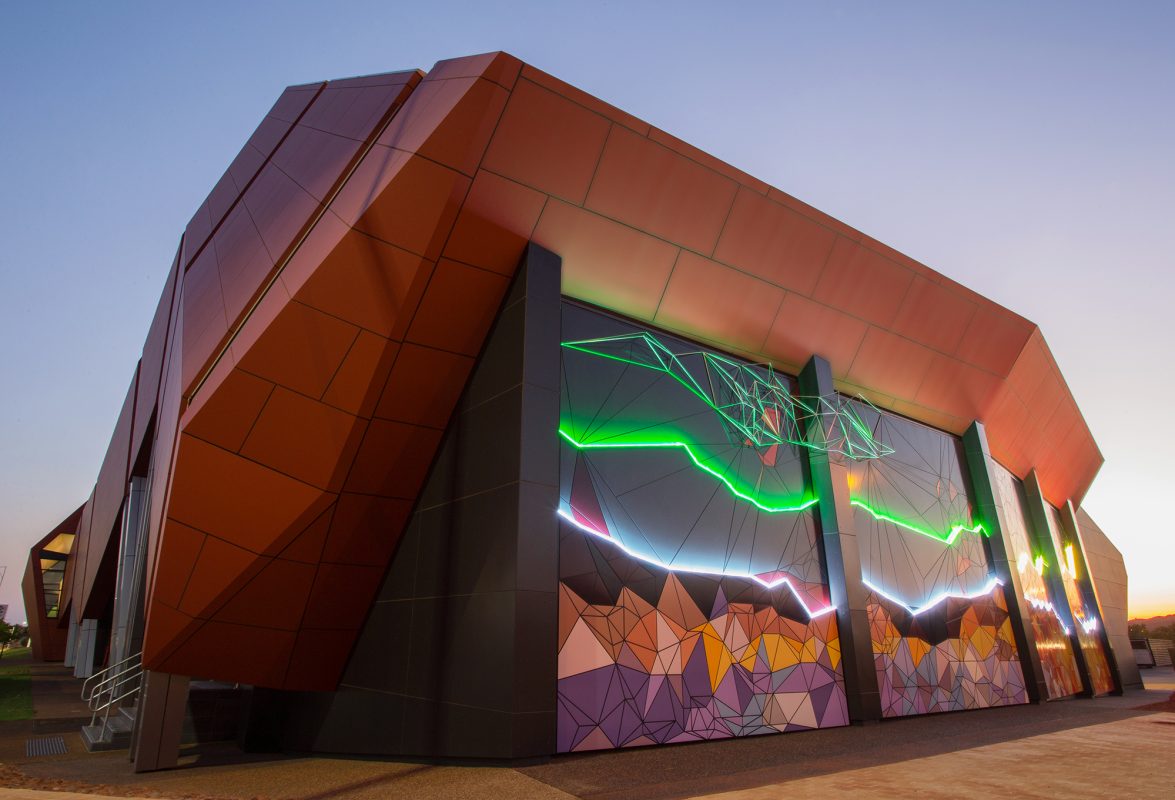

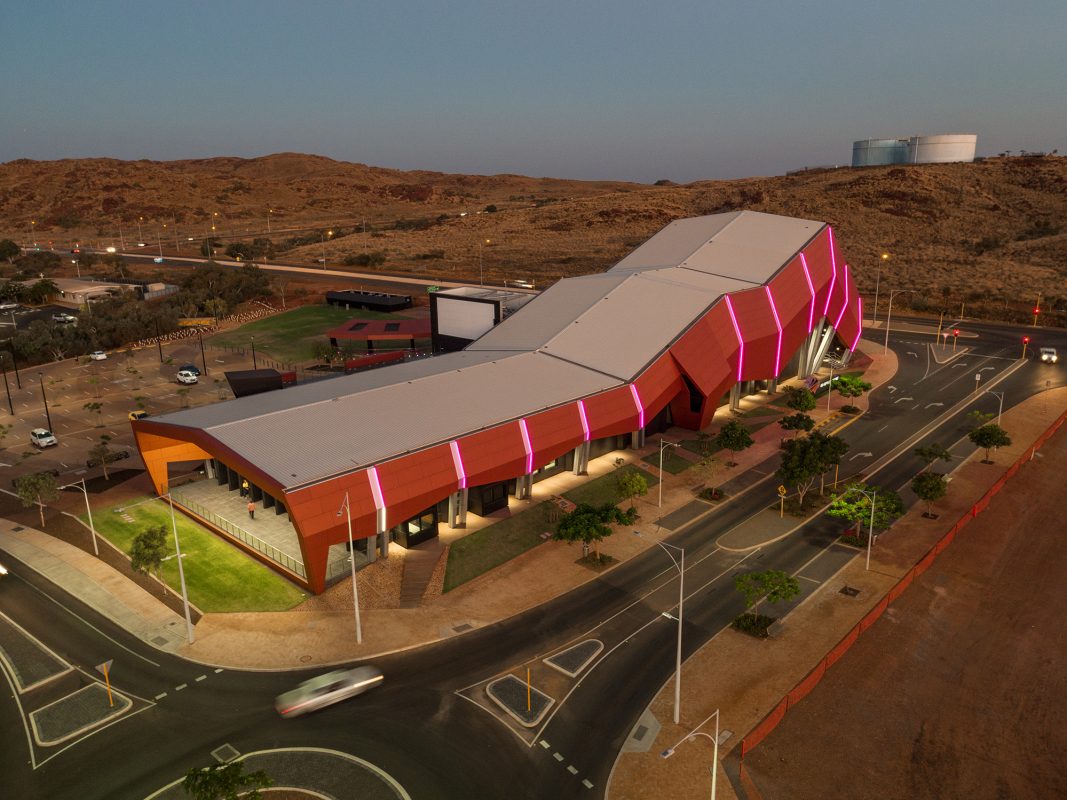

Project: Red Earth Arts Precint, Karratha
Project: Red Earth Arts Precint, Karratha
Project: Red Earth Arts Precint, Karratha
Project: Red Earth Arts Precint, Karratha
