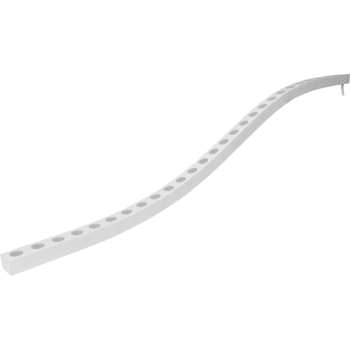

Opti Flex Wht_Bend_Web

OptiFlex 3D

3D Bending flexible IP67 linear wall washer with a variety of precise optics

Overview

Dimensions

Configurator

Downloads

Series

Overview

OptiFlex is a flexible, durable IP67 linear wall-wash system designed for high-exposure exterior and curved architectural applications. This incredible system is capable capable of bending in both the vertical and side planes. Although suitable for exterior use, increasingly we're seeing designers rely on the unique characteristics of OptiFlex to illuminate interior spaces as well, commonly installed in coves and contouring curved architectural elements.

When it comes to OptiFlex, any established preconceptions regarding the quality and longevity of flexible "neon" should be disregarded. This product is a true specification-grade, silicone encapsulated, high-quality linear LED system, available in a vast array of colour and wattage configurations supported by a quality collection of well-engineered accessories. Quality LED, 4Oz copper PCB, injection-moulded end caps and connectors, there simply isn't a comparable offering available on the market.

Relied upon by Digilin for over 13 years, we've designed and supplied flexible linear systems for an incredible variety of performance-critical applications. Not only have we seen brilliant results at the time of project completion, years and years later we've come back to these projects and seen this product continue to deliver exceptional levels of performance, illuminating high-exposure urban and landscaping projects, building exteriors, and public art projects throughout Australia. We've even seen systems that were specified into one of Brisbane's riverside public spaces as IP67 survive days submerged in unprecedented flooding and come out the other side fully functional.

Extensive testing of mechanical performance, heat dissipation and material durability ensure these systems are the most durable on the market. Regularly upgraded with the highest quality LEDs and material compositions available today, and then tested again, they deliver the highest performance and longevity possible with modern technology.

Of course, no lighting technology is without limitations - the challenges regarding designing extensive systems around LED increments, planning locations for injection-moulded end caps and cable feeds, mounting accessory suitability and minimum bend characteristics require thorough consideration. Digilin's in-depth technical expertise and extensive experience with these systems enable these challenges to be overcome. We collaborate with specifiers to guarantee successful project outcomes, not only by providing technical advice but also by supporting design and delivery with detailed shop drawings and installation instructions.

OptiFlex is manufactured by an international partner that Digilin has been cooperating with for over 13 years.

3D Bending

This unique flexible system is capable of bending on both vertical and horizontal planes

Variety of optics

OptiFlex offers a broad range of beam angles ranging from a spot (12°) to a wide oval (15° x 60°)

Outstanding Colourmixing Effects

OptiFlex is available in tuneable white, RGB, and RGBW outputs with uniform colour mixes and smooth light effects

Encapsulated Silicone

UV, salt water, solvent and flame-resistant silicone

Manufactured by an International Partner

Digilin’s flexible linear systems are manufactured by an extremely reliable international partner that we have been cooperating with for over 13 years

Dimensions

Configurator

Categories: Flexible Linear Systems
Product: OptiFlex 3D
Variant Code: OFL-3D
Generate Datasheet
Clear
  • Specifications
Illumination Type3D Bending (vertical and horizontal bending)
LED ColourFixed WhiteTuneable WhiteRGBRGBW
CCT/WavelengthWhite: 2700K, 3000K, 4000K2200K-6500KRed: 618-624nm
Green: 522-528nm
Blue: 468-474nm
Red: 618-624nm
Green: 522-528nm
Blue: 468-474nm
White: 3000K
Delivered Lumens~2000lm/m~1000lm/m~800lm/m~1000lm/m
Power24W/m24W/m24W/m24W/m
Typical CRI>80>80N/A80
Colour Consistency (LED)3 SDCM–––
PerformanceL90 (12k) >72,000hrs–––
Input Voltage24VDC
Beam OptionNarrow, Narrow Oval, Medium, Medium Oval, Wide Oval
Build MaterialSilicone
Finish ColourWhite, Black
Operating Temperature-40~55 Degrees Celsius
Module Length250mm
Maximum Continuous Feed2000mm/pc or 5000mm in series
Minimum Bend Diameter800mm (horizontal), 400mm (vertical)
IP RatingIP67
IK RatingIK08
Dimensions35mm (width), 25mm (height)
Weight1.1kg/m
DurabilityUV, Saltwater, Solvent and Flame Resistant
Connector OptionsInjection Moulded Connectors and End Caps (fitted)
Mounting OptionsSerrated Aluminium – Standard or Flexible (optional adjustable mounting brackets)
