TerraFlex

3D bending in-ground linear system with continuous homogenous output

Overview

Configurator

Series

Overview

3D Bending

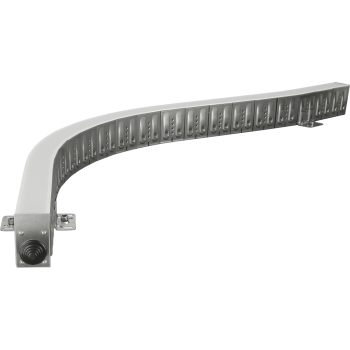

This incredible system is capable of bending in both vertical and horizontal planes

Protected and Durable

With IP67 and IK10 ratings, TerraFlex is a reliable solution for exposed exterior applications

Encapsulated Silicone

The interior lightsource of TerraFlex is encapsulated in a UV, salt water, solvent and flame-resistant silicone creating a dot-free finish

Manufactured by an International Partner

TerraFlex 3D is manufactured by an international partner that Digilin has been cooperating with for over 13 years

Configurator

Categories: Flexible Linear Systems

Product: TerraFlex

Variant Code: TFL-3D

Specifications

Illumination Type	3D Bending (Vertical and Horizontal)
LED Colour	Fixed White
CCT/Wavelength	2700K, 3000K, 4000K
Delivered Lumens	500lm/m
Power	12W/m
Typical CRI	80
Module Length	100mm
Operating Temperature	-40 to 55 degrees Celsius
Maximum Continuous Feed	10m (internal luminaire)
Input Voltage	24VDC
IP Rating	IP67
IK Rating	IK10
Driver Over Weight Capacity	3.5T

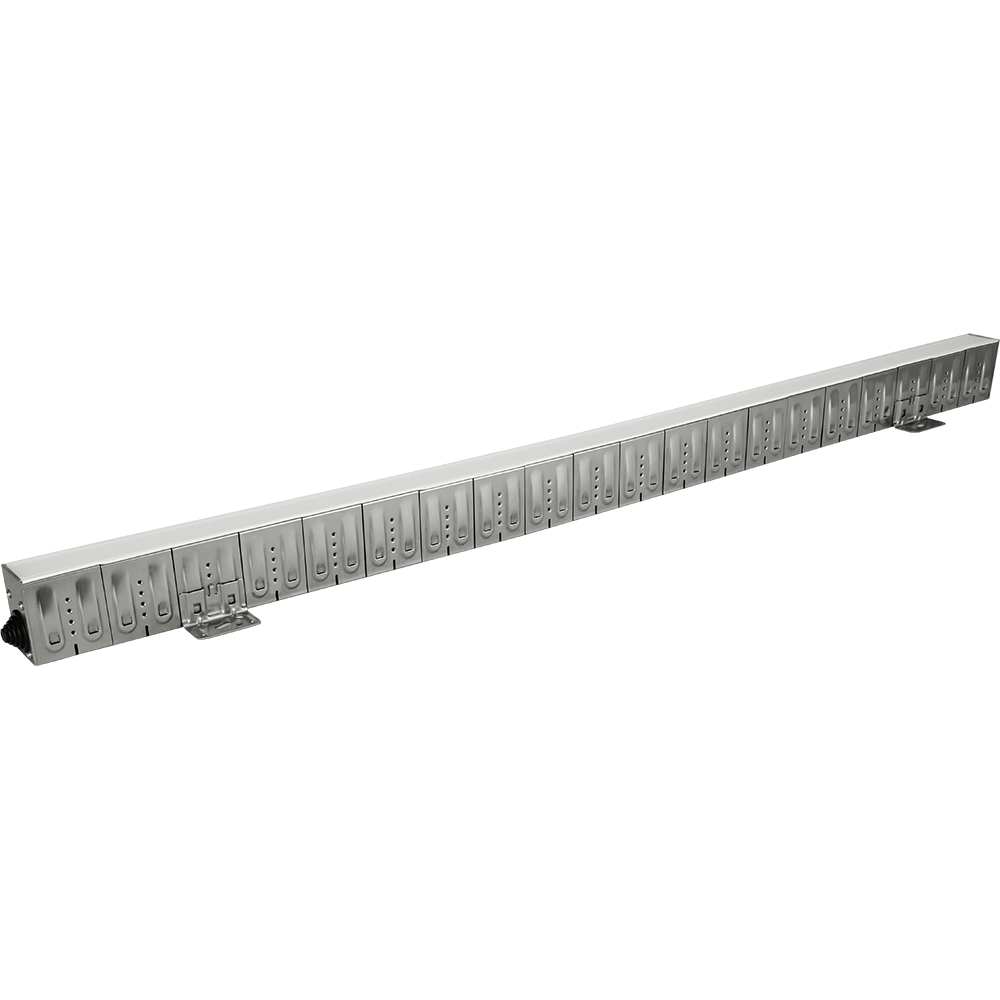

Build Material	Silicone Encapsulated Lightsource and Diffuser, Stainless Steel Mounting Profile
Minimum Bend Diameter	120mm (both directions)

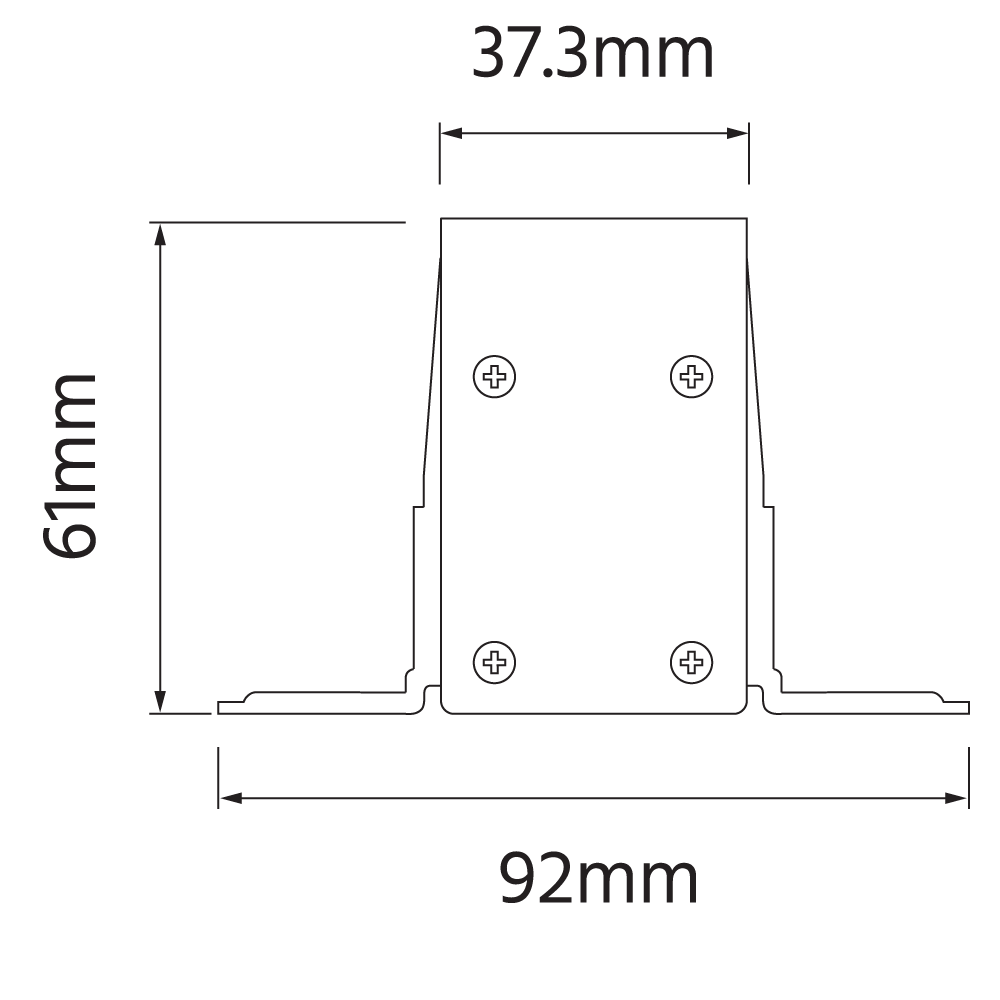

Dimensions	37.3mm (width), 61mm (height)
Weight	2.8kg/m
Durability	UV, Saltwater, Solvent and Flame Resistant

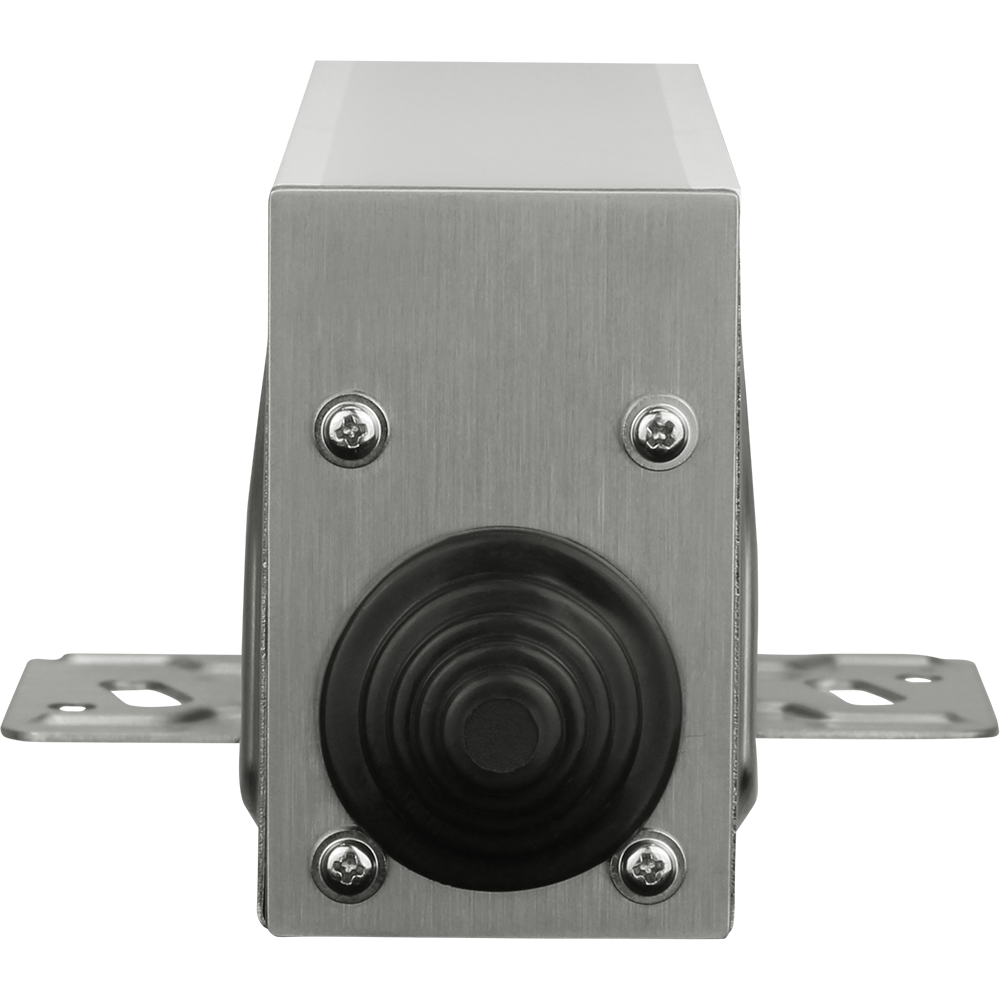

Connector	Injection Moulded Connectors and End Caps (fitted)
