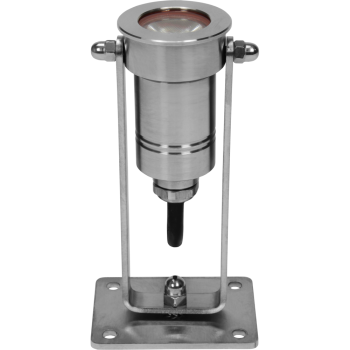

Reef Long Yoke ISO - Product Image 1000px

Taipan Adjustable

Adjustable IP68 fixture with mounting plate or spike, ideal for gardens & ponds

Overview

Versions

Configurator

Downloads

Series

Gallery

Overview

Taipan Adjustable is a robust, versatile exterior luminaire developed for urban streetscapes and landscaping applications. The fixture is fully submersible and extremely durable, with IP68 and IK10 ratings. With a core body of only 35mm, this adjustable spot version is an ideal solution for where a small but powerful exterior fixture is required. The fixture is commonly used in gardens and landscapes as a compact spotlight or can be permanently submersed to illuminate ponds and water features.

Available with a range of lenses from spot to wide, as well as a medium oval (14°x40°) and a frosted diffuser, the Taipan Adjustable can be configured to achieve a multitude of light effects. The RGB version and fixed colour outputs offer further capacity for fulfilling creative designs. Taipan Adjustable uses either a long or short yoke which can be fixed directly onto a surface, fit with a mounting plate or mounted onto a garden spike.

Ever since the fixture was developed in 2001, Taipan's marine-grade 316 stainless steel body has been machined locally in Brisbane. Over the years we've been updating its electrical components, achieving higher lumen outputs while using less power and developing further optical options, but its press-fit body design is so perfect we haven't even considered revising it.

This product is part of the extensive Taipan series, offering 15 different body types ranging from recessed ingrounds to wall-mounted and dedicated pool luminaires versions, enabling designers to bring the unique features of this durable fixture to an almost limitless range of installation locations.

Taipan Adjustable operates using constant current if configured as dimmable, whereas the non-dimmable configuration is constant voltage. The non-dimmable constant voltage versions have an in-built sensor and self-regulating voltage function, ensuring consistent light outputs across multiple fixtures in extended runs, nullifying the impact of voltage drop on illumination outcomes.

The Taipan series is proudly designed and manufactured by Digilin in Australia and has been for over 20 years.

Residential

Fully Submersible & Durable - IP68 & IK10

Taipan Adjustable is fully submersible and incredibly durable with IP68/IK10 ratings, making it a reliable solution for high-exposure urban and landscaping applications.

Coloured Outputs

Fixed colour and RGB versions are available

316 Stainless Steel - Marine Grade

Machined in Brisbane, Taipan Adjustable’s marine-grade 316 stainless steel body and mounting accessories allows it to withstand the harsh treatment it receives along Australian foreshores, riverbanks and coastal regions

Selectable Cable Lengths

Taipan Adjustable is shipped out with factory-fitted cable lengths as per project requirements

Manufactured in Australia

The Taipan series is proudly designed and manufactured by Digilin in Australia

Versions

Short Yoke, Plate

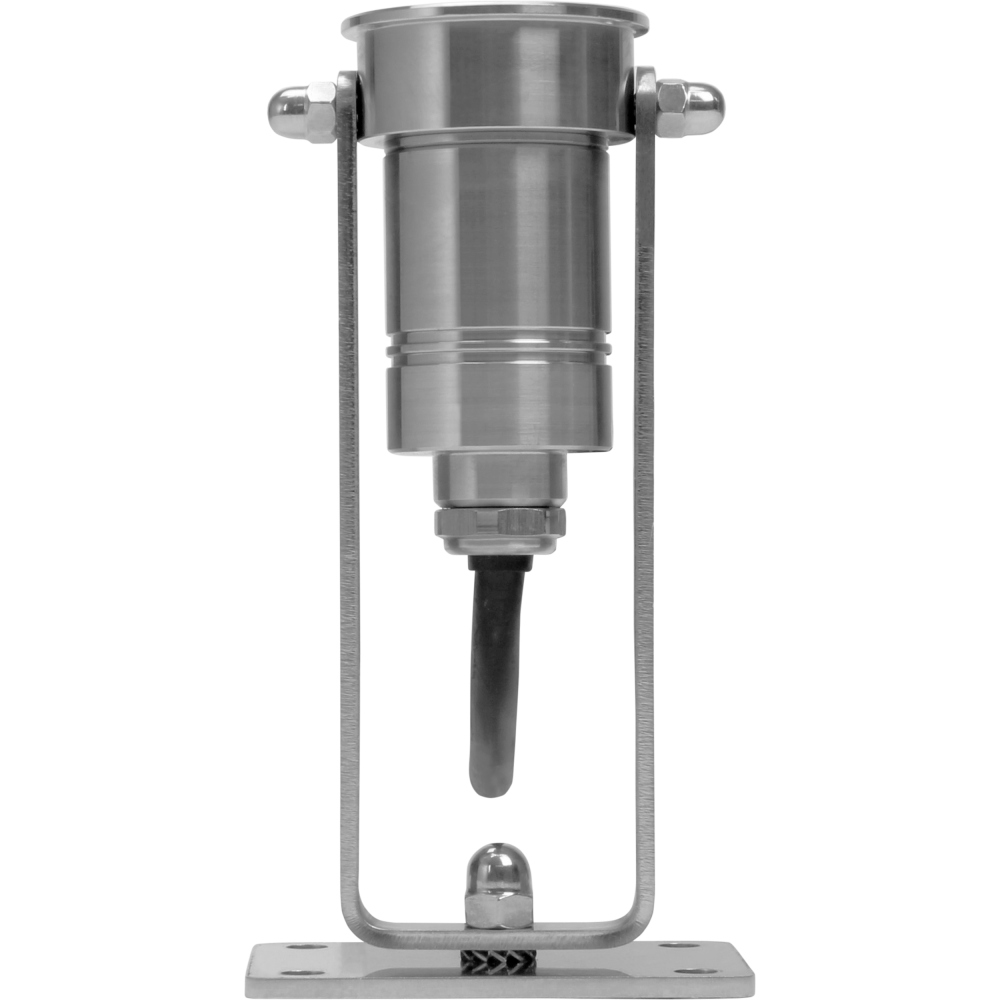

Long Yoke, Plate
Short Yoke, Spike
Long Yoke, Spike
Short Yoke, No Attachment
Long Yoke, No Attachment
Short Yoke, Plate
Long Yoke, Plate
Short Yoke, Spike
Long Yoke, Spike
Short Yoke, No Attachment
Long Yoke, No Attachment

Configurator

Categories: Spot and Accent Luminaires
Product: Taipan Adjustable
Variant Code: TPN-YK
Generate Datasheet
Clear
  • Specifications
LED ColourFixed WhiteFixed ColourRGB
CCT/Wavelength2700K, 3000K, 4000K, 5700KRed (620-630nm)
Green (520-535nm)
Blue (450-470nm)
Amber (585-600lm)
Red (620-630nm)
Green (520-535nm)
Blue (450-470nm)
LED Lumens225lm90lm/230lm/75lm/31lm235lm (combined)
Delivered Lumens (approx.)180lm70lm/185lm/60lm/24lm185lm
Luminaire Power2W1.7W/2.1W/2.2W/1.6w2.9W
Connected Load2.2W1.9W/2.4W/2.5V/1.75W3.2W
Drive Current700mA700mA350mA
Forward Voltage2.8V2.5V/3.1V/3.2V/2.25V–
PerformanceL90(15K) >90,700hrsL90(10K) >56,000hrsL90(10K) =56,000hrs
Typical CRI90+N/AN/A
Electrical SpecificationsSpecifications displayed are for dimmable constant current version
YokeLong, Short
Mounting AttachmentBase Plate, Garden Spike, No Mounting Attachment
Beam OptionFrost, Spot, Narrow, Medium, Medium Oval, Wide
ControlDim, Non-Dim
Cable Length1m, 5m, 10m, 15m, 20m
Build MaterialMarine Grade 316 Stainless Steel
IP RatingIP68
IK RatingIK10
Dimensions - Fixture44mm (trim), 76mm (height), 85mm (height – RGB version)
Weight300-500g (depending on yoke and attachments)

Downloads

Photometrics
Photometrics
Photometrics
Photometrics
Install Guide
Install Guide
Install Guide
Install Guide

Series

Taipan Wall UpDown

Robust wall mounted luminaire with dual up/down outputs
Wall Luminaires
Fixed Colours, RGB, White

Taipan Wall UpDown

IP Rating: IP66 (316 Stainless Steel)
Mounting: Mounting Plate
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Taipan Wall

Robust wall mounted luminaire for building exteriors and streetscapes
Wall Luminaires
Fixed Colour, RGB, White

Taipan Wall

IP Rating: IP66 (316 Stainless Steel)
Mounting: Mounting Plate
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Taipan Pool

IP68 luminaire developed for permanent submersion in pools, fountains & ponds
Pool Luminaires
Fixed Colour, RGB, White

Taipan Pool

IP Rating: IP68 (316 Stainless Steel core)
Mounting: Recessed – Spa Jet or Flush
LED Colours: Whites, Red, Green, Blue, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Taipan Eyelid

Recessed IP68 fixture with glare-controlling eyelid for pedestrian zones
Path and Marker Luminaires
Fixed Colours, RGB, White

Taipan Eyelid

IP Rating: IP68 (316 Stainless Steel)
Mounting: Recessed
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Clear, Frost

Taipan

Robust, versatile IP68 luminaire with multiple recessing options
Uplights and Inground Luminaires
Fixed Colour, RGB, White

Taipan

IP Rating: IP68 (316 Stainless Steel)
Mounting: Recessed
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Gallery

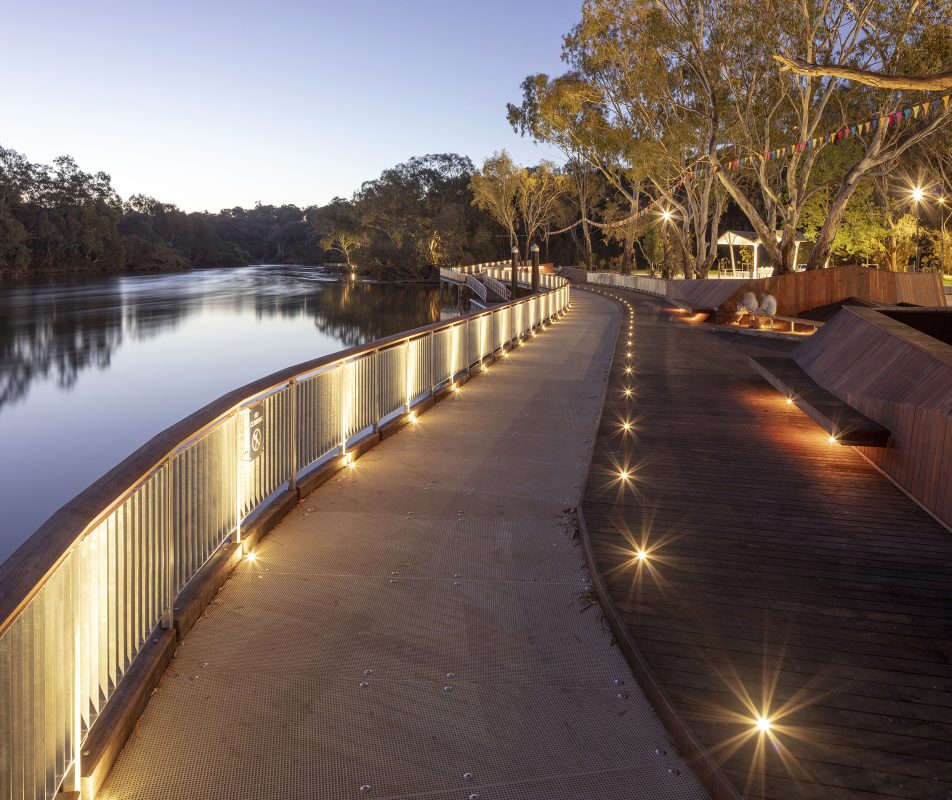

Albury Riverside

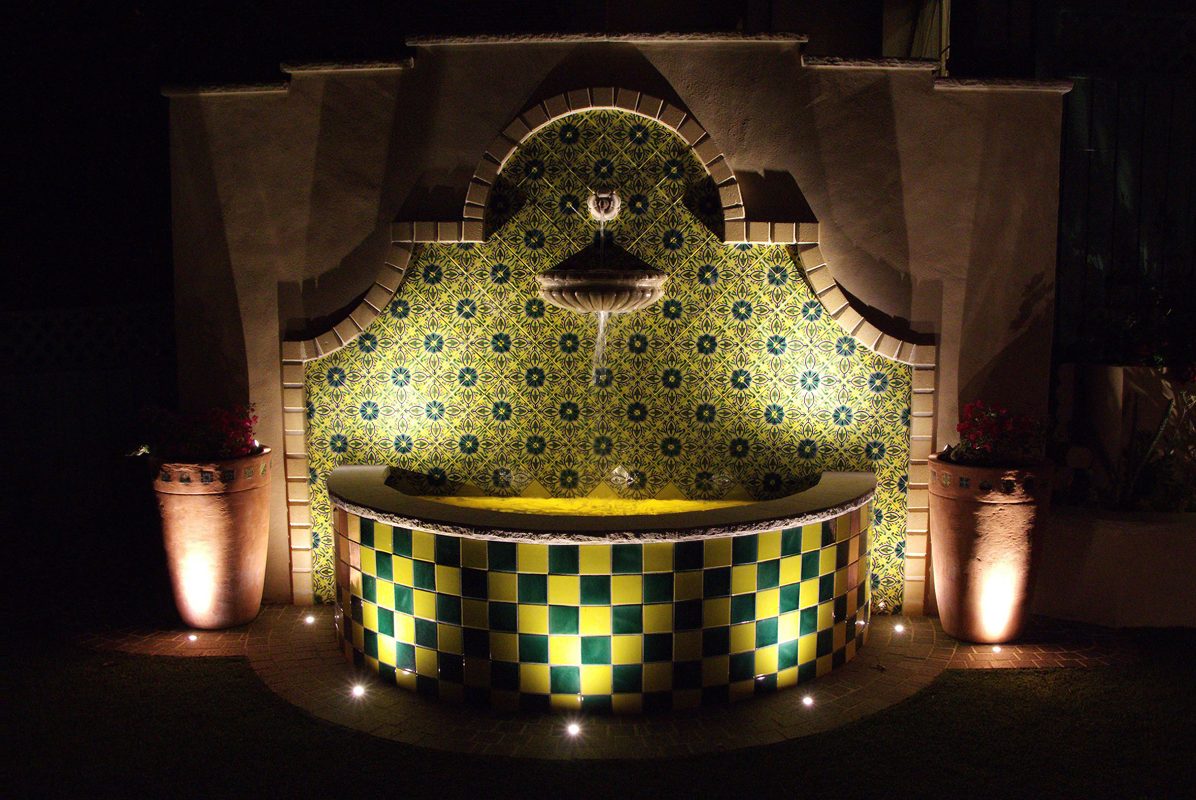

Residential

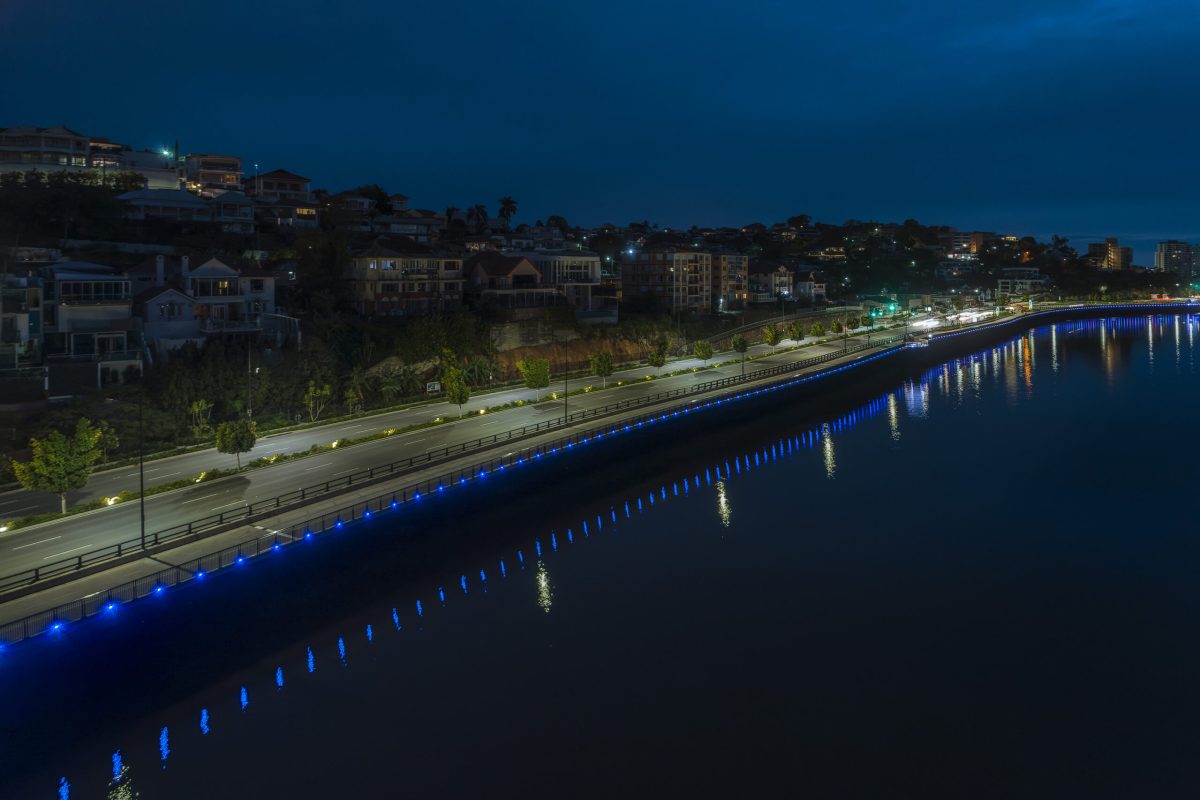

Project: Kingsford Smith Drive, Brisbane. Photography: Jackie Chan
Project: Kingsford Smith Drive, Brisbane. Photography: Jackie Chan

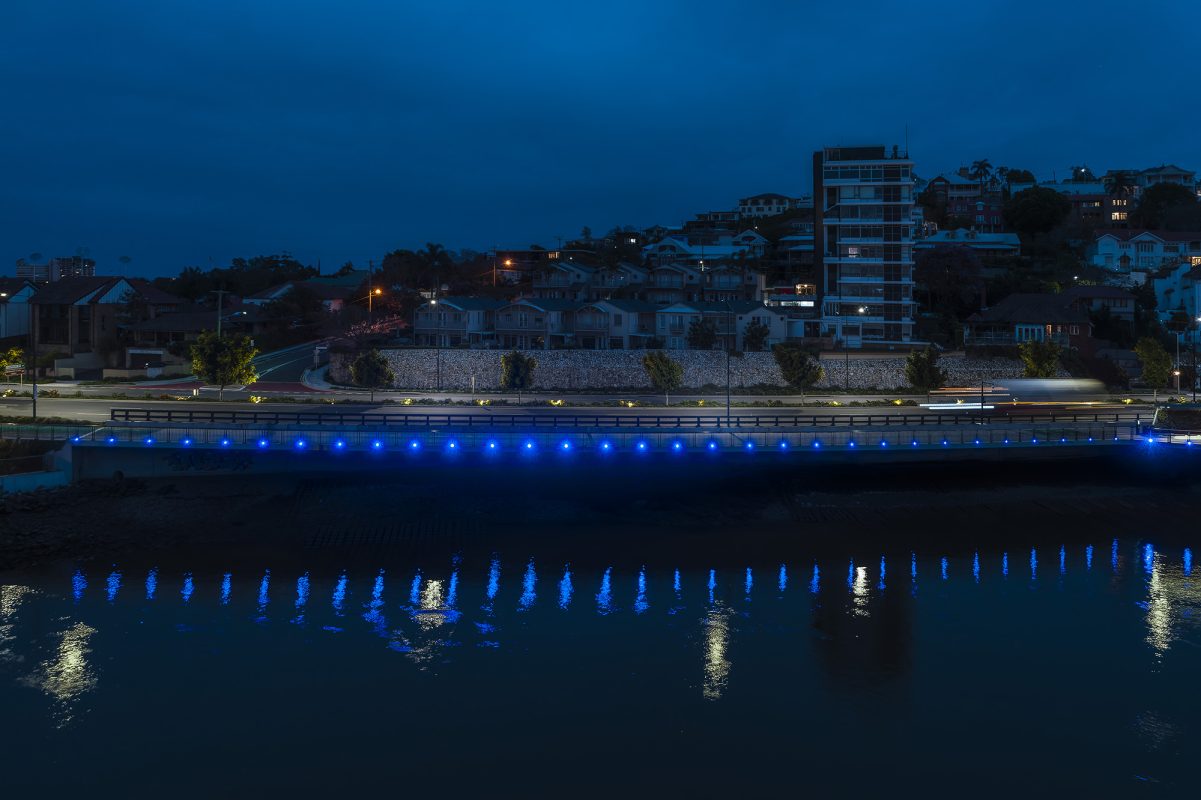

KSD 3 _2000px

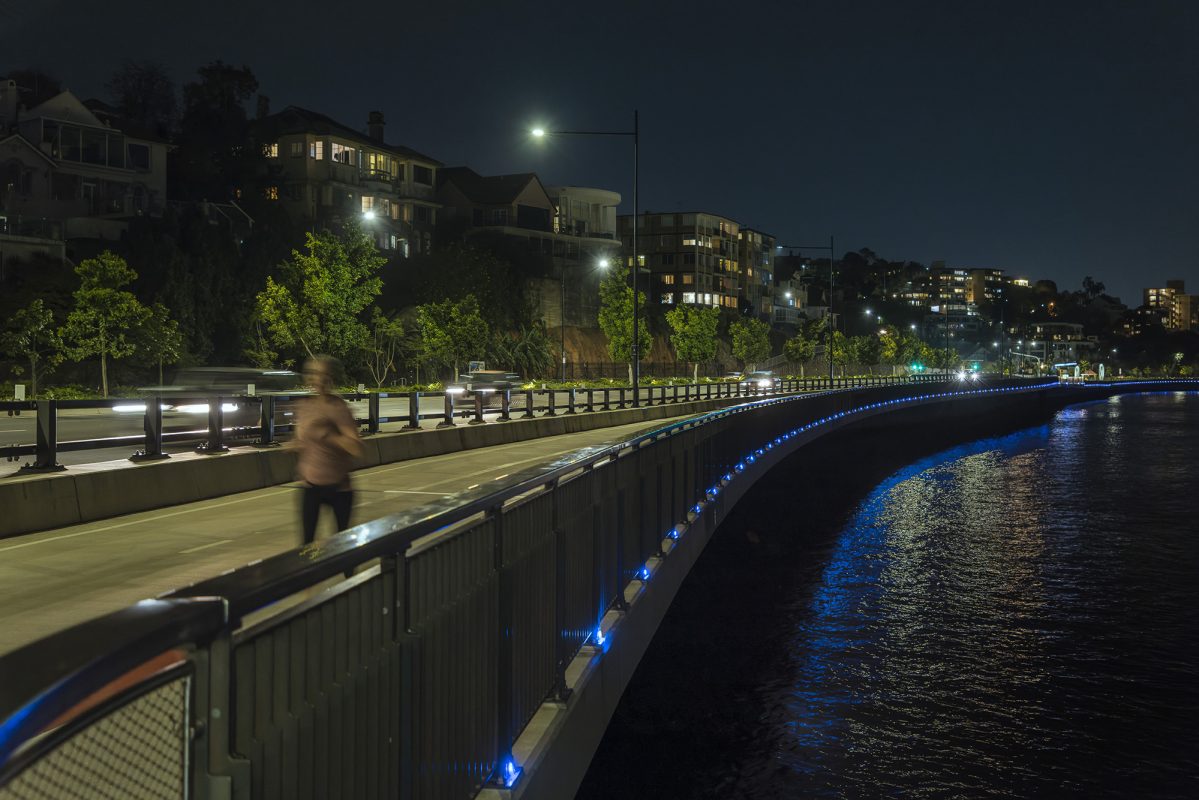

KSD 2 _2000px

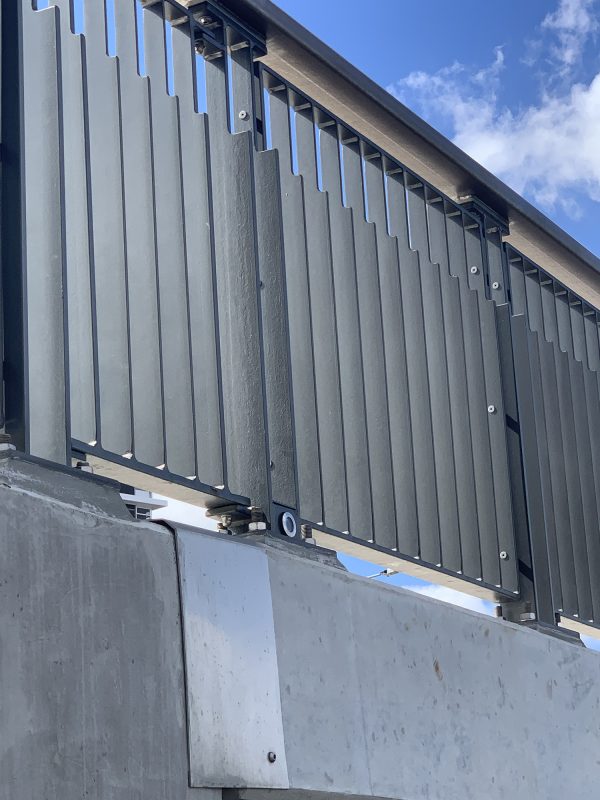

IMG_1802

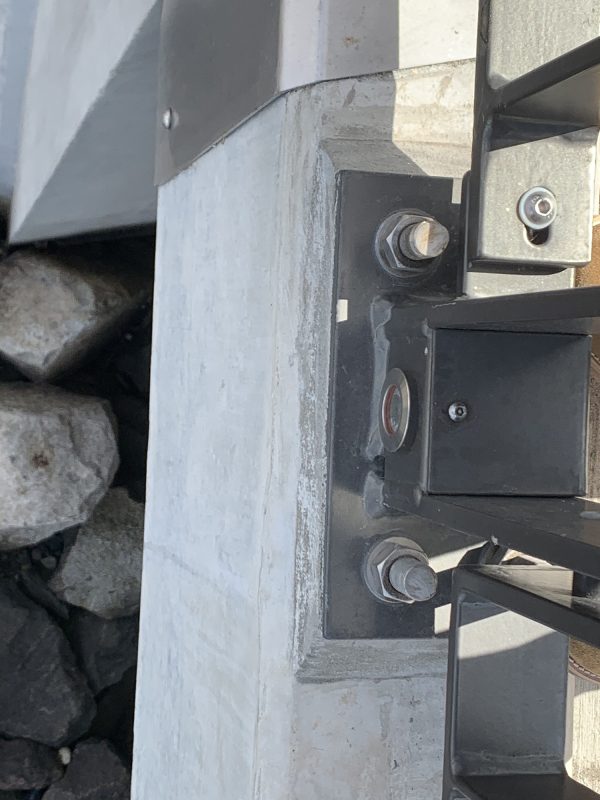

IMG_1806

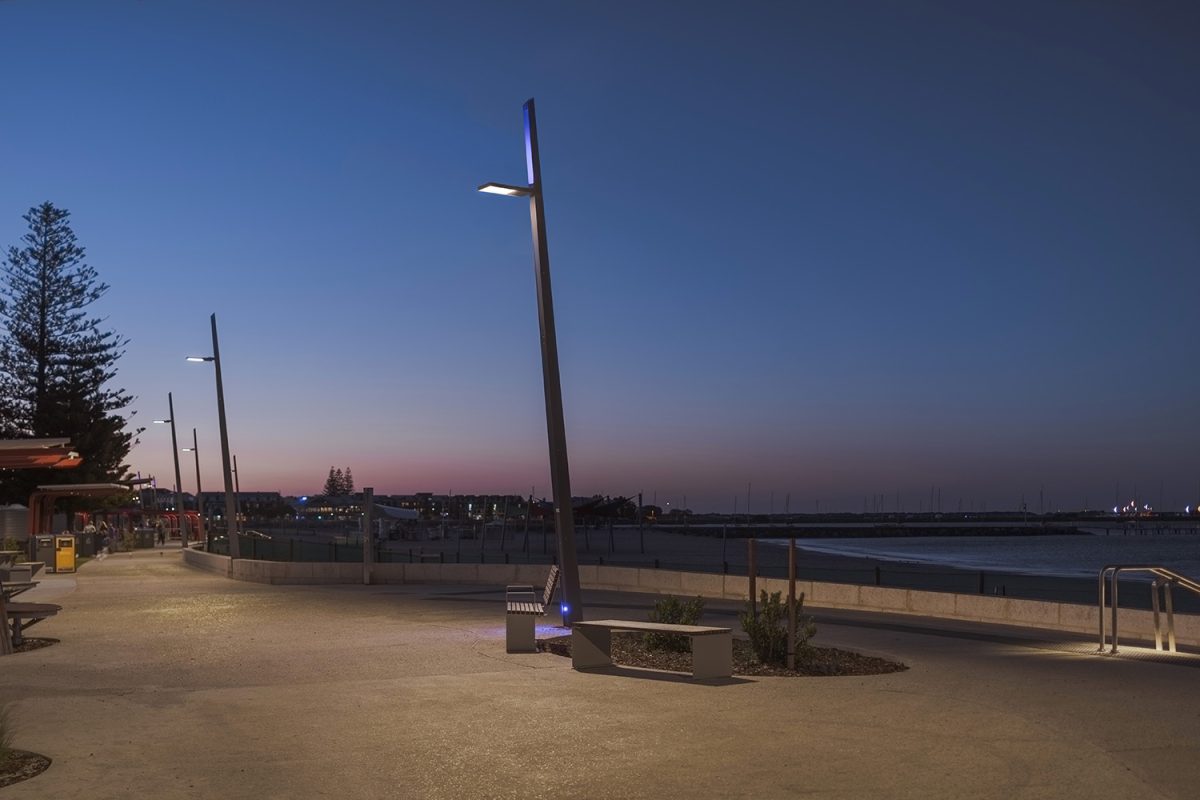

Koombana_3_1500px

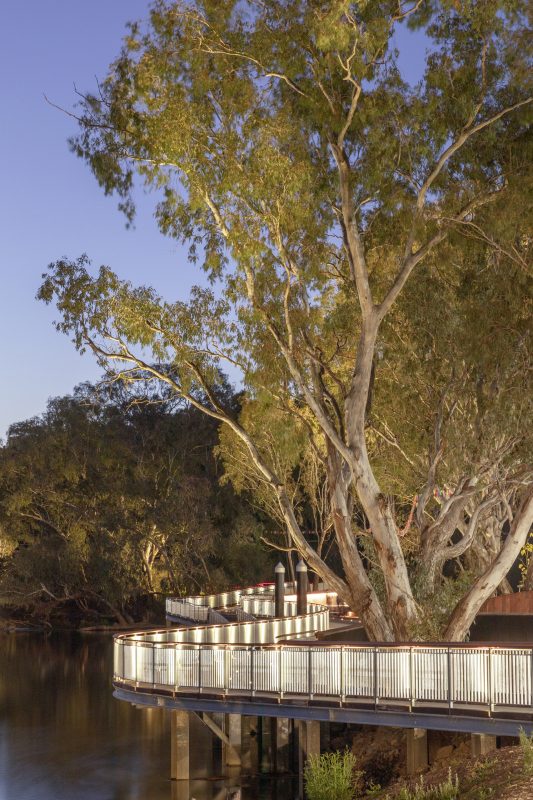

SIMON WOOD PHOTOGRAPHY

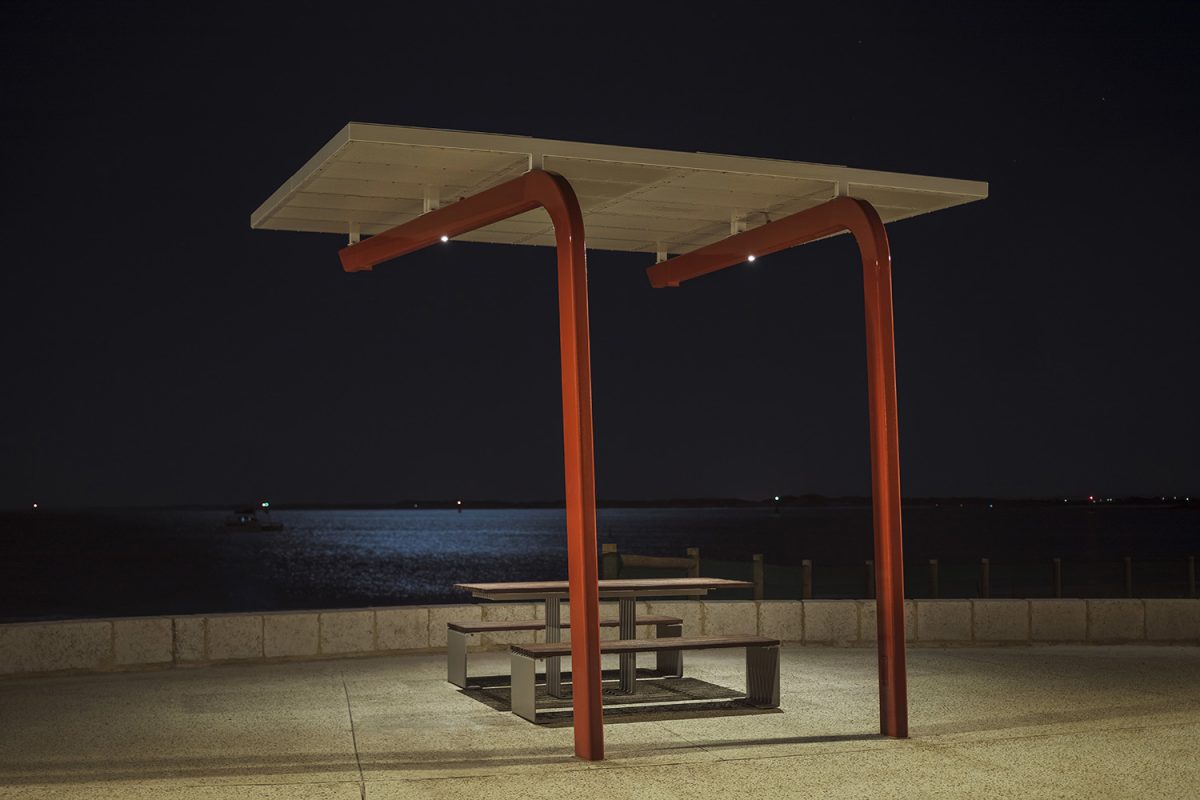

Koombana_2_1500px

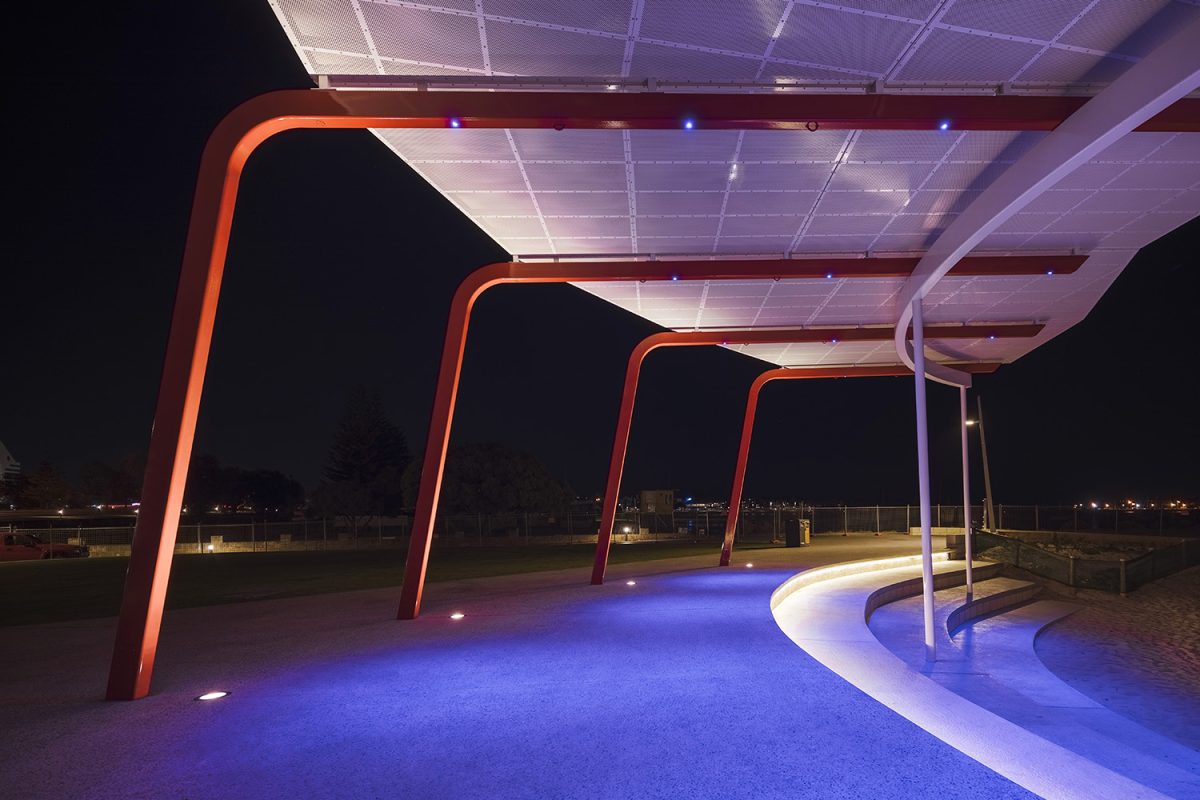

Koombana_1_1500px
