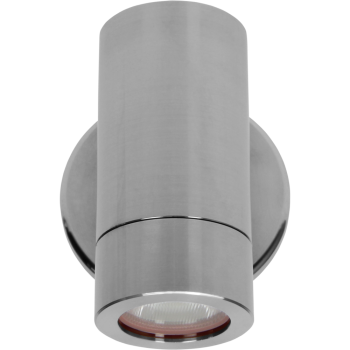

TPN-WLL iso 1000px

Taipan Wall

Robust wall mounted luminaire for building exteriors and streetscapes

Overview

Dimensions

Light Effect

Configurator

Downloads

Series

Gallery

Overview

Taipan Wall is a robust wall-mounted luminaire developed for building exteriors and urban streetscapes. The fixture is extremely durable, with IP66 and IK10 ratings. With a core body of only 40mm, this recessed version is an ideal solution for where a small but powerful wall-mounted luminaire is required. The fixture's base and mounting holes suit a standard conduit inspection box.

Available with a range of lenses from spot to wide, as well as a medium oval (14°x40°) and a frosted diffuser, Taipan Wall can be configured to achieve a multitude of light effects. The RGB version and fixed colour outputs offer further capacity for fulfilling creative designs.

Taipan Wall's marine-grade 316 stainless steel body is machined locally in Brisbane.

This product is part of the extensive Taipan family, offering 15 different body types ranging from inground uplights to adjustable spots and pool luminaire versions, enabling designers to bring the unique features of this durable fixture to an almost limitless range of installation locations.

Taipan Wall operates using constant current if configured as dimmable, whereas the non-dimmable configuration is constant voltage. The non-dimmable constant voltage versions have an in-built sensor and self-regulating voltage function, ensuring consistent light outputs across multiple fixtures in extended runs, nullifying the impact of voltage drop on illumination outcomes.

The Taipan series is proudly designed and manufactured by Digilin in Australia and has been for over 20 years.

Extremely Durable - IP66 & IK10

Taipan Wall is incredibly durable with IP66/IK10 ratings, making it a reliable solution for high-exposure applications

Coloured Outputs

Fixed colour and RGB versions are available

316 Stainless Steel - Marine Grade

Machined in Brisbane, Taipan Wall’s body is composed of marine-grade 316 stainless steel

Selectable Cable Lengths

Taipan Wall is shipped out with factory-fitted cable lengths as per project requirements

Manufactured in Australia

The Taipan series is proudly designed and manufactured by Digilin in Australia

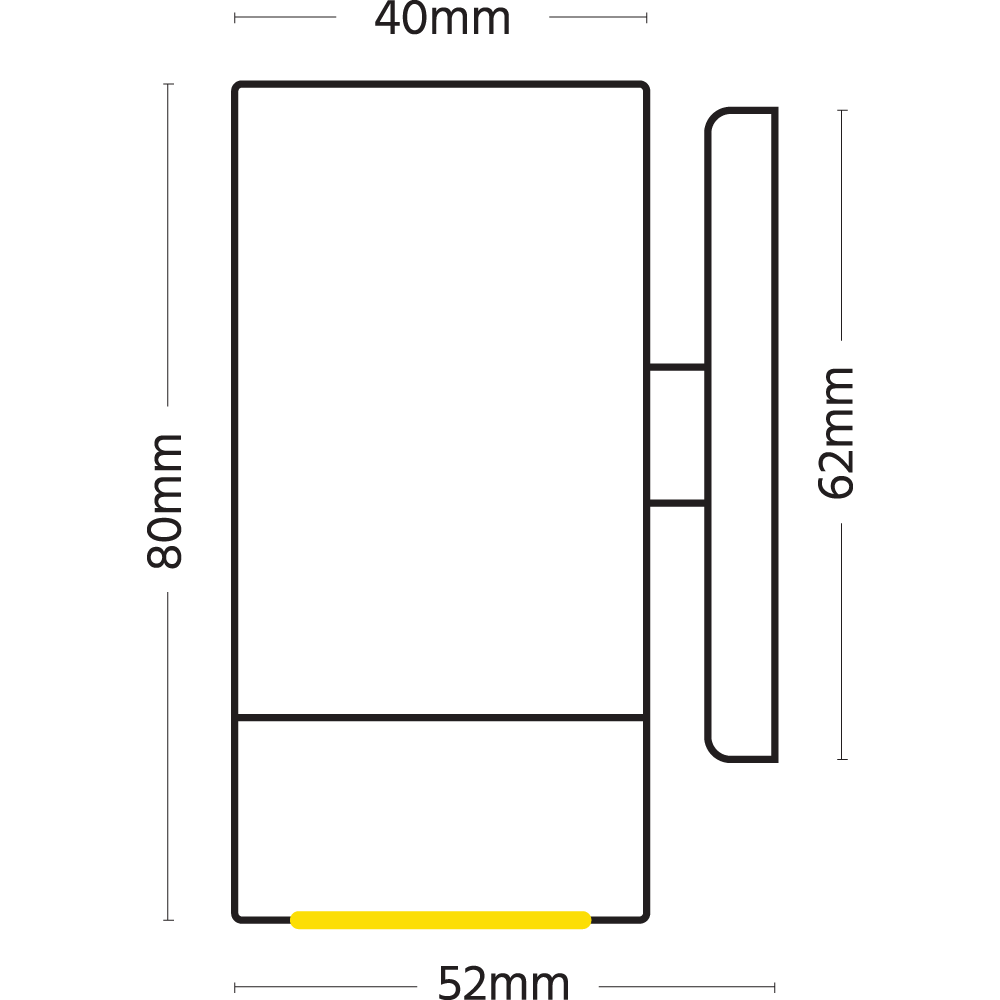

Dimensions

Light Effect

Spot (~15°)
Narrow (~28°)
Wide (~40°)
Medium Oval (14°x40°)
Spot (~15°)
Narrow (~28°)
Wide (~40°)
Medium Oval (14°x40°)

Configurator

Categories: Wall Luminaires
Product: Taipan Wall
Variant Code: TPN-WLL
Generate Datasheet
Clear
  • Specifications
LED ColourFixed WhiteFixed ColourRGB
CCT/Wavelength2700K, 3000K, 4000K, 5700KRed (620-630nm)
Green (520-535nm)
Blue (450-470nm)
Amber (585-600nm)
Red (620-630nm)
Green (520-535nm)
Blue (450-470nm)
LED Lumens225lm90lm/230lm/75lm/31lm235lm (combined)
Delivered Lumens (approx.)180lm70lm/185lm/60lm/24lm185lm
Luminaire Power2W1.7W/2.1W/2.2W/1.6W2.9W
Connected Load2.2W1.9W/2.4W/2.5V/1.75W3.2W
Drive Current700mA700mA350mA
Forward Voltage2.8V2.5V/3.1V/3.2V/2.25V–
PerformanceL90(15K) >90,700hrsL90(10K) >56,000hrsL90(10K) =56,000hrs
Typical CRI90+N/AN/A
Electrical SpecificationsSpecifications displayed are for dimmable constant current version
MountingPlate Mount
Beam OptionFrost, Spot, Narrow, Medium Oval, Wide
ControlDim, Non-Dim
Cable Length1m, 5m, 10m, 15m, 20m
Build MaterialMarine Grade 316 Stainless Steel
IP RatingIP66
IK RatingIK10
Dimensions40mm (trim diameter), 80mm (height), 62mm (plate diameter)
Weight550g (not inc. cable)

Downloads

Photometrics
Photometrics
Photometrics
Photometrics
Install Guide
Install Guide
Install Guide
Install Guide

Series

Taipan Wall UpDown

Robust wall mounted luminaire with dual up/down outputs
Wall Luminaires
Fixed Colours, RGB, White

Taipan Wall UpDown

IP Rating: IP66 (316 Stainless Steel)
Mounting: Mounting Plate
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Taipan Pool

IP68 luminaire developed for permanent submersion in pools, fountains & ponds
Pool Luminaires
Fixed Colour, RGB, White

Taipan Pool

IP Rating: IP68 (316 Stainless Steel core)
Mounting: Recessed – Spa Jet or Flush
LED Colours: Whites, Red, Green, Blue, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Taipan Eyelid

Recessed IP68 fixture with glare-controlling eyelid for pedestrian zones
Path and Marker Luminaires
Fixed Colours, RGB, White

Taipan Eyelid

IP Rating: IP68 (316 Stainless Steel)
Mounting: Recessed
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Clear, Frost

Taipan Adjustable

Adjustable IP68 fixture with mounting plate or spike, ideal for gardens & ponds
Spot and Accent Luminaires
Fixed Colour, RGB, White

Taipan Adjustable

IP Rating: IP68 (316 Stainless Steel)
Mounting: Yoke – Plate, Spike or No Attachment
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Taipan

Robust, versatile IP68 luminaire with multiple recessing options
Uplights and Inground Luminaires
Fixed Colour, RGB, White

Taipan

IP Rating: IP68 (316 Stainless Steel)
Mounting: Recessed
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Gallery

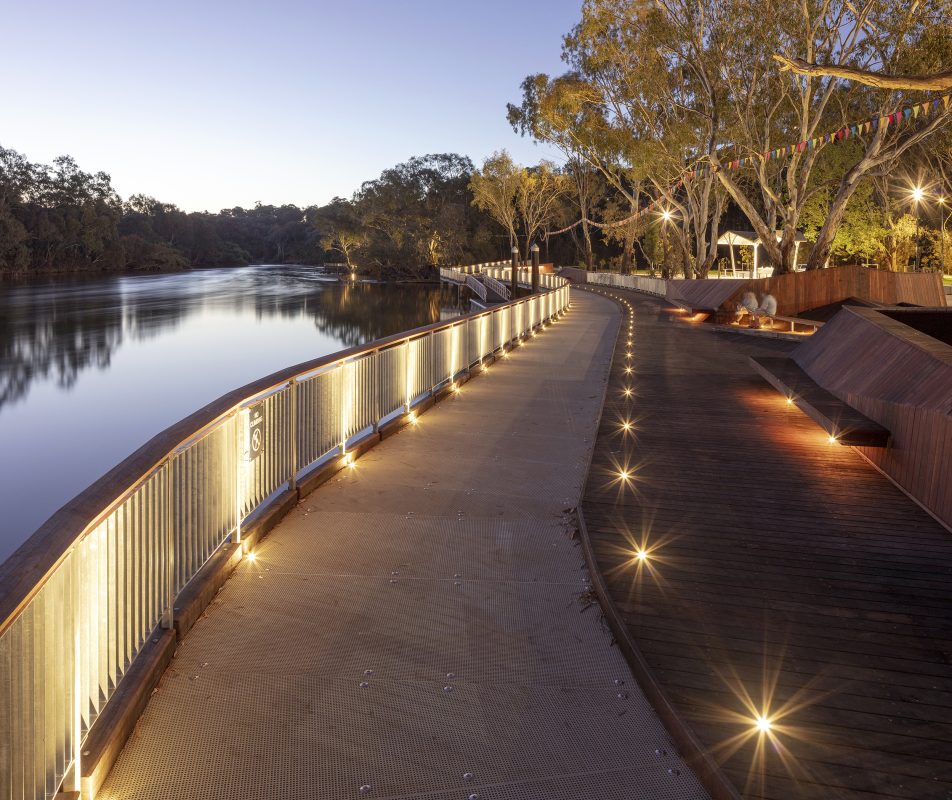

Albury Riverside

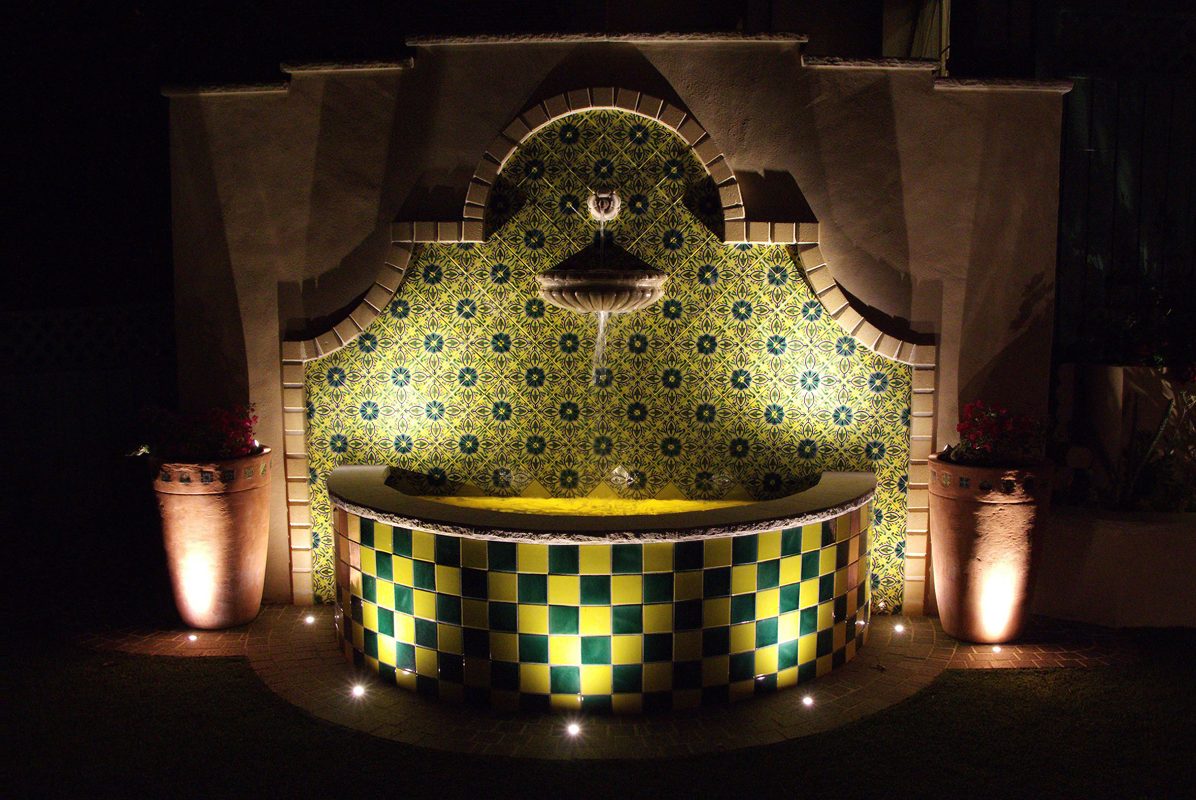

Residential

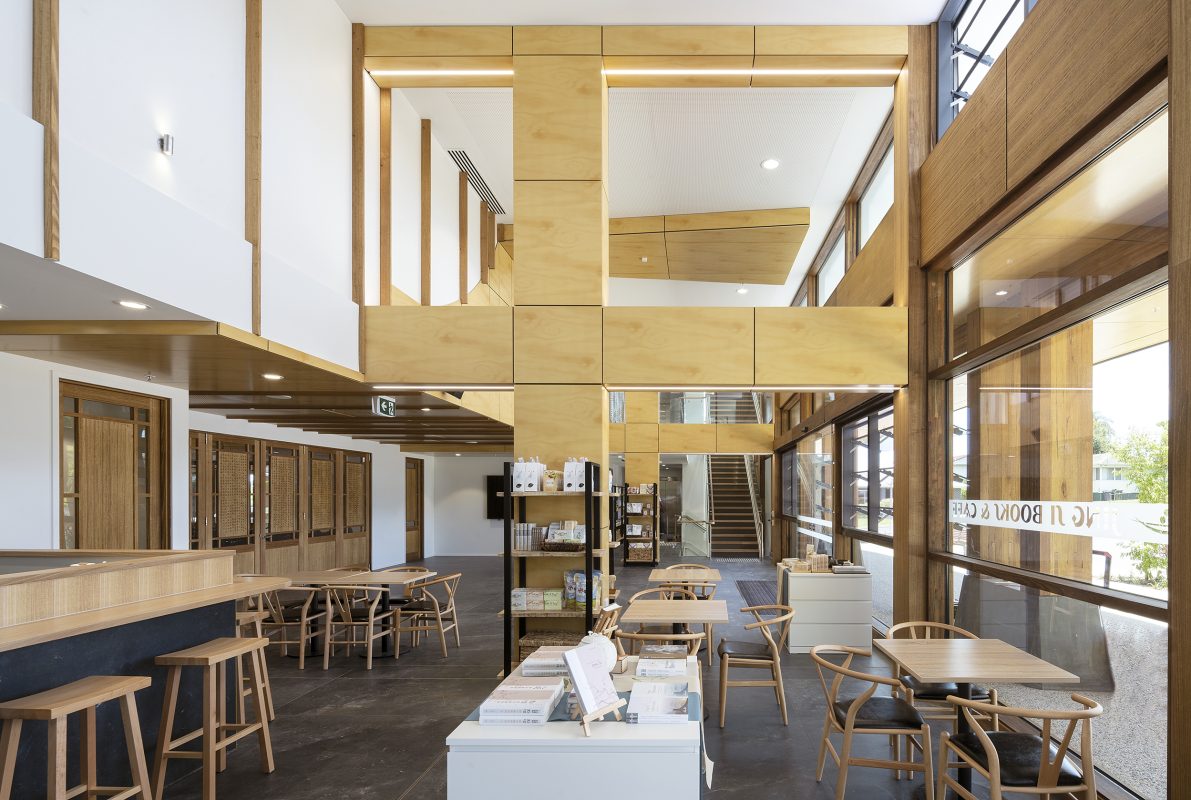

Tzu Chi Centre 2_2500px

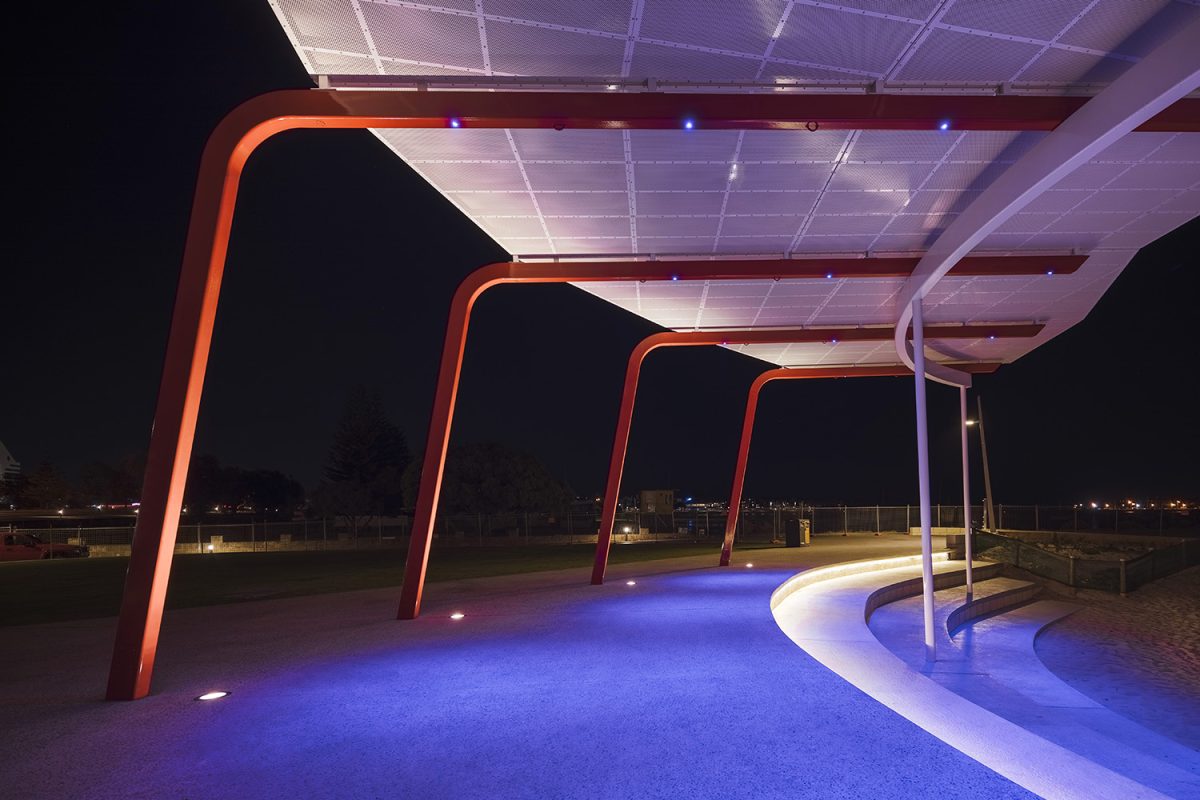

Koombana_1_1500px

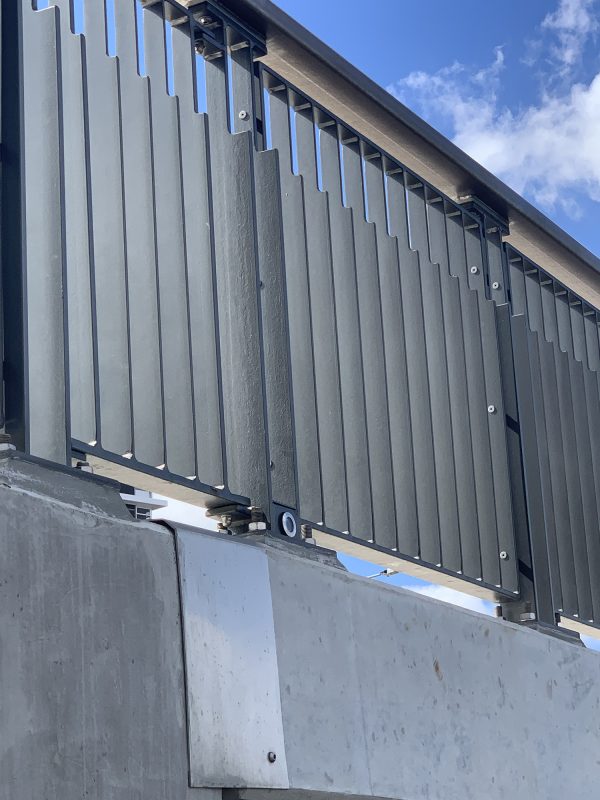

IMG_1802

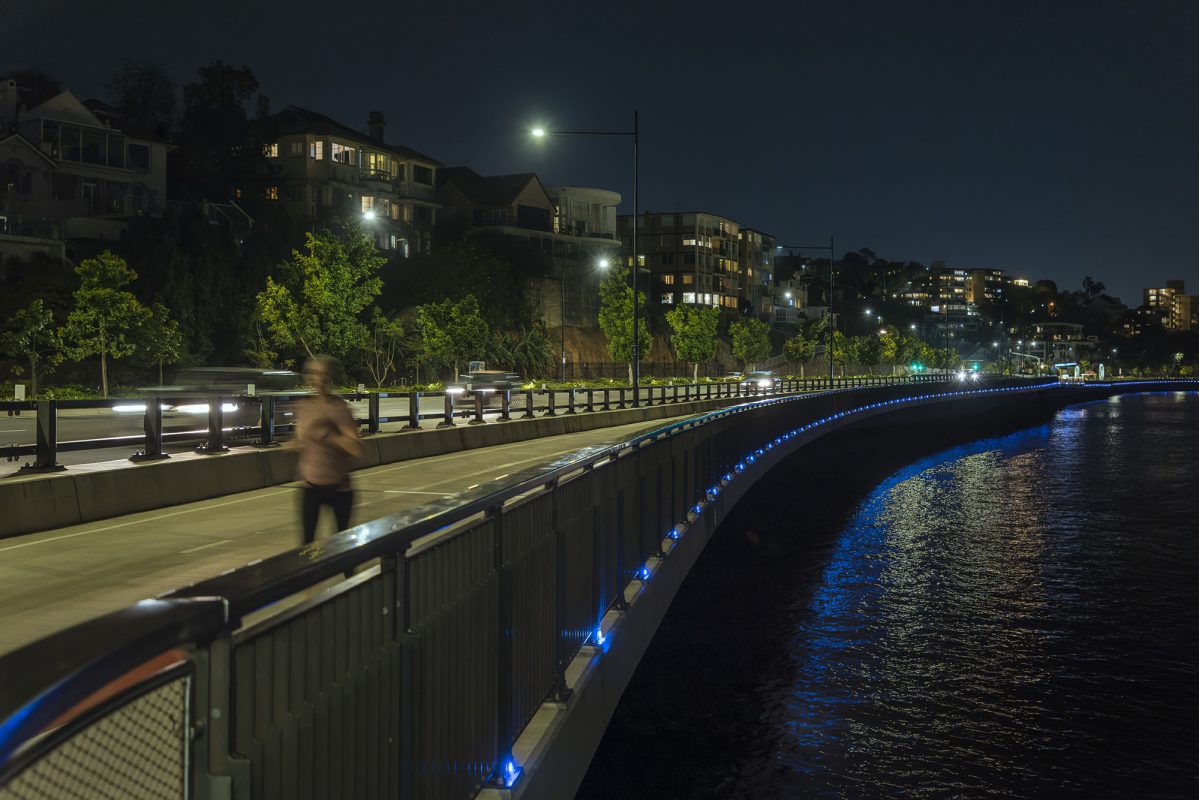

KSD 2 _2000px

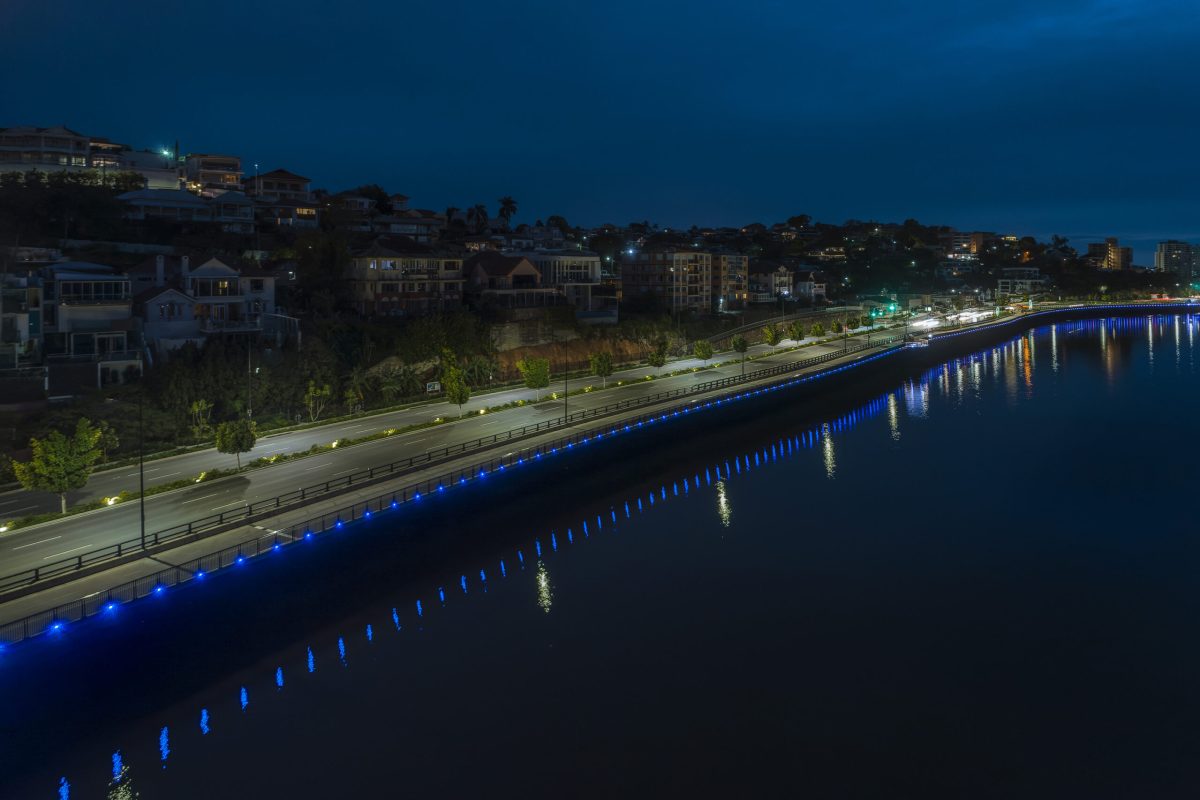

Project: Kingsford Smith Drive, Brisbane. Photography: Jackie Chan
Project: Kingsford Smith Drive, Brisbane. Photography: Jackie Chan

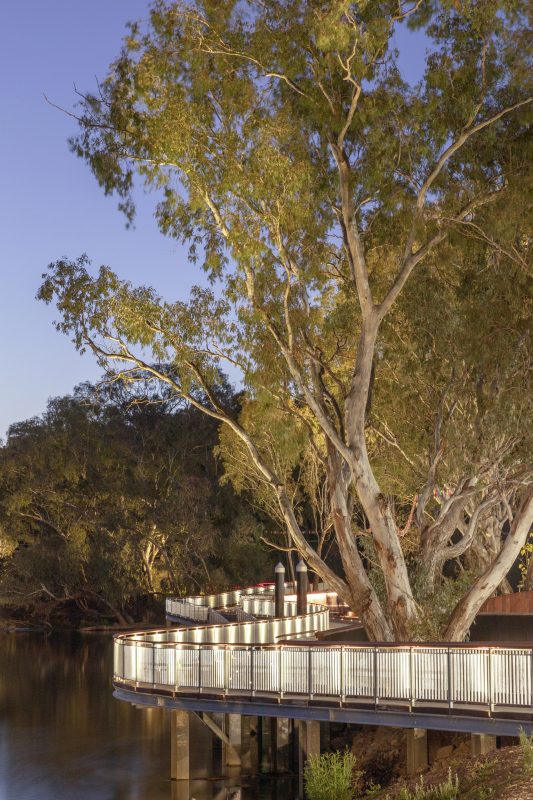

SIMON WOOD PHOTOGRAPHY

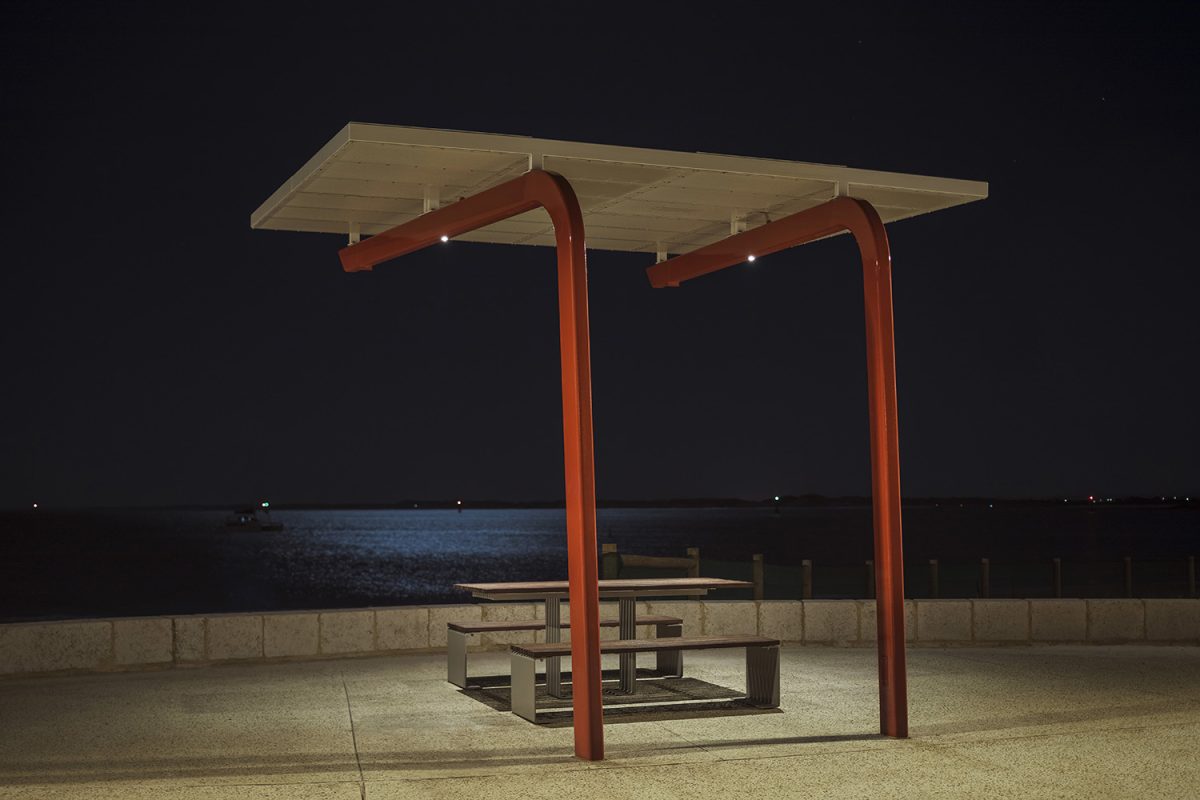

Koombana_2_1500px
