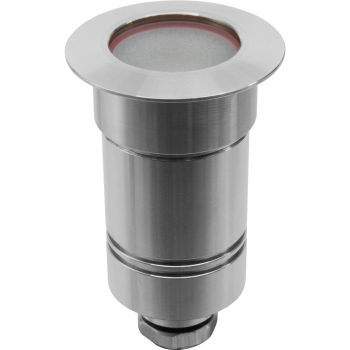

Taipan ISO - Product Image 1000px

Taipan

Robust, versatile IP68 luminaire with multiple recessing options

Overview

Versions

Configurator

Downloads

Series

Gallery

Overview

Taipan is a robust, versatile exterior luminaire developed for urban streetscapes and landscaping applications. The fixture is fully submersible and extremely durable, with IP68 and IK10 ratings. With a core body of only 35mm, this recessed version is an ideal solution for where a small but powerful in-ground uplight or wall-recessed luminaire is required.

Available with a range of lenses from spot to wide, as well as a medium oval (14°x40°) and a frosted diffuser, the Taipan can be configured to achieve a multitude of light effects. The RGB version and fixed colour outputs offer further capacity for fulfilling creative designs.

Created specifically for applications where a flush finish is required on sheet or panel materials, a threaded head and lock ring version is available for simple installation and is suitable for mounting to steel, aluminium, plastics and timbers. The wide flange (70mm) with screw hole version allows simple installation in situations where access to behind the mounting surface is limited. A 400mm sleeve adaptor is available for the standard recessed version for set out and installation.

Ever since the fixture was developed in 2001, Taipan's marine-grade 316 stainless steel body has been machined locally in Brisbane. Over the years we've been updating its electrical components, achieving higher lumen outputs while using less power and developing further optical options, but its press-fit body design is so perfect we haven't even considered revising it.

This product is part of the extensive Taipan family, offering 15 different body types ranging from adjustable spots, to wall-mounted uplights and dedicated pool luminaires versions, enabling designers to bring the unique features of this durable fixture to an almost limitless range of installation locations.

Taipan operates using constant current if configured as dimmable, whereas the non-dimmable configuration is constant voltage. The non-dimmable constant voltage versions have an in-built sensor and self-regulating voltage function, ensuring consistent light outputs across multiple fixtures in extended runs, nullifying the impact of voltage drop on illumination outcomes.

The Taipan series is proudly designed and manufactured by Digilin in Australia and has been for over 20 years.

Project: Kingsford Smith Drive, Brisbane. Photography: Jackie Chan

Fully Submersible & Durable - IP68 & IK10

Taipan is fully submersible and incredibly durable with IP68/IK10 ratings, making it a reliable solution for high-exposure urban and landscaping applications.

Coloured Outputs

Fixed colour and RGB versions are available

316 Stainless Steel - Marine Grade

Machined in Brisbane, Taipan’s marine-grade 316 stainless steel body allows it to withstand the harsh treatment it receives along Australian foreshores, riverbanks and coastal regions

Selectable Cable Lengths

Taipan is shipped out with factory-fitted cable lengths as per project requirements

Manufactured in Australia

The Taipan series is proudly designed and manufactured by Digilin in Australia

Versions

Recessed (Standard)
Recessed Threaded Head

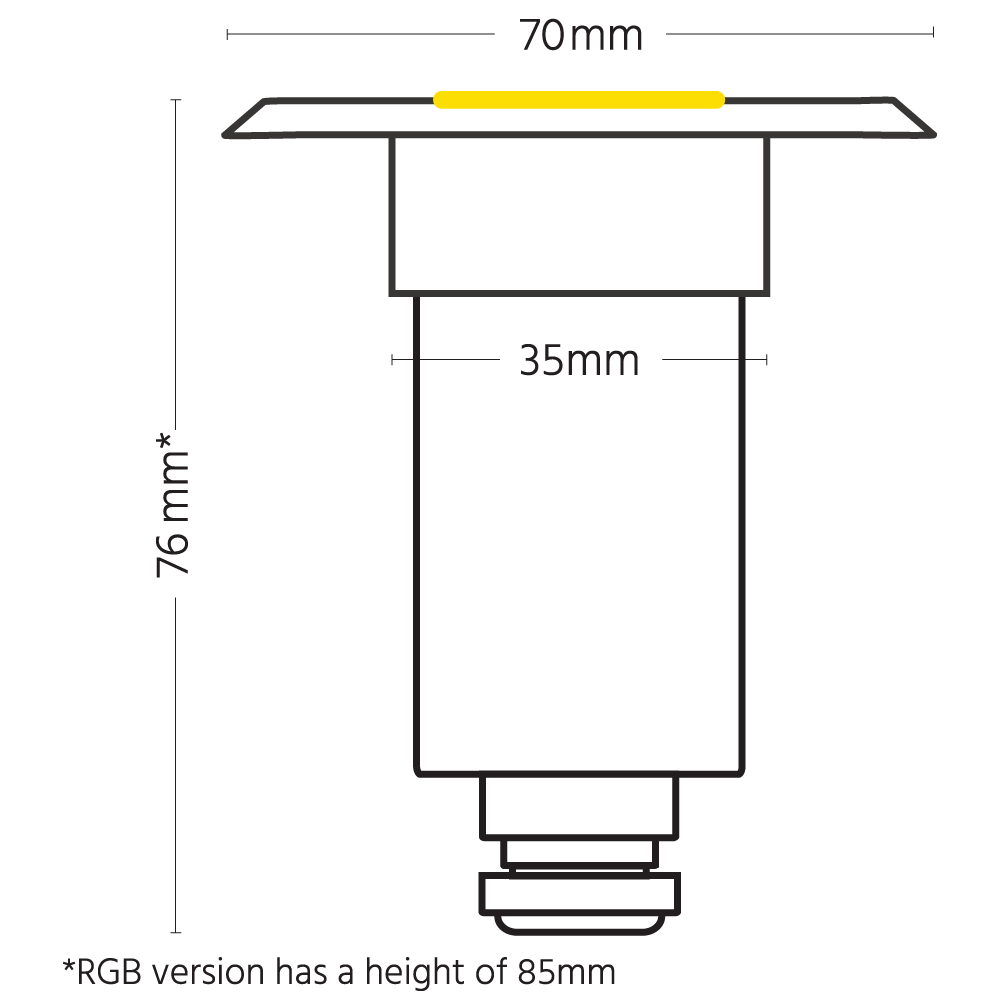

Recessed Wide Flange
Recessed (Standard)
Recessed Threaded Head
Recessed Wide Flange

Configurator

Categories: Uplights and Inground Luminaires
Product: Taipan
Variant Code: TPN-REC
Generate Datasheet
Clear
  • Specifications
LED ColourFixed WhiteFixed ColourRGB
CCT/Wavelength2700K, 3000K, 4000K, 5700KRed (620-630nm)
Green (520-535nm)
Blue (450-470nm)
Amber (585-600nm)
Red (620-630nm)
Green (520-535nm)
Blue (450-470nm)
LED Lumens225lm90lm/230lm/75lm/31lm235lm (combined)
Delivered Lumens (approx.)180lm70lm/185lm/60lm/24lm185lm
Luminaire Power2W1.7W/2.1W/2.2W/1.6W2.9W
Connected Load2.2W1.9W/2.4W/2.5V/1.75W3.2W
Drive Current700mA700mA350mA
Forward Voltage2.8V2.5V/3.1V/3.2V/2.25V–
PerformanceL90(15K) >90,700hrsL90(10K) >56,000hrsL90(10K) =56,000hrs
Typical CRI90+N/AN/A
Electrical SpecificationsSpecifications displayed are for dimmable constant current version
MountingRecessed
Fixture HeadStandard Head, Threaded Head, Wide Flange
Beam OptionFrost, Spot, Narrow, Medium Oval, Wide
ControlDim, Non-Dim
Cable Length1m, 5m, 10m, 15m, 20m
Build Material316 Stainless Steel – Marine Grade
IP RatingIP68
IK RatingIK10
Dimensions46mm (trim), 70mm (trim – wide flange), 76mm (height), 85mm (height – RGB version)
Weight275g, 300g (wide flange)

Downloads

Photometrics
Photometrics
Photometrics
Photometrics
Install Guide
Install Guide
Install Guide
Install Guide

Series

Taipan Wall UpDown

Robust wall mounted luminaire with dual up/down outputs
Wall Luminaires
Fixed Colours, RGB, White

Taipan Wall UpDown

IP Rating: IP66 (316 Stainless Steel)
Mounting: Mounting Plate
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Taipan Wall

Robust wall mounted luminaire for building exteriors and streetscapes
Wall Luminaires
Fixed Colour, RGB, White

Taipan Wall

IP Rating: IP66 (316 Stainless Steel)
Mounting: Mounting Plate
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Taipan Pool

IP68 luminaire developed for permanent submersion in pools, fountains & ponds
Pool Luminaires
Fixed Colour, RGB, White

Taipan Pool

IP Rating: IP68 (316 Stainless Steel core)
Mounting: Recessed – Spa Jet or Flush
LED Colours: Whites, Red, Green, Blue, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Taipan Eyelid

Recessed IP68 fixture with glare-controlling eyelid for pedestrian zones
Path and Marker Luminaires
Fixed Colours, RGB, White

Taipan Eyelid

IP Rating: IP68 (316 Stainless Steel)
Mounting: Recessed
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Clear, Frost

Taipan Adjustable

Adjustable IP68 fixture with mounting plate or spike, ideal for gardens & ponds
Spot and Accent Luminaires
Fixed Colour, RGB, White

Taipan Adjustable

IP Rating: IP68 (316 Stainless Steel)
Mounting: Yoke – Plate, Spike or No Attachment
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Gallery

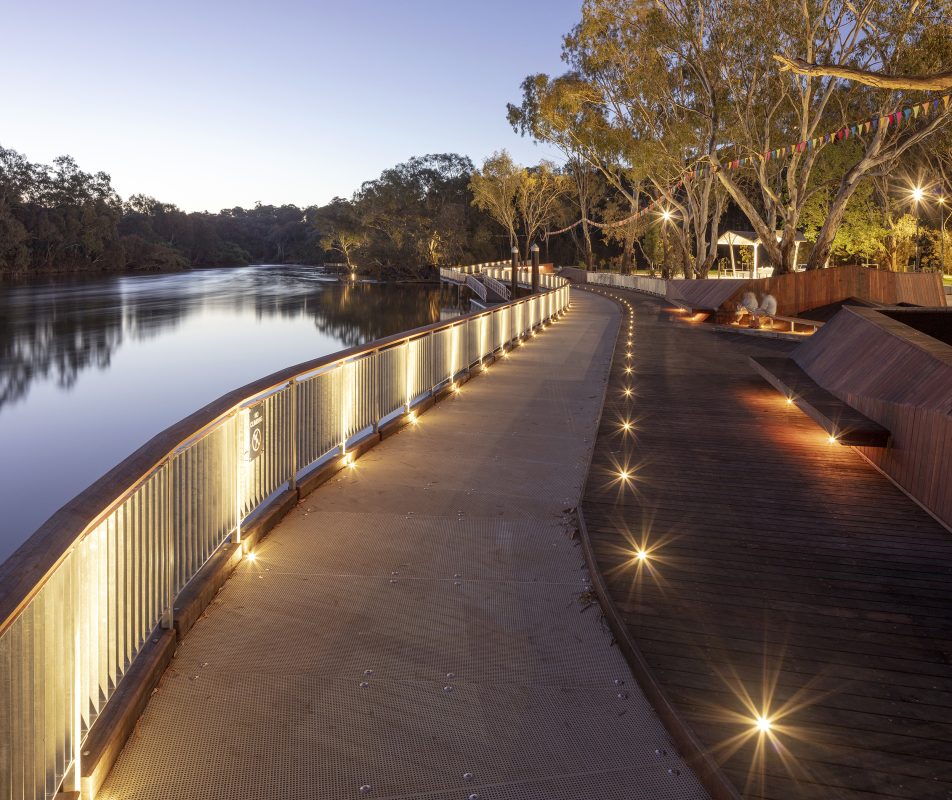

Albury Riverside

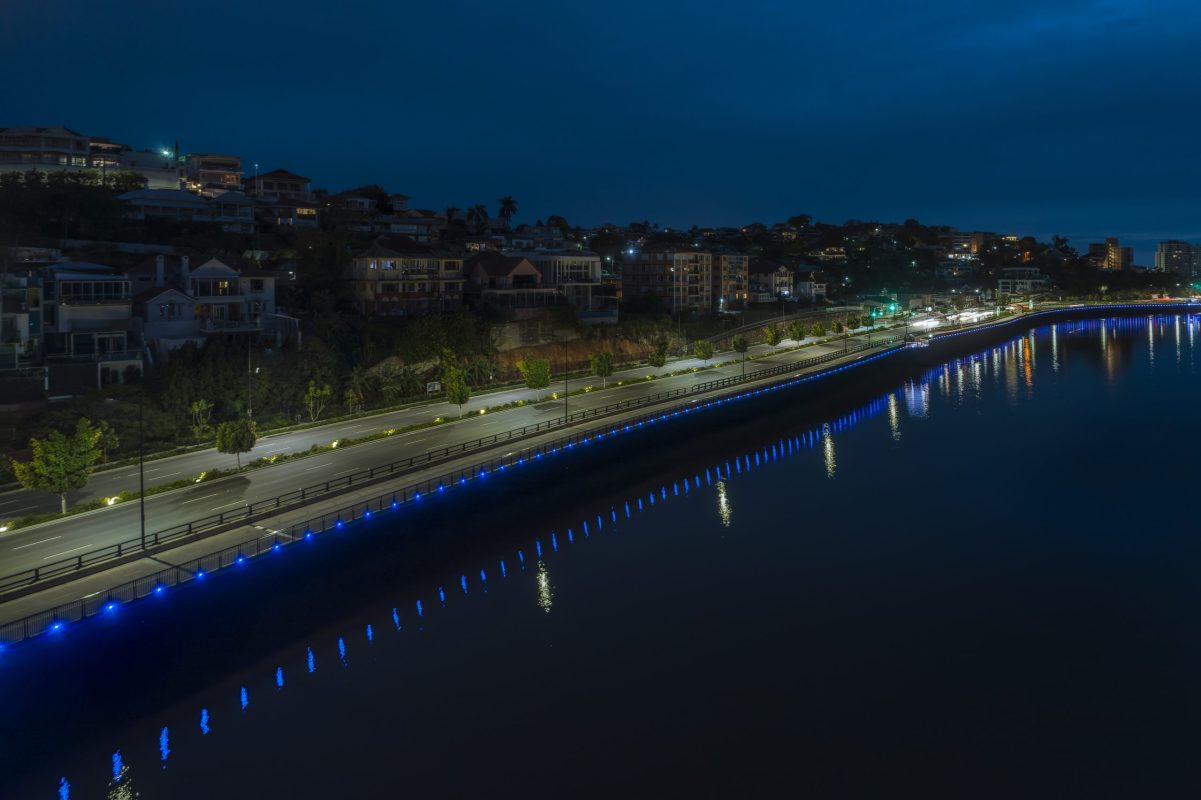

Urban and Landscape

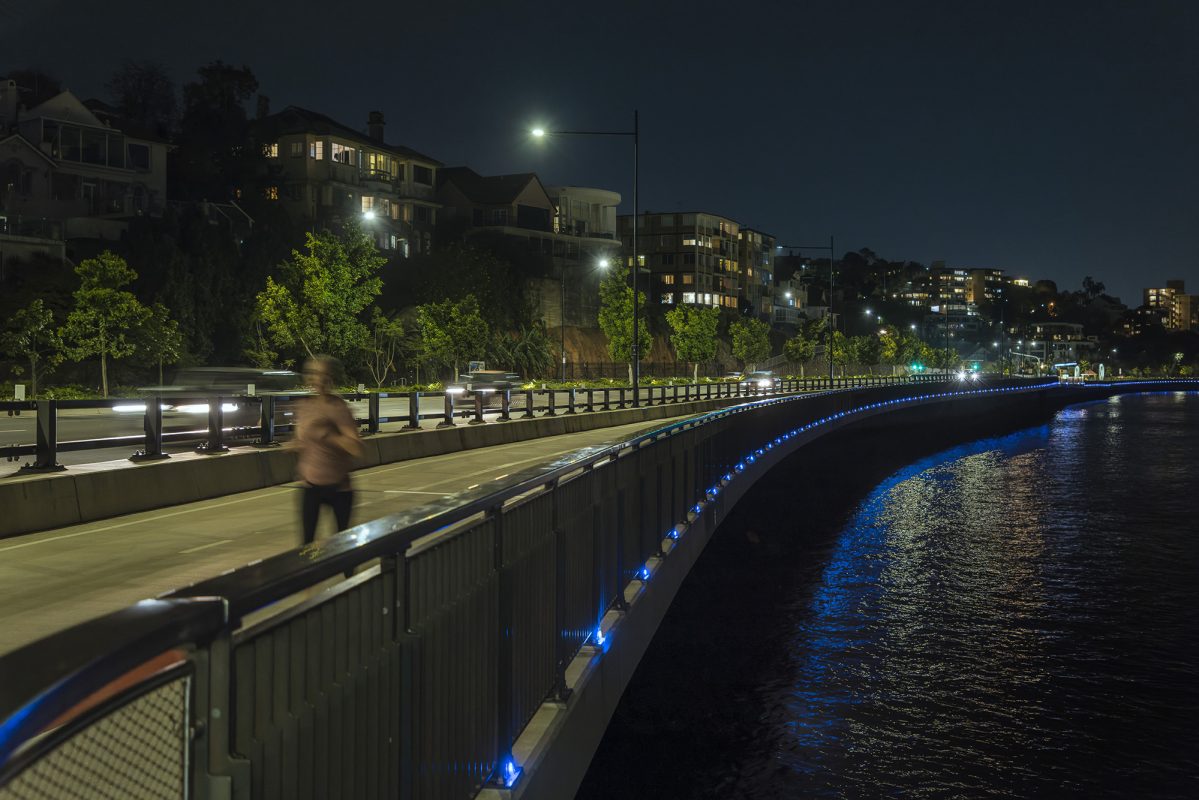

KSD 2 _2000px

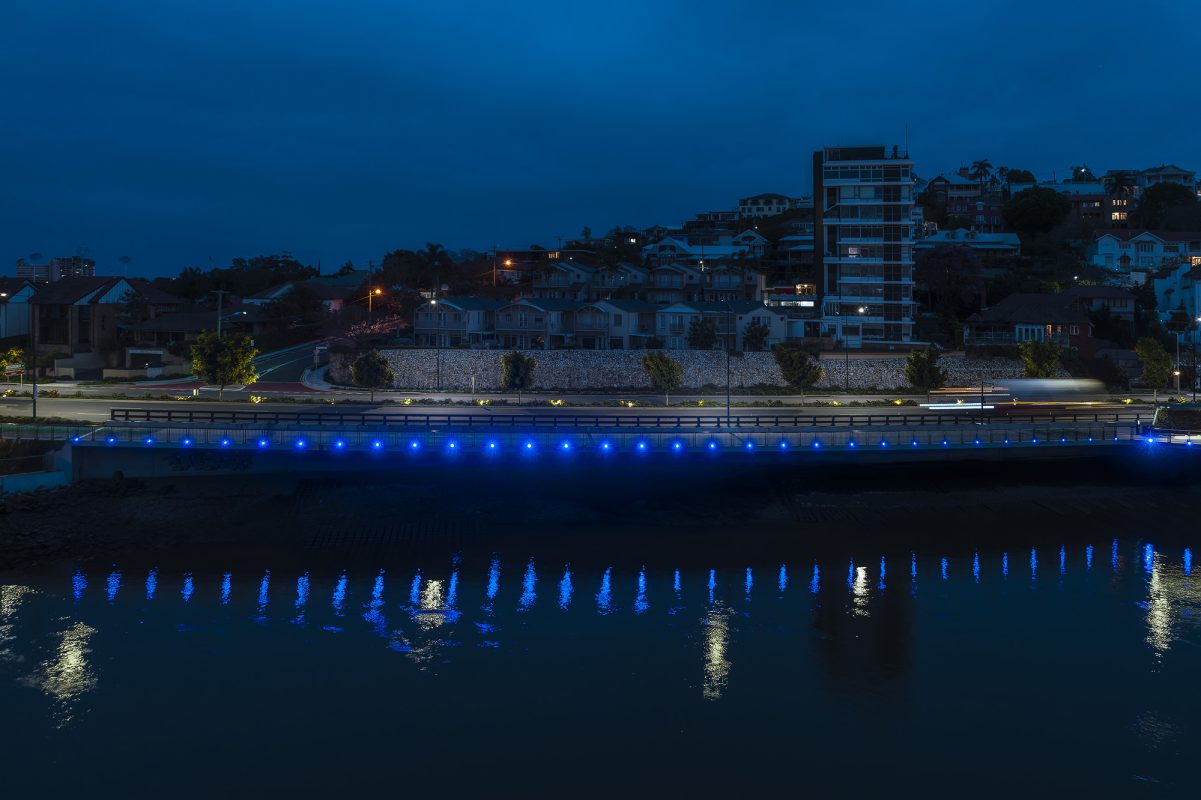

KSD 3 _2000px

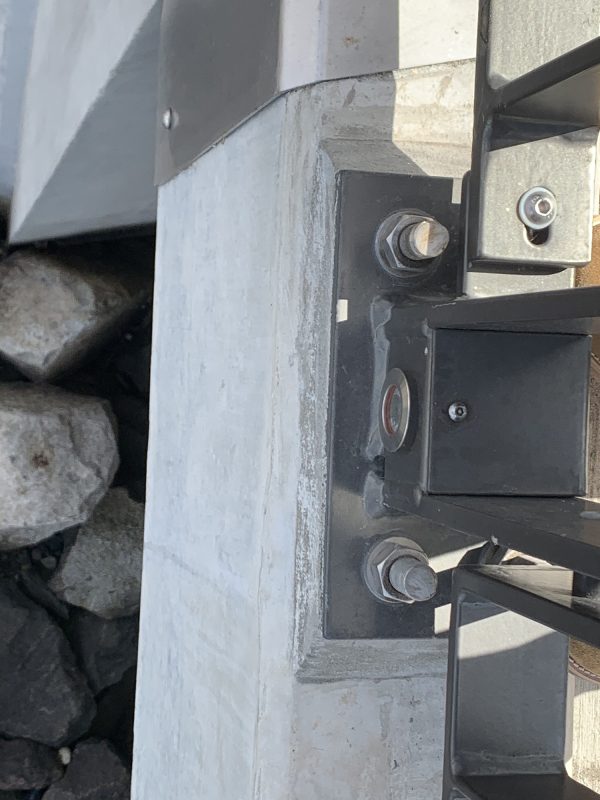

IMG_1806

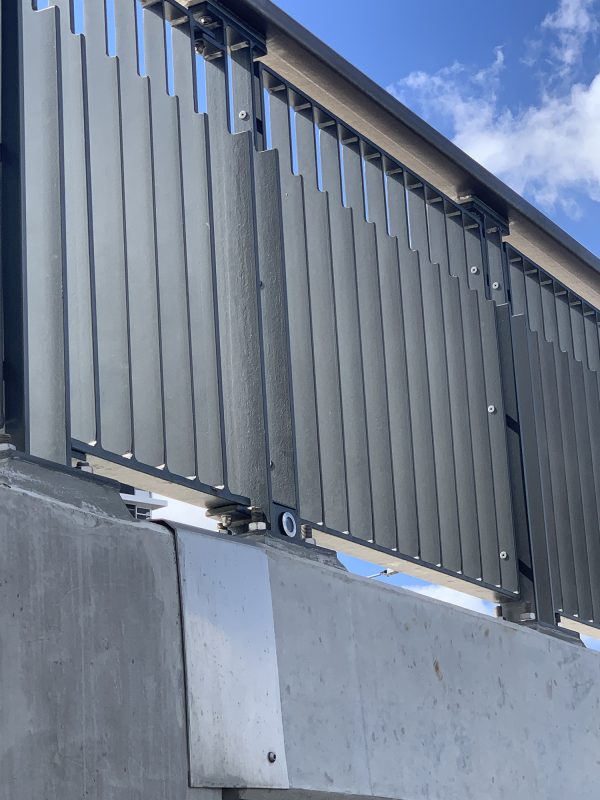

IMG_1802

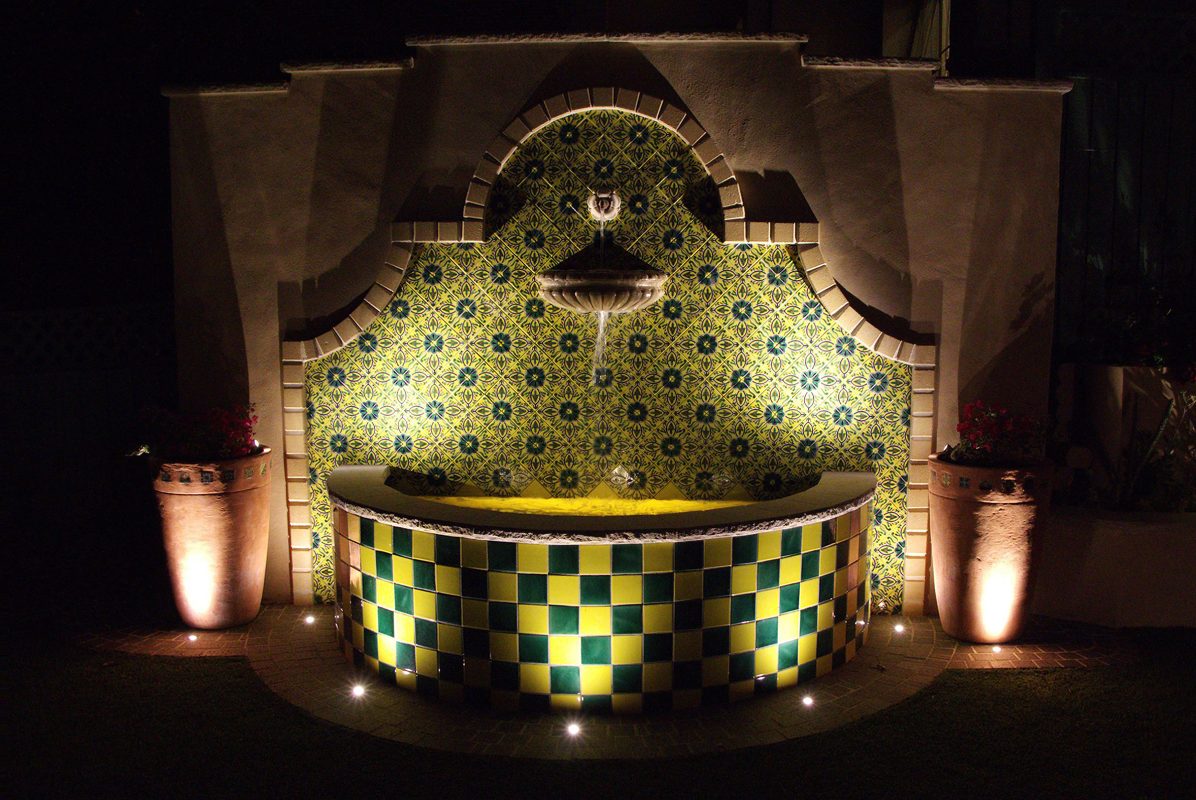

Residential

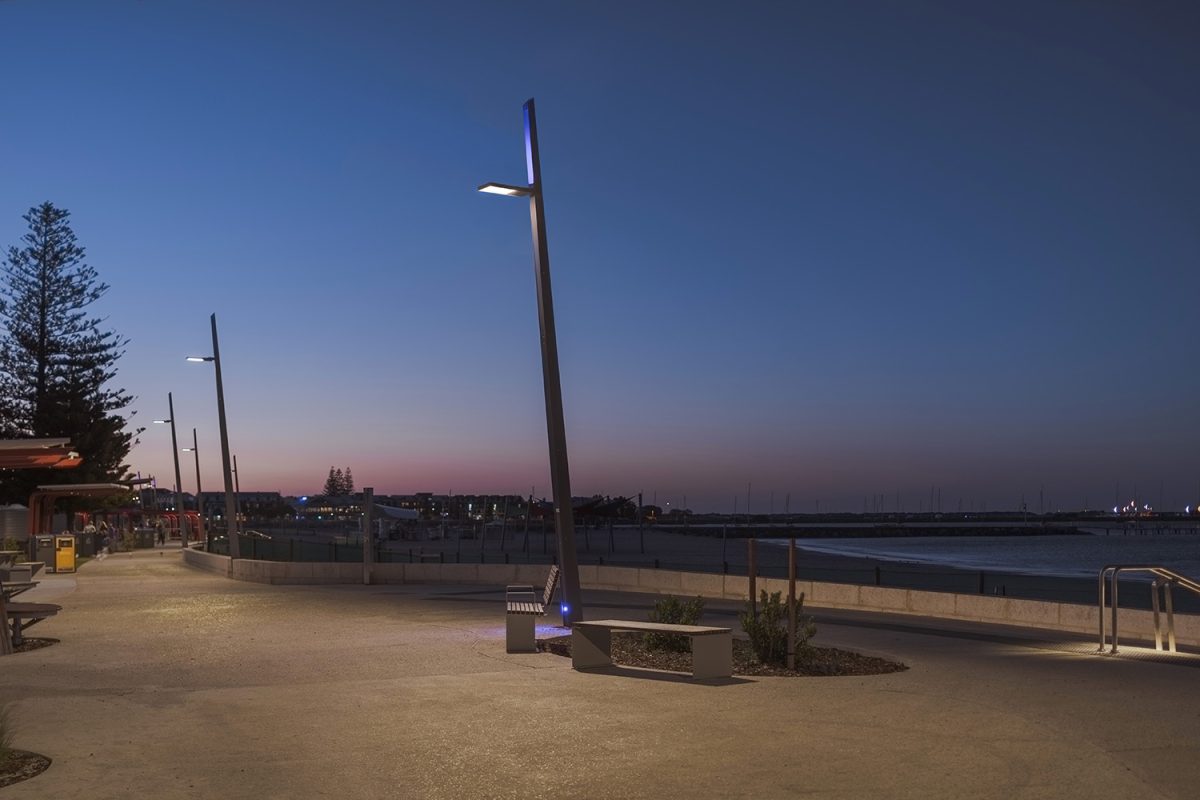

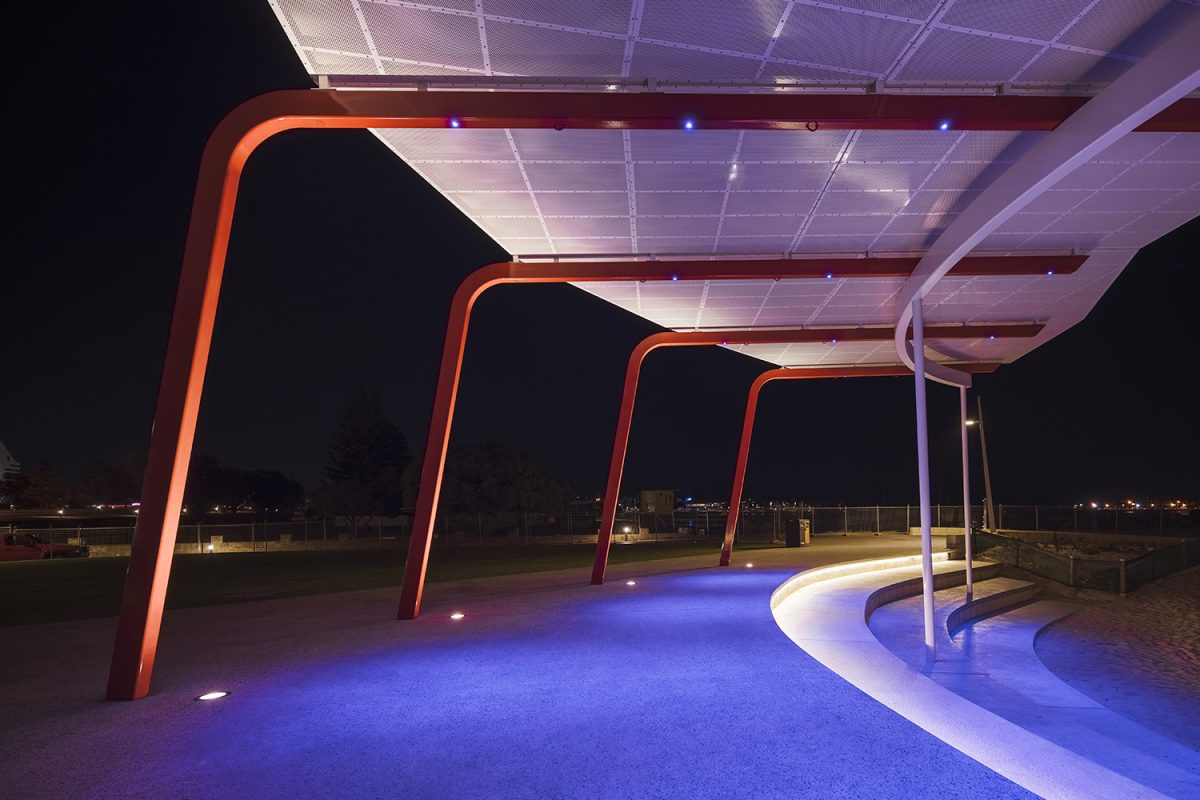

Koombana_1_1500px

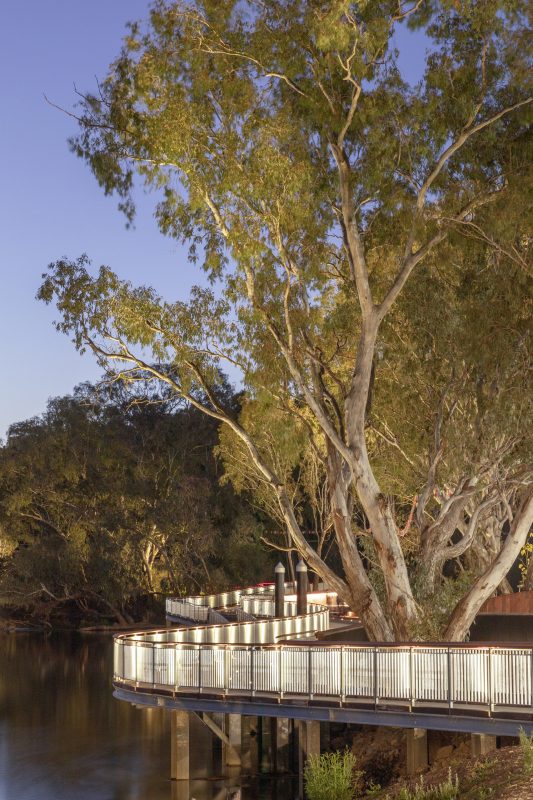

SIMON WOOD PHOTOGRAPHY
Koombana_3_1500px

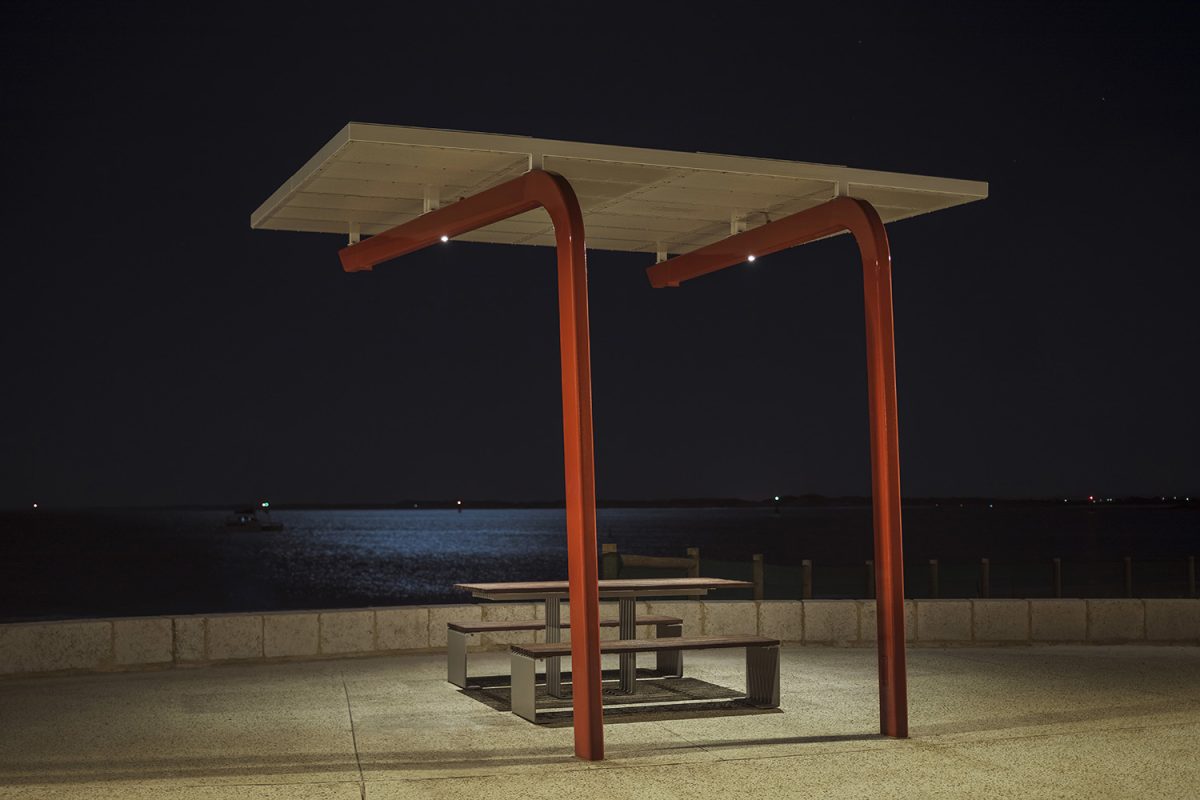

Koombana_2_1500px
