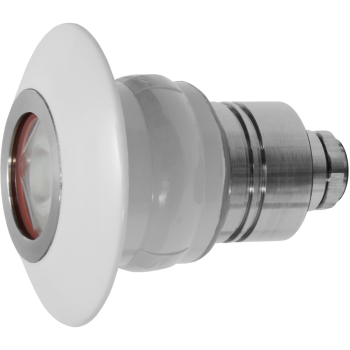

TPN-POL-REJ 1000px isoB

Taipan Pool

IP68 luminaire developed for permanent submersion in pools, fountains & ponds

Overview

Versions

Configurator

Downloads

Series

Gallery

Overview

Taipan Pool is a robust, versatile luminaire developed specifically for permanent recessed submersion in underwater locations such as pools, fountains, spas and ponds. Not only is the fixture fully submersible, it is also extremely durable, with IP68 and IK10 ratings. Commonly specified in fixed blue output, the luminaire is a regular selection for premium resorts and holiday destinations where systems must be 100% operational at all times.

Available with a range of lenses from spot to wide, as well as a medium oval (14°x40°) and a frosted diffuser, Taipan Pool can be configured to achieve a multitude of underwater light effects. The RGB version and fixed colour outputs offer further capacity for fulfilling creative designs.

Ever since the fixture was developed in 2001, Taipan Pool's marine-grade 316 stainless steel body core has been machined locally in Brisbane. Over the years we've been updating its electrical components, achieving higher lumen outputs while using less power and developing further optical options, but its press-fit body design is so perfect we haven't even considered revising it.

This product is part of the extensive Taipan family, offering 15 different body types ranging from inground uplights to adjustable spots and wall-mounted dual-direction illuminating versions, enabling designers to bring the unique features of this durable fixture to an almost limitless range of installation locations.

Taipan Pool operates using constant current if configured as dimmable, whereas the non-dimmable configuration is constant voltage. The non-dimmable constant voltage versions have an in-built sensor and self-regulating voltage function, ensuring consistent light outputs across multiple fixtures in extended runs, nullifying the impact of voltage drop on illumination outcomes. Please be aware that in Australia, as per AS/NZS3000, each luminaire inside a pool or spa should be connected to an individual driver.

The Taipan series is proudly designed and manufactured by Digilin in Australia and has been for over 20 years.

Fully Submersible & Durable - IP68 & IK10

Taipan Pool is fully submersible and incredibly durable with IP68/IK10 ratings

Coloured Outputs

Fixed colour and RGB versions are available

316 Stainless Steel - Marine Grade

Machined in Brisbane, Taipan Pool’s core body is made of marine-grade 316 stainless steel

Selectable Cable Lengths

Taipan Pool is shipped out with factory-fitted cable lengths as per project requirements

Manufactured in Australia

The Taipan series is proudly designed and manufactured by Digilin in Australia

Versions

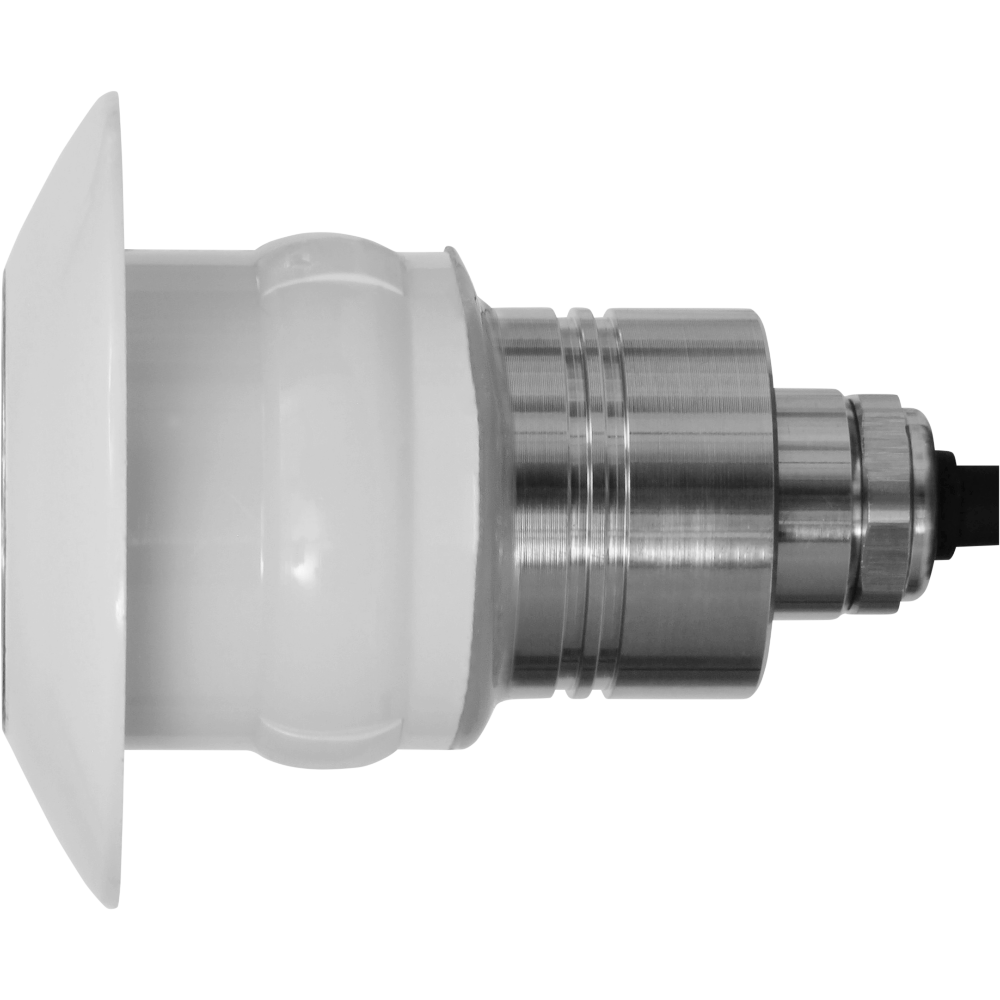

Recessed Spa Jet
Recessed Flush
Recessed Spa Jet
Recessed Flush

Configurator

Categories: Pool Luminaires
Product: Taipan Pool
Variant Code: TPN-POL
Generate Datasheet
Clear
  • Specifications
LED ColourFixed WhiteFixed ColourRGB
CCT/Wavelength2700K, 3000K, 4000K, 5700KRed (620-630nm)
Green (520-535nm)
Blue (450-470nm)
Red (620-630nm)
Green (520-535nm)
Blue (450-470nm)
LED Lumens225lm90lm/230lm/75lm235lm (combined)
Delivered Lumens (approx.)180lm70lm/185lm/60lm185lm
Luminaire Power2W1.7W/2.1W/2.2W2.9W
Connected Load2.2W1.9W/2.4W/2.5V3.2W
Drive Current700mA700mA350mA
Forward Voltage2.8V2.5V/3.1V/3.2V–
PerformanceL90(15K) >90,700hrsL90(10K) >56,000hrsL90(10K) =56,000hrs
Typical CRI90+N/AN/A
Electrical SpecificationsSpecifications displayed are for dimmable constant current version
Fixture HeadRecessed Spa Jet, Recessed Flush
Beam OptionFrost, Spot, Narrow, Medium Oval, Wide
ControlDim, Non-Dim
Cable Length5m, 10m, 15m, 20m
Finish ColourStainless Steel, White, Black
Build MaterialMarine Grade 316 Stainless Steel
IP RatingIP68
IK RatingIK10

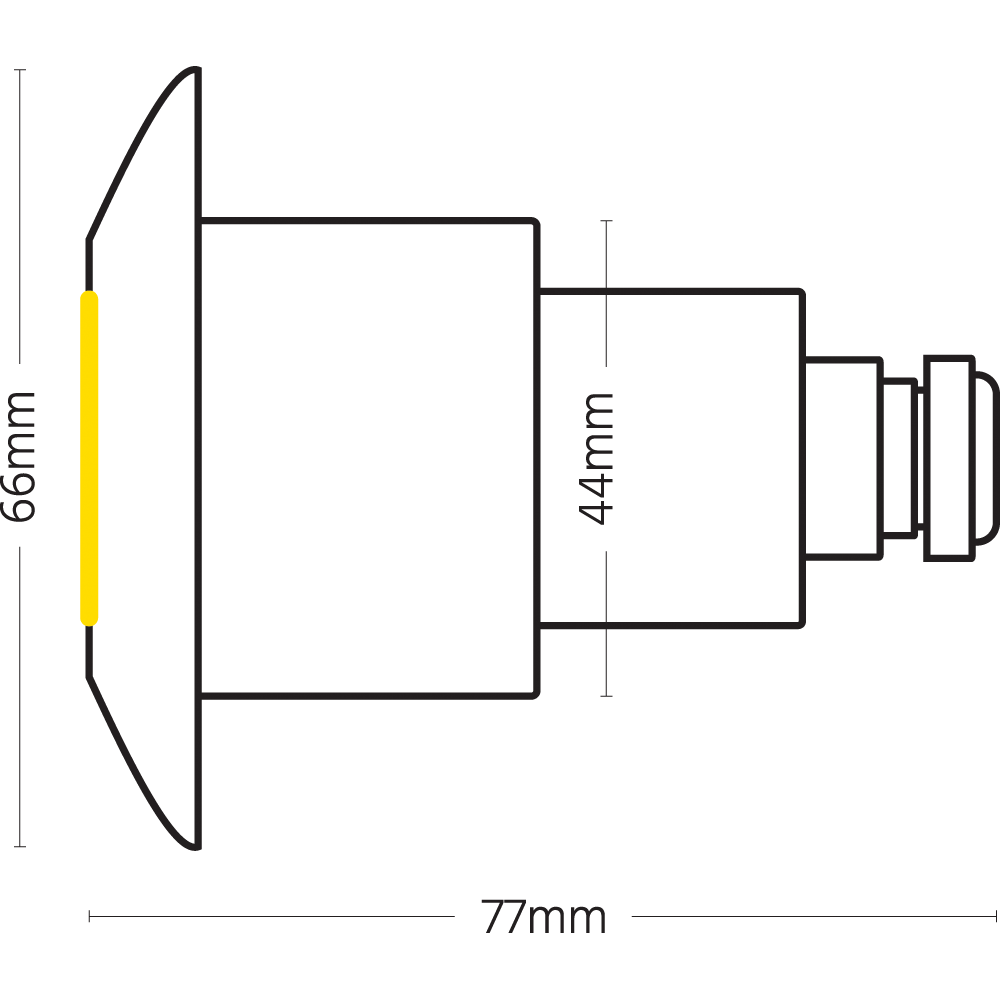

Dimensions66mm (trim – Recessed Spa Jet), 44mm (trim – Recessed Flush), 77mm (length)
Weight260g (Recessed Spa Jet), 300g (Recessed Flush)

Downloads

Photometrics
Photometrics
Photometrics
Photometrics
Install Guide
Install Guide
Install Guide
Install Guide

Series

Taipan Wall UpDown

Robust wall mounted luminaire with dual up/down outputs
Wall Luminaires
Fixed Colours, RGB, White

Taipan Wall UpDown

IP Rating: IP66 (316 Stainless Steel)
Mounting: Mounting Plate
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Taipan Wall

Robust wall mounted luminaire for building exteriors and streetscapes
Wall Luminaires
Fixed Colour, RGB, White

Taipan Wall

IP Rating: IP66 (316 Stainless Steel)
Mounting: Mounting Plate
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Taipan Eyelid

Recessed IP68 fixture with glare-controlling eyelid for pedestrian zones
Path and Marker Luminaires
Fixed Colours, RGB, White

Taipan Eyelid

IP Rating: IP68 (316 Stainless Steel)
Mounting: Recessed
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Clear, Frost

Taipan Adjustable

Adjustable IP68 fixture with mounting plate or spike, ideal for gardens & ponds
Spot and Accent Luminaires
Fixed Colour, RGB, White

Taipan Adjustable

IP Rating: IP68 (316 Stainless Steel)
Mounting: Yoke – Plate, Spike or No Attachment
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Taipan

Robust, versatile IP68 luminaire with multiple recessing options
Uplights and Inground Luminaires
Fixed Colour, RGB, White

Taipan

IP Rating: IP68 (316 Stainless Steel)
Mounting: Recessed
LED Colours: Whites, Red, Green, Blue, Amber, RGB
Beam Options: Spot, Narrow, Wide, Oval, Frost

Gallery

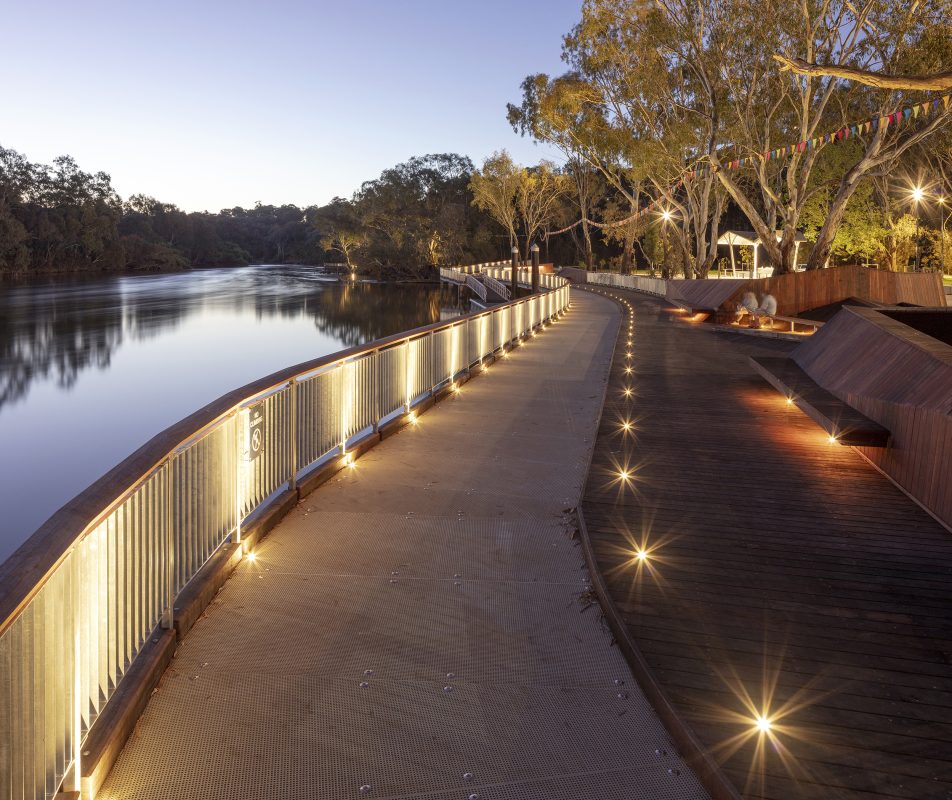

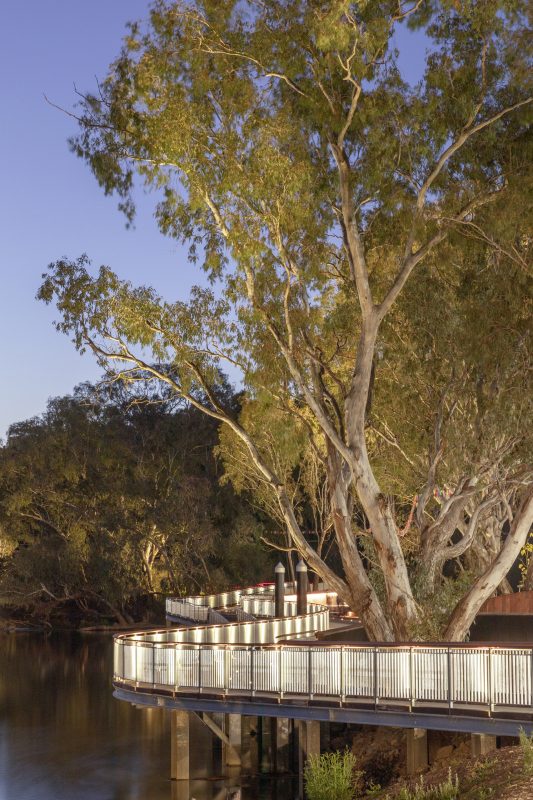

Albury Riverside
Residential

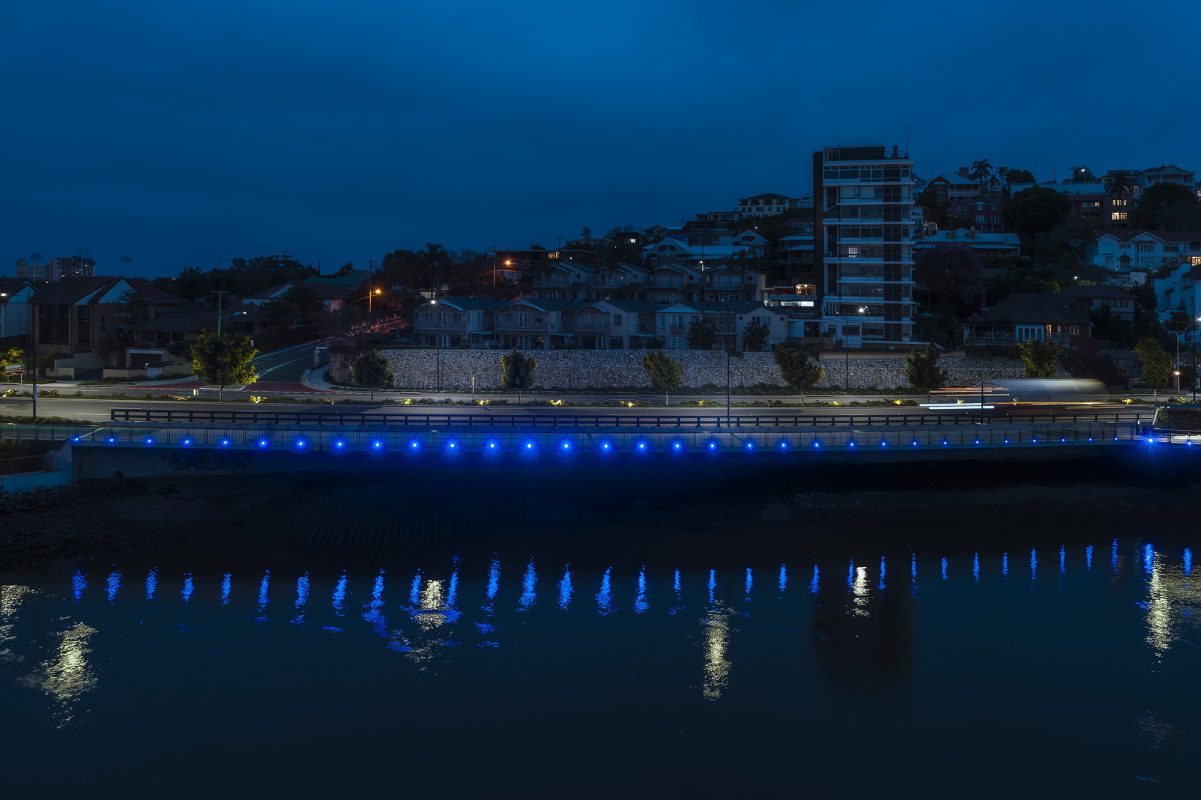

KSD 3 _2000px

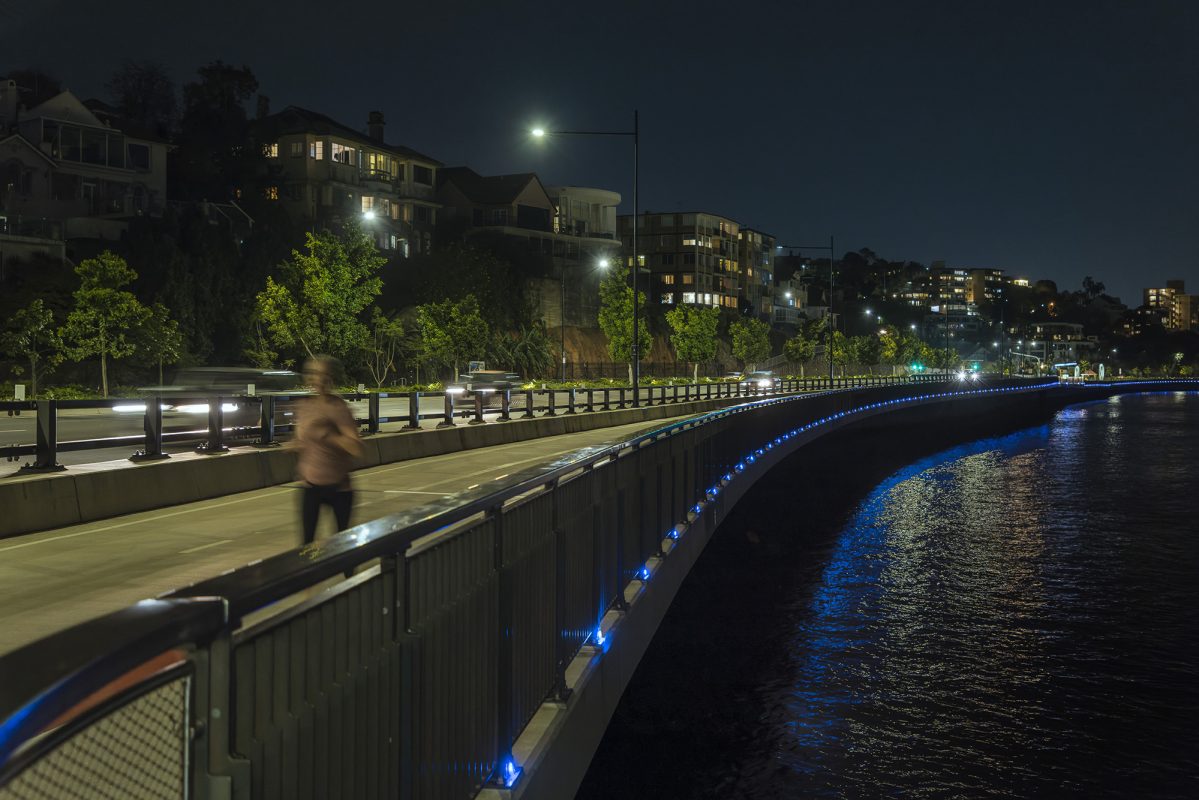

KSD 2 _2000px

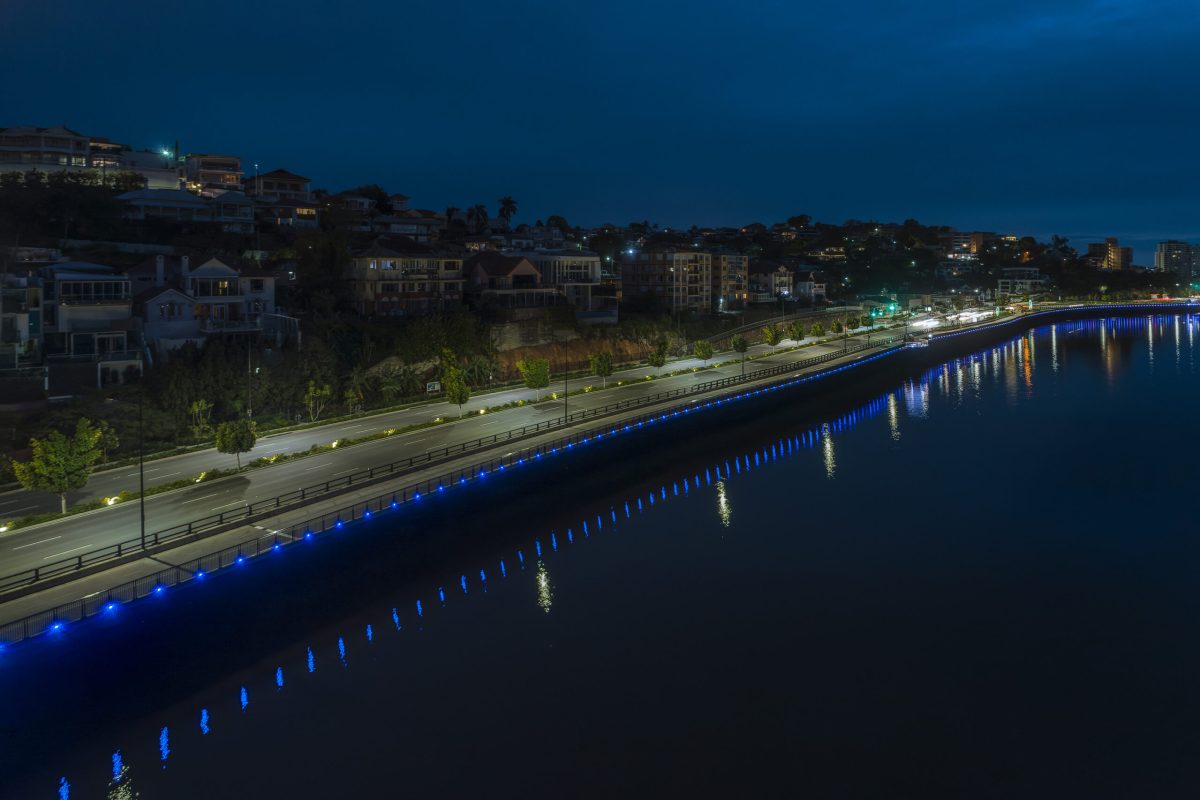

Project: Kingsford Smith Drive, Brisbane. Photography: Jackie Chan
Project: Kingsford Smith Drive, Brisbane. Photography: Jackie Chan

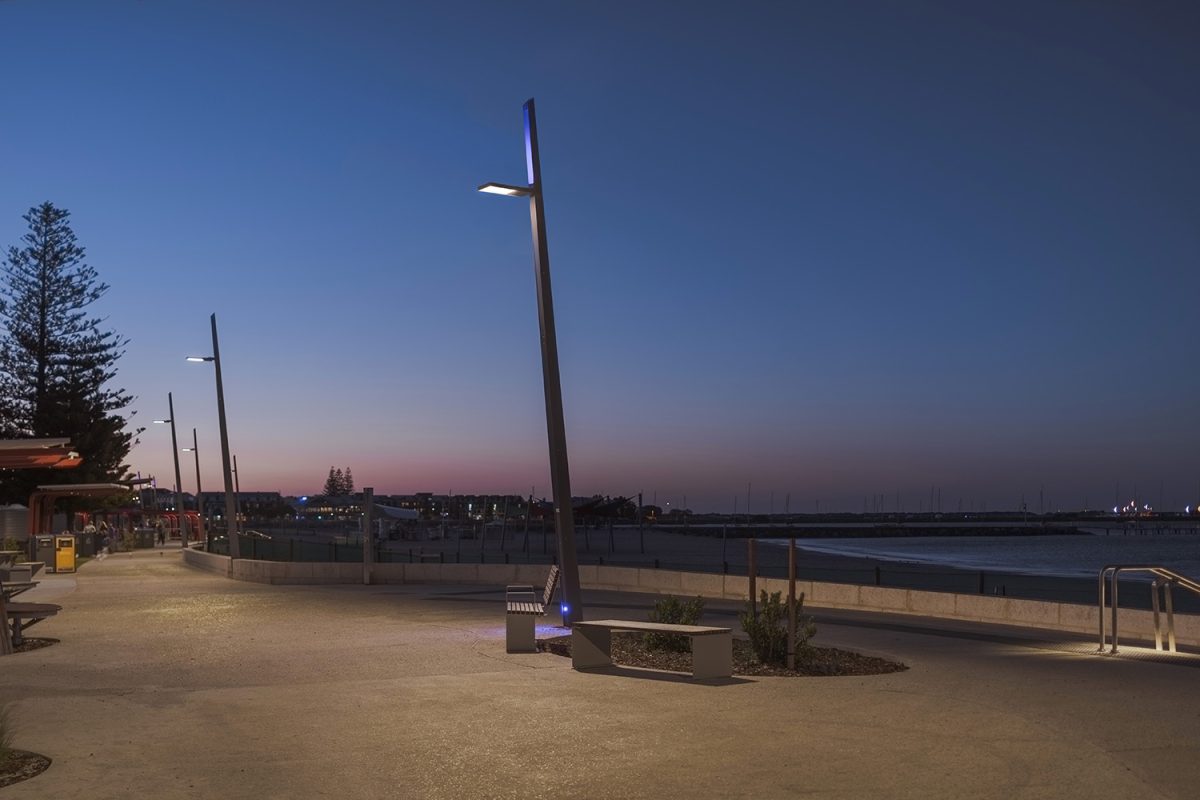

Koombana_3_1500px

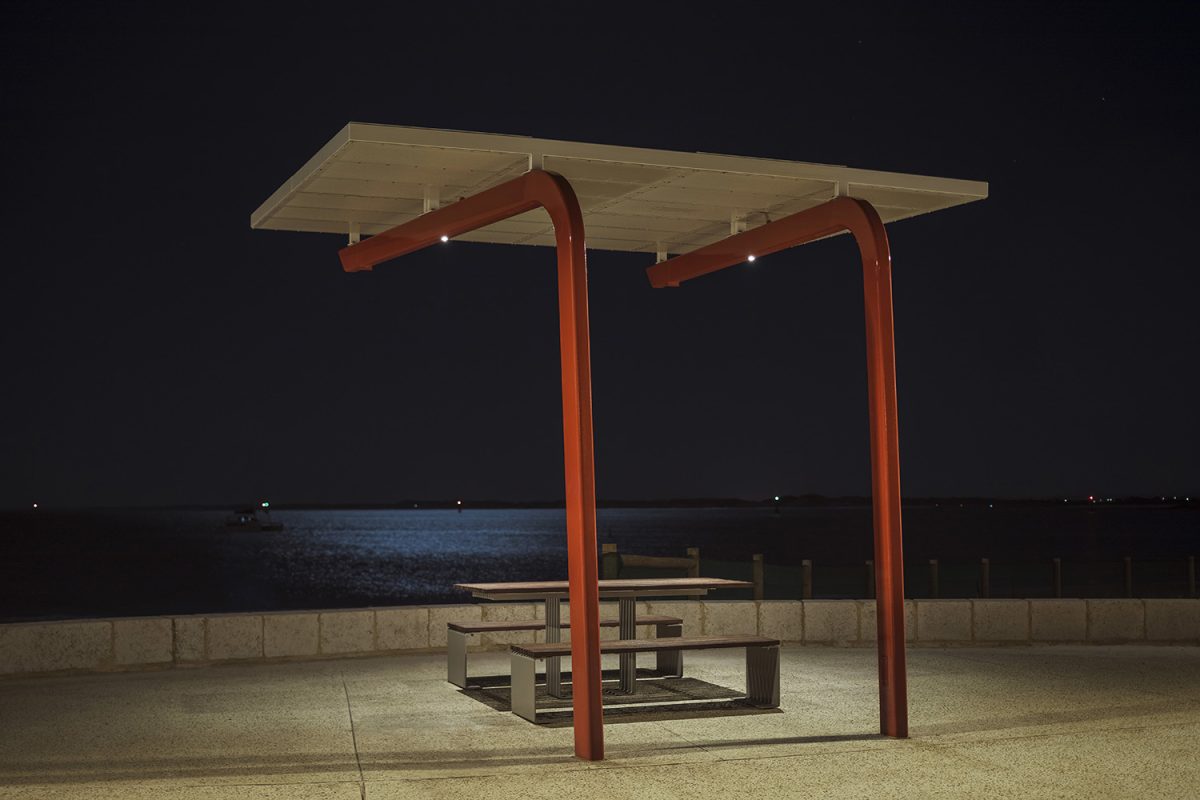

Koombana_2_1500px

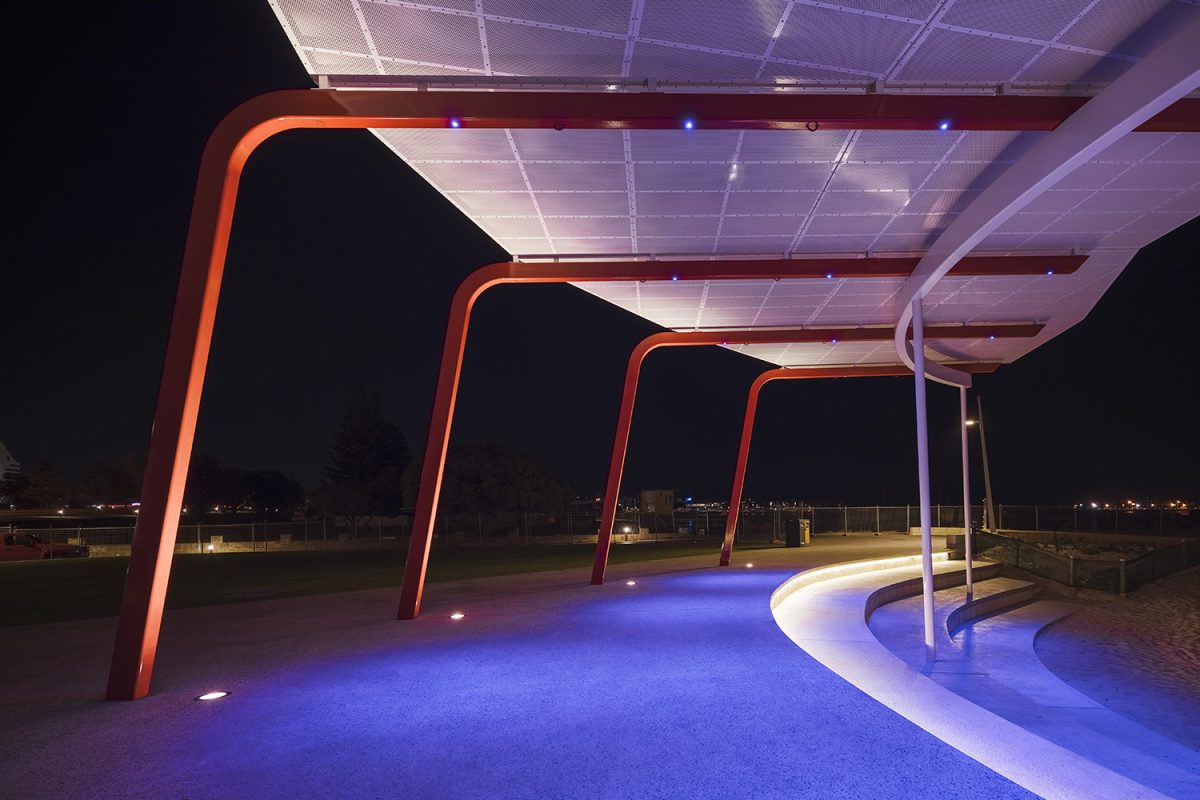

Koombana_1_1500px
SIMON WOOD PHOTOGRAPHY
IMG_1806

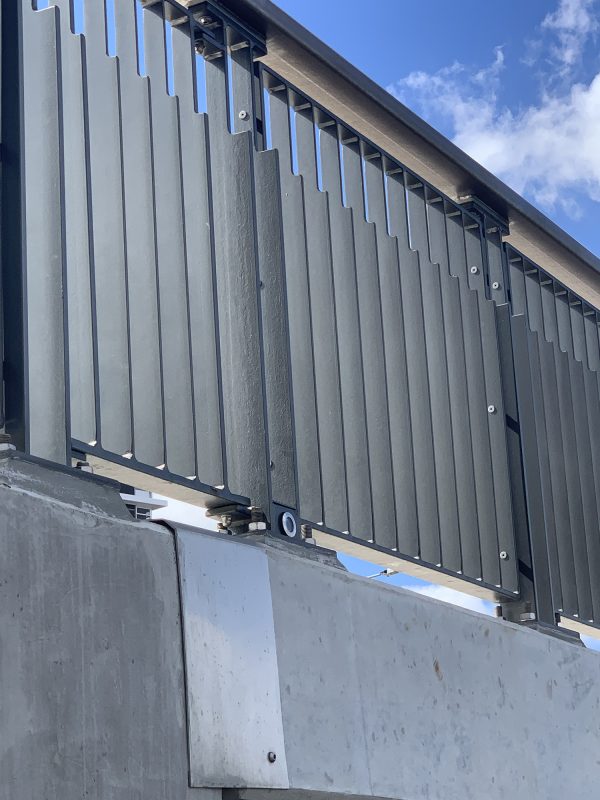

IMG_1802
